Stand in a quiet shop after everyone's gone home, with the line still pressurized, and listen. That faint hiss you hear? That's money. In a lot of plants, as much as 30 percent of the air the compressor works to make never reaches a single tool. It leaks out of fittings and couplings you stopped noticing years ago.
That's why compressed air leak detection is the highest-payback job most shops never get around to. The fix is usually cheap. The waste, if you ignore it, is not. Here's how to find the leaks, fix them, and figure out what they're really costing you.
What leaks actually cost
The numbers get people's attention. A single 100,000 square foot facility can burn more than 35,000 dollars a year if 30 percent of its air leaks away, and that's at a cheap power rate of 5 cents per kWh. Here's a real example: a mid-size plant spending 250,000 dollars a year on compressed air ran an ultrasonic survey and found 90 leaks worth 36,000 dollars. Repairs ran 7,000. They netted 29,000 dollars a year in savings and paid the whole thing off in under three months.
And that's just the power bill. Every leak makes your compressor run longer and cycle more often, which wears it out faster and drives up maintenance. Fixing leaks is one of the rare projects that cuts cost and extends the life of your equipment at the same time.
Three ways to find them
Ultrasonic detection, the one worth owning

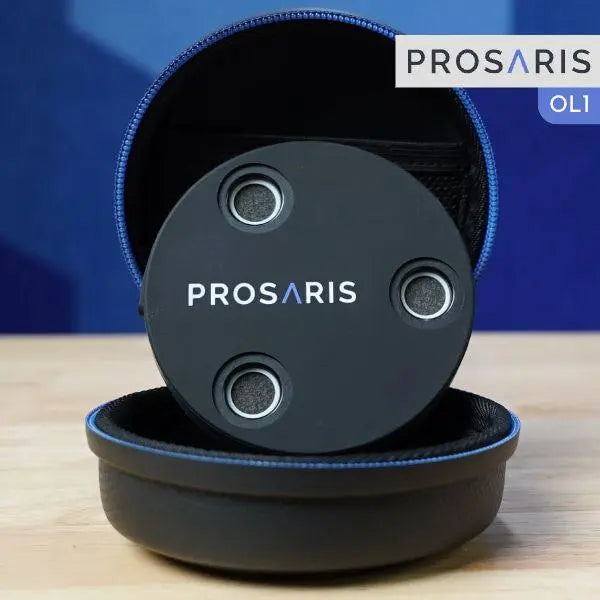

When air escapes a pressurized line, it makes a high-frequency sound you can't hear. An ultrasonic detector picks that sound up and turns it into something you can hear in headphones or see on a screen. The units are easy to use, they work while the plant is running, and they'll find leaks tucked behind machinery or up in the ceiling that you'd never catch by ear. For any real compressed air leak detection program, this is the tool to have.
The soapy water trick
Old school and still useful. Brush soapy water onto a suspect fitting and watch for bubbles. It's reliable and basically free, but it's slow and messy, and it's no fun on overhead pipe. Good for double-checking one joint, bad for surveying a whole building.
The load and unload test
Want to know if you even have a problem before you buy anything? Shut off every tool, then time how long the compressor runs loaded (T1) versus unloaded (T2) and run this:
Leakage % = [T1 / (T1 + T2)] x 100
If you land above about 10 percent, you're leaking more than you should and a full survey is worth it.
Where the leaks hide
Leaks love connections. Check these first:
- Quick-disconnect fittings and couplings, the number one offender by a wide margin
- Threaded joints and pipe connections
- Hoses and hose ends
- FRLs, drains, and traps
- Old condensate drains stuck open
How to fix what you find
Good news: most repairs are quick and cheap. Just tightening loose connections typically clears 10 to 20 percent of your detectable leaks in an afternoon for almost nothing. Past that, the playbook is simple:
- Tag every leak as you find it so none get lost.
- Tighten the loose threaded and compression fittings first.
- Replace worn couplings, quick-disconnects, hoses, and cracked fittings.
- Re-seal threaded joints with fresh sealant.
- Swap any failed condensate drains for reliable electronic or no-loss ones.
If your system is full of leak-prone push-together fittings and old rubber hose, moving to a quality aluminum pipe system cuts down future leaks in a big way. Take a look at aluminum air piping and condensate drains to lock the savings in.
Make it a habit, not a one-time thing
Leaks come back. People add new drops, fittings wear, drains fail. The shops that actually keep their savings run compressed air leak detection on a schedule, every quarter or twice a year, tag and repair what they find, and track the leak percentage over time. Once you own an ultrasonic detector, one person can knock out the whole survey in a few hours.
Frequently Asked Questions
How much air is usually lost to leaks?
In a system nobody's managing, leaks commonly waste 20 to 30 percent of total output, which makes them one of the biggest energy losses in the building.
What's the best tool for compressed air leak detection?
An ultrasonic acoustic detector. It hears the high-frequency sound of escaping air, works while you keep producing, and finds leaks you can't hear or reach.
How do I know if my system is leaking?
Run the load and unload test. With every tool off, leakage percent equals T1 divided by (T1 plus T2), times 100. Anything over about 10 percent means it's worth a survey.
How fast does fixing leaks pay off?
Most surveys and repairs pay for themselves in under three months on energy alone, and tightening loose fittings often pays back the same day.
Bottom line
Odds are you're paying to leak air right now. A focused round of compressed air leak detection, find them with ultrasound, tag them, tighten and replace, is the fastest payback project in the plant. Go find them, fix them, and put the next survey on the calendar.
