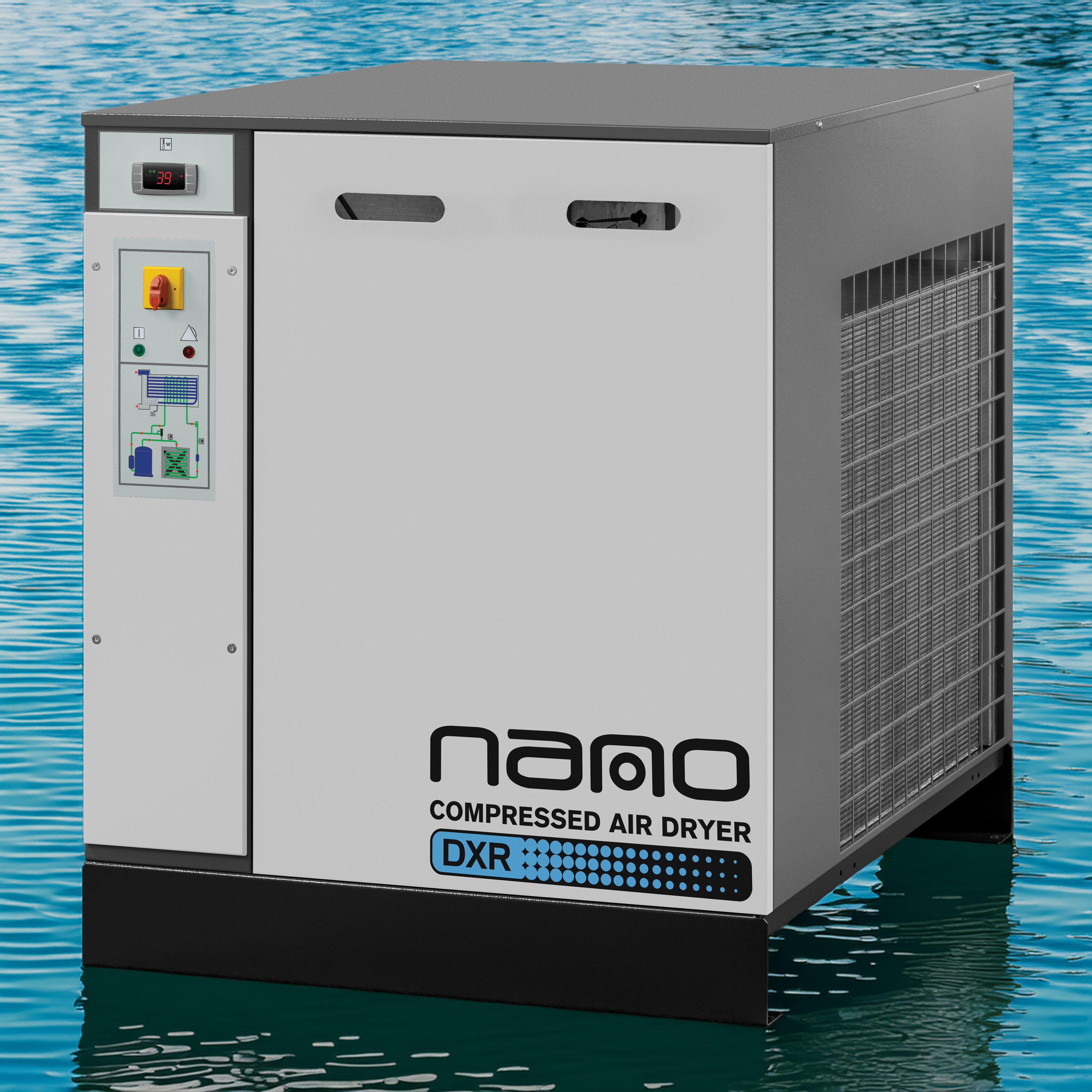

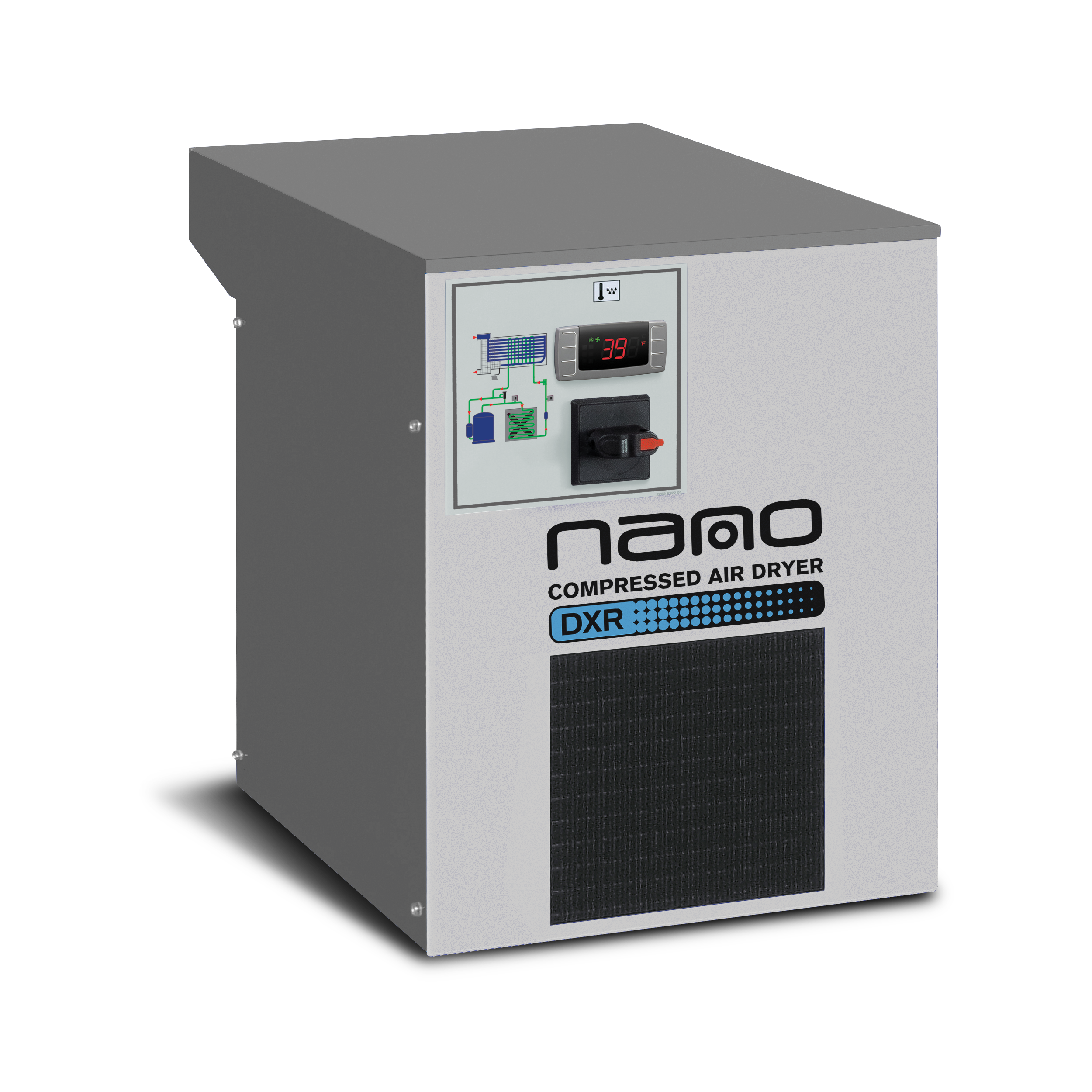

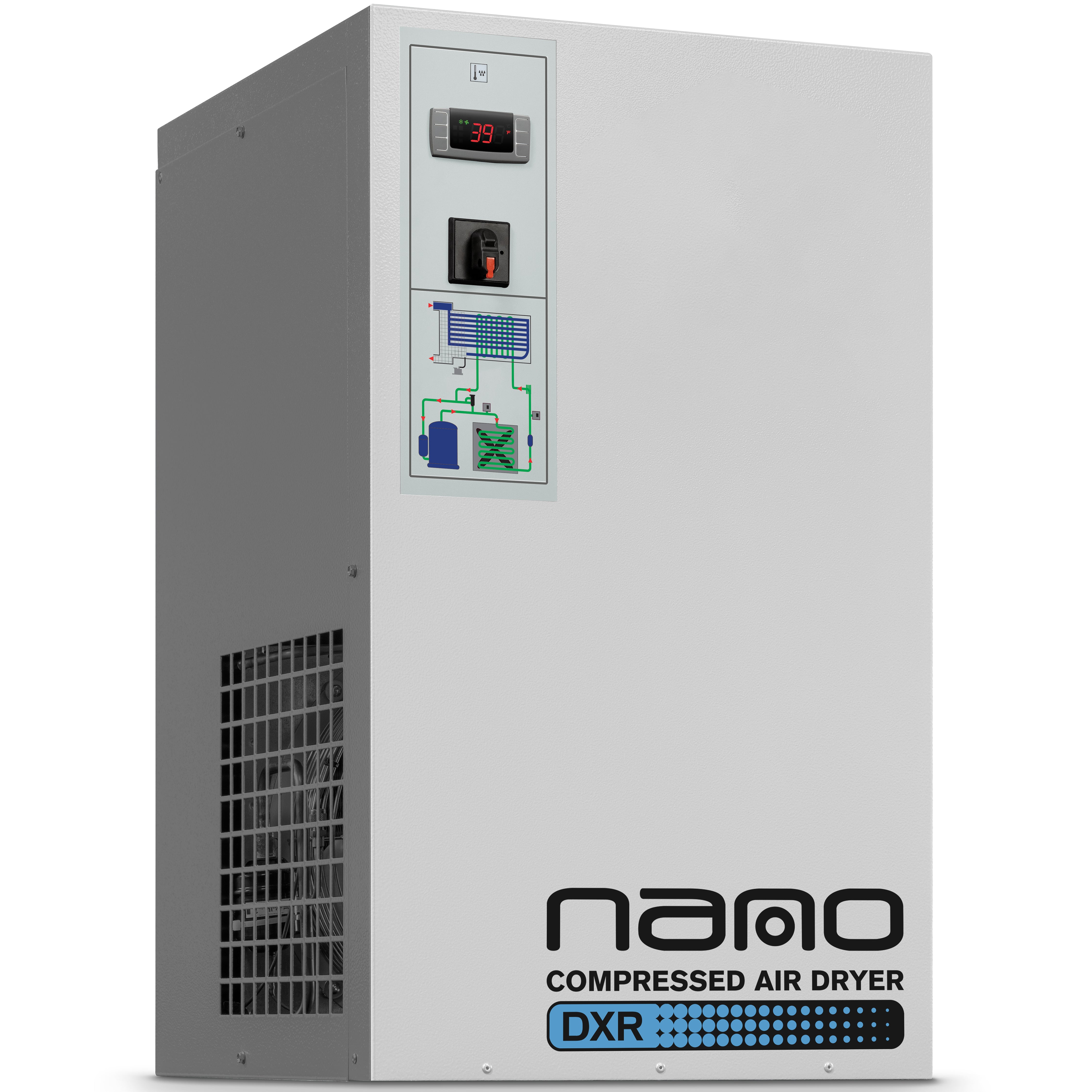

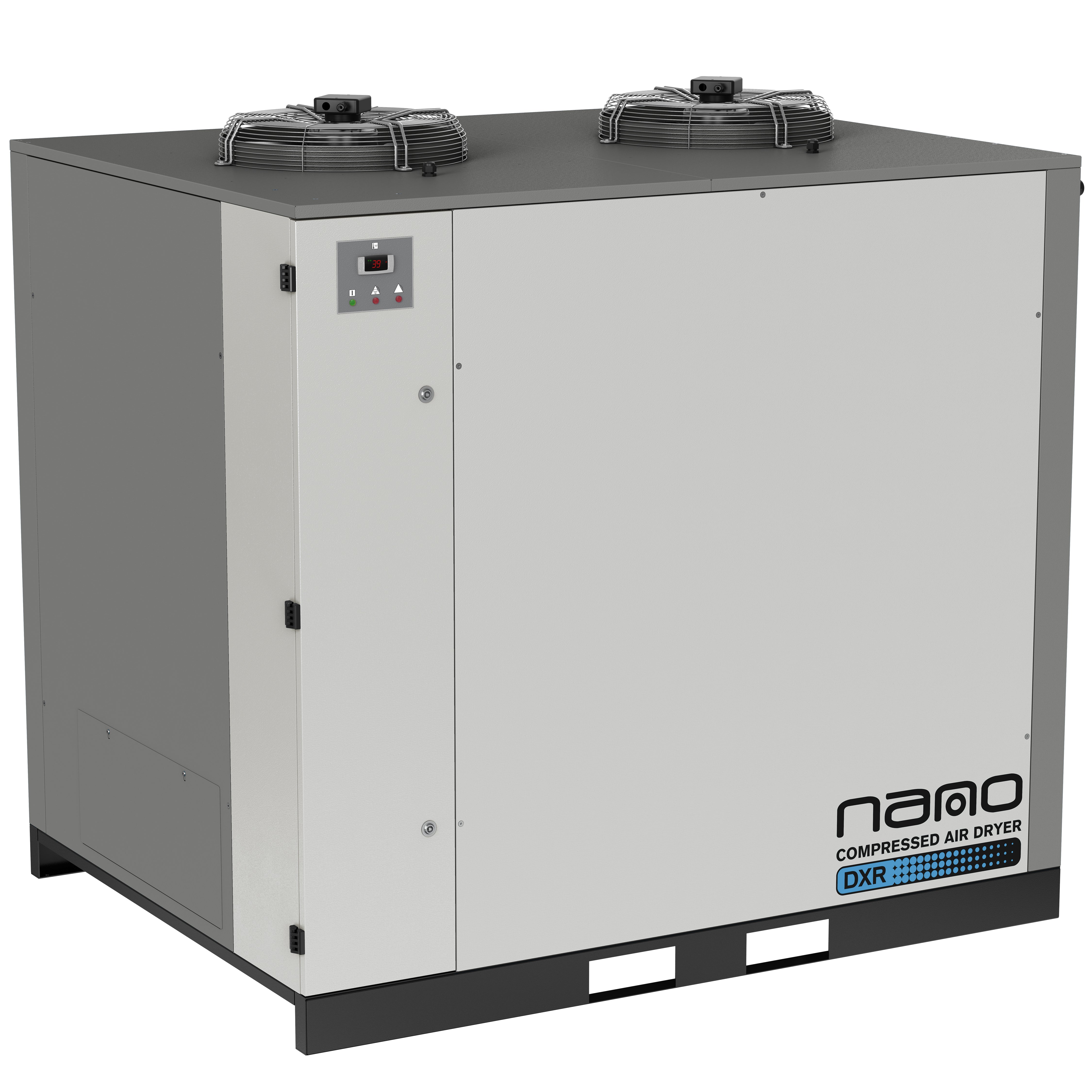

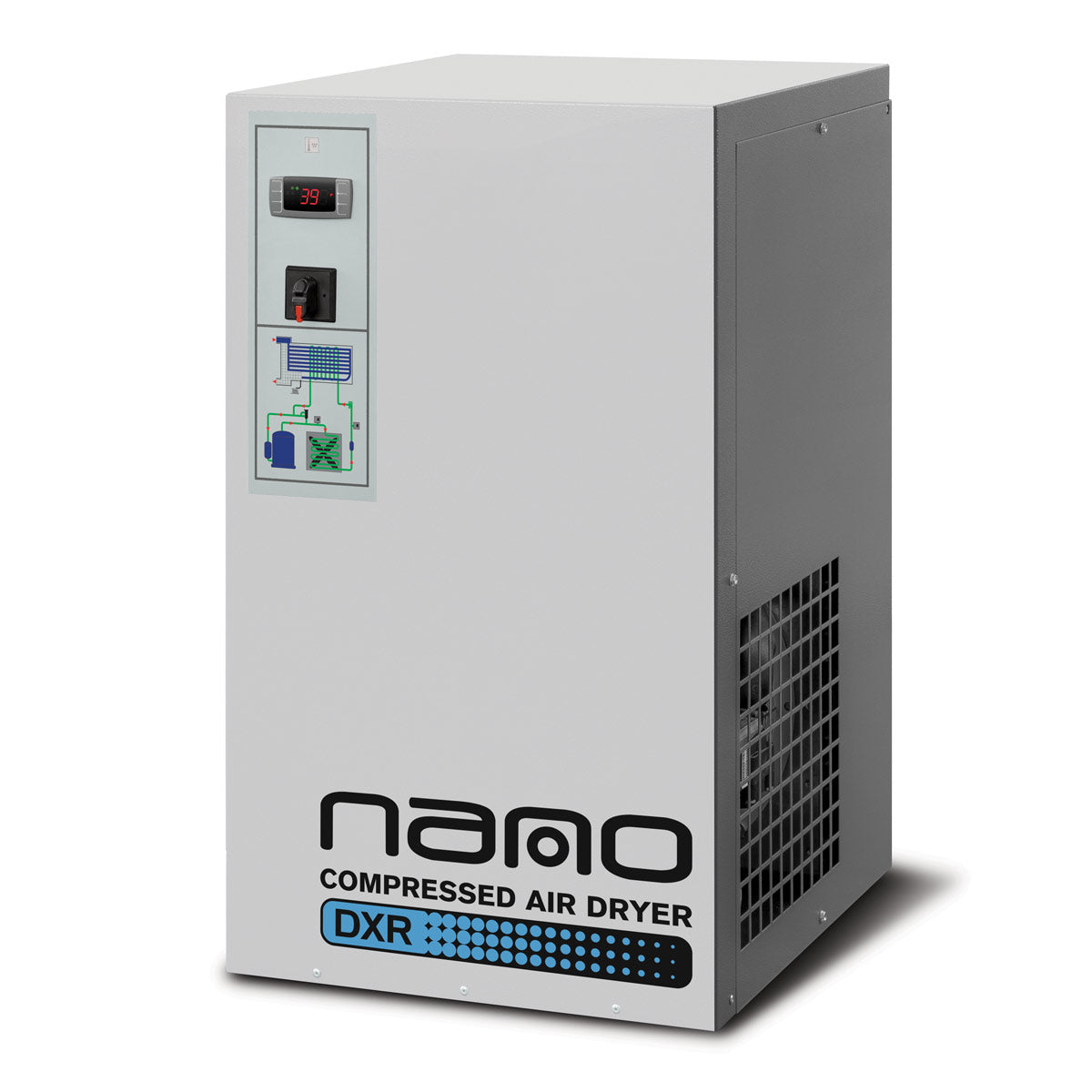

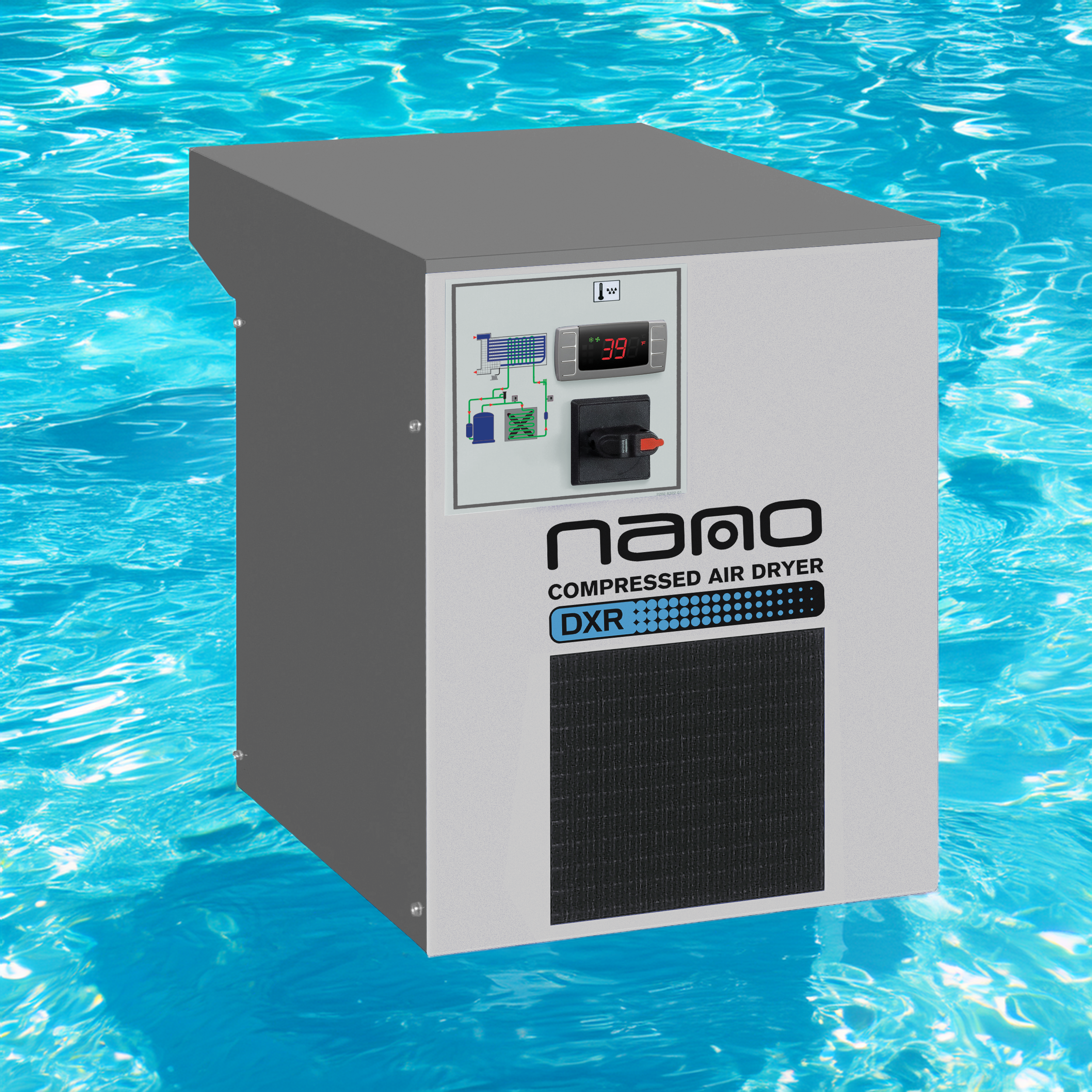

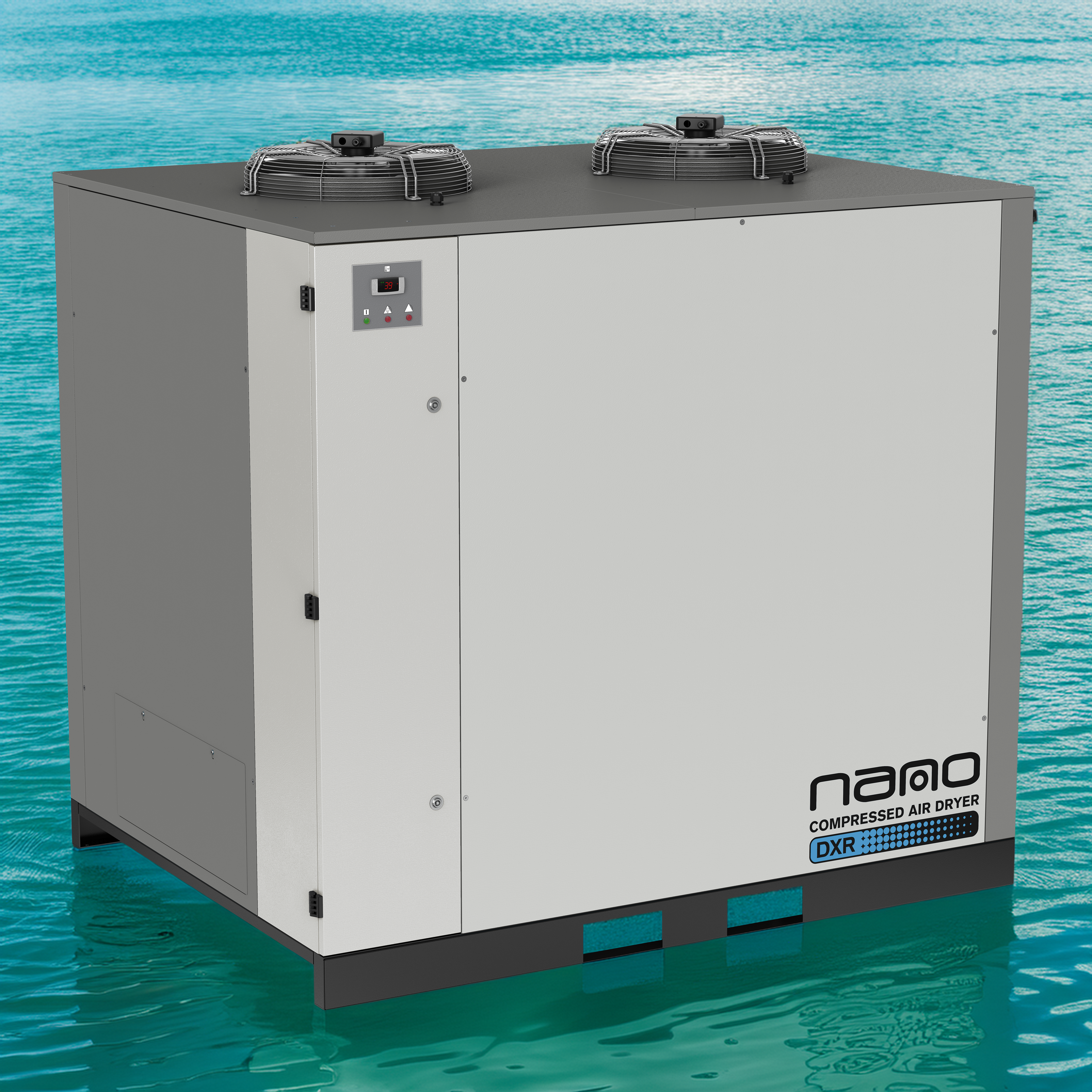

Nano DXR Non-Cycling Refrigerated Air Dryer

Nano DXR Non-Cycling Refrigerated Air Dryer

A reliable way to strip moisture from compressed air and protect your plant from corrosion, bacteria, and freezing damage. The DXR runs continuously for steady, ISO 7183-rated performance and a guaranteed dew point (ISO Class 4, 5, or 6 as required). Compact, plug-and-play, and built tough, it delivers clean, dry compressed air with low pressure drop and a zero air loss drain that saves energy instead of bleeding it.

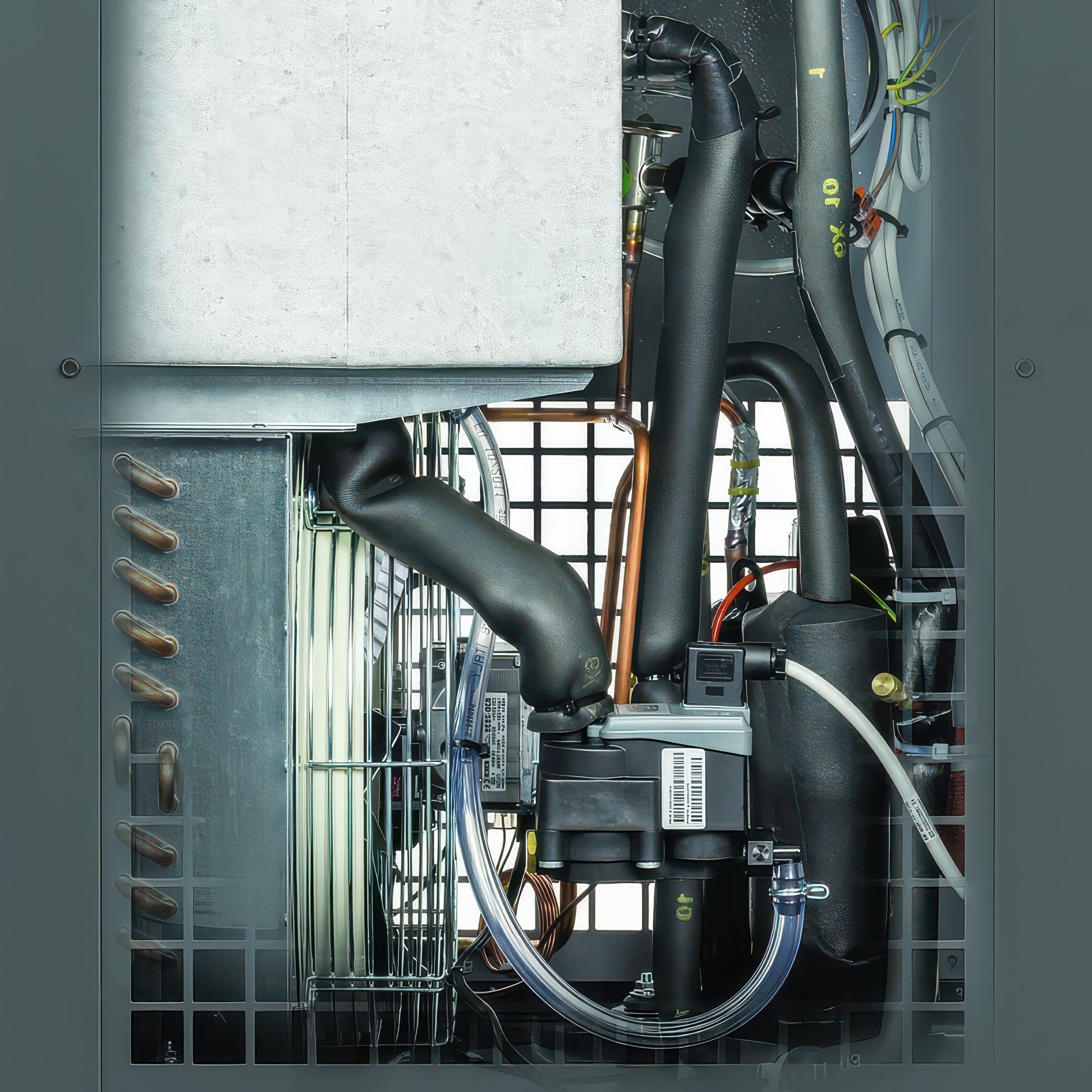

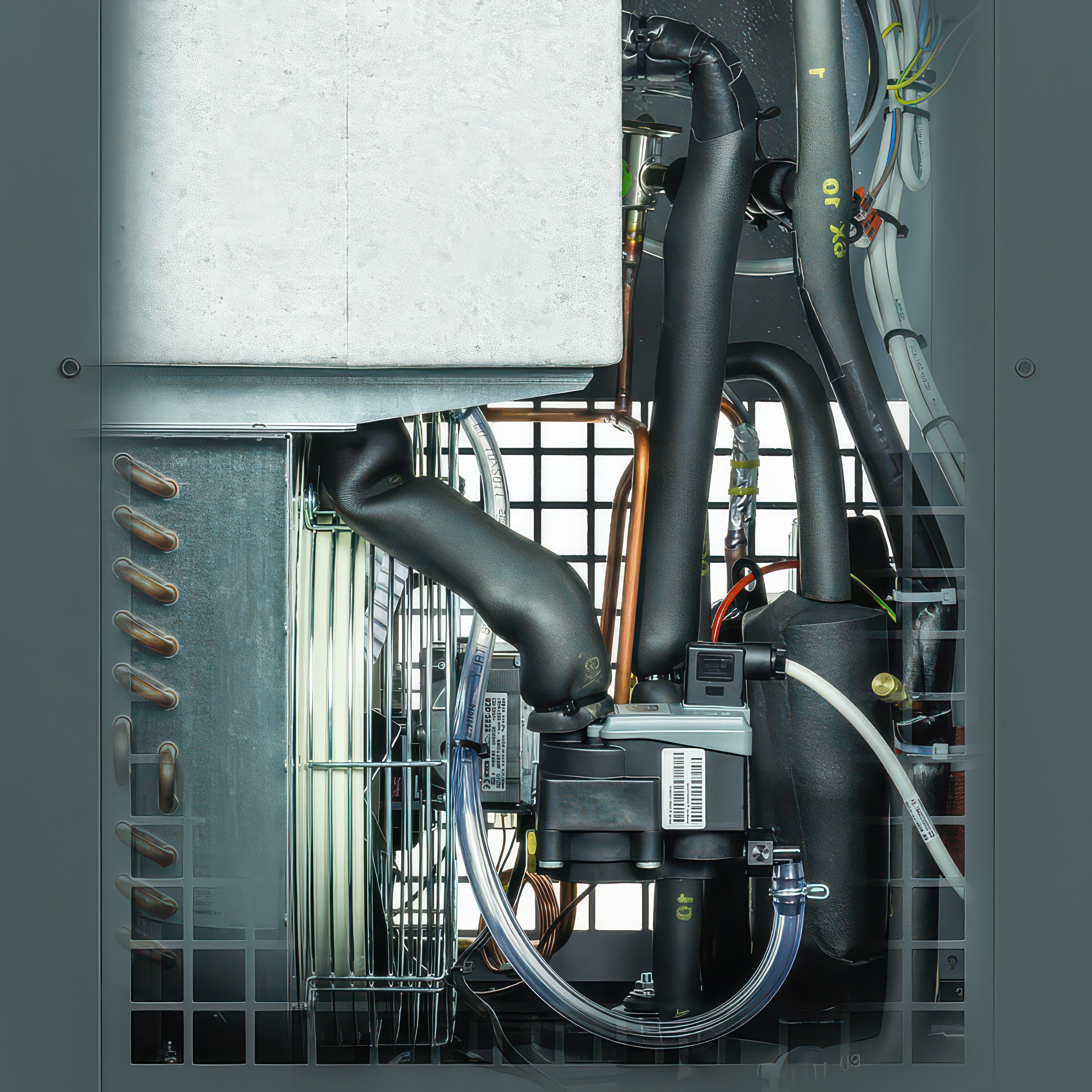

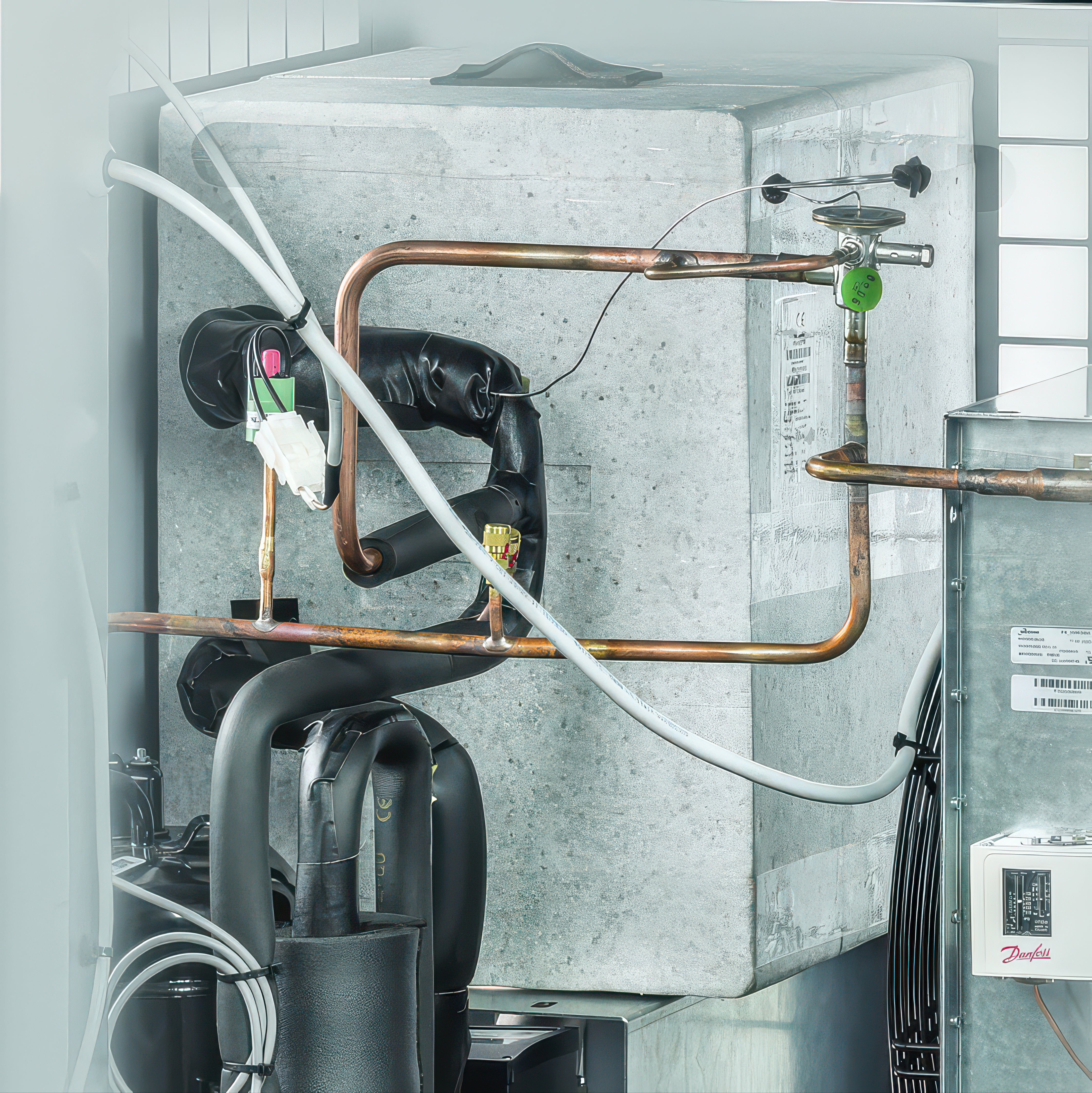

How it works (3-in-1 heat exchanger): Hot, wet air is pre-cooled by the exiting dry air, chilled in the air-to-refrigerant evaporator to condense vapor, separated in the integrated moisture separator, then reheated to prevent downstream pipe sweat. A capillary tube (no moving parts) meters refrigerant for reliability, while a hot gas bypass maintains the optimal evaporator temperature to avoid ice.

Why it’s effective

• Aluminum block heat exchanger with integrated water separator and air-to-air pre-cooler = maximum cooling efficiency and consistent pressure dew point
• Zero air loss drain on every model prevents wasting valuable compressed air
• Powder-coated, galvanized steel panels stand up to real-world abuse
• Environmentally friendly refrigerants: R513A (select models) and R410A
• Space-saving package that fits tight installs; truly plug-and-play
• Controls & protections

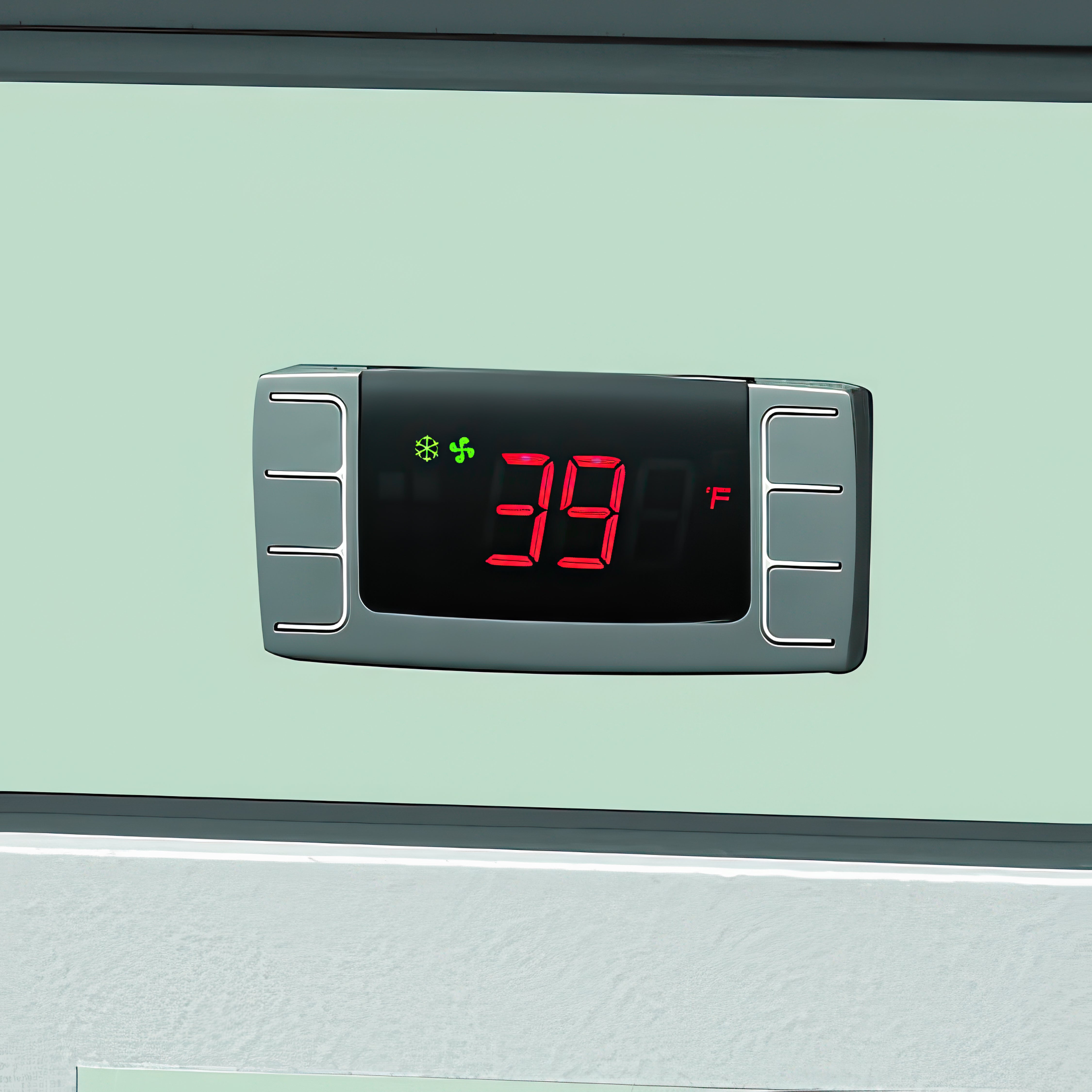

• Digital controller with outlet dew point display
• Alarm contacts (DXR 0050–4200), remote start/stop (DXR 0325–4200)
• Automatic restart after power loss and service reminder alarm
• Crankcase heater included on DXR 1600–4200

Key specs (DXR 0010–4200)

• Flow range: 10–4200 scfm (≈17–7140 Nm³/h); rated per ISO 7183 Option A2 at 100 psig / 100°F inlet / 100°F ambient
• Operating pressure: 60–232 psig (DXR 0010–0030); 60–203 psig (DXR 0050–4200)
• Max inlet temp: up to 140°F (DXR 0325–4200); 131°F on smaller models
• Ambient window: 41–114.8°F
• Connections: ½–3 in NPT; 4–6 in ANSI flanged on larger frames
• Power: 115/1/60, 230/1/60, 460/3/60 (575/3 on select sizes); specify voltage when ordering
• Apply correction factors for pressure/temperature; contact nano for sizing assistance
• Warranty: 2-year when installed with pre-filtration and non-corrosive piping

Better air quality, fewer headaches. Add performance-validated pre- and after-filters for even lower operating cost and improved air quality. The bottom line: consistent dew point, low maintenance, and real energy savings from a non-cycling dryer that just does its job. (Technical specifications subject to change; for assistance or sizing, contact nano-purification solutions.)
