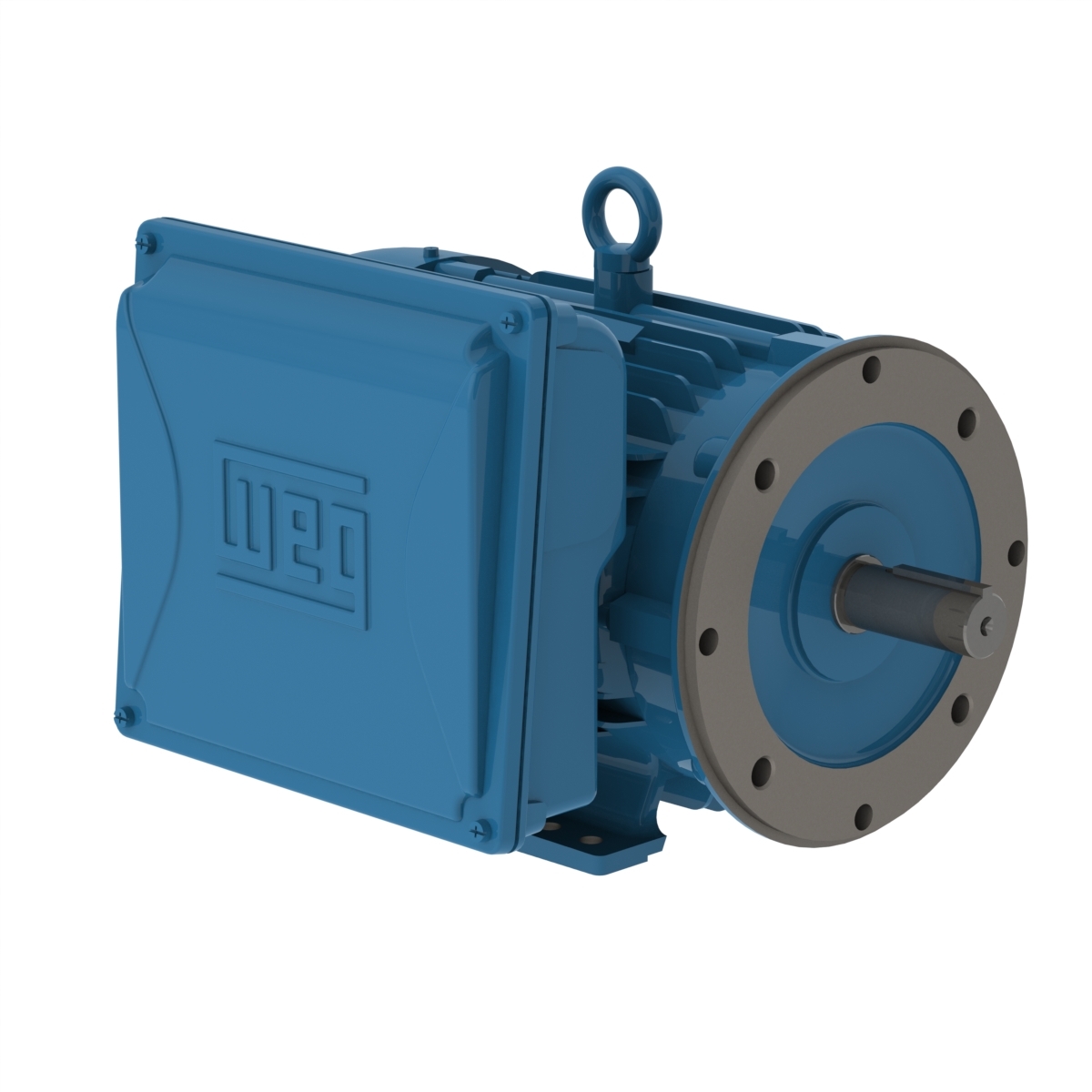

Note: Actual product may be slightly different from pictured
Call or text us at 864-894-1400. Experienced Sales Engineers are standing by to discuss your unique situation.
ACTUAL SIZE OF PRODUCT
NOT ACTUAL SIZE OF PRODUCT (Includes Box, Crate or Pallette Dimensions)
| Frame | 182/4TC |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1745 rpm |
| Slip | 3.06 % |
| Rated voltage | 208-230/460 V |
| Rated current | 14.5-13.8/6.90 A |
| L. R. Amperes | 112-106/53.1 A |
| LRC | 7.7x(Code K) |
| No load current | 5.78-6.70/3.35 A |
| Rated torque | 9.03 ft.lb |
| Locked rotor torque | 290 % |
| Breakdown torque | 270 % |
| Locked rotor time | 14s (cold) 8s (hot) |
| Moment of inertia (J) | 0.3735 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 60.0 dB(A) |
| Approx. weight³ | 110 lb |
| 50% | 75% | 100% |
|---|---|---|
| 65.0 | 74.0 | 77.0 |
| 50% | 75% | 100% |
|---|---|---|
| 0.79 | 0.87 | 0.90 |
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1″ |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 – C3) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | Yes- Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Fan material | Plastic |
| Screw cap | CARBON STEEL SAE 1010/20 |
| NDE bearing Seal | V’Ring |
| DE bearing Seal | V’Ring |
| CABLE PRESS MATERIAL | Sem |
| Weight | 110 lbs |
|---|---|
| Dimensions | 25 × 25 × 16 in |
