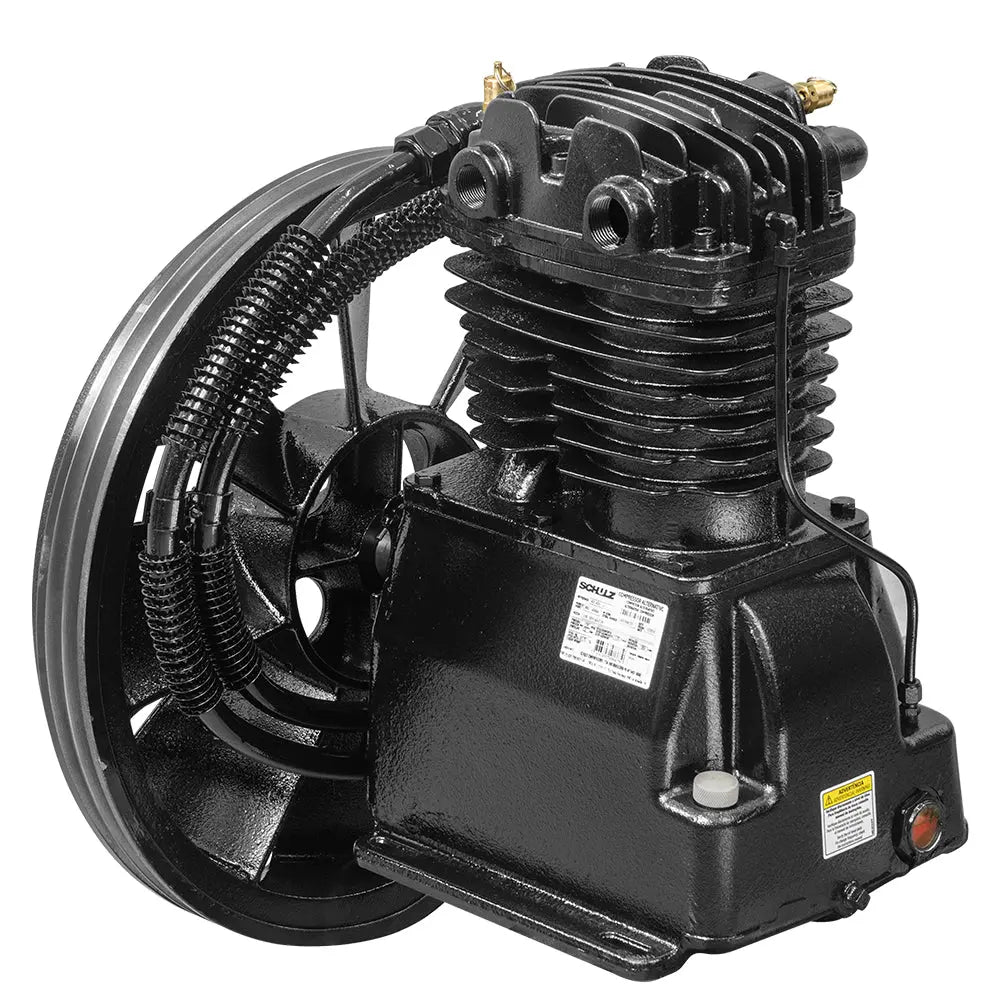

Schulz MSL40MAX 10 HP Two-Stage Cast Iron Air Compressor Pump — 40 CFM, 175 PSI
The Schulz MSL40MAX is a heavy-duty two-stage, in-line cast iron air compressor pump built for the most demanding continuous-duty applications. It delivers 40 CFM displacement at up to 175 PSI on 10 HP, with a two-stage design that reduces discharge temperatures and maximizes efficiency under heavy load. Slotted mounting feet make it ideal for tank-mounted builds or as a replacement pump for competitive brands.
Key Specifications
- Part Number: 932.9324-0
- Horsepower: 10 HP
- Air Delivery: 40 CFM displacement
- Max Pressure: 175 PSI
- Pump Type: Two-stage, belt-driven, 2-cylinder in-line
- Speed: 1020 RPM
- Belt Type: 2-A
- Oil Capacity: 1.5 qt (splash lubricated)
- Discharge: 3/4" NPT
- Construction: Solid cast iron with stainless steel reed valves
- Weight: ~185 lbs
Applications
Large industrial manufacturing facilities, automotive production and assembly operations, and high-demand pneumatic networks running continuous compressed air.
Backed by a 1-year pump warranty, the Schulz MSL40MAX delivers maximum airflow with rugged cast iron durability — built for operations that depend on uninterrupted compressed air.
NOTE: Actual product may be different from pictured!
