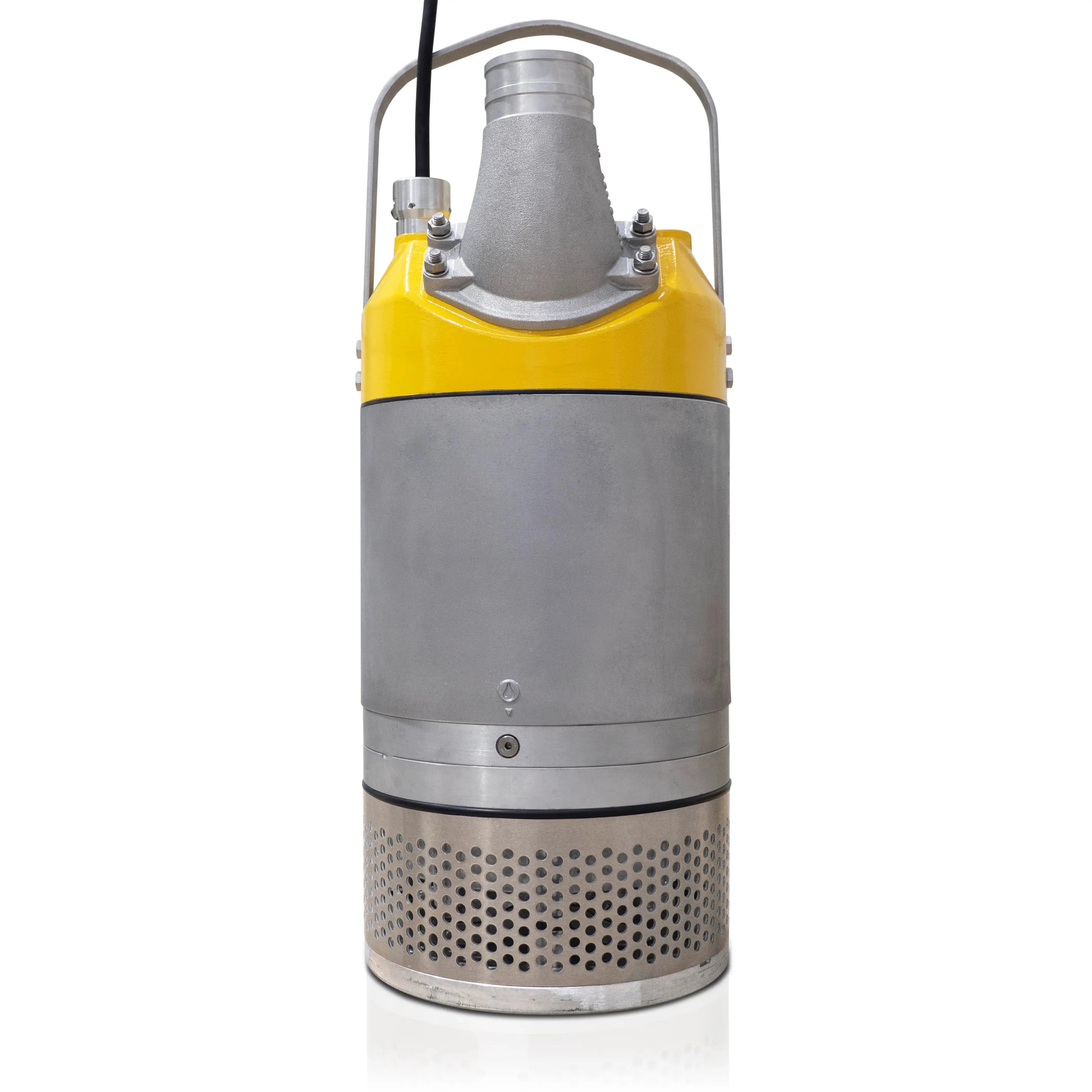

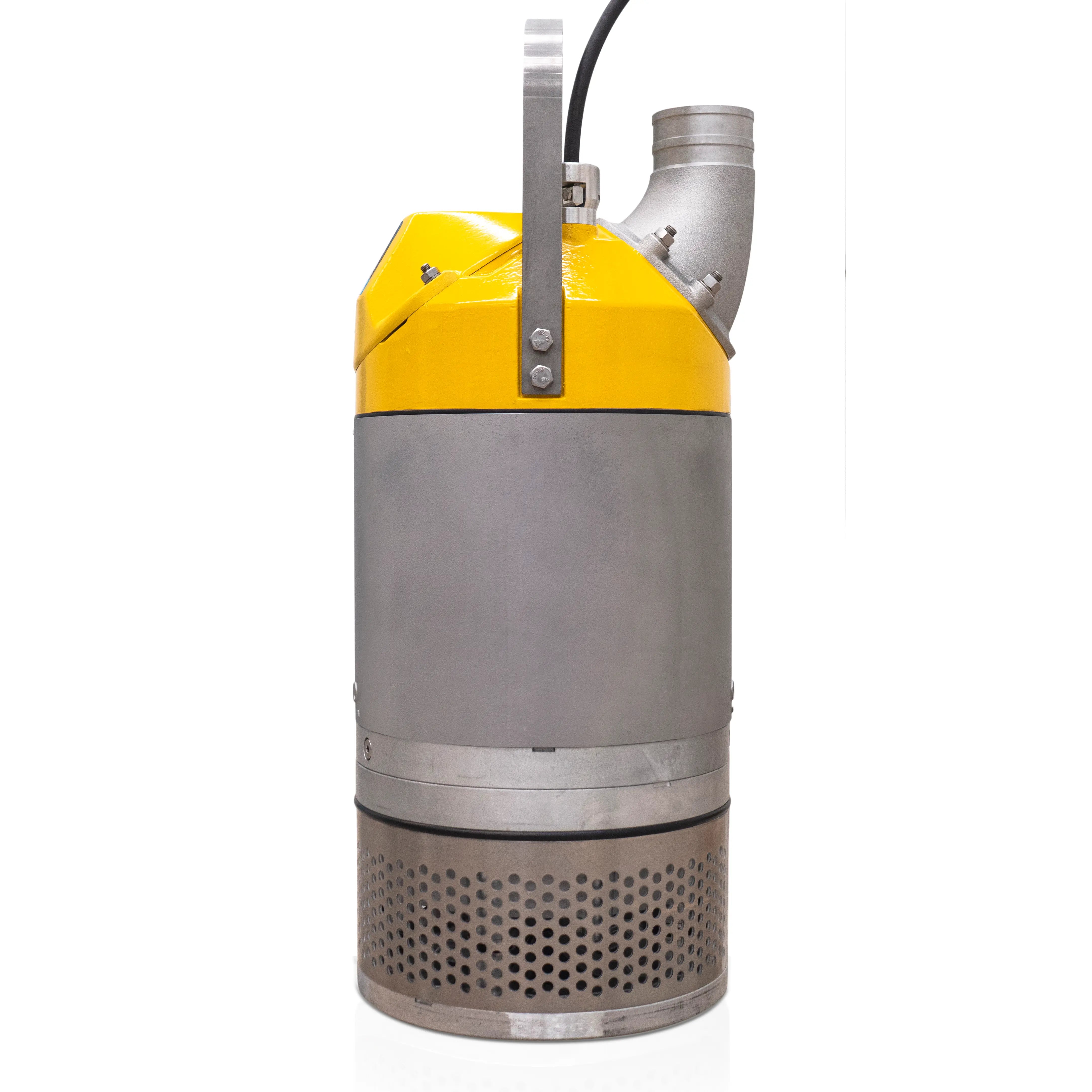

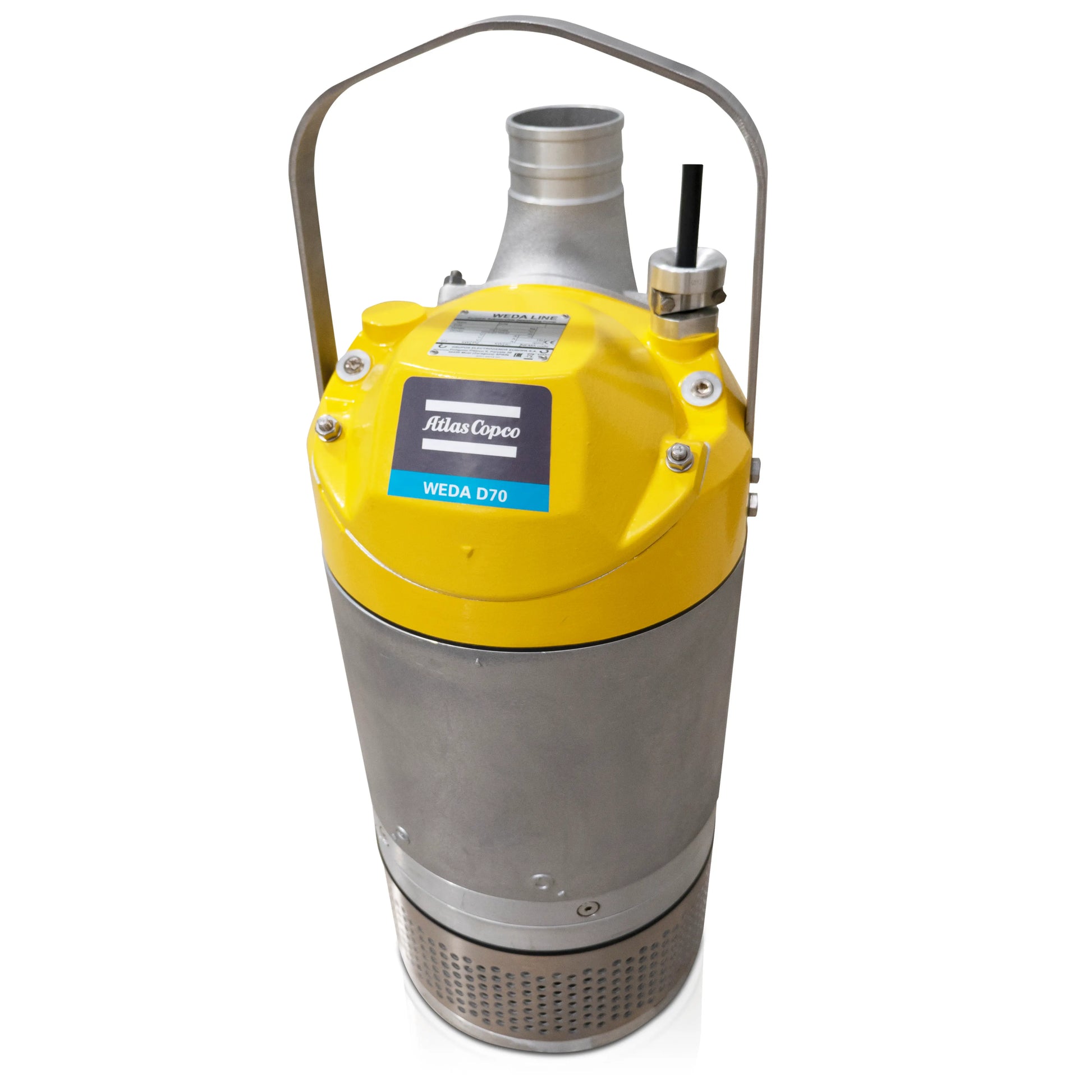

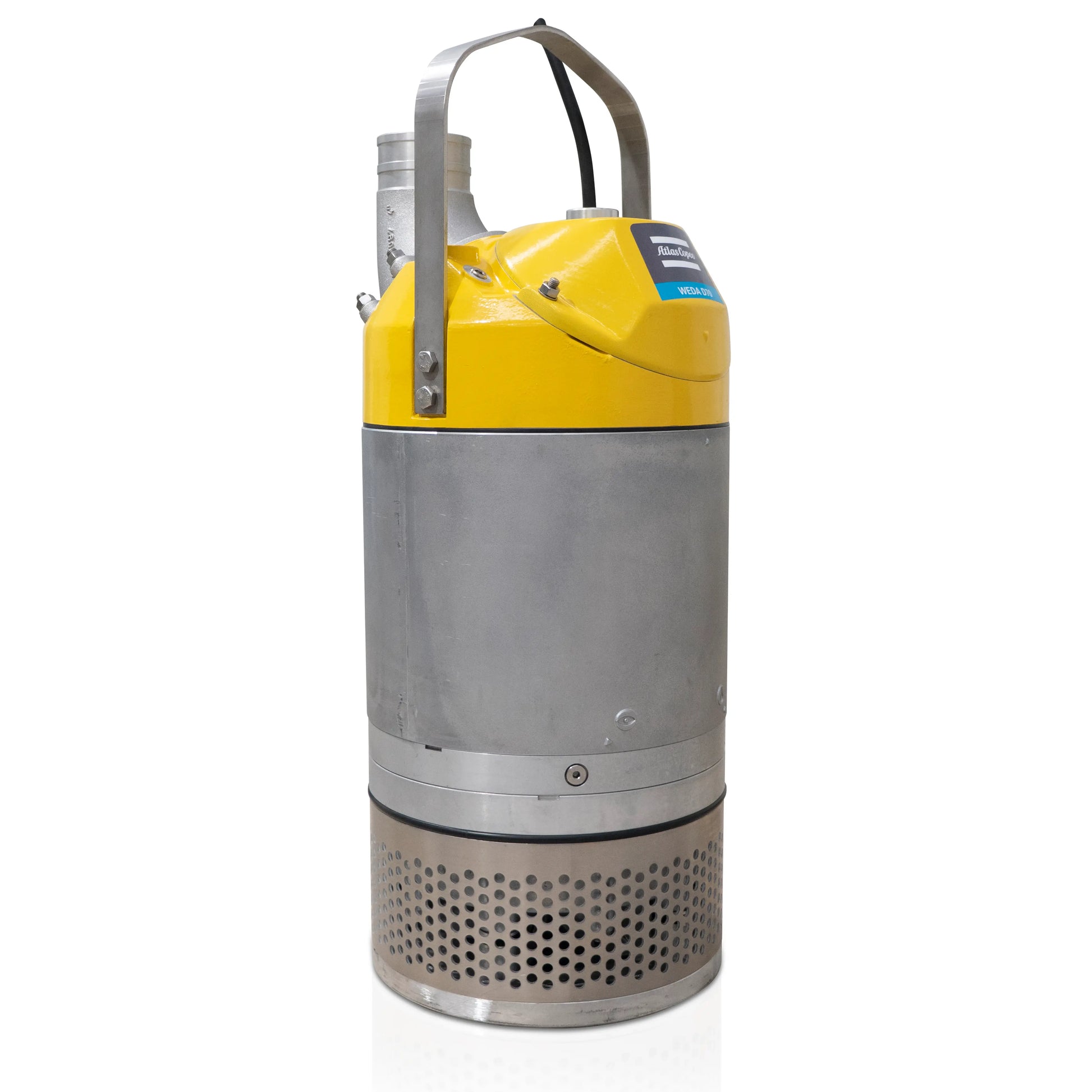

Atlas Copco WEDA D70L | Drainage Submersible Pump — High Flow / Low Head, 18 HP, 460V 3-Phase, 6" Discharge
| Specifications (As Configured) | |
|---|---|
 Vendor |
Atlas Copco
|
 SKU |
3081620944
|
 Horsepower |
|
| Dimensions | |
 Weight |
244.0 lb
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
| Downloadable Files | |
 Brochure PDF |
|

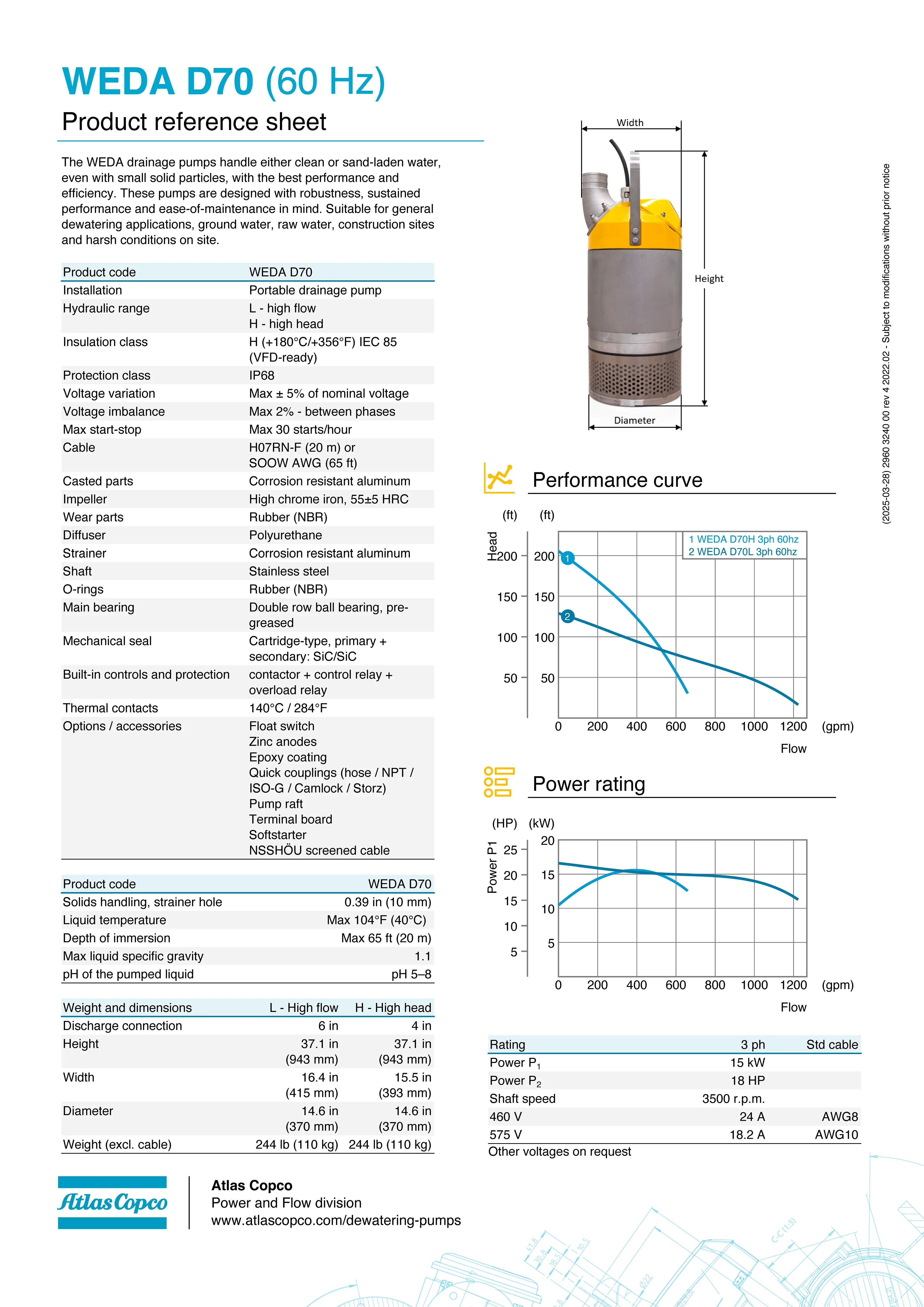

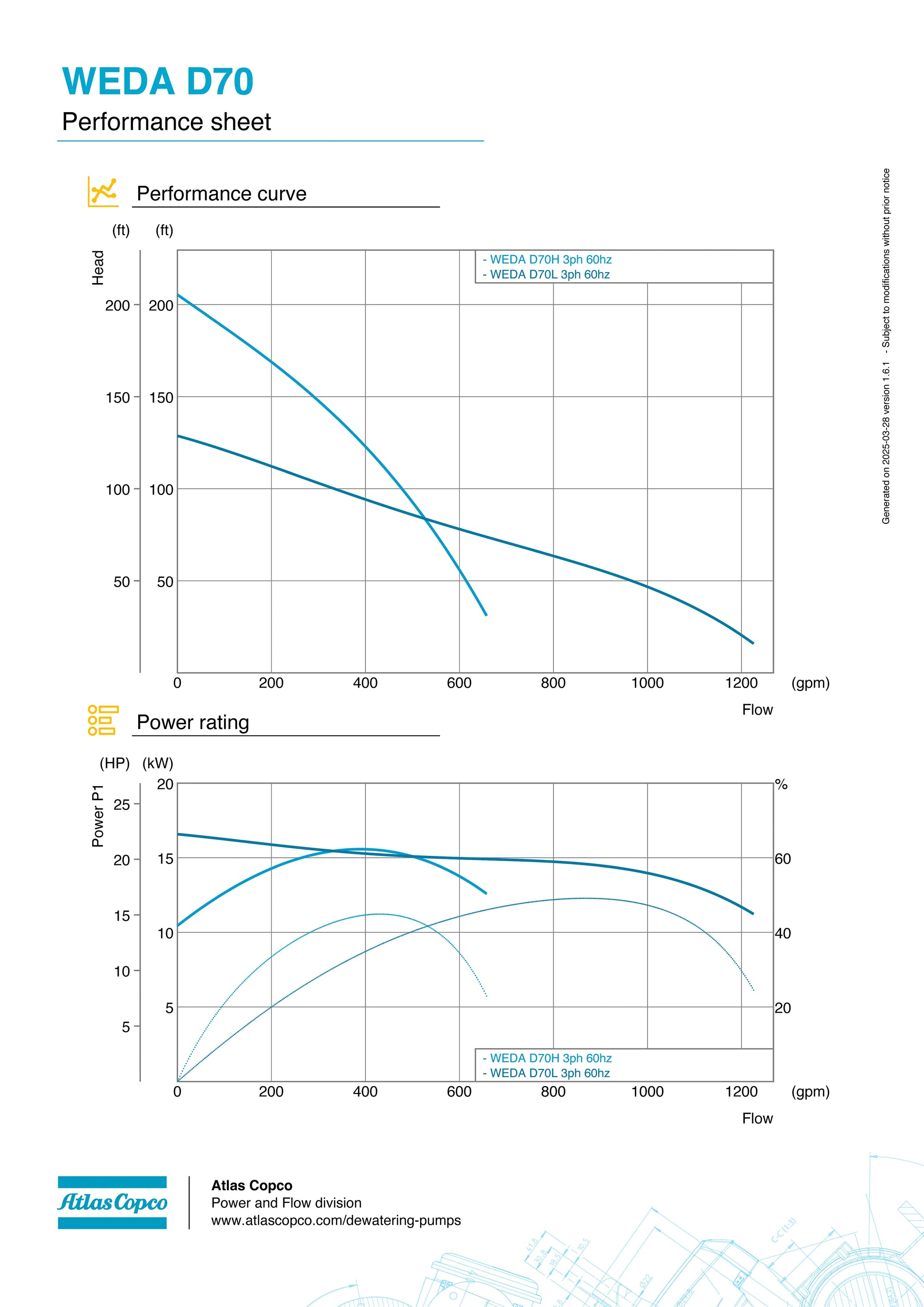

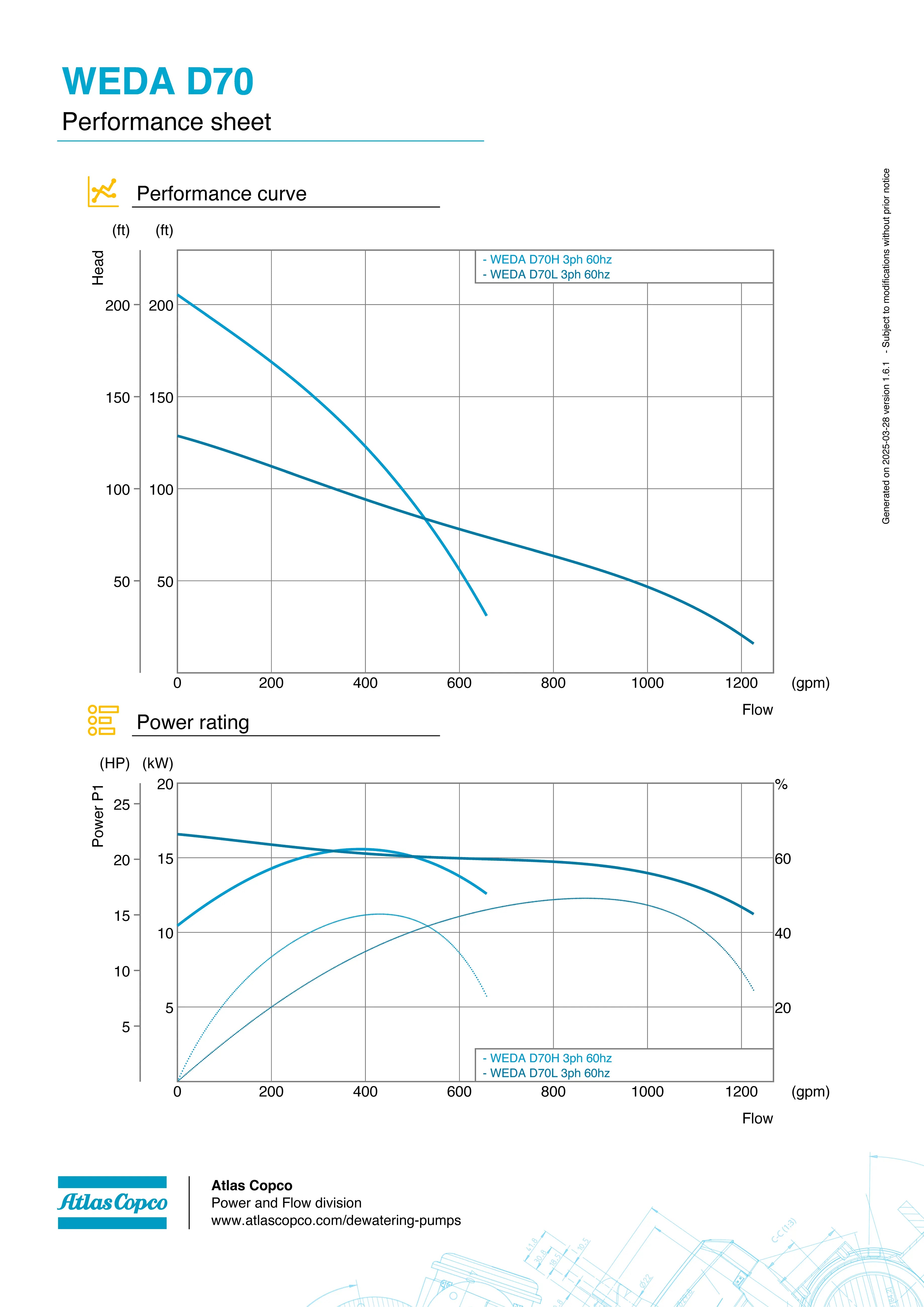

 Technical Data |
|

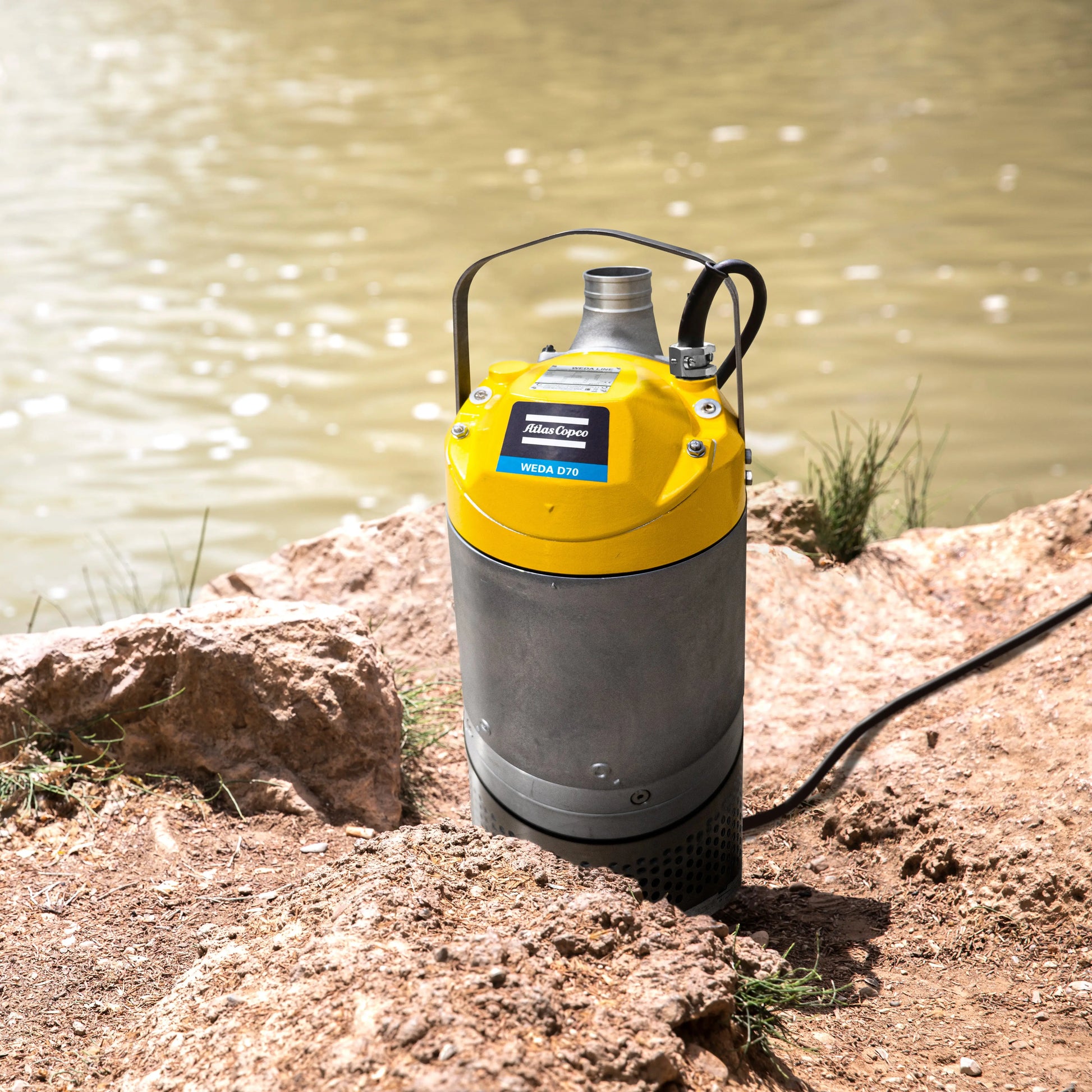

When you need dependable submersible pumping on your toughest jobs, the Atlas Copco WEDA D70L is an 18 HP (13.4 kW) drainage pump delivering up to 1,230 gpm at a maximum head of 129 ft. This High Flow / Low Head variant prioritises maximum volume throughput for rapid dewatering of flooded areas, pits, and surface ponds where speed matters.
Technical Specifications
| Model / Part Number | WEDA D70L |
|---|---|
| Part Number (SKU) | 3081620944 |
| Rated Output Power | 18 HP (13.4 kW) |
| Max. Power Input | 15 kW |
| Max. Head | 129 ft |
| Max. Flow | 1,230 gpm |
| Shaft Speed | 3,500 RPM |
| Discharge Connection | 6" NPT |
| Max. Solids Handling | 0.39" |
| Power Supply | 460V Three-Phase, 60 Hz |
| Certification | CSA |
| Weight | 244 lbs (110.7 kg) |
| Dimensions (H × W × D) | 37.1" × 16.3" × 14.6" |
| Warranty | 12 months from start-up or 18 months from receipt of equipment |
Part Number: WEDA D70L | SKU: 3081620944 | Power: 460V Three-Phase | Max Flow: 1,230 gpm | Max Head: 129 ft.
NOTE: Actual product may be different from pictured!
