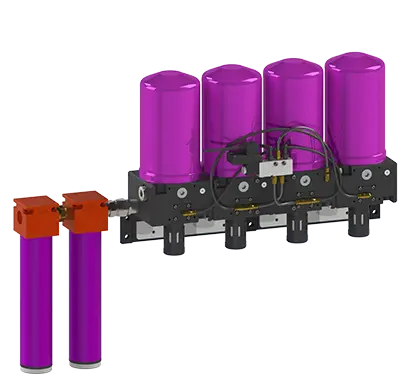

Tsunami Pure-20 Wall-Mounted Regenerative Desiccant Air Dryer — 80 CFM, 20 HP, -80°F Dew Point
| Specifications (As Configured) | |
|---|---|
 Vendor |
Tsunami
|
 SKU |
TSPURE-1020
|
The Tsunami Pure-20 Wall-Mounted Regenerative Desiccant Dryer delivers a steady 80 CFM of ultra-dry compressed air with dew points down to -80°F and relative humidity as low as 0.01% RH. Sized for compressors up to 20 HP, this four-tower unit mounts to a wall or frame and uses Tsunami’s regenerative drying technology — sweep air continuously regenerates the desiccant, “like changing the desiccant every two minutes.”
Integrated two-stage pre-filtration — a water separator plus a 0.01-micron oil-coalescing filter — strips liquid water, bulk oil, and particulate before air reaches the desiccant towers, protecting downstream tools, valves, and finishes.
Key Specifications
- Rated flow: 80 CFM
- Compressor sizing: up to 20 HP
- Dew point: down to -80°F
- Relative humidity: as low as 0.01% RH
- Connections: 1" NPT inlet / 1" NPT outlet
- Drying towers: 4, molecular-sieve desiccant
- Max inlet temperature: 150°F • Max operating pressure: 175 PSI
- Power: 120V (solenoid timer valve control)
- Weight: 112 lbs • Mounting: wall brackets included
Features & Benefits
- Two-stage pre-filtration: water separator + oil-coalescing filter down to 0.01 micron
- Molecular-sieve desiccant in a regenerative four-tower design
- Solenoid valve timer control with purge exhaust mufflers
- Automatic condensate drains
- Optional C1D1 configuration for hazardous locations; heater pads available for cold-temperature applications
- Low-cost upkeep — maintenance averages under $100/year
Drain Options

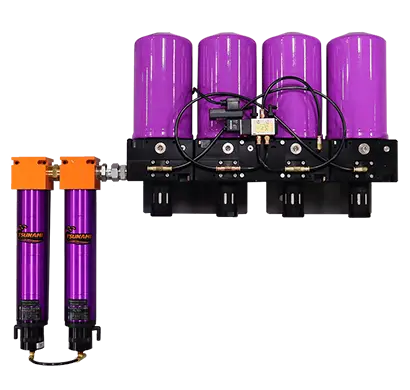

Choose the standard Float Drain (automatic) or the Pneumatic “Moisture Minder” Drain for zero-air-loss, no-electricity condensate removal.
Applications
Ideal for spray finishing, automotive paint, woodworking, food & beverage, laboratory, and automation systems — anywhere clean, dry, oil-free air is required at higher flow rates.
Made in the USA by Tsunami Compressed Air Solutions (Suburban Manufacturing).
NOTE: Actual product may be different from pictured!
