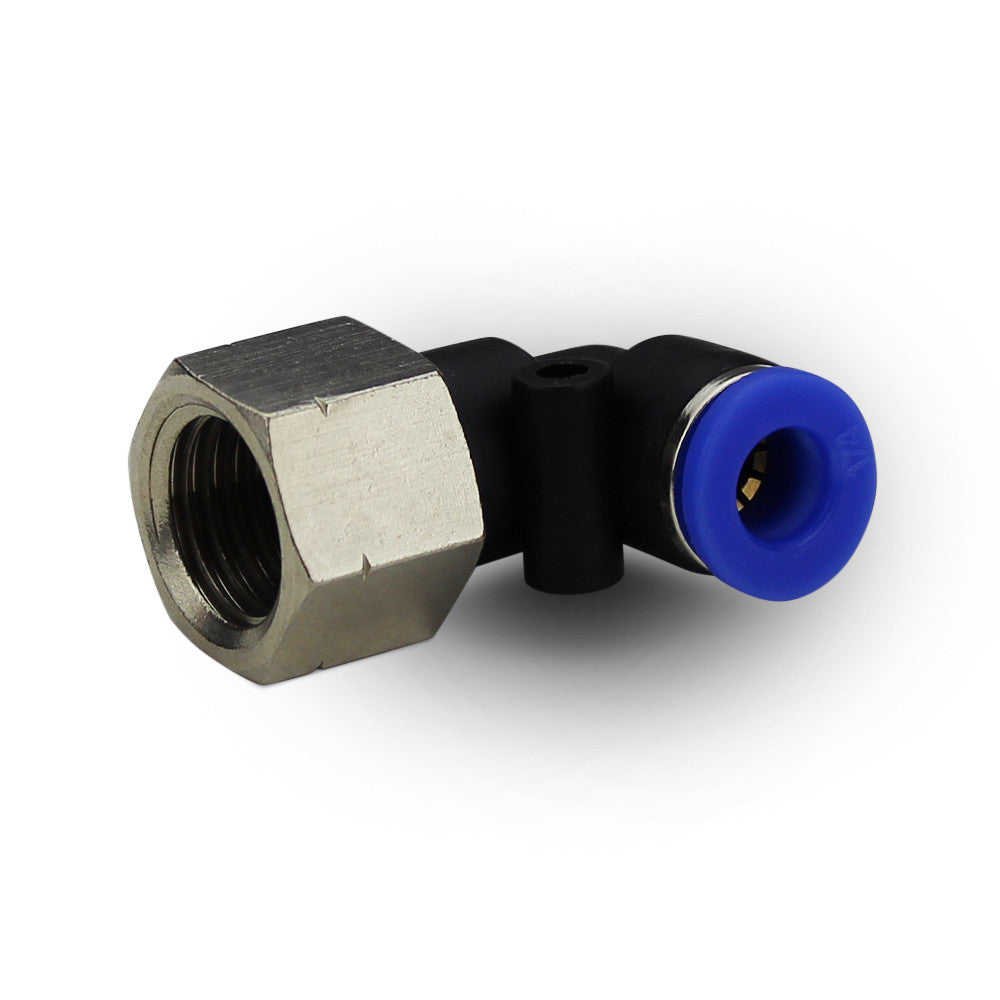

THB Composite 90° Push-to-Connect Female Elbow Fitting
| Specifications (As Configured) | |
|---|---|
 Vendor |
THB
|
 SKU |
CPLV-089
|
The THB composite 90° push-to-connect female elbow makes a compact right-angle connection between rigid or semi-rigid tubing and a female NPT-threaded port. A one-touch push-in collet grips the tube instantly for a leak-free seal, while the tapered FNPT thread accepts a male pipe nipple or stud — no wrenching the tube, no thread tape on the push side. The lightweight composite body resists corrosion and won't gall like brass, making it ideal for shop air, pneumatic tooling, and automation lines.
Key specifications
- Style: 90° elbow, one-touch push-to-connect × female NPT (FNPT)
- Body material: Composite with nickel-plated brass collet and hardware
- Tube OD range: 1/4", 3/8", and 1/2"
- Thread range: 1/8", 1/4", 3/8", and 1/2" FNPT
- Working pressure: Vacuum (28 in-Hg) up to 145 PSI
- Working temperature: 23–140°F (air)
- Media: Compressed air and water (not for drinking water)
- Compatible tubing: Nylon, soft nylon, polyurethane, FEP, PFA
Applications
Compressed-air distribution, pneumatic cylinders and valves, shop and machine tooling, and automation systems where a swiveling right-angle tube-to-female-thread connection saves space.
Choose your tube OD and FNPT thread size from the dropdown. THB composite push-to-connect fittings deliver fast, tool-free installation and dependable sealing across every size in the range — a reliable, corrosion-resistant alternative to brass push-to-connect elbows for compressed-air and pneumatic plumbing.
NOTE: Actual product may be different from pictured!
