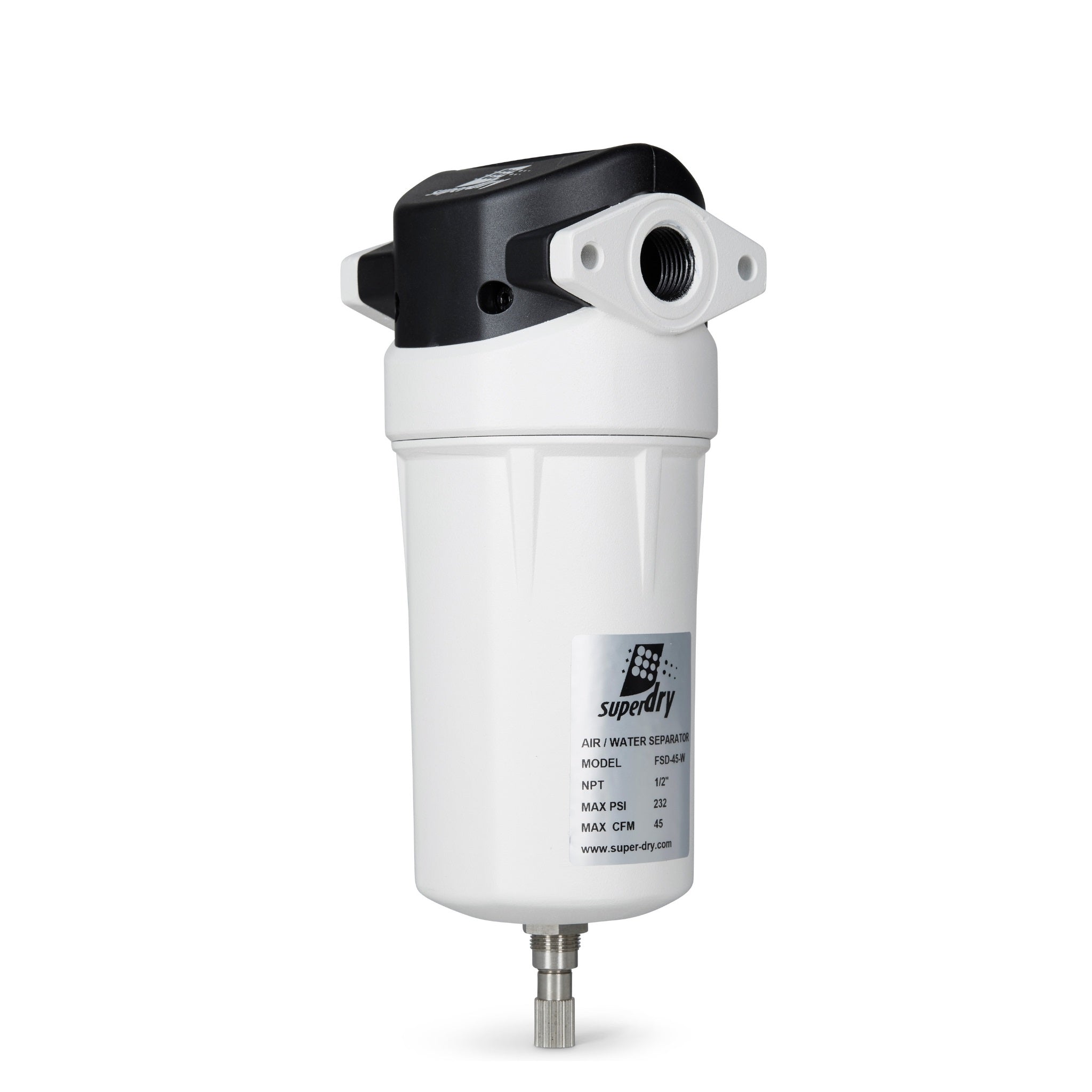

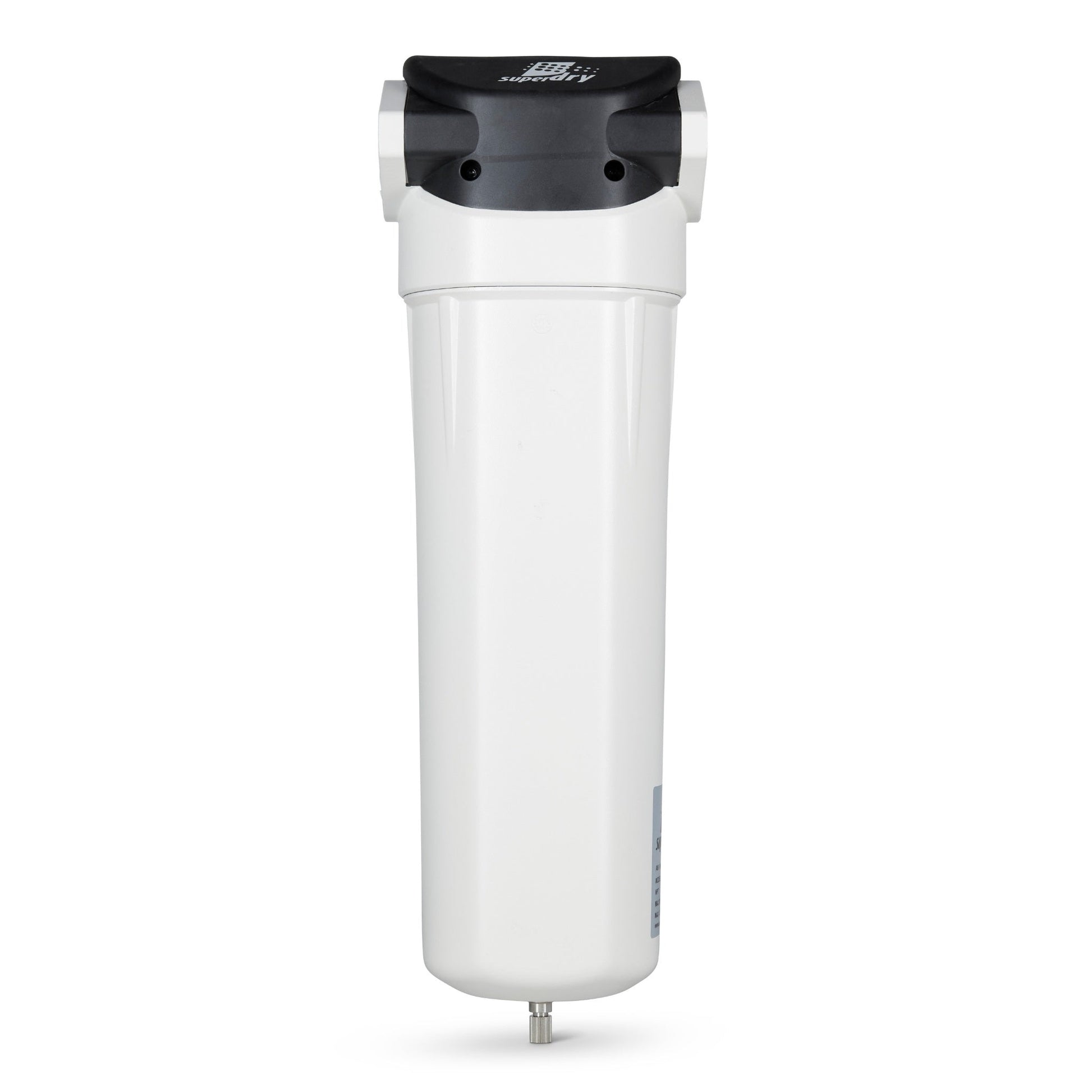

Super-Dry FSD Series Centrifugal Water Separator, 45 to 515 SCFM, 1/2" to 2" NPT
| Specifications (As Configured) | |
|---|---|
 Vendor |
Super-Dry
|
 SKU |
330-100
|
| Dimensions | |
 Weight |
3.0 lb
|
The Super-Dry FSD Series is a centrifugal water separator that pulls bulk liquid water out of a compressed air line before it reaches your dryer, your filters or your tools. Five models cover 45 to 515 SCFM at 100 PSIG with 1/2" to 2" NPT inlet and outlet ports, so you can size the separator to the pipe you already run. It is built for shops that see slugs of condensate coming off an aftercooler or air receiver and want that water out of the system.
How it works

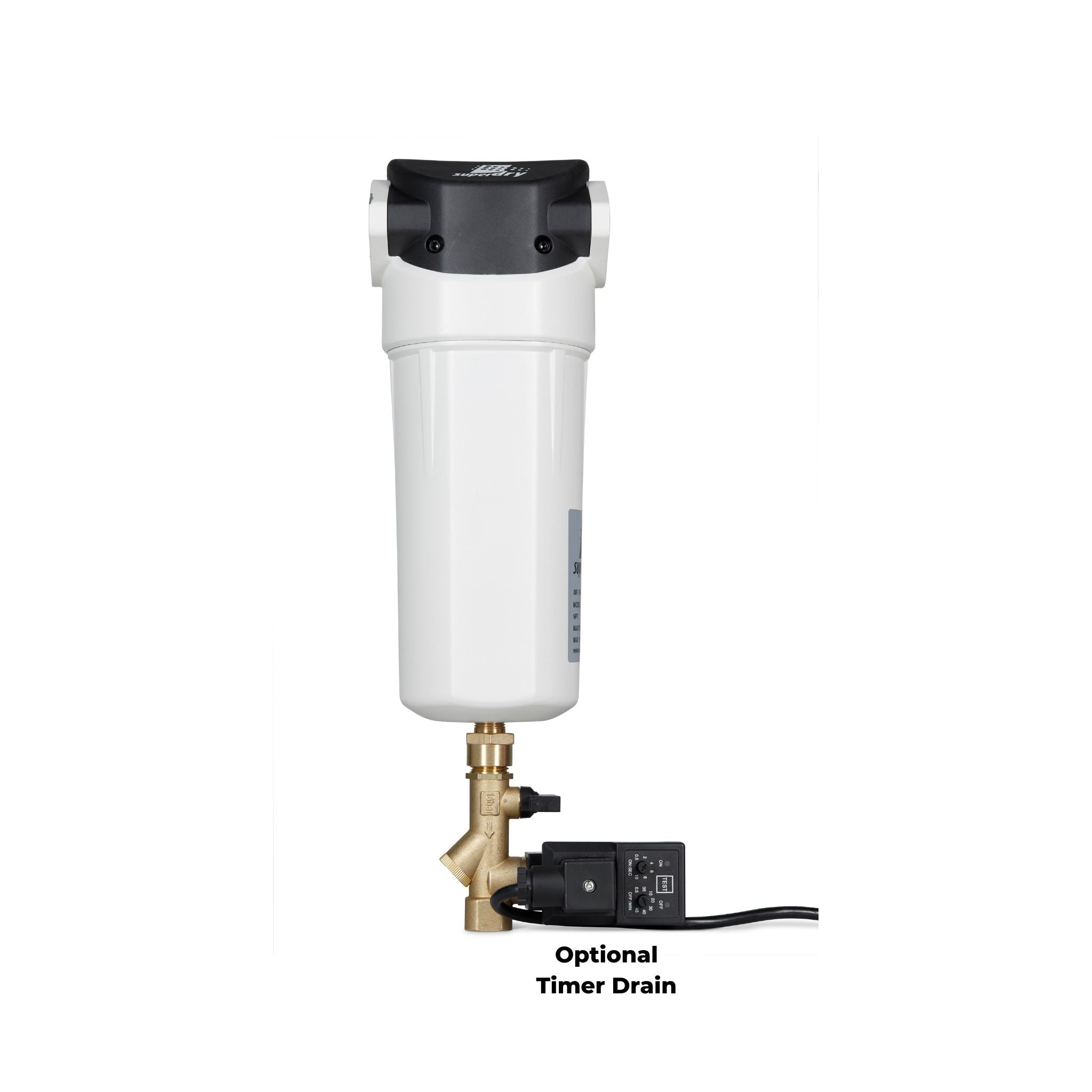

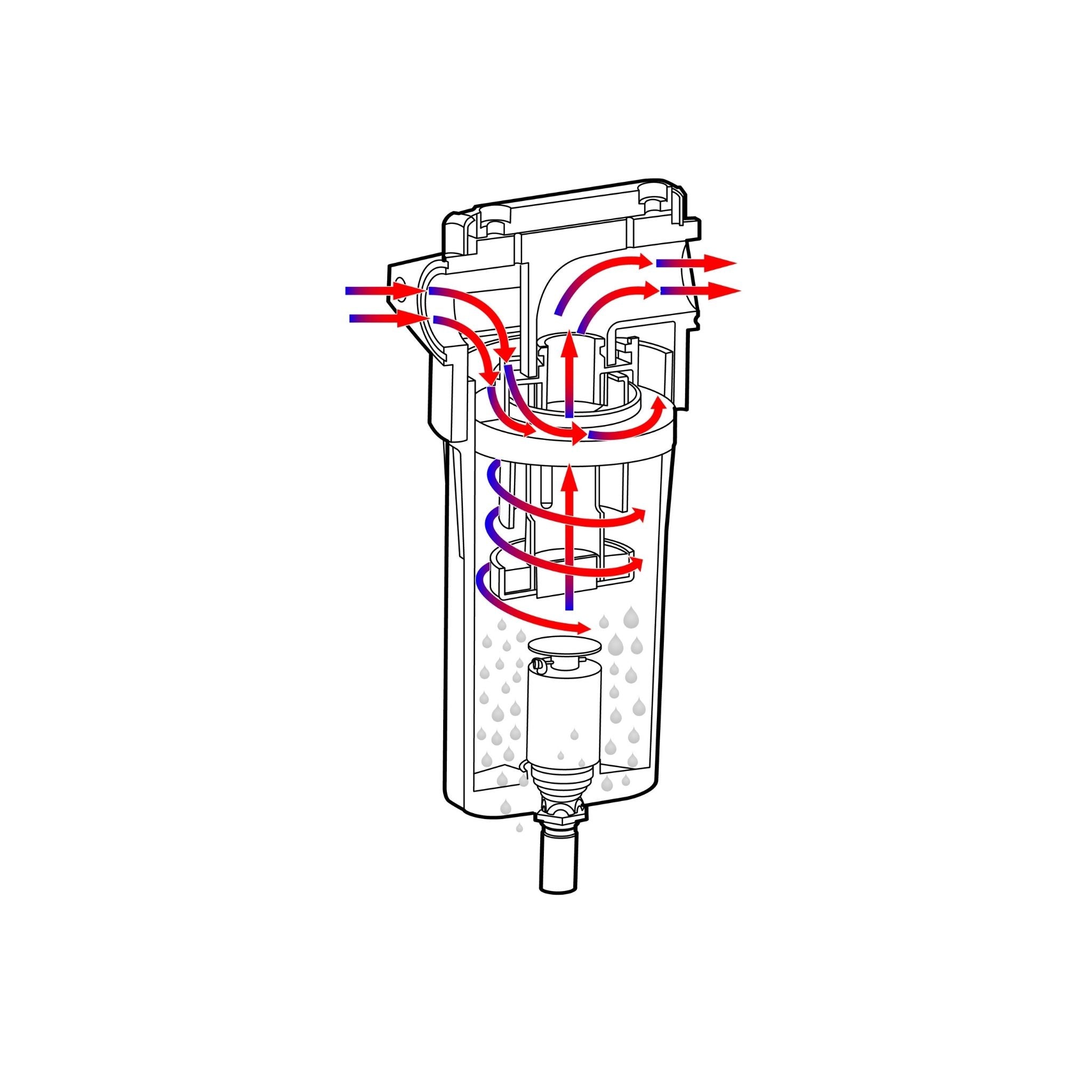

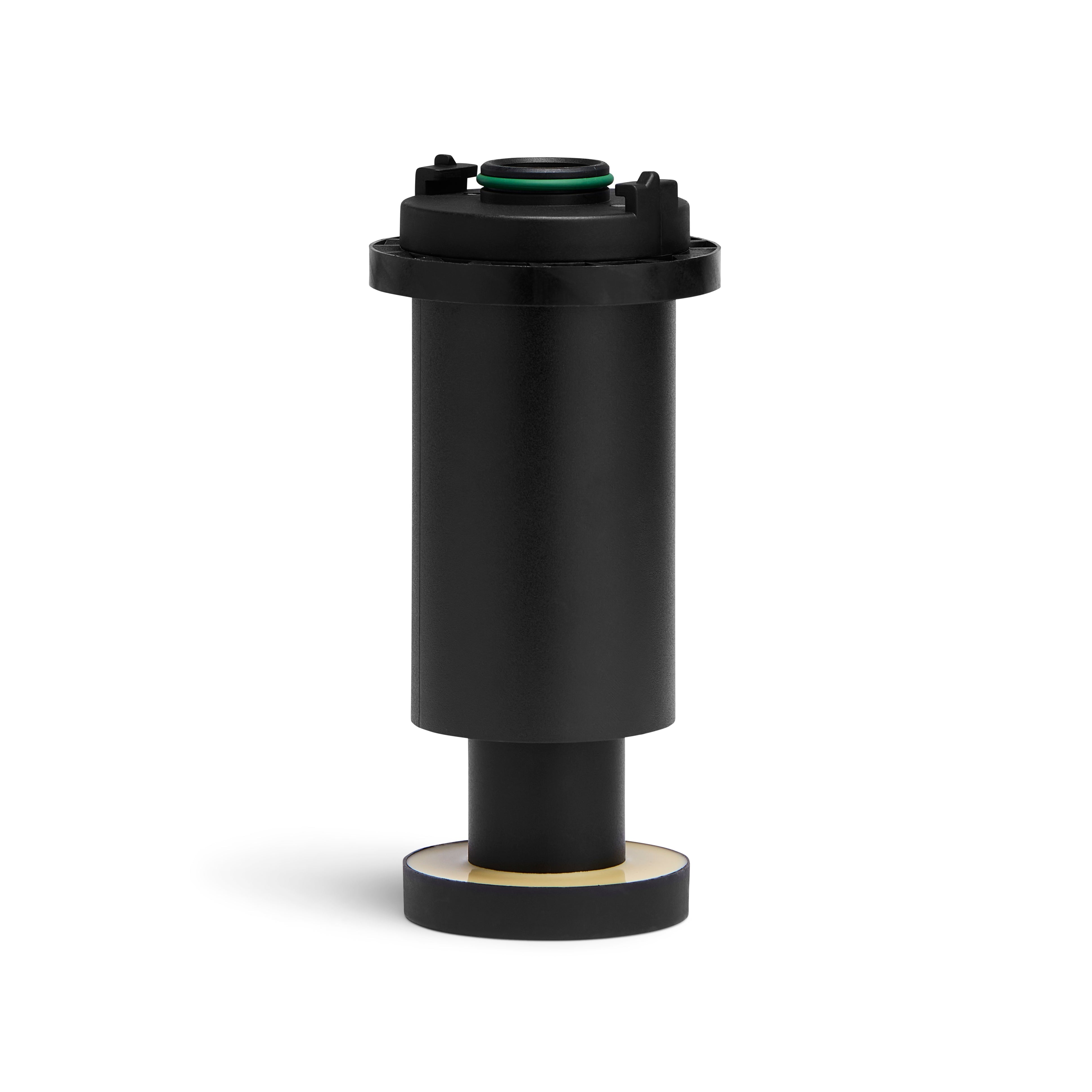

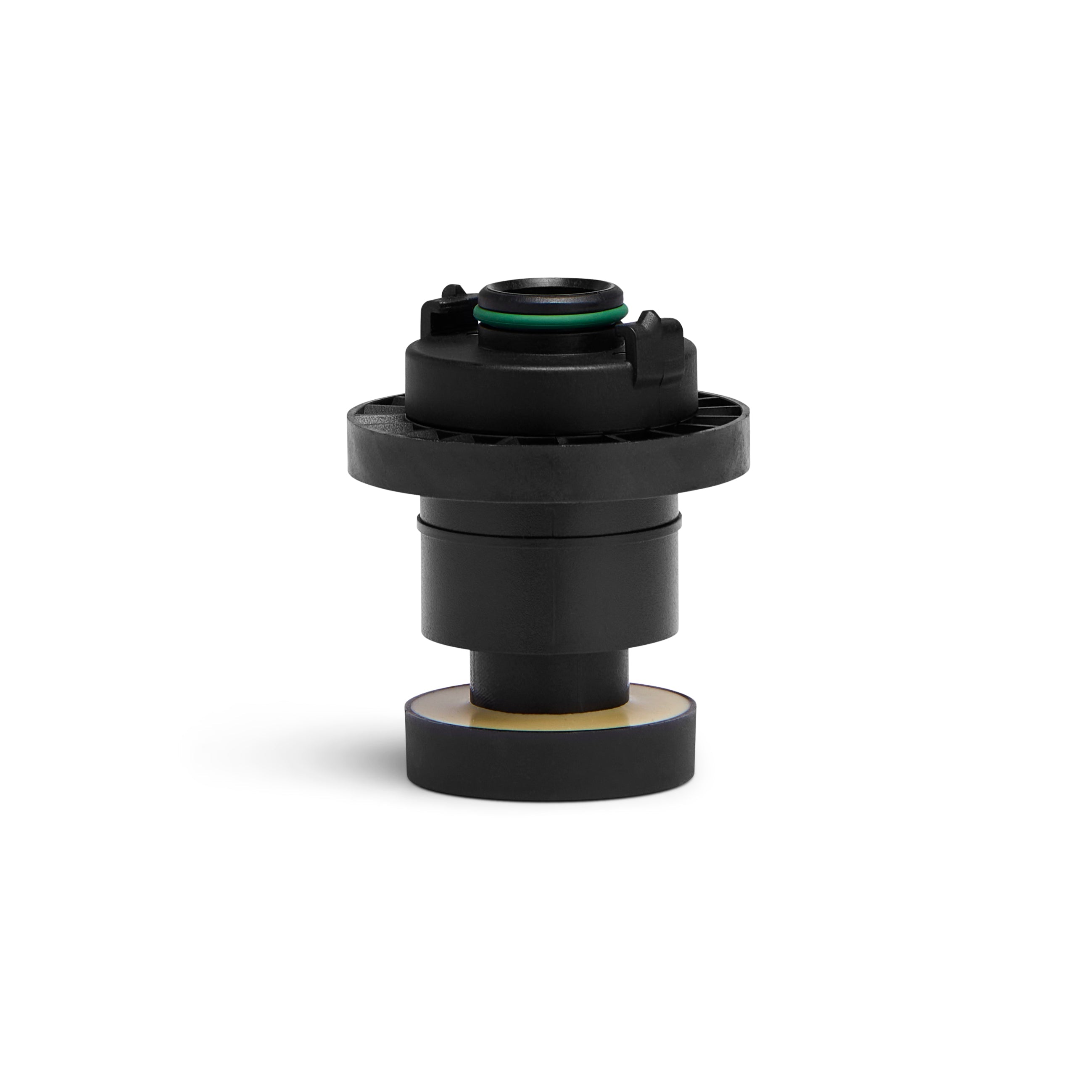

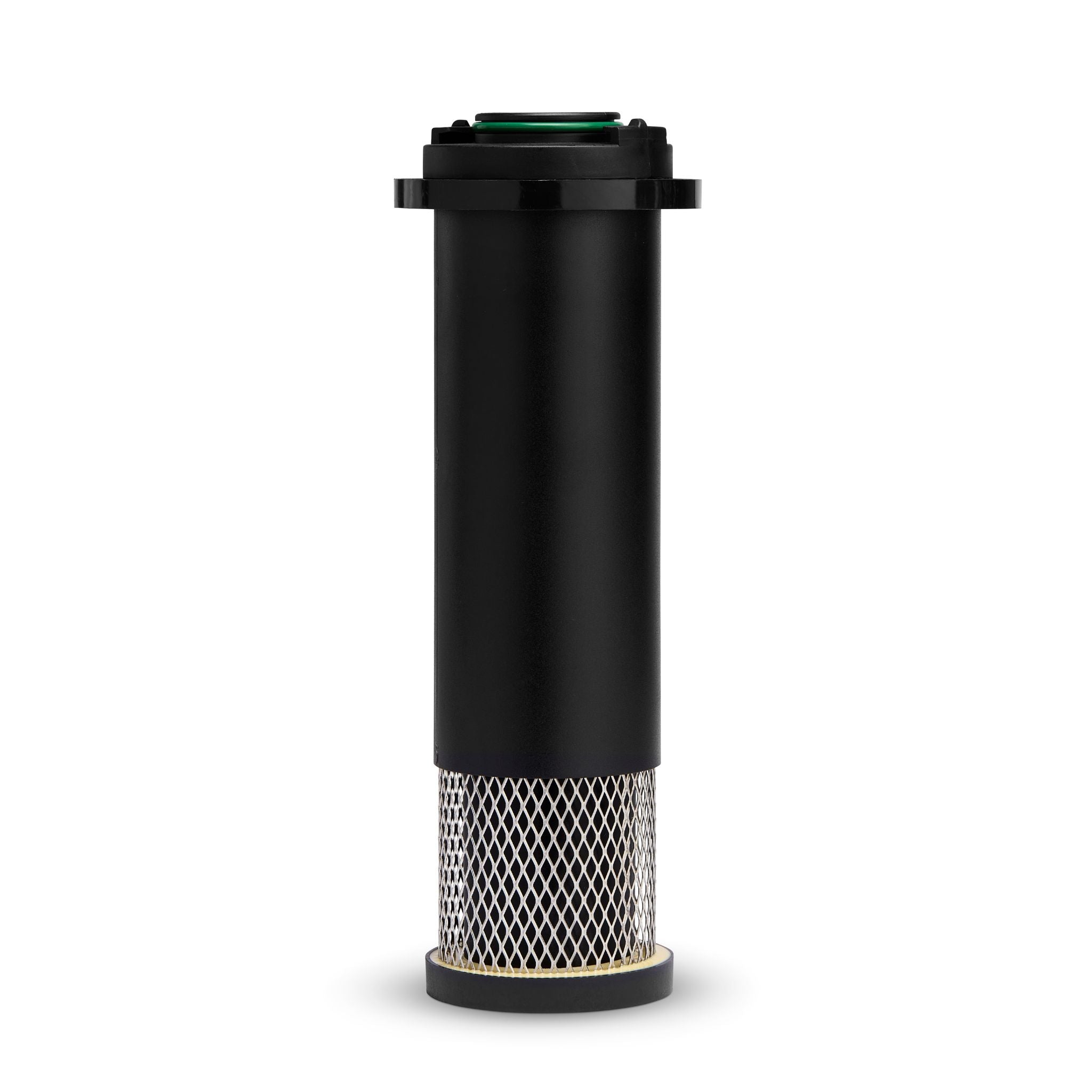

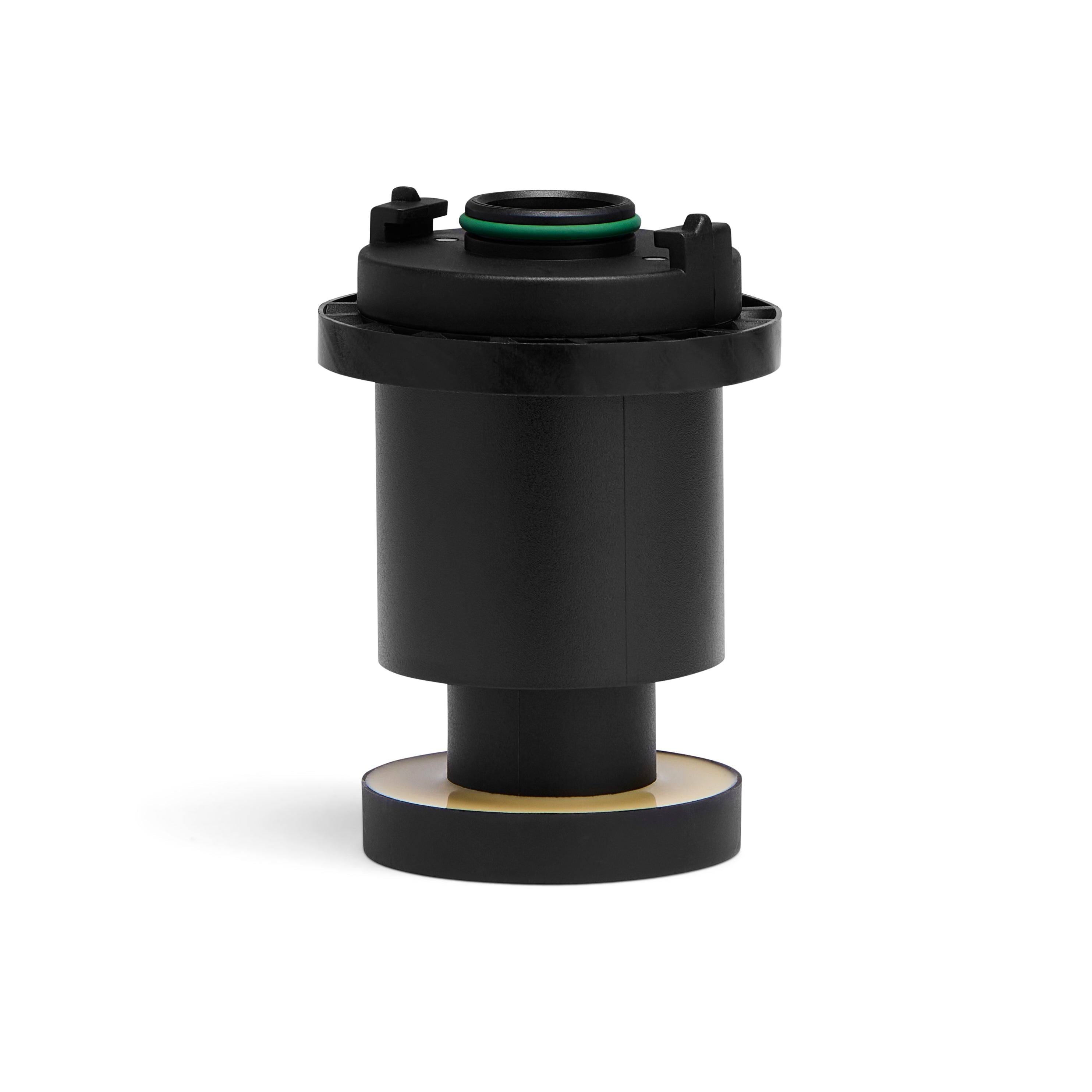

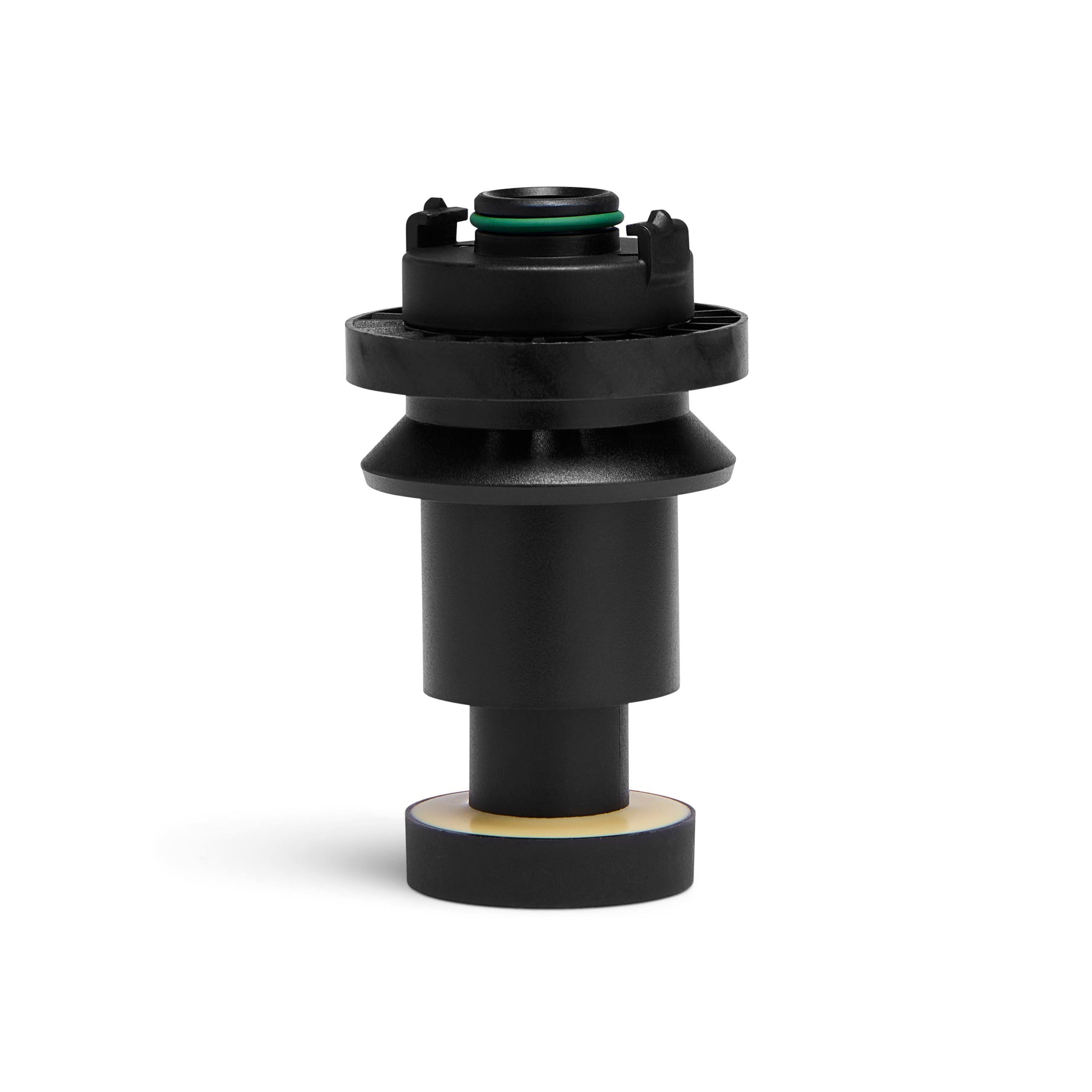

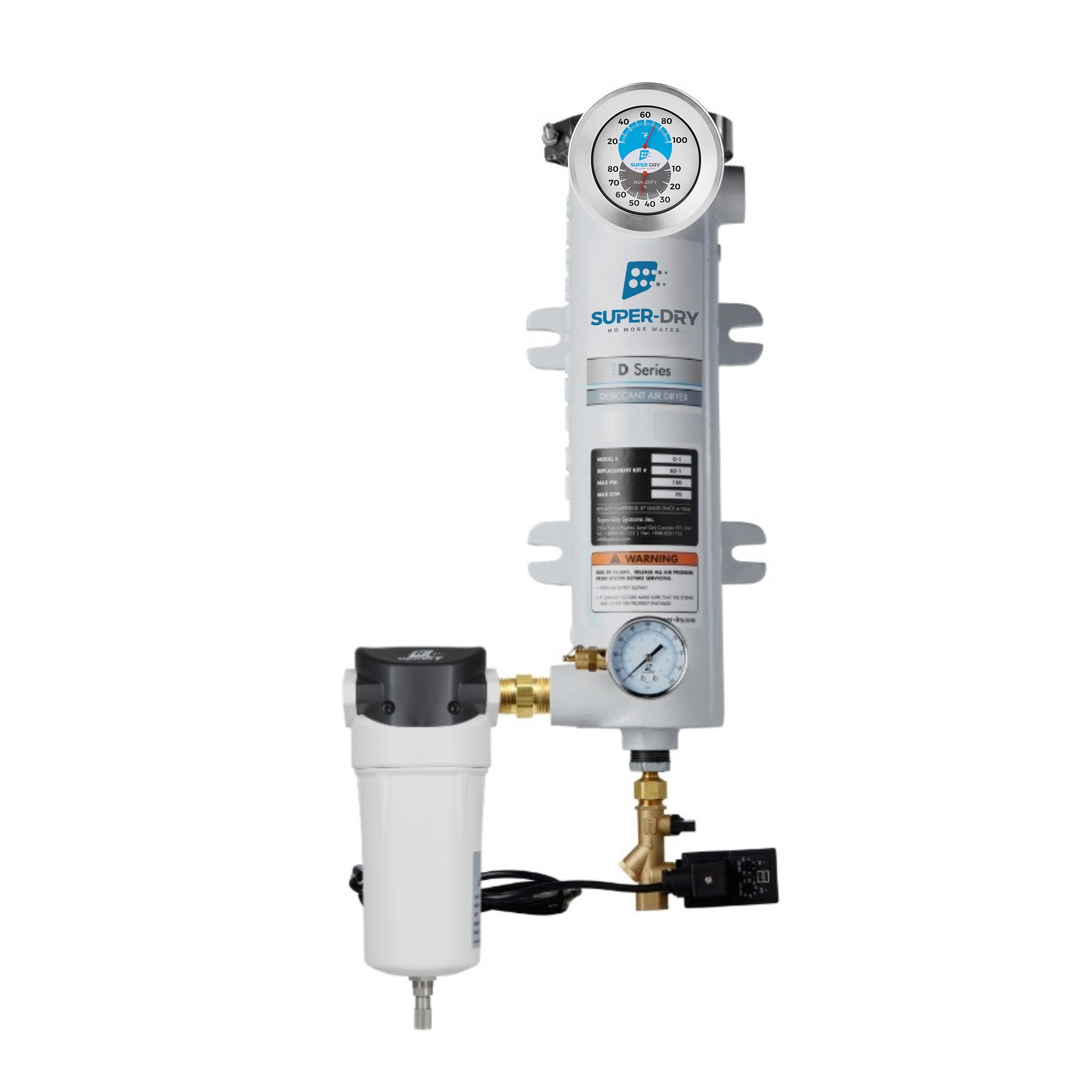

Compressed air enters the housing and passes an internal spinner that forces it into a tight rotating path. The liquid droplets are heavier than the air carrying them, so centrifugal action throws them against the vessel wall, where they run down and collect in the bowl. A built-in float drain discharges that condensate automatically, and a timer drain is offered as an option. Install an FSD separator downstream of an aftercooler or air receiver and upstream of a compressed air dryer.
Key specifications
| SKU | Model | Airflow at 100 PSIG | Inlet / Outlet Ports |
|---|---|---|---|

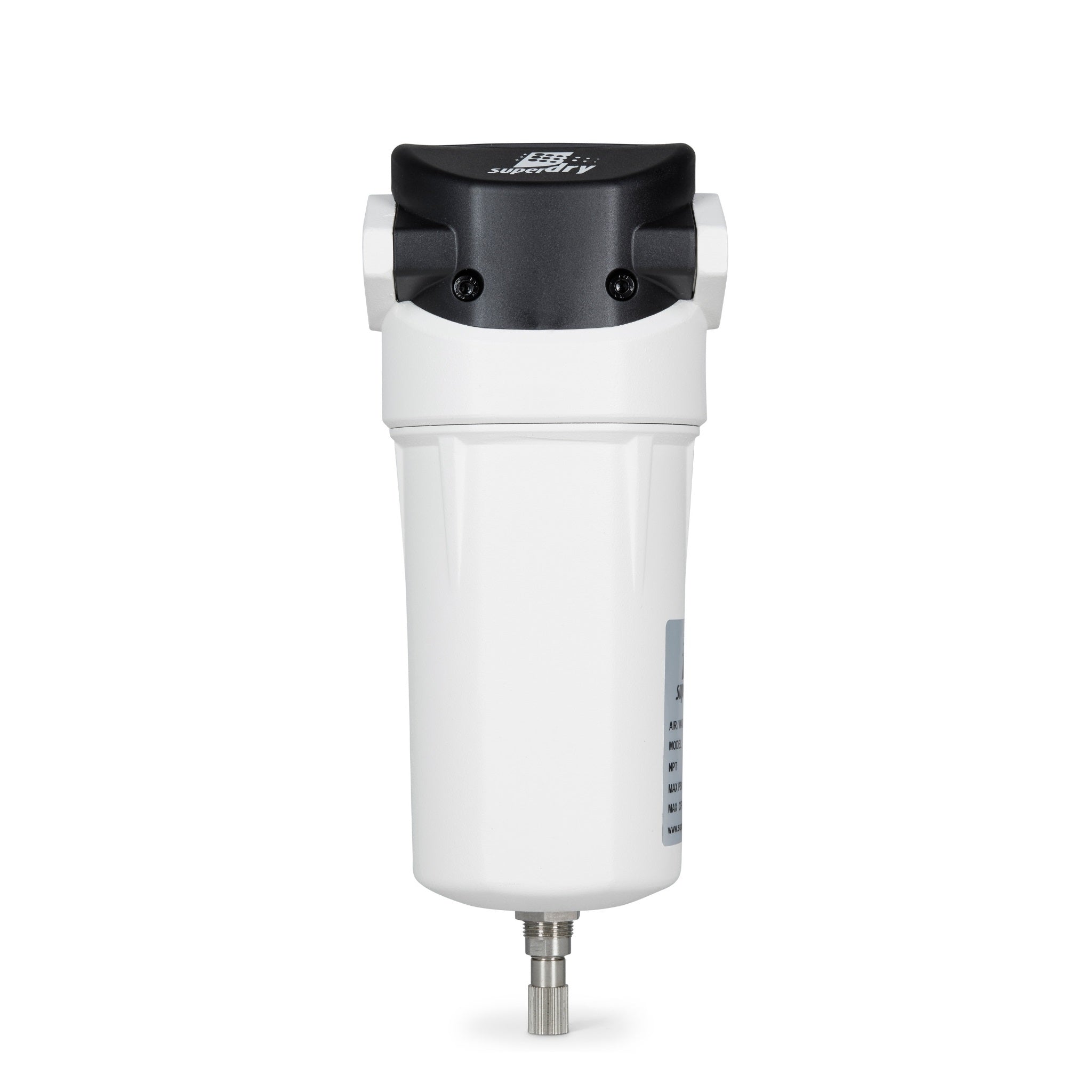

| 330-100 | FSD-45-W | 45 SCFM | 1/2" NPT |

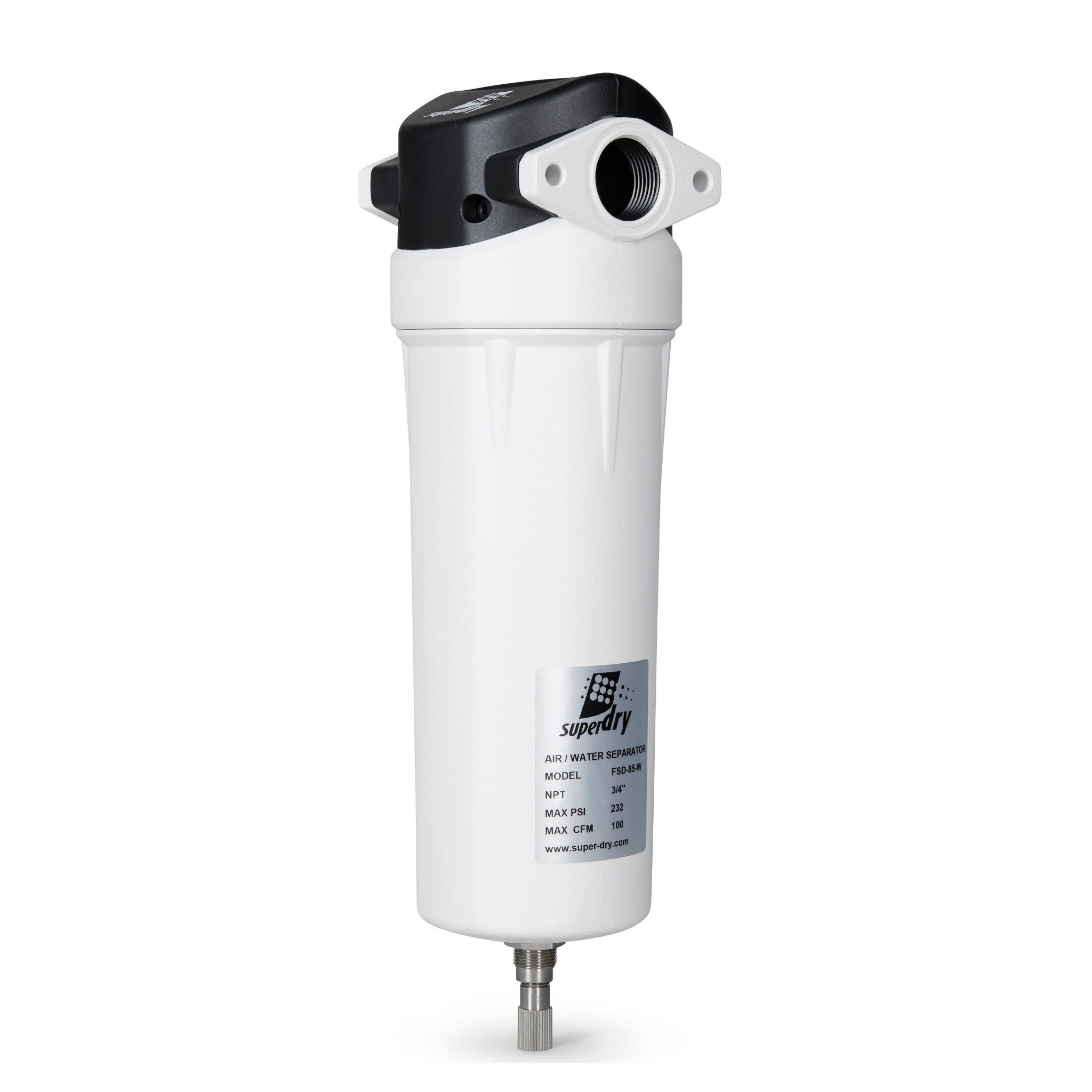

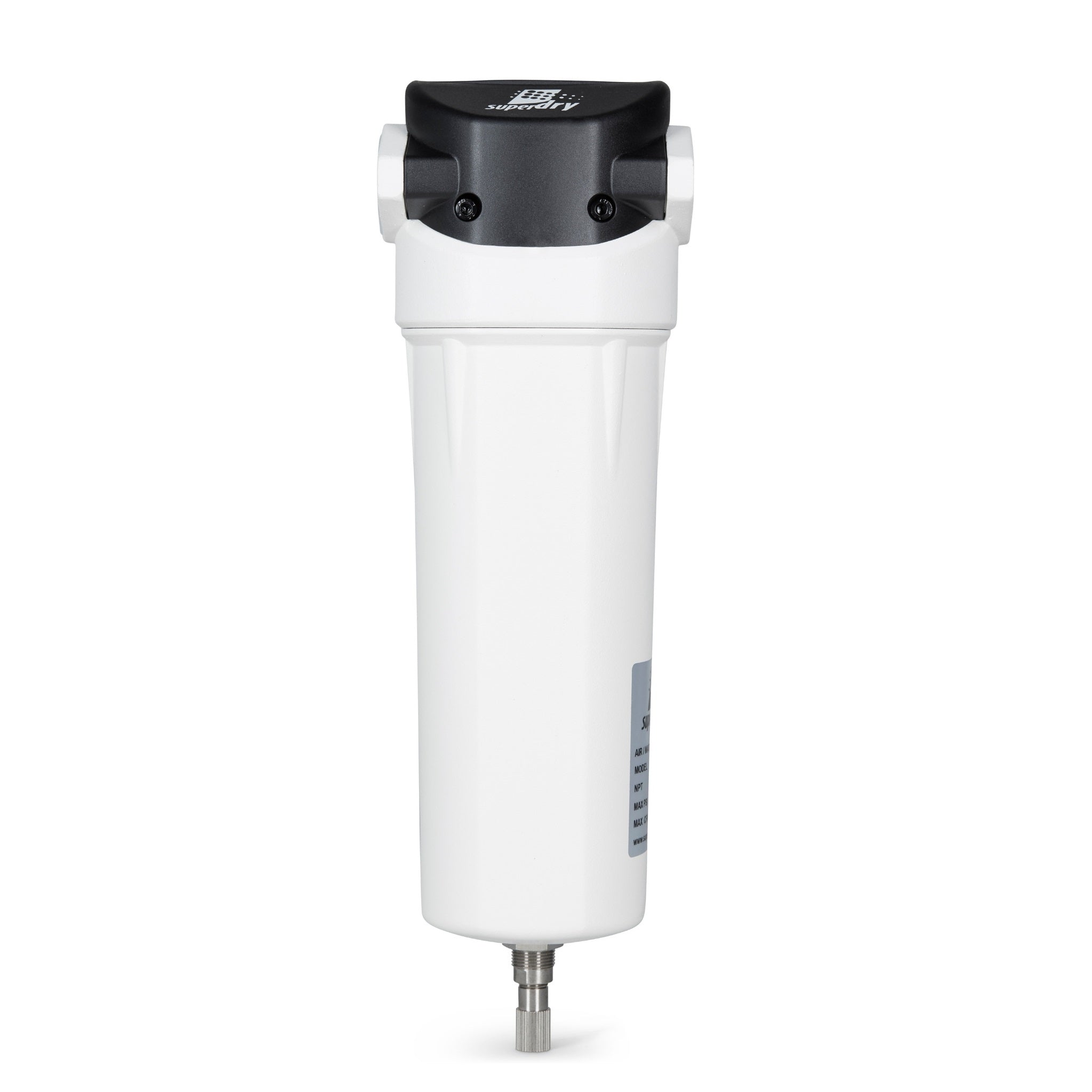

| 330-110 | FSD-85-W | 85 SCFM | 3/4" NPT |

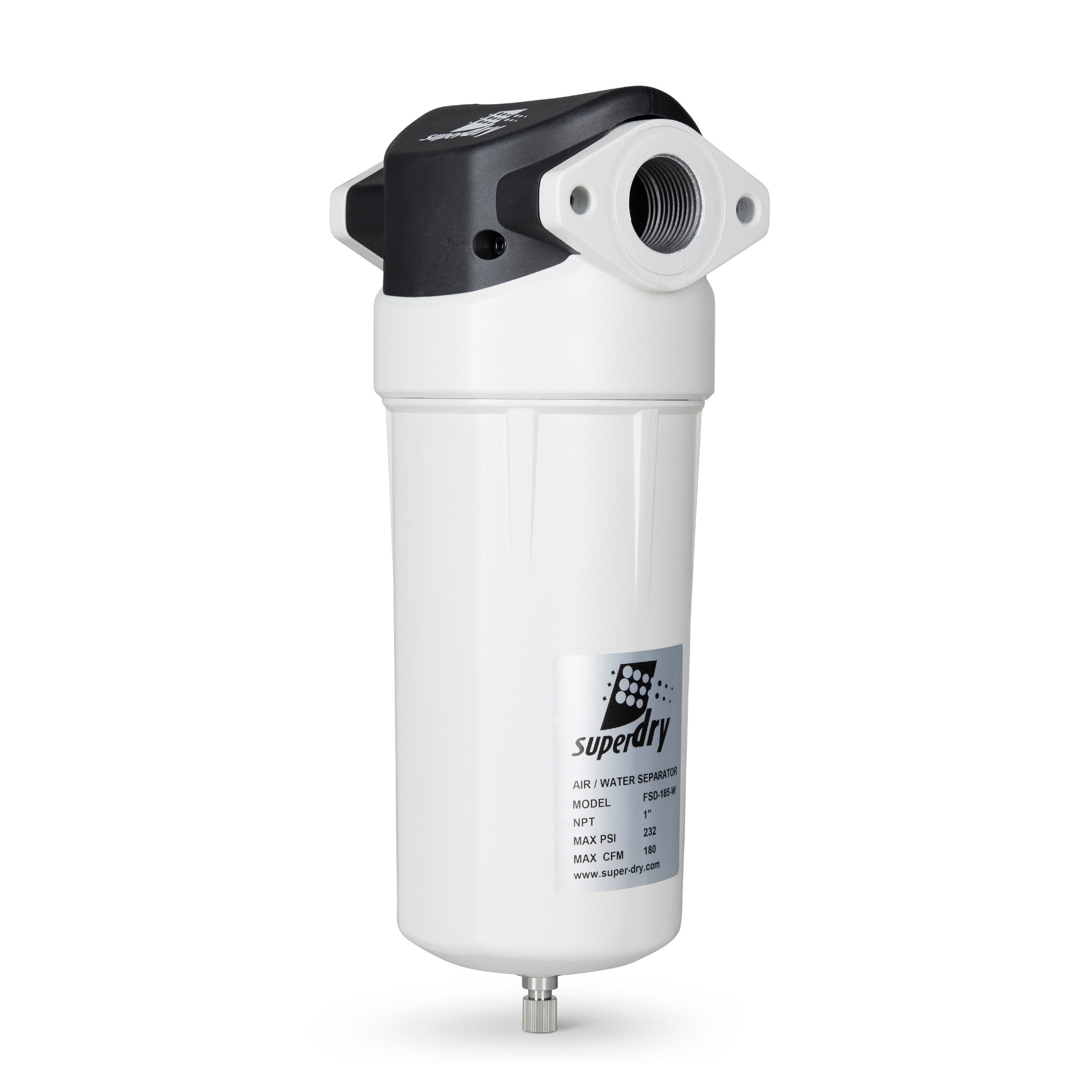

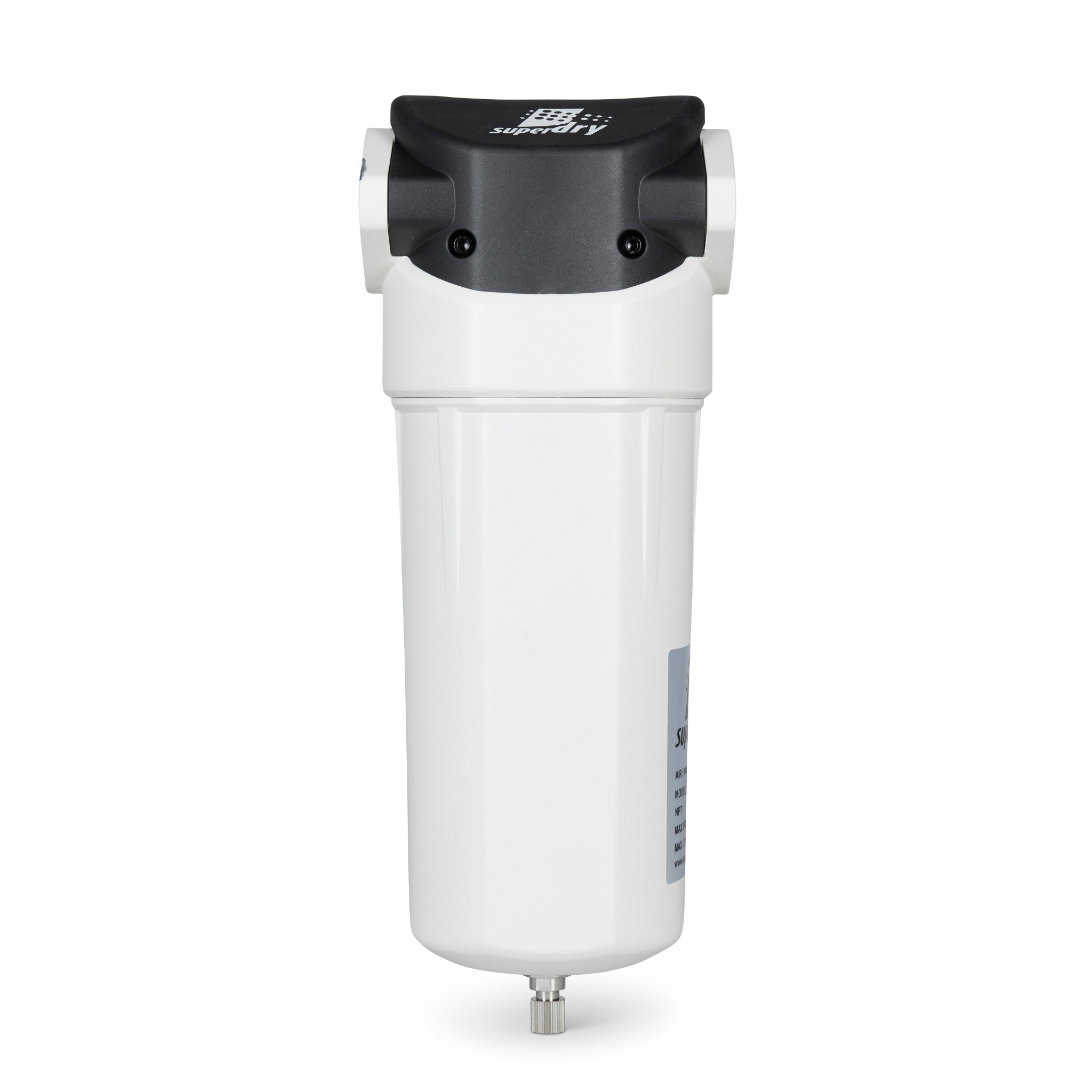

| 330-120 | FSD-185-W | 185 SCFM | 1" NPT |

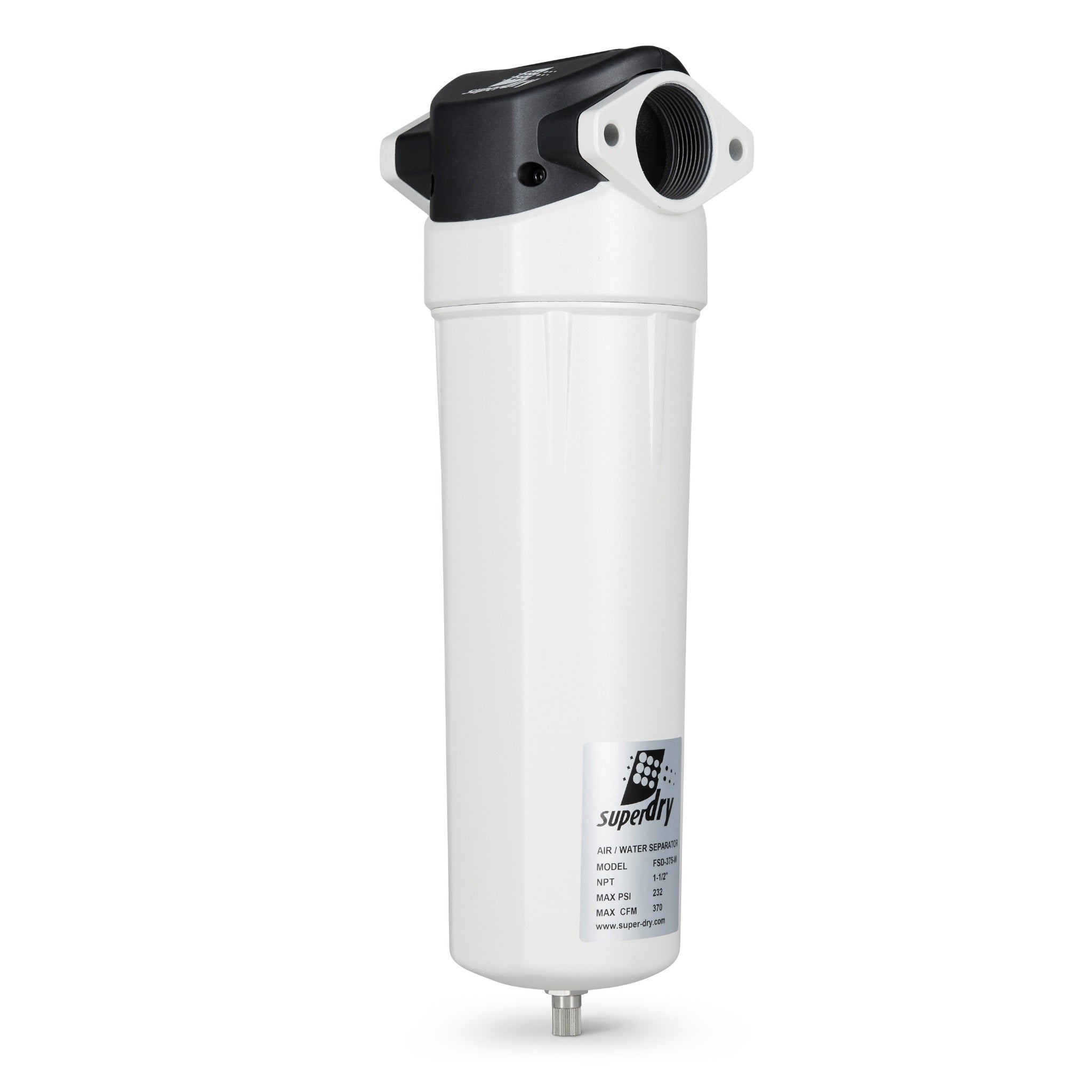

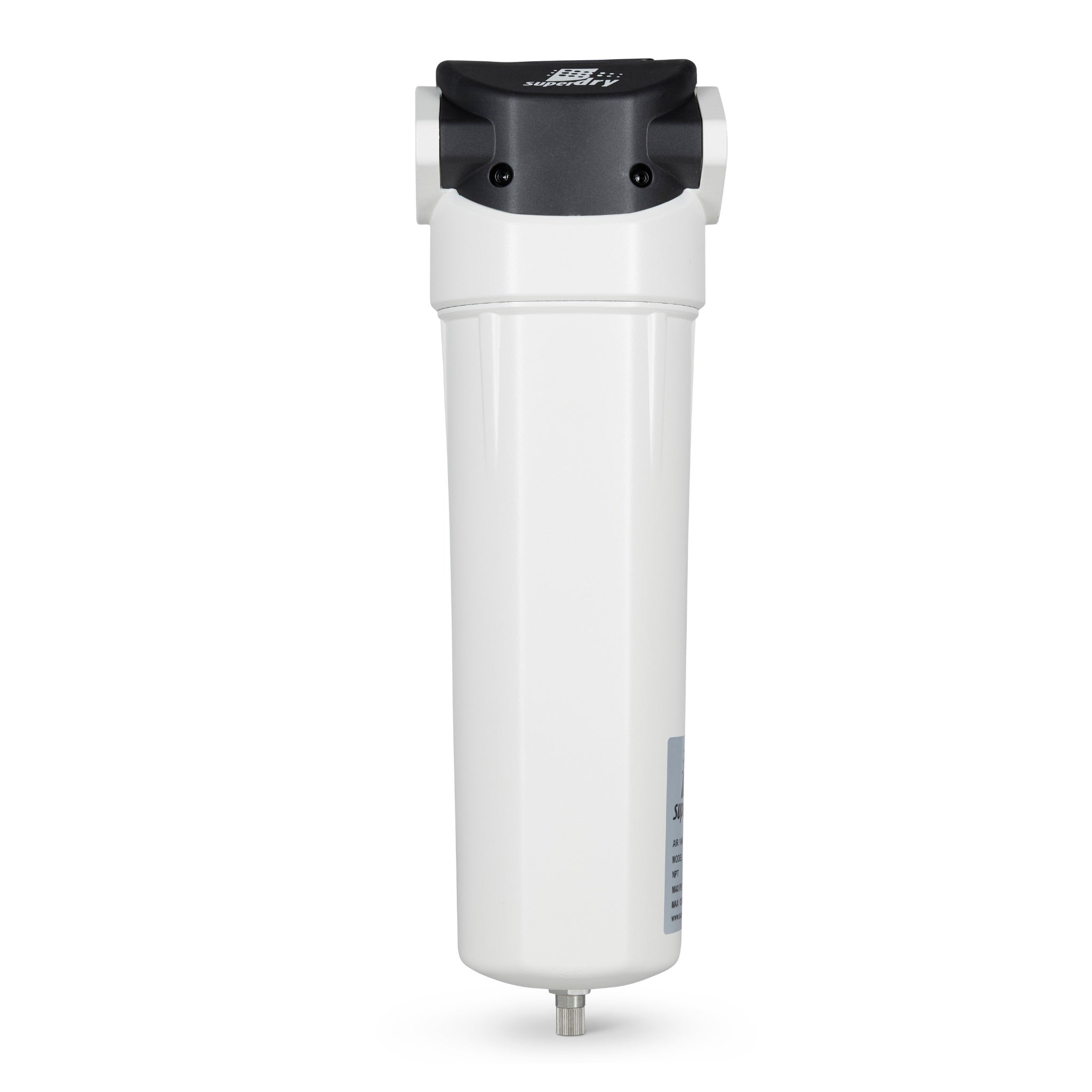

| 330-130 | FSD-375-W | 375 SCFM | 1-1/2" NPT |

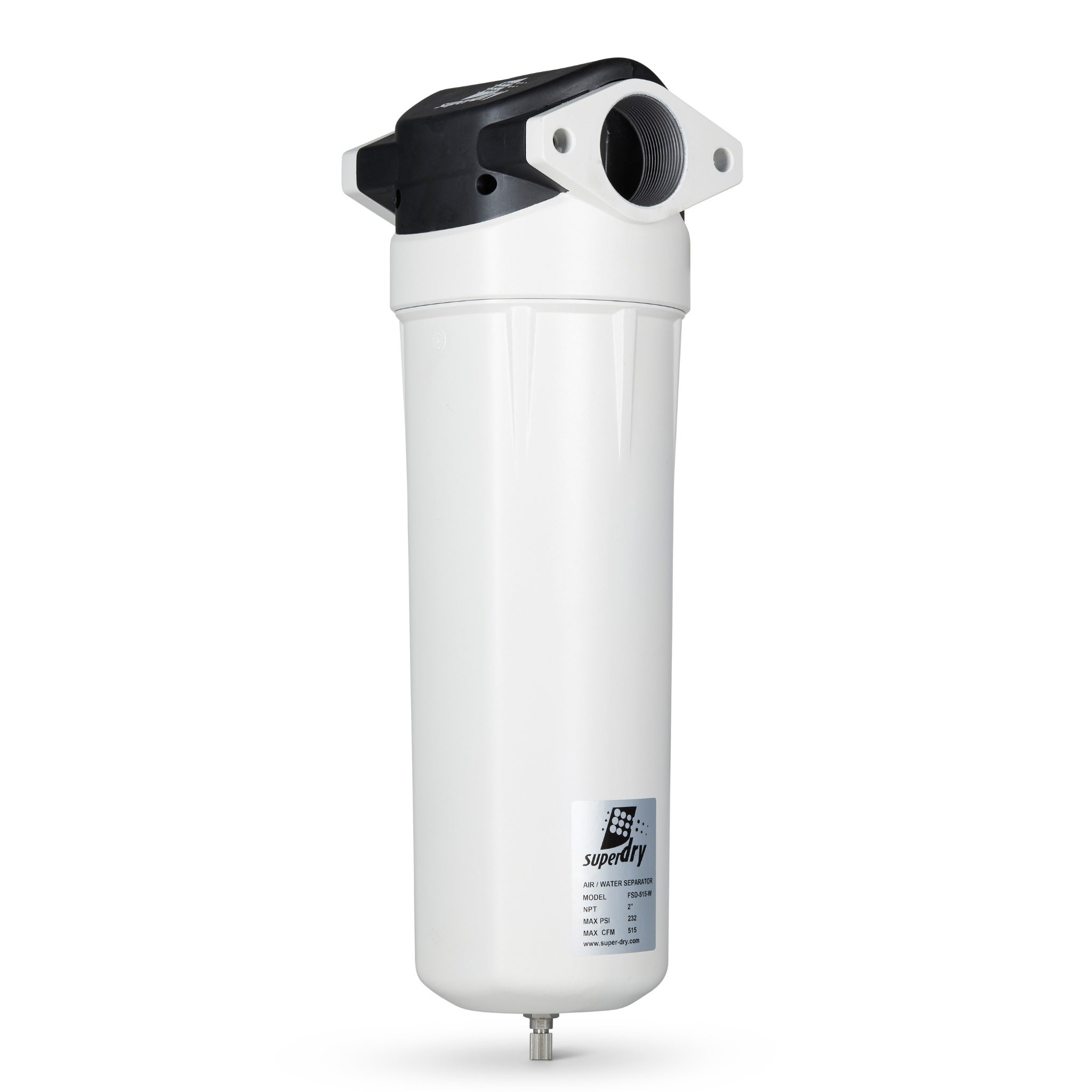

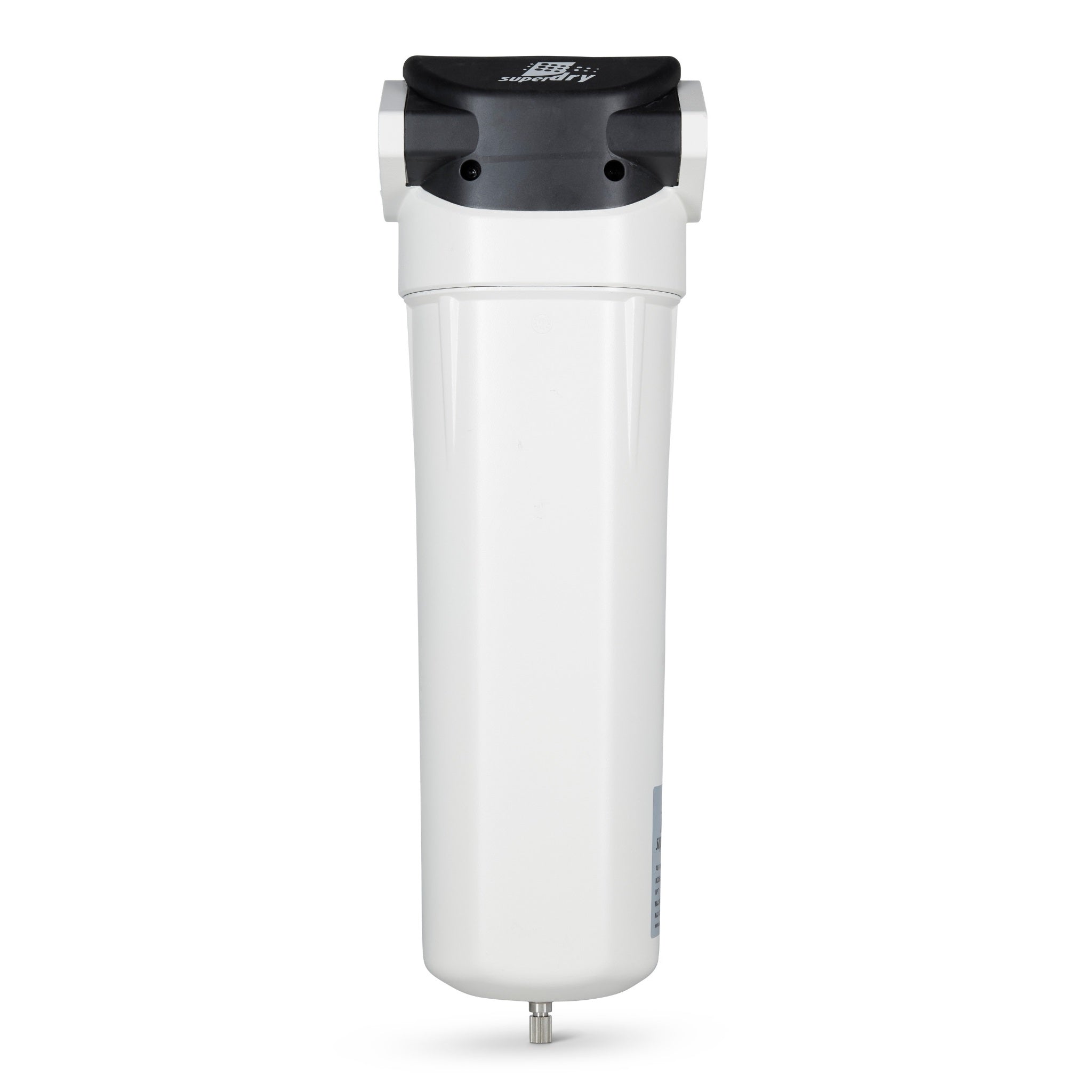

| 330-140 | FSD-515-W | 515 SCFM | 2" NPT |
The published limits shown here apply to the FSD-45-W only: a maximum inlet pressure of 232 PSIG and a maximum inlet temperature of 176°F (80°C). Super-Dry does not publish separate pressure or temperature limits for the four larger separators. Every separator in the series ships with the float drain and the internal spinner in place, and Super-Dry rates the FSD housings for excellent liquid removal efficiencies at all flow conditions.
Typical applications
- Bulk water knockout ahead of a refrigerated or desiccant air dryer
- Downstream of an aftercooler or air receiver where condensate collects
- Paint booths and spray finishing lines that cannot tolerate water carryover
- Sandblasting and abrasive blast cabinets
- Plant air headers feeding pneumatic tools and air motors
- Point of use protection for pneumatic controls, valves and cylinders
What's included
- FSD Series separator housing with internal spinner
- Built-in float drain (timer drain available as an option)
The FSD Series gives compressed air systems a straightforward mechanical first stage of liquid removal, which keeps dryers, filters and downstream air tools working in the condition they were designed for. Warthog Air Compressor Store is an authorized US source for Super-Dry Systems Inc. We can help you match model to pipe size and flow.
