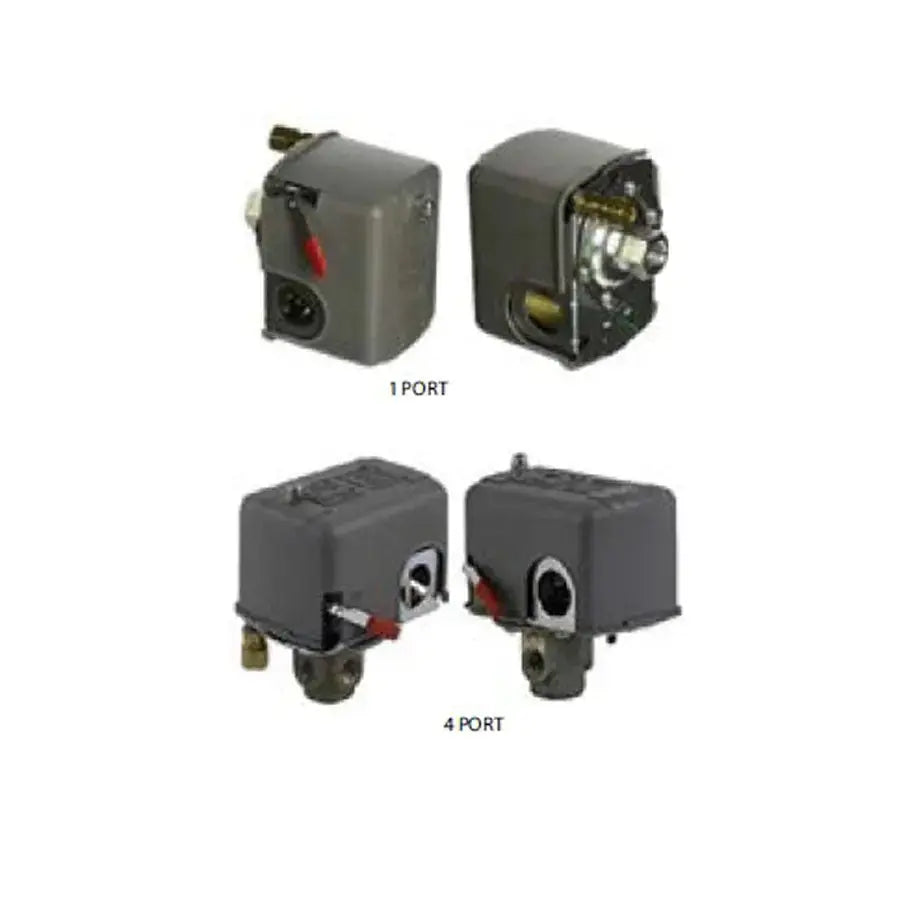

Square D 9013GHG Series 30A Heavy Duty Air Compressor Pressure Switch
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
9013GHG2J62
|
The Square D 9013GHG Series is a 30-amp heavy-duty electromechanical air compressor pressure switch that automatically regulates tank pressure between preset cut-in and cut-out points. Built for higher electrical loads than the standard FHG series, it allows direct motor control on larger electrically driven air compressors, with contacts that open on a rise in pressure.
- Electrical rating: 30 A heavy-duty contacts for direct motor control
- Pressure ranges: available in 110-125 PSI and 140-175 PSI (rated to 300 PSI maximum)
- Standard models provide automatic on/off pressure control
- Unloader models add a 1/4" side-mounted compression unloader valve that bleeds head pressure off the pump at cut-out for easy motor restart
- Connection: 1/4" NPT bottom inlet (1/8" inlet on model 9013GHG1S8J54)
- Differential: adjustable
- Enclosure: NEMA 1 general purpose, with 1/2" trade-size knockouts on three sides
- Approvals: UL Listed, CSA Certified, RoHS compliant
Select your required pressure range and configuration from the options above. The Square D 9013GHG is the industry-standard heavy-duty replacement pressure switch for larger single-stage and two-stage reciprocating air compressors, delivering reliable, repeatable pressure control for demanding workshop, automotive, and industrial compressor applications.
NOTE: Actual product may be different from pictured!
