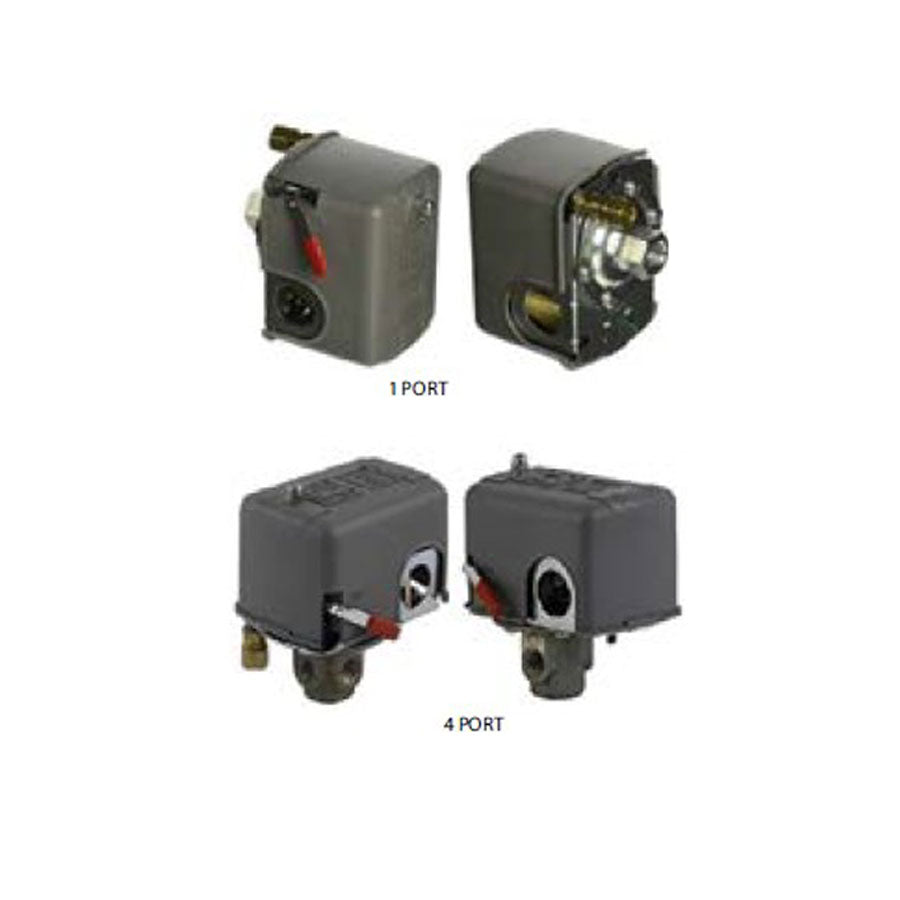

Square D 9013FHG Series Air Compressor Pressure Switch
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
9013FHG2J27
|
The Square D 9013FHG Series is a heavy-duty electromechanical air compressor pressure switch that automatically regulates tank pressure between preset cut-in and cut-out points on small, electrically driven air compressors. Each switch has a factory-set fixed differential, with contacts that open on a rise in pressure.
- Pressure ranges: 80-100, 95-125, 110-150, and 140-175 PSI (rated up to 230 PSI maximum)
- Standard models provide automatic on/off pressure control
- Unloader models add a 1/4" compression-style unloader valve that bleeds head pressure off the pump at cut-out for easy motor restart
- On/Off Lever + Unloader models add a manual AUTO/OFF lever plus the unloader valve
- Manifold: 1/4" NPT connection, available in 1-Port and 4-Port configurations
- Enclosure: NEMA 1; diaphragm actuator operable in any mounting position
- Approvals: UL Listed, CSA Certified, RoHS compliant
Select your required pressure range and configuration from the options above. The Square D 9013FHG is the industry-standard replacement pressure switch for single-stage and two-stage reciprocating air compressors, delivering reliable, repeatable pressure control for workshop, automotive, and industrial compressor applications.
NOTE: Actual product may be different from pictured!
