Nano GF Water-Separator

Nano GF Water Separator Series

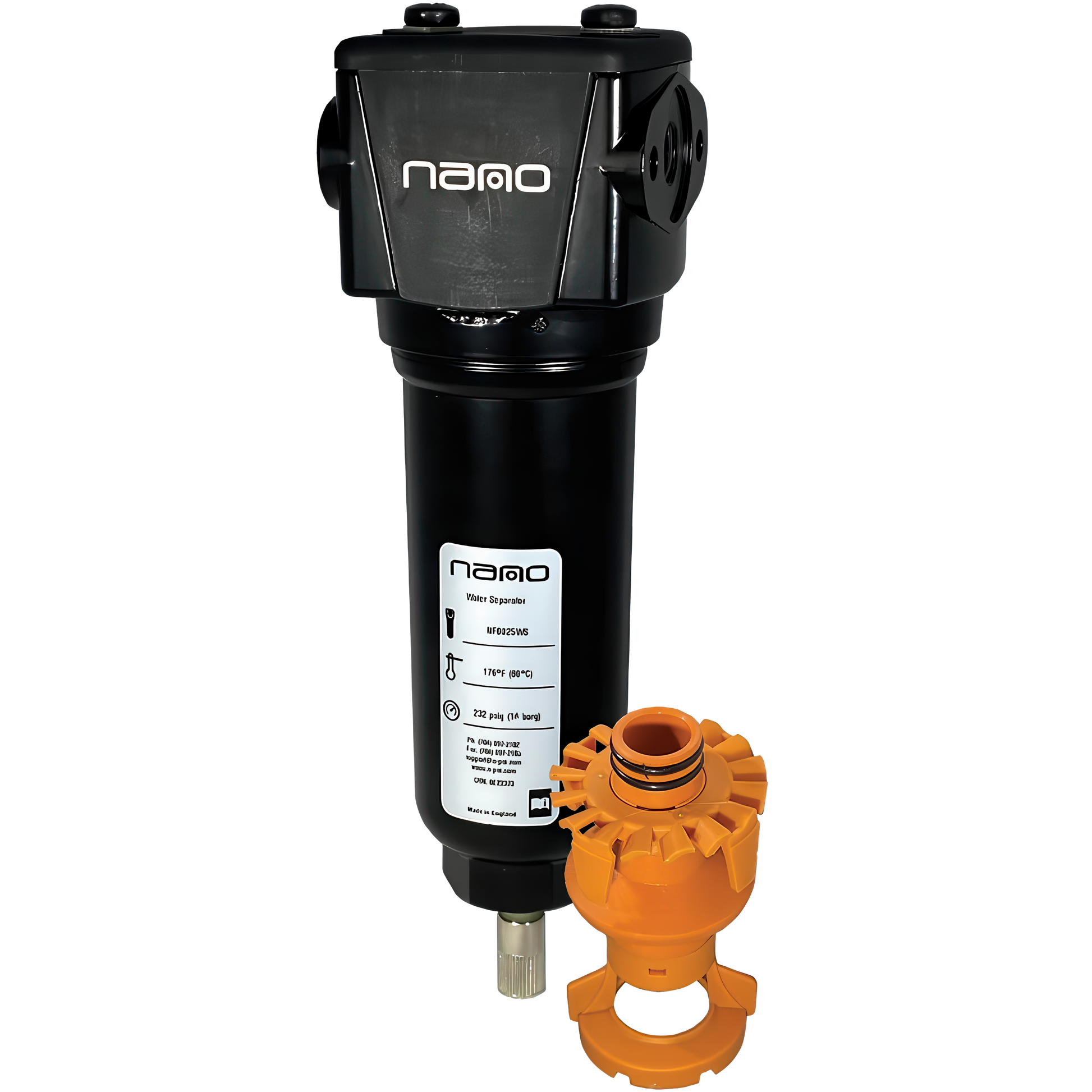

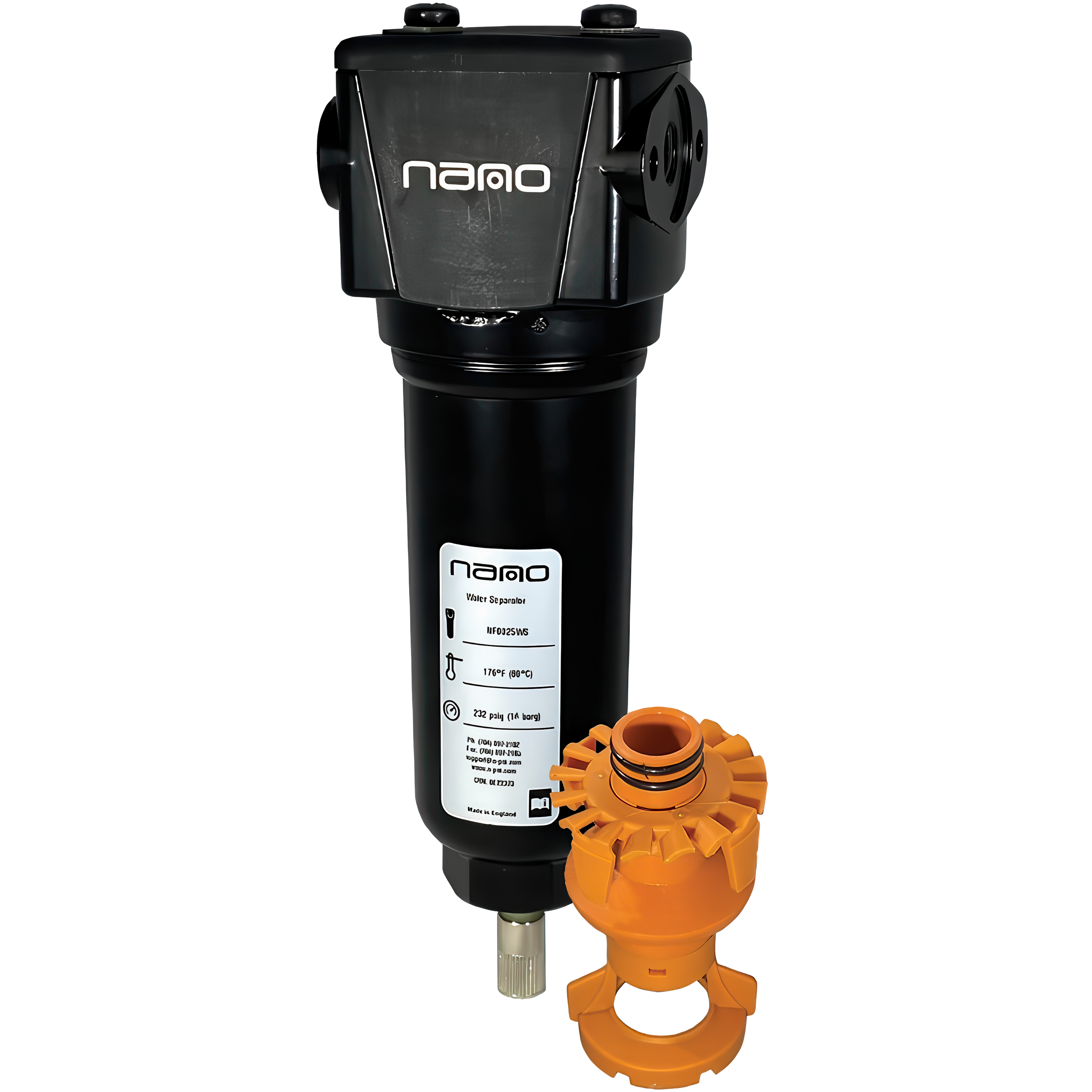

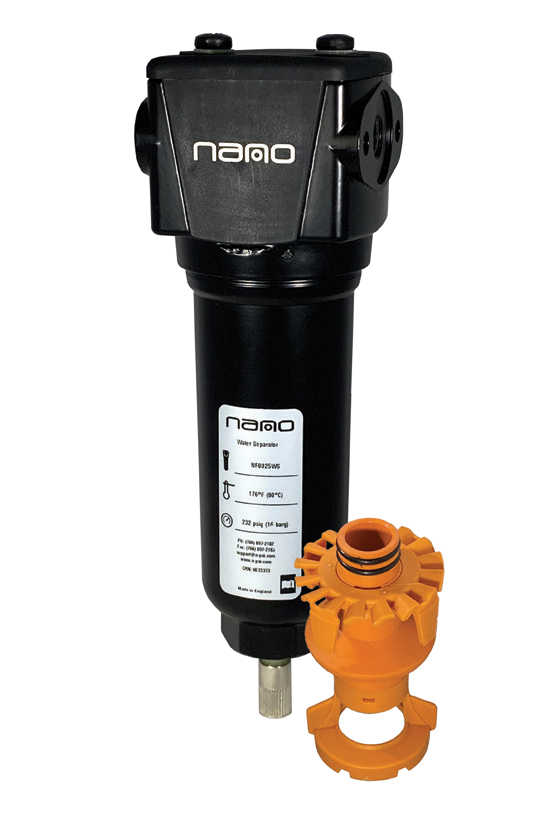

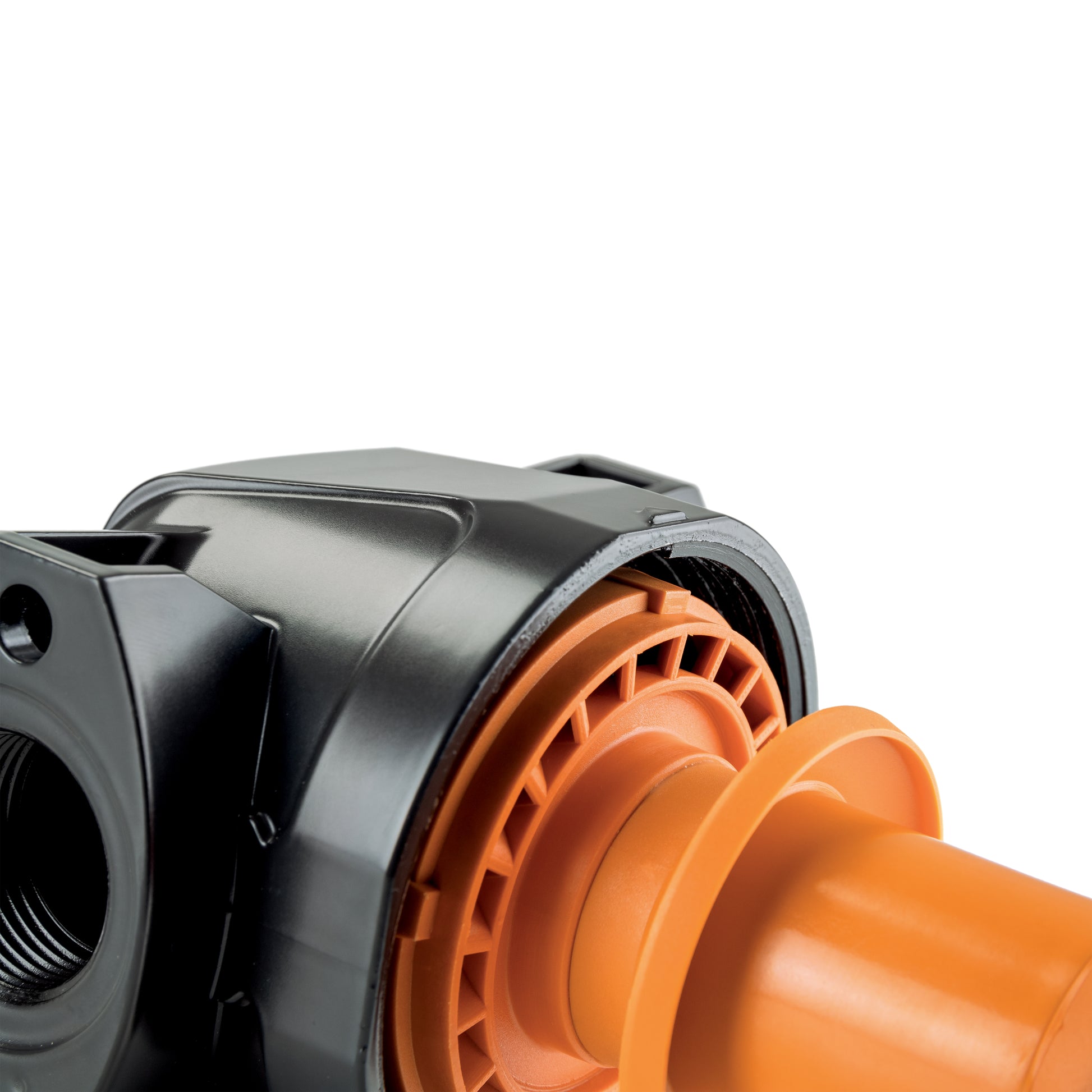

Keep damaging bulk water out of your compressed air or gas system with the Nano GF Water Separator. Engineered with CFD-optimized vanes and a Vortex Arrester, the GF removes up to 99% of liquids, cutting corrosion, protecting downstream equipment, and reducing costly downtime. Housings are die-cast aluminum with a polyester powder coat for long-term corrosion resistance—ideal for variable-speed compressors and harsh industrial environments. Manufactured in an ISO 9001 facility and tested to ISO 12500-4, the GF series delivers verified performance for applications from electronics and instrumentation to automotive, paint, robotics, oil & gas, labs, and pneumatic conveying.

Range & Connections

14 models: from compact ⅛" to 4" flanged connections
Flow capacity: 6 to 3000 scfm (rated at 100 psig; use pressure correction factors below)

Performance & Construction Highlights

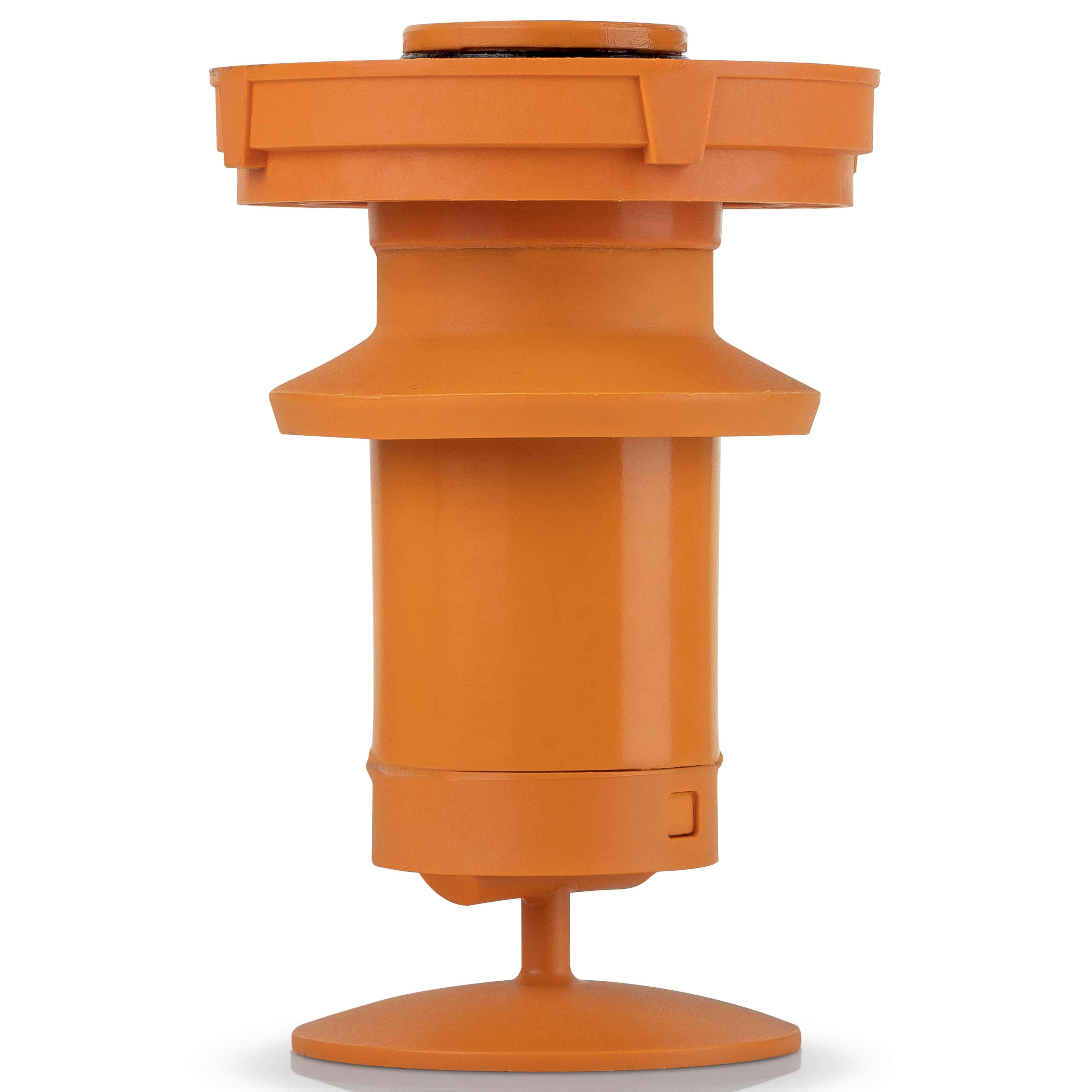

• Vortex Arrester prevents re-entrainment for cleaner drainage

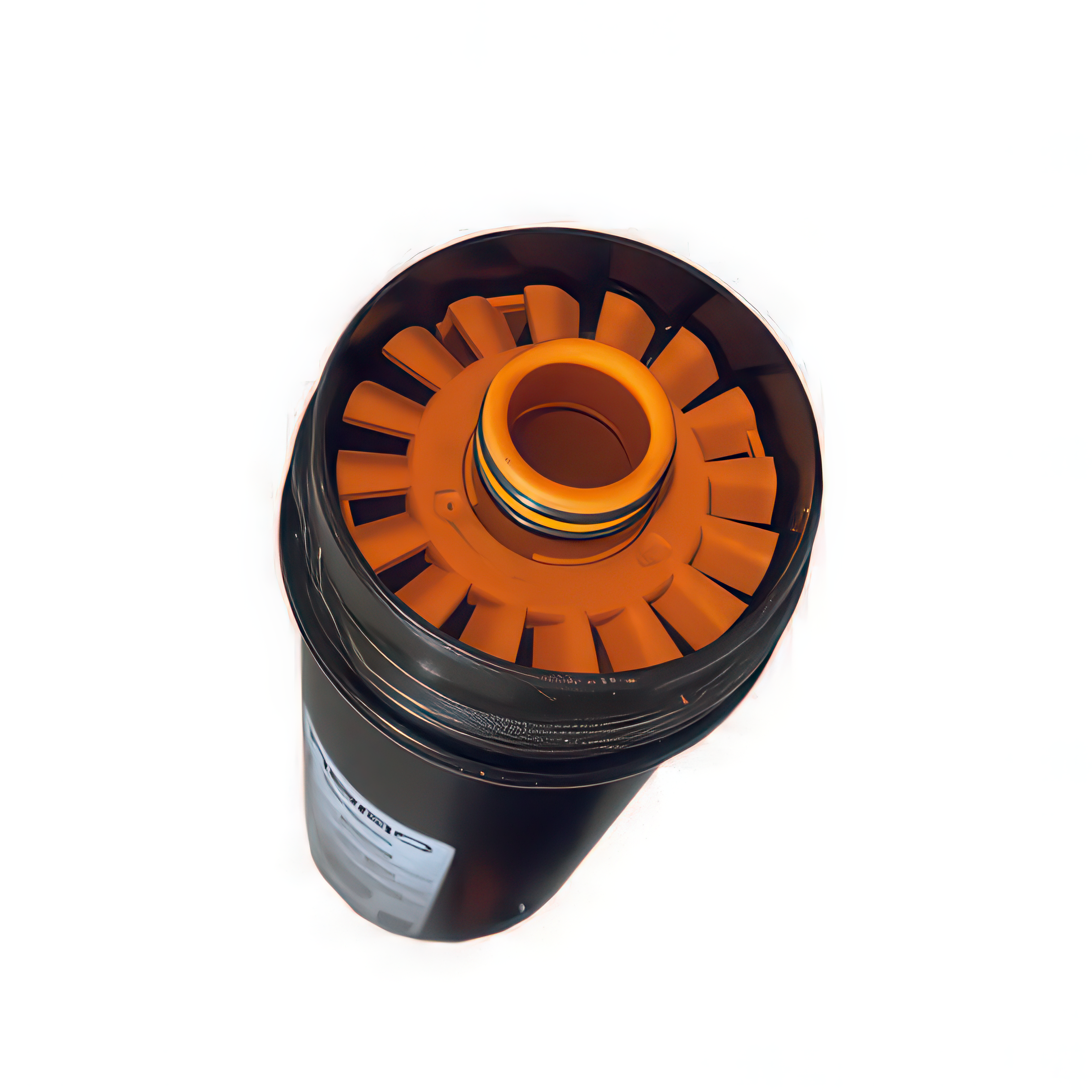

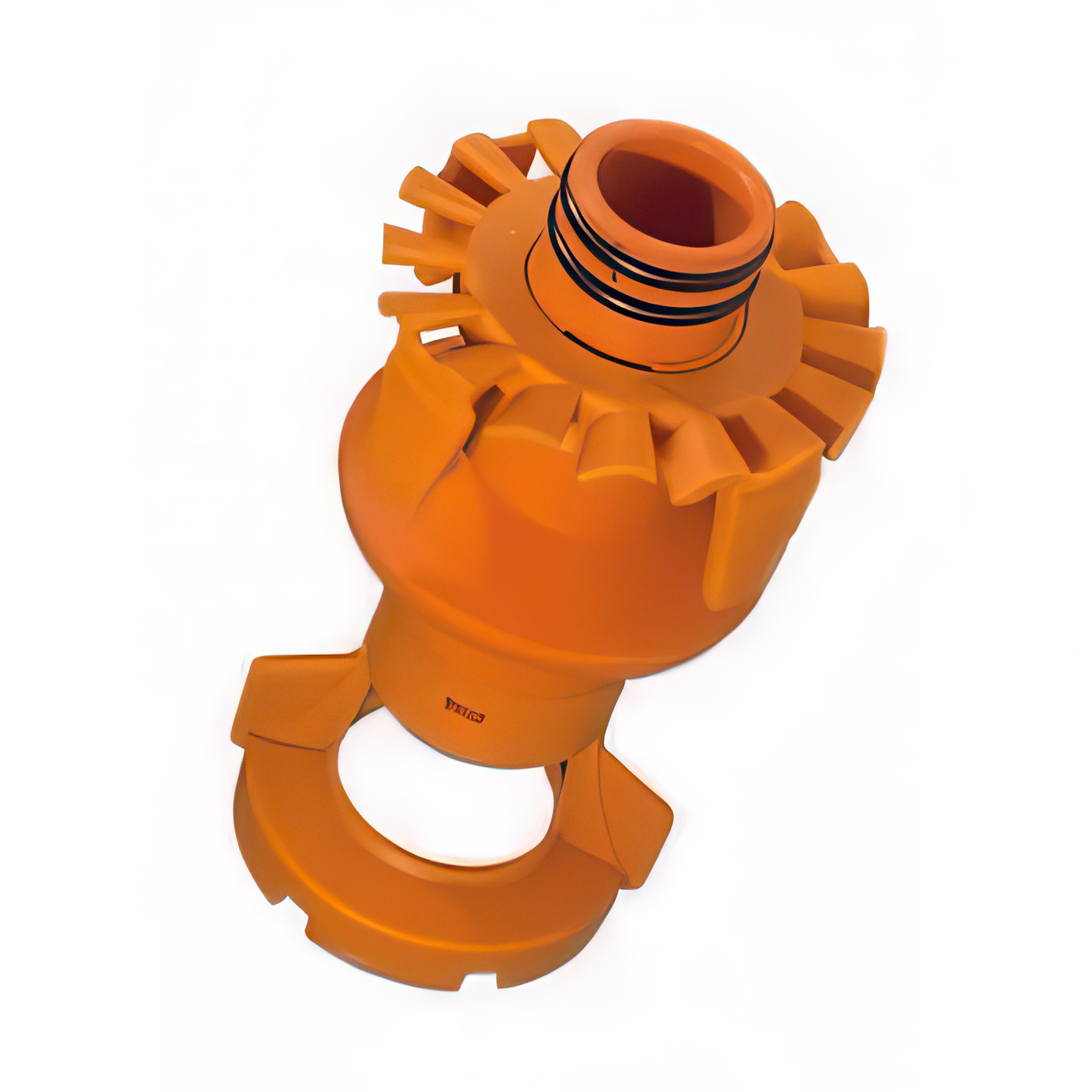

• Unique vane pack maximizes separation efficiency
• 99% liquid removal of bulk condensate

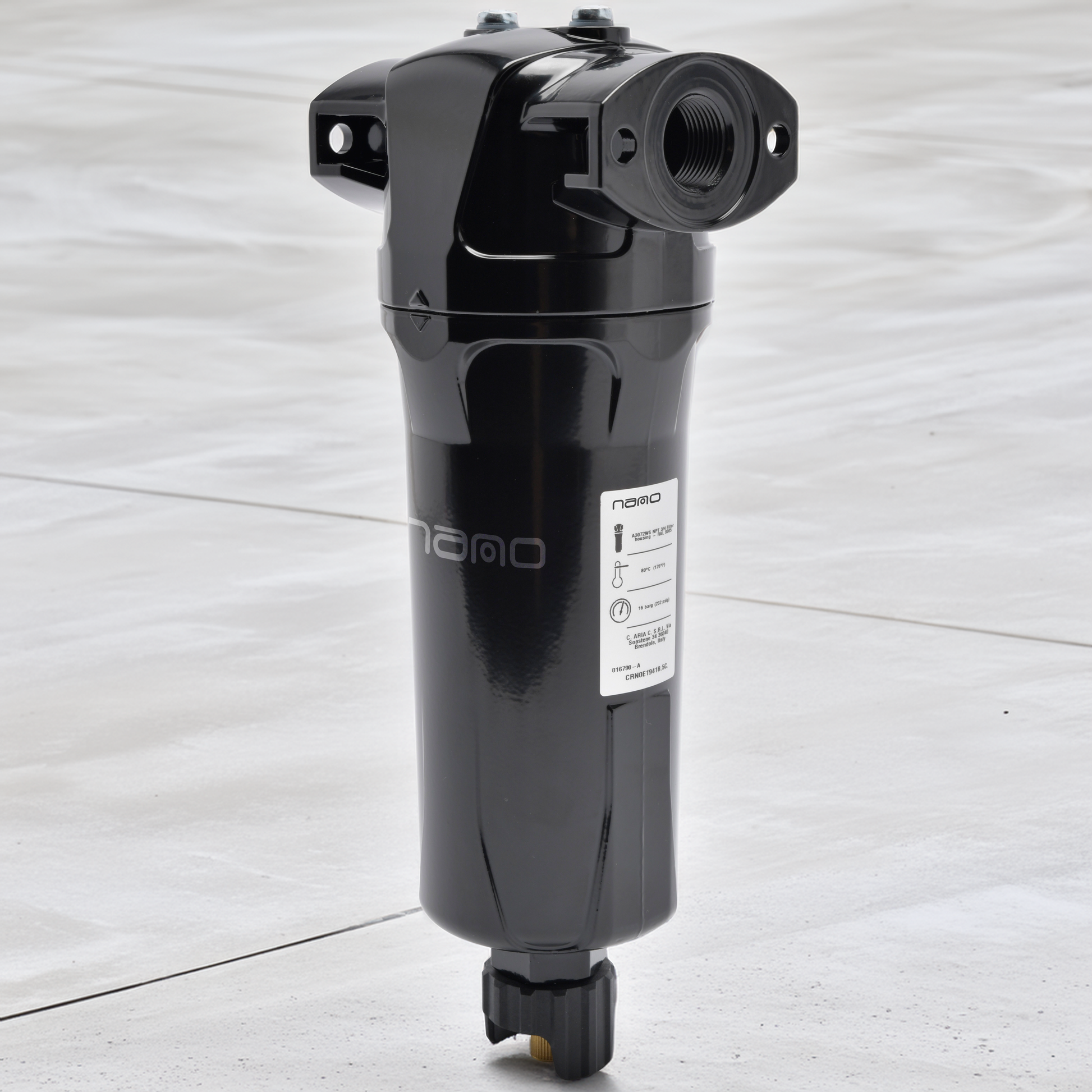

• Powder-coated aluminum housings for durability
• Perfect for VSD compressors (stable separation across turndown)
• ISO 12500-4 tested, ISO 9001 manufacturing

Operating Envelope

Recommended/Design temperature: 35–176°F
Design pressure: 0–232 psig
Models 0070–1500: 22–232 psig
Below 22 psig: specify GFDK 0050 drain

Drains & Accessories

Automatic float drain included on NF 0006–1500 WS models
For high liquid loads, use a high-capacity external drain
Drain kits available:

• GFDK 0050 (small frames)
• GFDK 1500 (larger models)

Sizing Note – Pressure Correction Factors

Use the following correction factors (based on operating pressure in psig) to determine the proper model:
58→0.76, 72→0.84, 87→0.92, 100→1.00, 115→1.07, 145→1.19, 174→1.31, 203→1.41, 232→1.51.
Multiply your required scfm by the factor to select the correct size.

Model Snapshot (Examples)

• GF 0006 WS – ⅛", 6 scfm, ultra-compact installs
• GF 0700 WS – 2", 700 scfm, heavy-duty service
• NFE 3000 WS-ND – 4" flanged, 3000 scfm, for plant-wide mains

Why It Wins

With high-efficiency bulk water removal, verified ISO performance, rugged aluminum construction, and wide sizing flexibility, the Nano GF Water Separator provides reliable protection for your entire compressed air system. It’s a low-maintenance, long-lasting solution that keeps dew points stable, prevents rust and contamination, and safeguards filters, dryers, and tools downstream.
