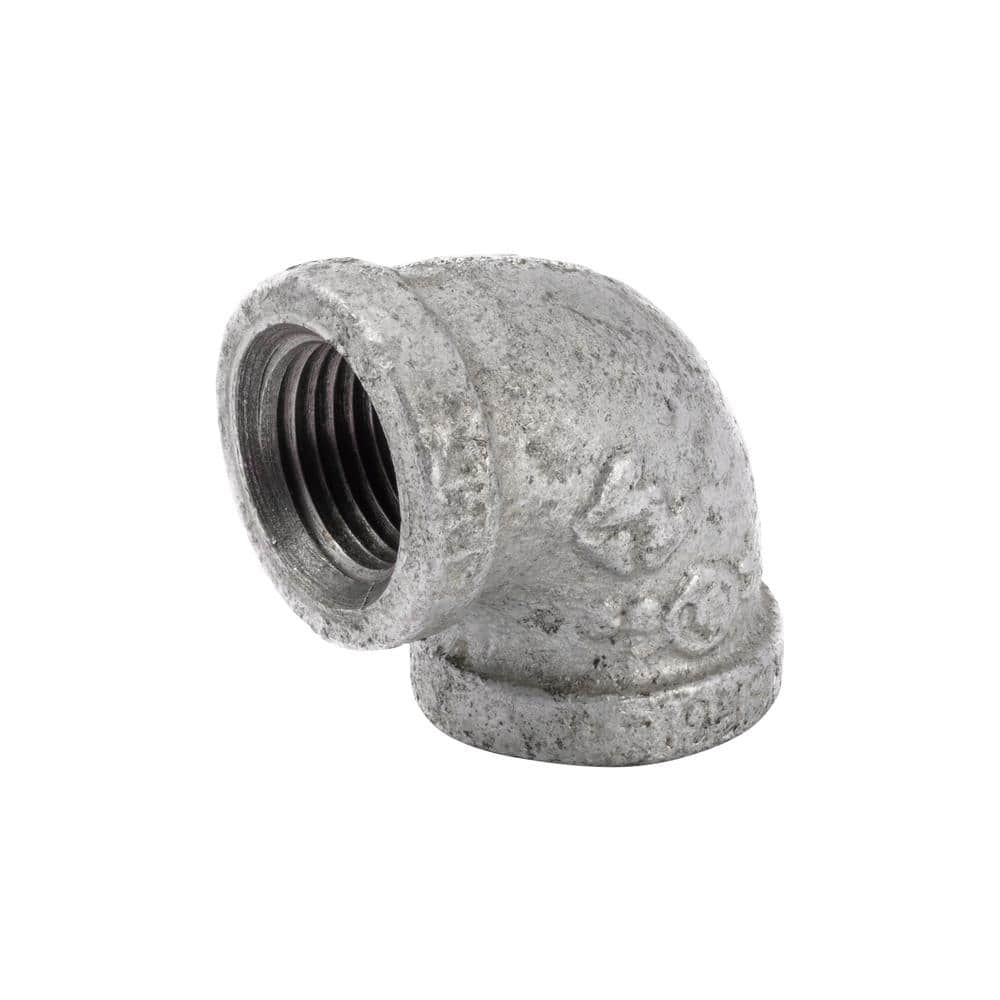

Galvanized 90° Female Equal Elbow — Class 150 Malleable Iron, FNPT
The Galvanized 90° Female Equal Elbow makes a tight right-angle turn in a threaded pipe run, joining two same-size female NPT (FNPT) ports in a single fitting. It's cast from malleable iron and hot-dipped galvanized for corrosion resistance, making it a durable choice for compressed air lines, water, gas, and general plumbing.
Rated Class 150 (150 lb) and built to ASME B16.3 with NPT threads per ASME B1.20.1, these elbows are UL Listed and FM Approved for fire-protection and industrial service. They thread onto any matching-size NPT pipe or nipple for a leak-resistant connection.
Key specifications
- Fitting: 90° equal elbow, female × female NPT (FNPT × FNPT)
- Material: Malleable iron, hot-dipped galvanized
- Pressure class: Class 150 (150 lb)
- Standards: ASME B16.3 (fittings), ASME B1.20.1 (threads), material per ASTM A197
- Approvals: UL Listed, FM Approved
- Sizes: 1/8" through 3" FNPT
Applications
Compressed air piping, fire-protection systems, non-potable water, low-pressure steam, oil, and general industrial pipe runs where a 90° direction change is needed.
Choose your thread size above. Galvanized malleable iron 90° elbows resist rust and corrosion for long service life indoors or out, and connect seamlessly with other galvanized Class 150 fittings to build a complete threaded pipe system.
NOTE: Actual product may be different from pictured!
