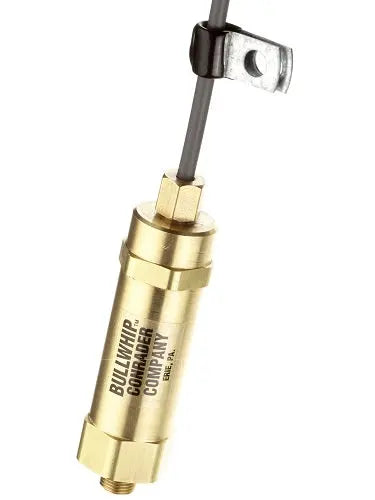

Conrader TCLP Cable-Style Throttle Control — Eyelet End, 1" Stroke (Gas Engines 8–13 HP)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Conrader
|
 SKU |
TCLP-12-E
|
The Conrader TCLP is a heavy-duty, large-body cable-style throttle control — commonly called a "bullwhip" — built for gas-engine-driven air compressors rated 8 to 13 HP. When the air receiver reaches cut-out pressure, the pilot/unloader valve actuates the cable and pulls the engine throttle back to idle; when pressure drops to cut-in, the spring returns the engine to full speed. This auto-idle action saves fuel, cuts noise, and reduces engine wear during the compressor's off-load cycles.
This is the eyelet-end version with a 1" stroke and a larger valve body than the under-8 HP TCP series, giving it the throw and spring force needed for bigger Honda, Kohler, Briggs and similar engines.
Key specifications
- Type: Cable-style throttle control (auto-idle / unloader "bullwhip")
- Engine range: gas engines 8–13 HP
- End fitting: eyelet
- Stroke: 1.0"
- Spring force: ~16.89 lbf
- Minimum actuation pressure: ~80 PSI
- Inlet: 1/8" MNPT
- Available cable lengths: 12", 18", 24", 36", 48", 60" overall
Typical applications
Gas-powered wheelbarrow and truck-mounted air compressors, contractor and service-truck compressor packages, and any 8–13 HP engine-driven compressor that uses an auto-idle/unloader system to throttle the engine between load and idle.
Choose the overall cable length that matches the distance between your pilot valve and engine throttle linkage. The Conrader TCLP eyelet-style throttle control delivers reliable auto-idle operation and easy field replacement for gas air compressors in the 8–13 HP class.
NOTE: Actual product may be different from pictured!
