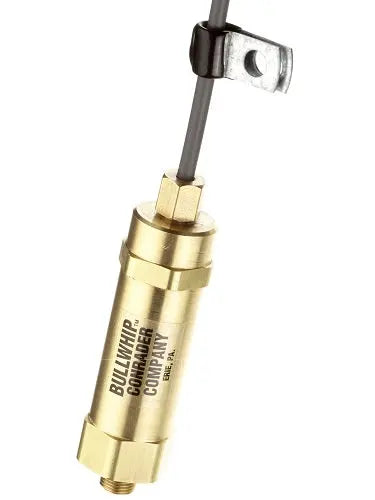

Conrader Cable-Style Throttle Control — Z-Bend, 1" Stroke (8–13 HP Engines)
The Conrader TCLP cable-style throttle control automatically slows your gas engine to idle when an air compressor reaches cut-out pressure, then returns it to full speed on demand — saving fuel, reducing engine wear, and keeping unattended compressors running efficiently. Mounted on the pilot valve or compressor frame, its stainless steel cable connects to the engine throttle arm with a Z-bend tip and is designed for engines rated 8 HP and greater.
Key specifications
- Model: Conrader TCLP, cable style, Z-bend cable tip
- Engine range: 8–13 HP gas engines
- Stroke length: 1.00 inch
- Minimum actuation pressure: 80 psi
- Maximum operating pressure: 500 psi
- Operating temperature range: -15° to 400°F
- Retracted spring force: 16.89 lbf
- Inlet connection: 1/8" male NPT (-2)
- Construction: brass body, Viton seals, stainless steel spring, permanently lubricated self-cleaning stainless steel cable
- Available cable lengths (overall): 12", 18", 24", 30", 36", 48", and 60"
Typical applications
Used on gas-engine-driven reciprocating air compressors and similar pneumatic systems where the engine must throttle down during the unload cycle. Routing clamps secure and protect the cable along its run to the throttle arm.
The Conrader cable-style throttle control delivers reliable automatic engine idle control for 8–13 HP gas-powered air compressors. With its brass body, stainless steel cable, and Z-bend connection, this TCLP throttle control offers durable, low-maintenance performance in a choice of cable lengths from 12" to 60".
NOTE: Actual product may be different from pictured!
