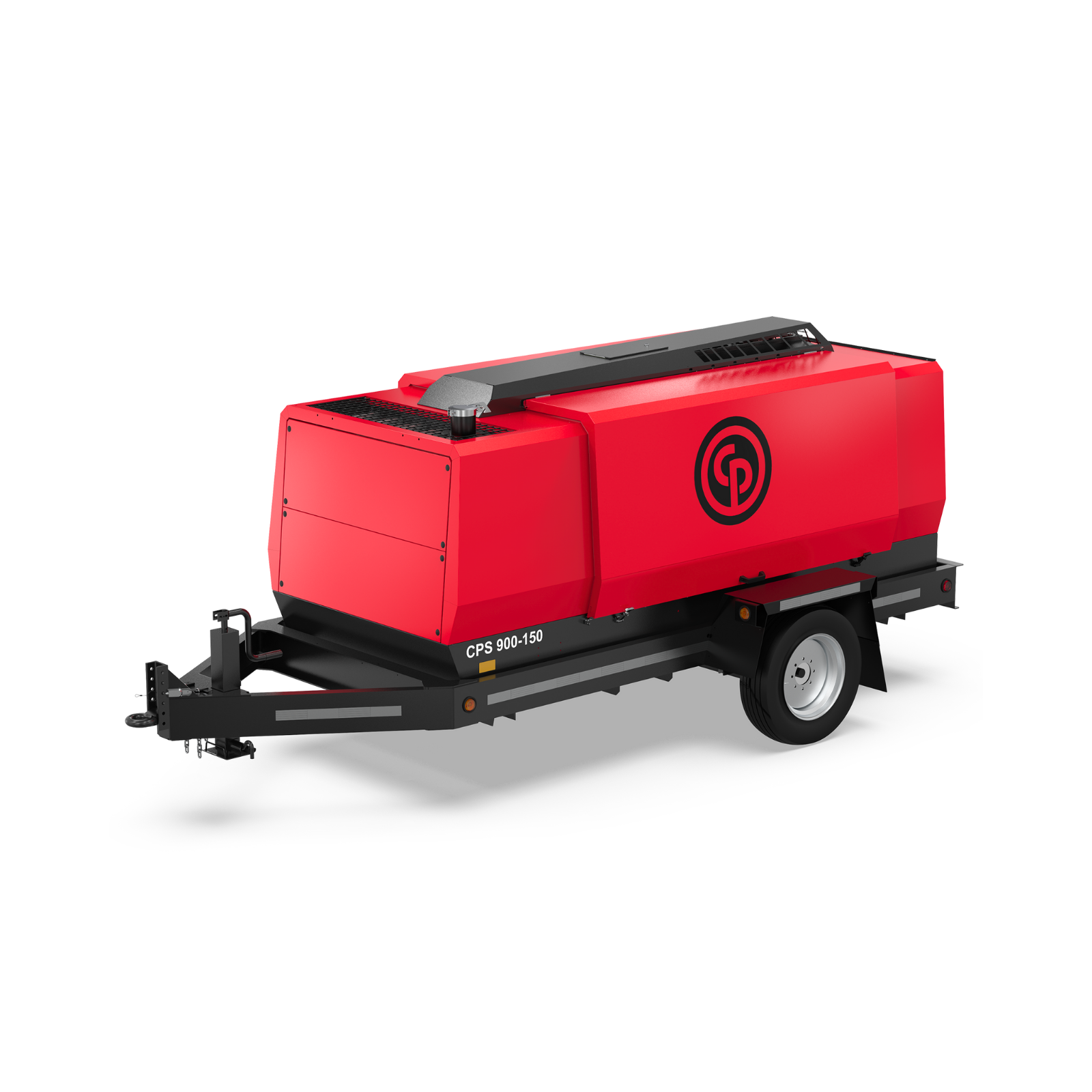

Chicago Pneumatic CPS 900-150 CUD Towable Air Compressor — up to 850 CFM, 250 HP Cummins Tier 4 Final
The Chicago Pneumatic CPS 900-150 CUD is a large towable single-stage rotary screw diesel compressor delivering up to 850 CFM at 100–150 PSI, powered by a Cummins B6.7 Tier 4 Final diesel — the Cummins-engined sibling of the CPS 900-150 JD.
Key specifications
- Free air delivery: 785–850 CFM; working pressure 100–150 PSI (min 72, max 150 PSI)
- Engine: Cummins B6.7 6-cylinder turbo diesel, 250 HP @ 2,100 rpm, EPA Tier 4 Final
- Compressor: single-stage, oil-injected rotary screw (CP C142 air-end)
- Fuel tank: 71.3 US gal; fuel consumption approx. 11 gal/hr at full load; DEF tank 11 gal; cold-start to -13°F
- Sound level: 72 dB(A)
- Aftercooler option; quick-service oil separator (under 10 minutes)
- 110% spillage-free containment; sound-dampened powder-coated steel enclosure
- XC2003 controller
- Outlets: 1 × 2" NPT + 2 × ¾" Chicago couplings
- Trailer dimensions: 202.1 x 93.6 x 84.6 in; wet weight 8,210 lb
Typical applications
Built for sandblasting, pipeline work, general construction and utility service, and rental fleets that prefer Cummins power.
The Chicago Pneumatic CPS 900-150 CUD towable air compressor delivers high-volume air from a proven Cummins Tier 4 Final diesel — a dependable choice for blasting, pipeline, and rental applications.
NOTE: Actual product may be different from pictured!
