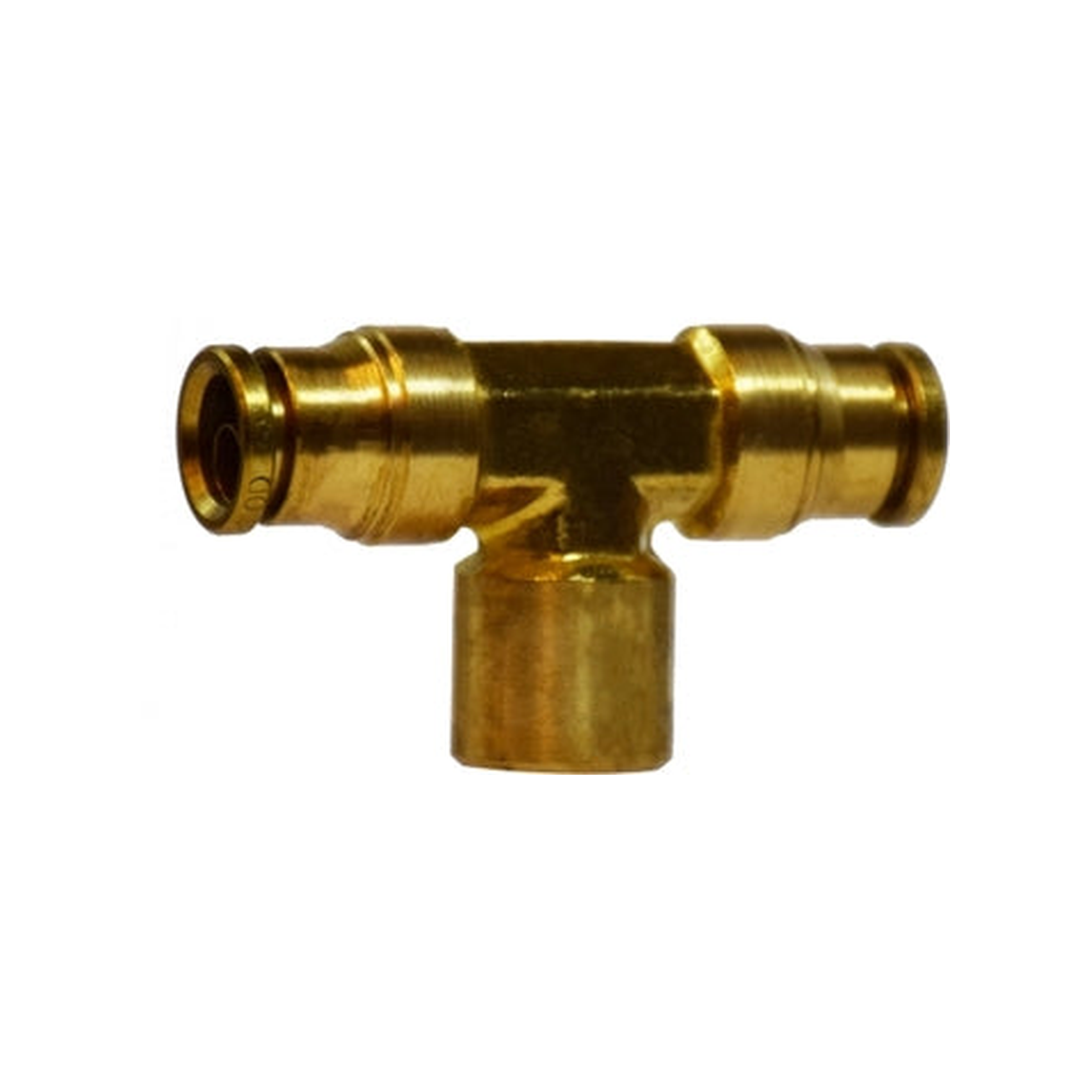

Brass Push-to-Connect Female Branch Tee — Tube × FNPT, DOT Air Brake Fitting
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
BCC-321
|
The Brass Push-to-Connect Female Branch Tee splits an air line into a three-way junction in a single compact fitting — two push-in tube ports on the run and a female NPT (FNPT) branch. Push the tubing in for a secure, leak-proof seal: no tools, no wrenching, and it disconnects and reuses in seconds.
Key specifications
- Body: solid brass with an all-brass captive eyelet for maximum flow
- O-ring seal: Buna-N (Nitrile)
- Connection: push-to-connect tube run × female NPT (FNPT) branch
- Working pressure: vacuum to 150 PSI
- Temperature range: -40°F to 200°F (-40°C to 93°C)
- Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system requirements
- Recommended tubing: DOT-approved nylon and polyurethane
- Sizes: 1/4", 3/8" & 1/2" tube OD with 1/8", 1/4" or 3/8" FNPT, plus 5/8" tube × 1/8" FNPT
Typical applications
Ideal for commercial-vehicle air brake systems, shop air lines, pneumatic tools and controls, and general compressed-air plumbing where a fast, reusable branch connection is needed.
Choose the Brass Push-to-Connect Female Branch Tee for a durable, corrosion-resistant brass tee that installs in seconds and holds tight to 150 PSI — a reliable way to tap a female NPT branch off any push-in air line.
NOTE: Actual product may be different from pictured!
