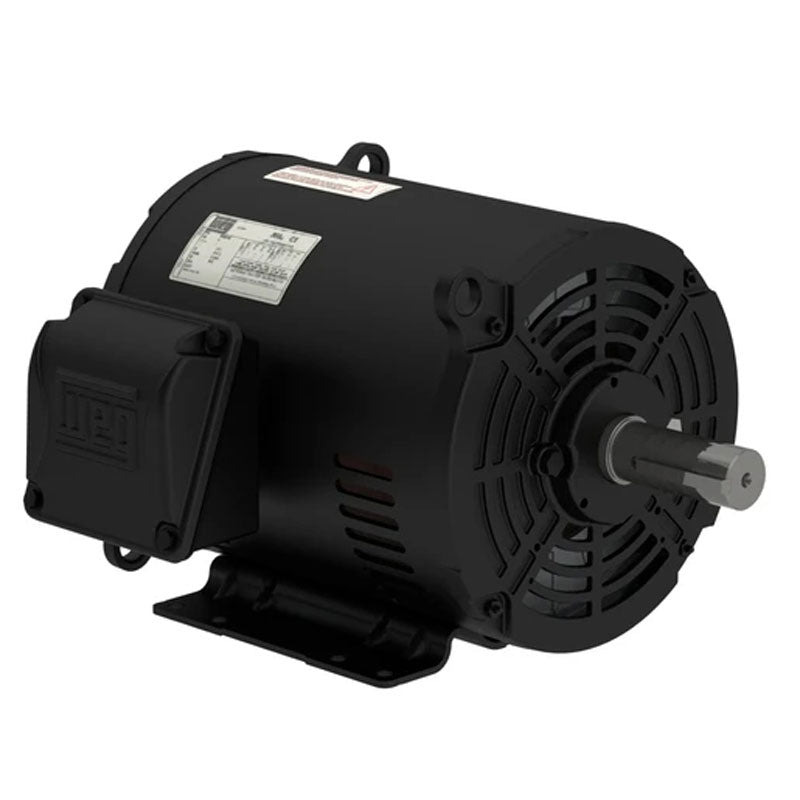

Weg Rolled Steel NEMA Premium Efficiency 3 HP Motor 4P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

NEED HELP FINDING A REPLACEMENT MOTOR? EMAIL OR TEXT US A PICTURE OF THE DATA PLATE OF THE MOTOR YOU ARE REPLACING. IF THE NAMEPLATE IS NOT AVAILABLE, PLEASE LET US KNOW THE FOLLOWING CRITERIA SO WE CAN PROPERLY SIZE THE MOTOR YOU NEED.
- HP - FRAME SIZE - RPM - PHASE - VOLTAGE - ENCLOSURE TYPE(ODP OR TEFC) - SHAFT DIAMETER - SERVICE FACTOR
PLEASE NOTE: NEVER ASSUME THE INCOMING VOLTAGE. ALWAYS CHECK INCOMING VOLTAGE BEFORE ORDERING A REPLACEMENT MOTOR.

Frame: 184T
RPM: 1765
Shaft Diameter: 1-1/8
Full Load Amp: 7.72-3.86
Voltage: 208-230
Service Factor: 1.15(1.00@208v)
Phase: Three

WEG THREE PHASE GENERAL PURPOSE AND COMPRESSOR DUTY ELECTRIC MOTORS FEATURE A NEW VENTILATION SYSTEM FOR IMPROVED THERMAL PERFORMANCE. NEMA PREMIUM EFFICIENCY LEVELS WITH CLASS F INSULATION. ROBUST FEET DESIGN SUITABLE FOR TOUGHER APPLICATIONS. TERMINAL BOX ROTATABLE IN 90 DEGREE INCREMENTS FOR INSTALLATION FLEXIBILITY. COLOR CODED LEADS FOR EASY WIRING. NUMBER OF POLES 2 THROUGH 6. REGREASABLE BALL BEARINGS COME STANDARD ON 254T/256T AND LARGER. ALUMINUM END SHIELDS AND F1 MOUNT STANDARD.
