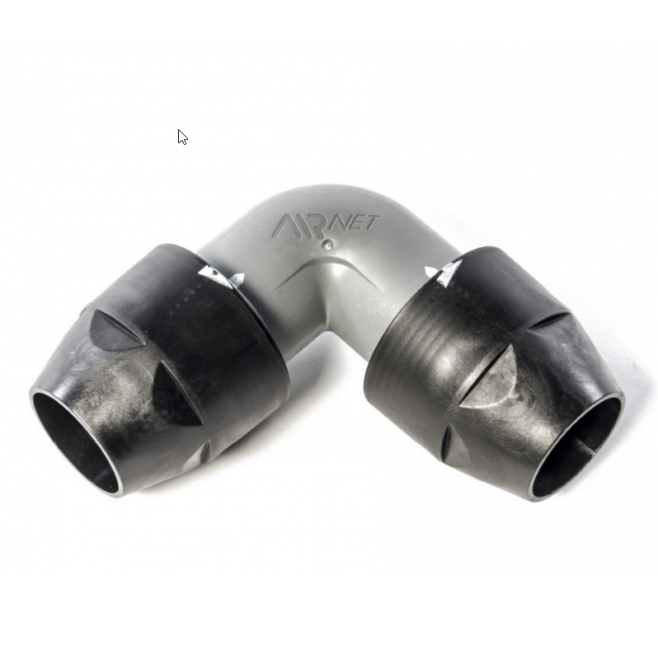

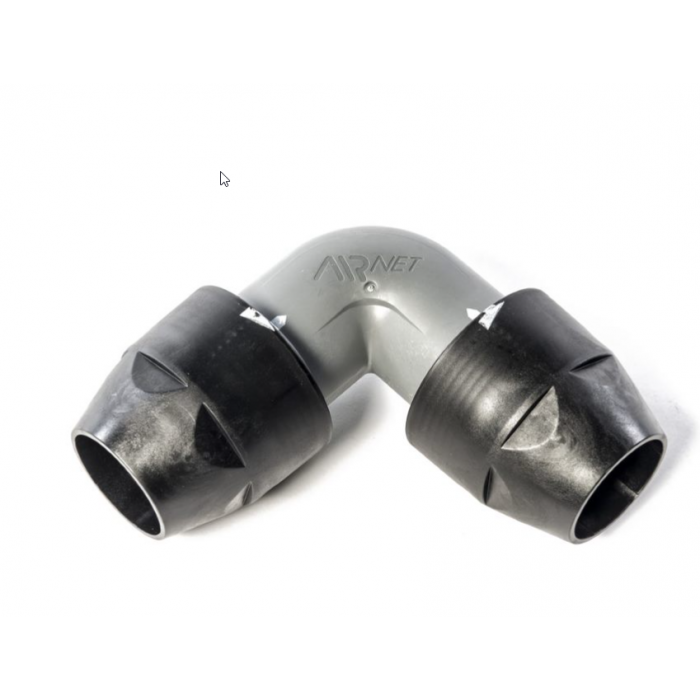

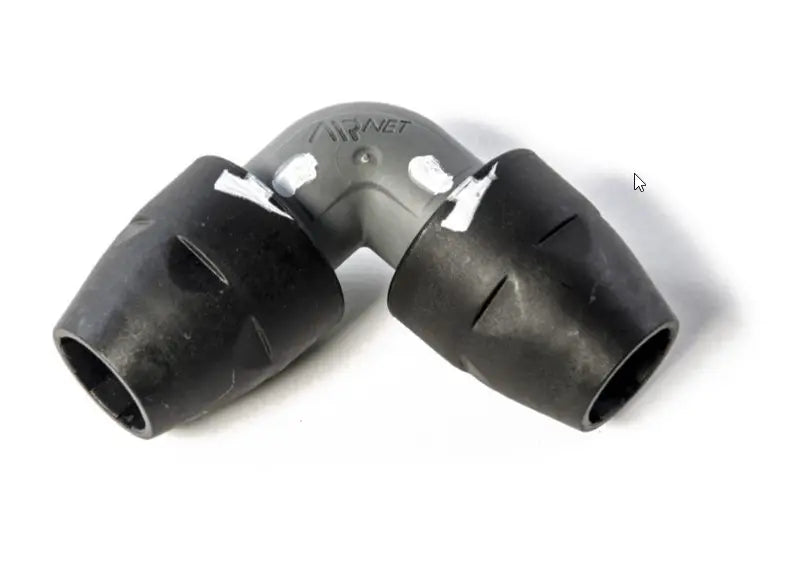

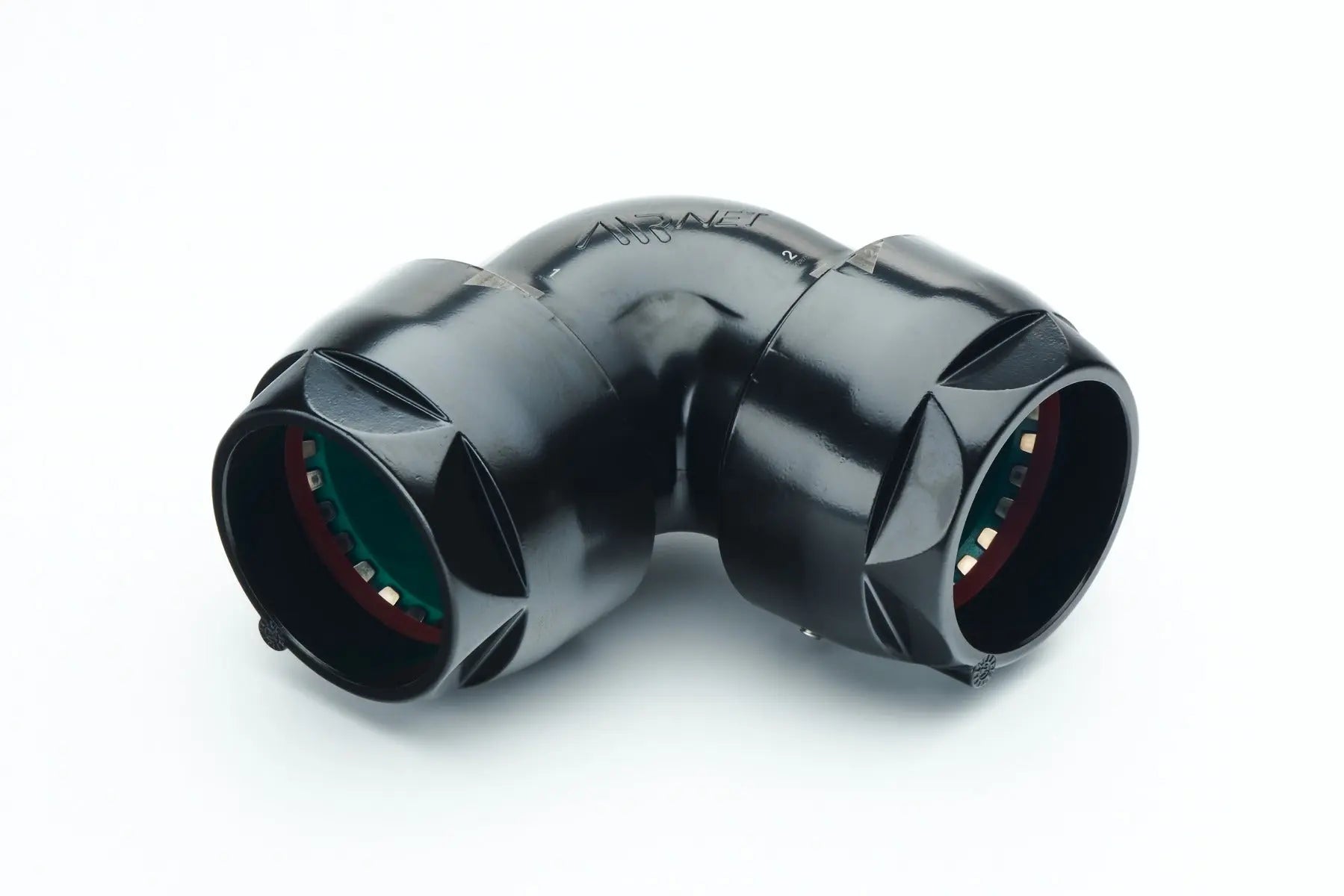

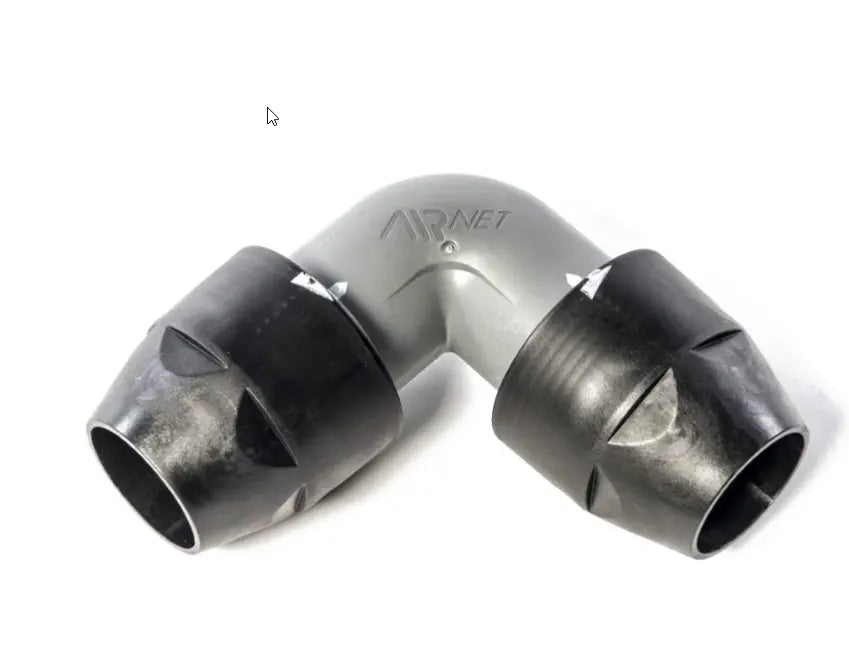

Elbow 90° Polymer Fitting
Elbow 90° Polymer Fitting
| Specifications (As Configured) | |
|---|---|
 Vendor |
Airnet
|
 SKU |
2811100380
|
| Dimensions | |
 Weight |
3.0 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
AIRnet technologies and innovations are based on technical expertise gained from more than 140 years of experience with pressurized
air applications and equipment.
AIRNET IS FAST AND EASY TO INSTALL AND FLEXIBLE FOR THE FUTURE
TIME AND TOOLING
- Quick connections with no need to crimp, thread, solder or glue the pipe
- No heavy tooling or machinery required
- PF series can be connected to any existing network via simple use of adaptor
unions and nipple sockets - PF series is assembled by hand, a push of the pipe into the fitting is all it takes
MODULARITY
- Easy to handle and easy to work with lightweight materials
- Modular design supports extensions and modifications to meet new demands
- Components are interchangeable and reusable after disassembly
- Quickdrops are easily mounted, both horizontally and vertically
SPECIFICATIONS
-
Connection
- Push to fit technology Standard
-
Materials
- Engineered polymer PA6 - GF30 fiberglass reinforcement
- Aluminum high pressure die casting EN AC-46100, similar to A03830
- Grip Ring: Stainless Steel
- ASTM B85 / EN 1706
- Wrought aluminum alloy 6082 ASTM B221
-
Seal fittings
- Rubber NBR 70 Sh A (PTFE coating on pipe seal)
Quickdrop design safeguards leaktight and condensate free droplines
AIRnet® aluminum piping elbows are designed to create clean, efficient direction changes in compressed air distribution systems without sacrificing airflow or system performance. Manufactured from corrosion-resistant aluminum, these elbows provide a lightweight yet durable solution for routing air lines around obstacles, walls, and equipment in industrial and commercial environments.
Each AIRnet elbow features precision-engineered push-to-connect ends that ensure fast, leak-free installation while maintaining full system integrity. The smooth internal bore minimizes pressure drop and turbulence, helping maintain consistent air delivery throughout the system. Compared to traditional steel or copper fittings, AIRnet aluminum elbows reduce installation time, eliminate the need for threading or welding, and support long-term reliability.
Ideal for use in rotary screw compressor rooms, manufacturing plants, automotive shops, and other compressed air applications, AIRnet aluminum piping elbows are fully compatible with the AIRnet modular piping system. They are available in multiple diameters and angle configurations to support flexible system layouts while meeting the demands of modern compressed air networks.
NOTE: Actual product may be different from pictured!
