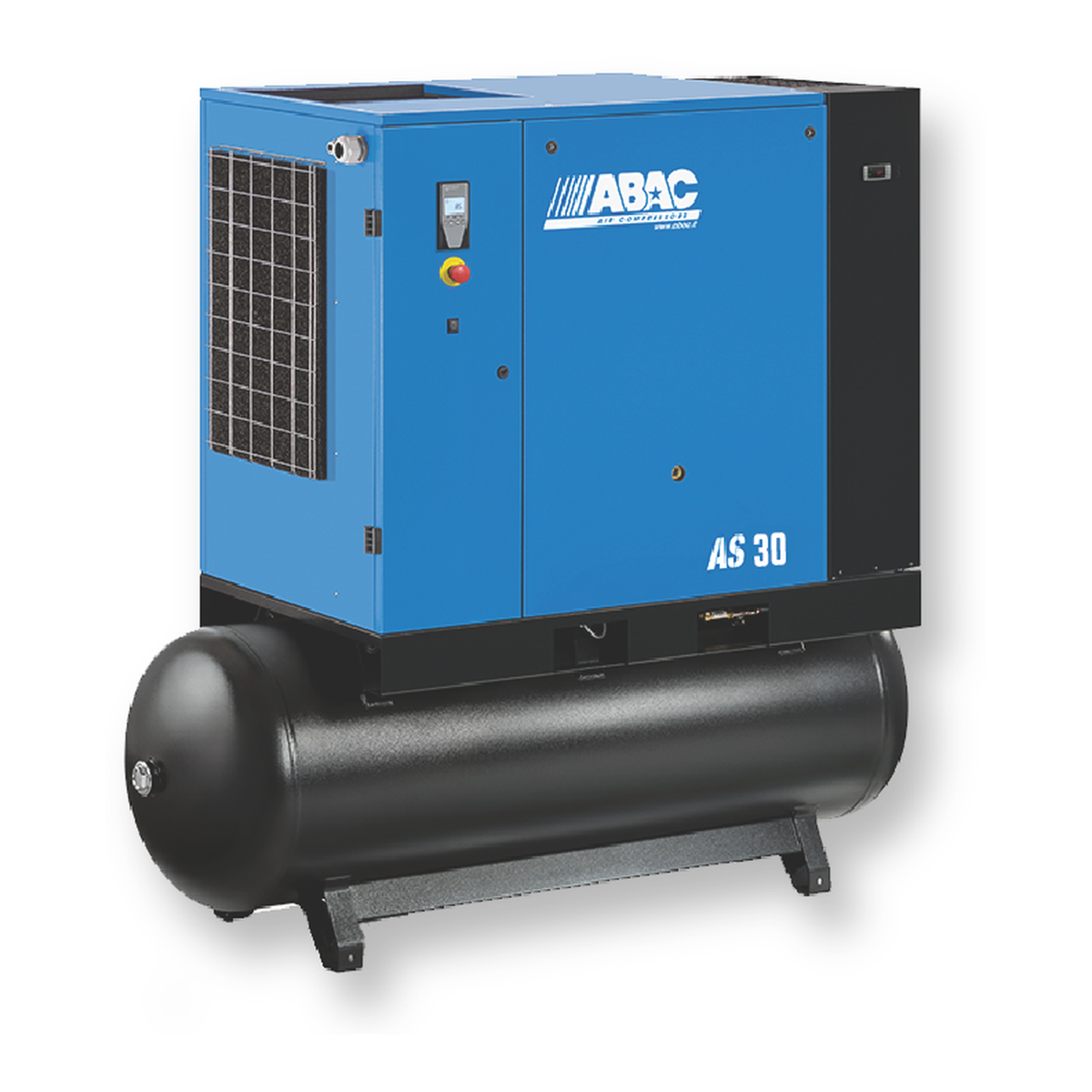

ABAC AS-30503TMD 30 HP Rotary Screw Air Compressor - 131 Gallon Tank Mount with Dryer, 150 PSI, 103.1 CFM, 70 dBA

The ABAC AS-30503TMD is a complete 30 HP compressed air station on one base: a rotary screw air end, a 131 gallon air receiver and an integrated refrigerated dryer, mounted, wired and plumbed together at the factory. It delivers 103.1 CFM at a 150 PSI maximum and runs at 70 dBA. There is no separate tank or dryer to size, site and pipe, so installation comes down to setting it in place, landing one electrical connection and connecting your air line. Assembled it measures 75 x 31 x 72 in and weighs 1365 lbs. Power is 208-230-460V three-phase.

Key specifications

• Model: AS-30503TMD (part number 4152028472)
• Motor: 30 HP, energy efficient
• Air delivery: 103.1 CFM
• Maximum working pressure: 150 PSI
• Noise level: 70 dBA
• Tank: 131 gallon receiver, tank mount
• Integrated refrigerated air dryer
• Power supply: 208-230-460/3/60
• Weight: 1365 lbs
• Dimensions (L x W x H): 75 x 31 x 72 in
• Fully integrated aluminum block air end
• Vertical oil separation technology
• Brand: ABAC, part of the Atlas Copco group

Why 150 PSI, and what it costs you

Pressure and flow trade against each other on the same air end. At 150 PSI this machine gives 103.1 CFM; the 125 PSI build of the identical package gives 114.1 CFM. You are spending 11 CFM of airflow, and the energy behind it every hour the compressor runs, to buy the extra 25 PSI. Buy it when something real needs the pressure: press and clamp circuits, higher pressure tooling, a shop that works at 120 PSI at the drop rather than 90, or a long distribution run where line loss eats into delivered pressure before the air reaches the tool. If every drop is regulated down to 90 or 100 PSI anyway, the 125 PSI AS-30253TMD is the better machine and the cheaper one to run.

What the tank and dryer package changes

Every rotary screw sends warm, saturated air downstream, and that water is what rusts piping, freezes air logic, pits tooling and ruins a paint finish. Solving it piecemeal means sizing a receiver, buying a dryer, finding floor space for both, then wiring and plumbing them to the compressor. On the TMD build all three arrive as one matched assembly: the receiver sits under the compressor, the dryer is mounted and wired with it, and the footprint stays 75 x 31 in rather than three machines spread along a wall. The cost is height and weight, 72 in tall and 1365 lbs, so check door clearance, the floor route and floor loading before delivery.

Why a screw instead of another piston

A piston compressor builds air in bursts and needs time to cool between them. A rotary screw is rated for continuous duty, so it holds a flat line pressure through a full shift instead of sagging and recovering between jobs. At 30 HP that difference is the whole point: this is a machine for a plant drawing air most of the day, not one that tops up a receiver now and then. A screw dislikes short cycling, which is part of why the matched receiver matters, and it wants a demand pattern that keeps it loaded.

How it compares

Within the AS-B range the choices around this machine are pressure, mounting and dryer. The AS-30253TMD is the same package set for 125 PSI, trading pressure for flow at 114.1 CFM in an identical cabinet at the same 1365 lbs. If you already own a correctly sized receiver, the AS-30503BMD is the same 103.1 CFM air end and dryer without the tank, at 867 lbs and 55 x 31 x 49 in, and the AS-30503BM drops the dryer as well at 759 lbs and 44 x 31 x 49 in. A step down in horsepower at the same 150 PSI, the AS-25503TMD gives 92.2 CFM at 69 dBA and 1330 lbs in the same 75 x 31 x 72 in footprint. At 103.1 CFM the AS-30 is the largest machine in the AS-B tank mount range, the one to choose when 25 HP is already running loaded most of the shift.

Typical applications

Production and fabrication floors, machine shops running several CNC cells, automotive and fleet service bays, tire and truck shops, plasma tables, packaging lines, sandblasting, and spray finishing or powder coating where moisture in the line spoils tools, air logic or finish quality. The 150 PSI rating suits plants where the distribution run is long, where press and clamp circuits sit on the same system as handheld tools, or where a 125 PSI machine has been struggling to hold pressure at the far end of the building. At 103.1 CFM it will carry a bank of air ratchets and sanders, a continuous blow off, a blast cabinet, or several cells drawing at once through a full shift. Drying the air at the compressor keeps condensate out of the distribution piping instead of leaving it for traps and filters downstream to catch.

What to pair it with
