THB 9000 Series 2-Stage Coalescing Filter & Desiccant Dryer — 0.01 Micron, Manual Drain
The THB 9000 Series 2-Stage Coalescing Filter & Desiccant Dryer delivers clean, dry, oil-free compressed air at the point of use. It combines two treatment stages in one compact in-line assembly: a 0.01-micron coalescing filter that strips out oil, water, and fine aerosols, followed by a desiccant dryer that adsorbs the remaining moisture to lower the air's dew point — ideal anywhere residual oil or humidity would spoil the work.
Key specifications

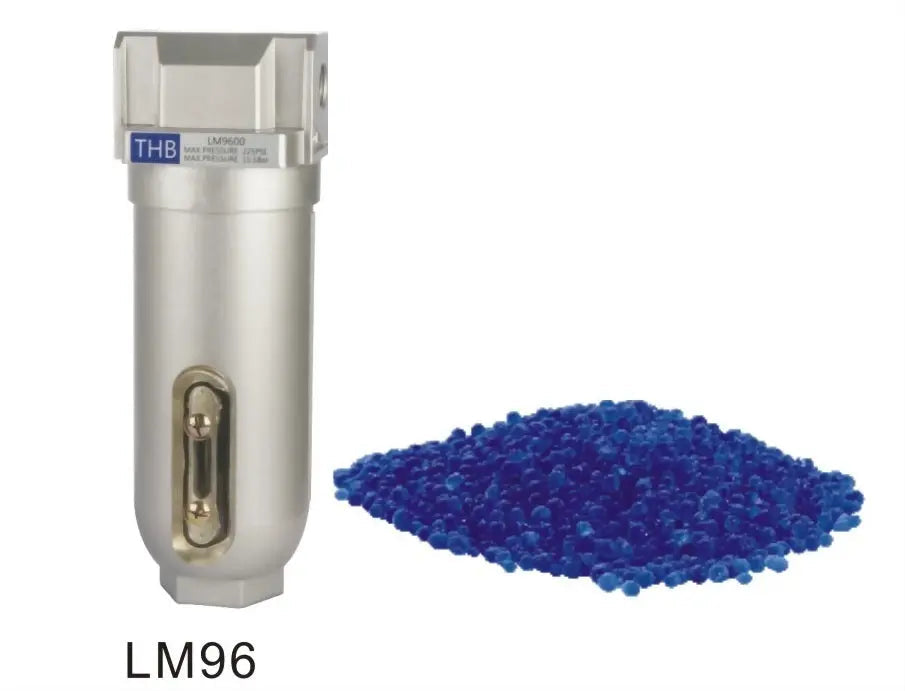

- Two-stage design: Stage 1 — 0.01 micron coalescing filter, removes up to 99.98% of oil, water, and aerosols; Stage 2 — desiccant dryer that lowers dew point for dry air downstream
- Bowls: rugged 11 oz metal bowl with sight glass on each stage for at-a-glance monitoring
- Drain: manual drain
- Maximum working pressure: 250 PSI
- Port sizes: 1/2", 3/4", and 1" FNPT
- Serviceable: replaceable FM9607 0.01-micron coalescing element and rechargeable desiccant media
- Series: THB 9000 high-flow main-line series
Typical applications
Spray finishing and automotive paint booths, plasma cutting, pneumatic instruments and controls, laboratory and analytical air, blow-off stations, and point-of-use drops where dry, oil-free air is critical.
The THB 9000 Series 2-stage coalescing filter and desiccant dryer puts 0.01-micron oil removal and moisture-adsorbing drying in a single inline unit, with a durable 11 oz metal bowl, sight glass, and manual drain — available in 1/2", 3/4", and 1" FNPT to match your air line.
NOTE: Actual product may be different from pictured!
