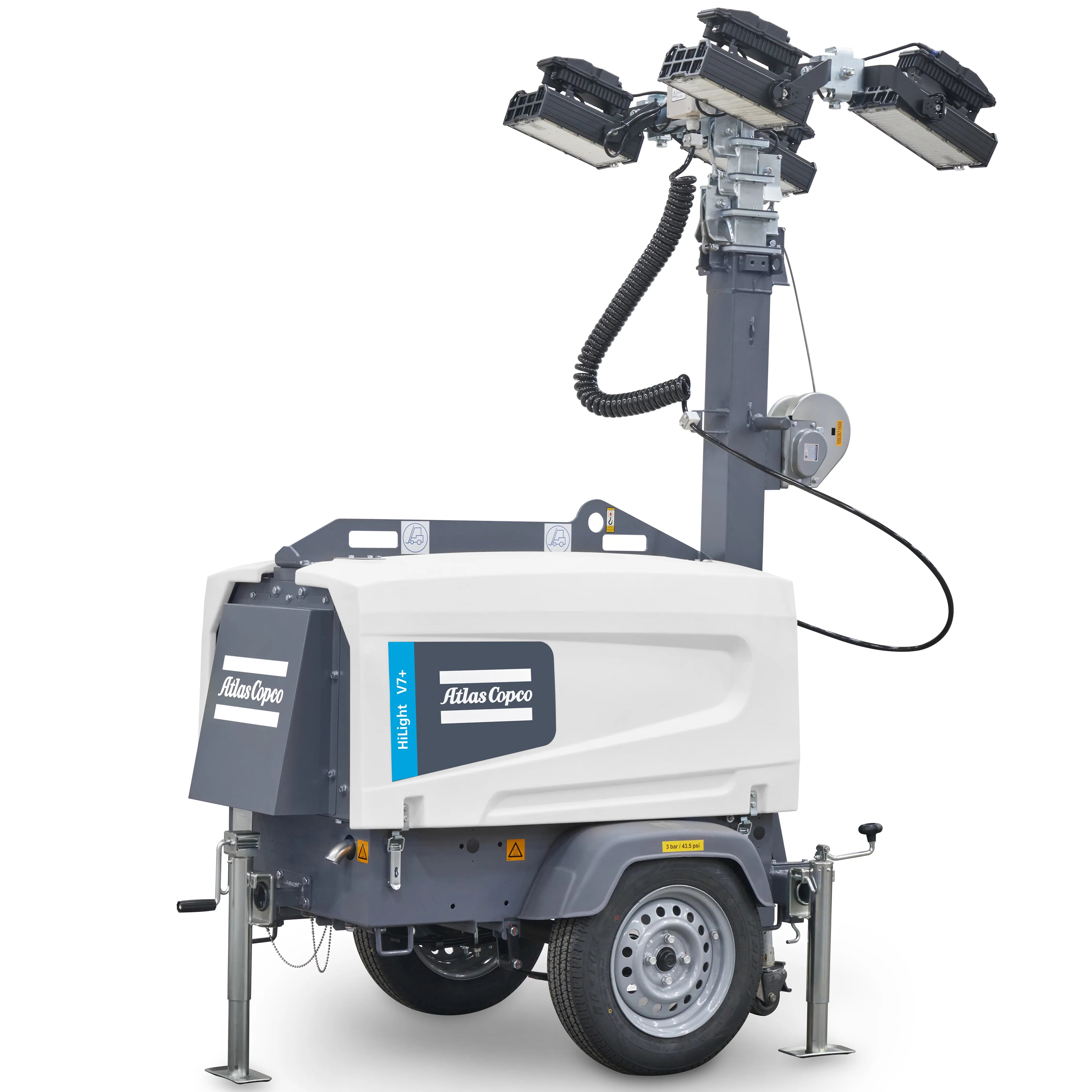

Atlas Copco HiLight V7+ Photocell | LED Light Tower — Auto Dusk-to-Dawn, LC1003 Controller, 4×350W LEDs, T4F Diesel

Set it once and forget it. The Atlas Copco HiLight V7+ Photocell is a diesel-powered LED light tower built to flood a worksite with 75,000+ square feet of clean, glare-free illumination — and then keep doing it for up to 145 hours straight on a single tank. Photocell version — adds dusk-to-dawn auto-start and the LC1003 controller with integrated scheduler for fully autonomous, unattended operation.

Why the Photocell Variant

The standard V7+ requires a human to flip the start switch at the beginning of every shift. The Photocell version doesn't. Its built-in light sensor reads ambient light and triggers the engine to start at dusk and shut down at dawn — automatically, every day, without staffing overhead. For unmanned remote installs (pipeline pads, rural construction, perimeter security lighting, emergency response), this is the difference between a piece of equipment that needs a daily visit and one that just runs.

LC1003 Controller — The Real Differentiator

The LC1003 is more than a glorified photocell. It's a programmable scheduler that lets you override or layer schedules on top of the dusk/dawn trigger:

• Run only between specific hours (e.g., 6 PM to midnight for active job phases)
• Skip selected days of the week (e.g., no operation on Sundays)
• Manual override for special events or emergency conditions
• Engine protection logic — won't start if fuel is low, oil pressure is wrong, or battery is below threshold
• Service hour tracking with audible/visual reminders

Quad 350W SMD LED Heads

Four 350-watt Surface-Mount Device LED floodlights deliver crisp, blue-white light that the eye reads as daylight, with 20% more coverage area than older COB LED designs. The vertical 25-foot mast rotates 340° on its base — chase shadows around stockpiles, deep excavations, and crane swing zones without repositioning the trailer. Beam spread covers 75,000 sq ft at 20 lux average and reaches 130,000 sq ft at the 1-lux/75° threshold.

Full Specifications

Designed for the Long Haul

The HardHat™ gull-wing canopy is roto-molded from impact-resistant polyethylene — it won't dent, rust, or chip the way sheet-metal enclosures do, and it shrugs off accidental forklift contact better than steel. A central lifting eye plus integrated forklift pockets make the unit easy to load, unload, and reposition. The wide 1,220 mm axle, torsion suspension, and DOT-compliant lighting package give the V7+ road-legal towing manners behind a half-ton truck.

Where the Photocell Version Pays for Itself

• Pipeline, well-site, and oil & gas pads — remote installs that previously required daily site visits just to flip switches
• Long-duration disaster response — runs unattended for nearly a week between fuel stops
• Security and perimeter lighting — automatic deterrent illumination, no operator presence required
• Highway DOT night work — set hours that match the work window, ignore the rest
• Concerts, festivals, and outdoor venues — pre-scheduled performance lighting and tear-down lighting
• Construction sites with phased lighting needs — automatic transitions between active-work and quiet-hours profiles
• Rental fleets serving unmanned installs — premium product positioning for jobs that need walk-away operation

Aux Power and Connectivity

The 2.4 kW alternator drives a 240V/30A twist-lock auxiliary outlet (NEMA 6-30R) on the panel — useful for trailer-based equipment, battery chargers, or sub-circuits at remote pads. The LC1003 controller is the foundation Atlas Copco uses for its Fleetlink connectivity package — your dealer can retrofit GPS, remote monitoring, and automated service-interval reporting if your operation needs it.

Cold Weather and Service

The unit includes the same Canadian cold-climate package as the standard V7+: 120V engine block heater, heavy-duty battery, sealed electrical enclosures rated for sub-zero starts, and spill containment as standard. Service kits at 200-, 400-, and 800-hour intervals are available (P/N 3002607840 / 3002607850 / 3002607860). The Kubota Z482 engine block is one of the most widely serviced industrial diesels in the world.

Model: HiLight V7+ Photocell  |  SKU: 8162104894  |  List Price (MSRP): $16,029  |  Controller: LC1003 with scheduler  |  Run Time: 142 hrs. Spec sheet, brochure, and operator manuals available on request.
