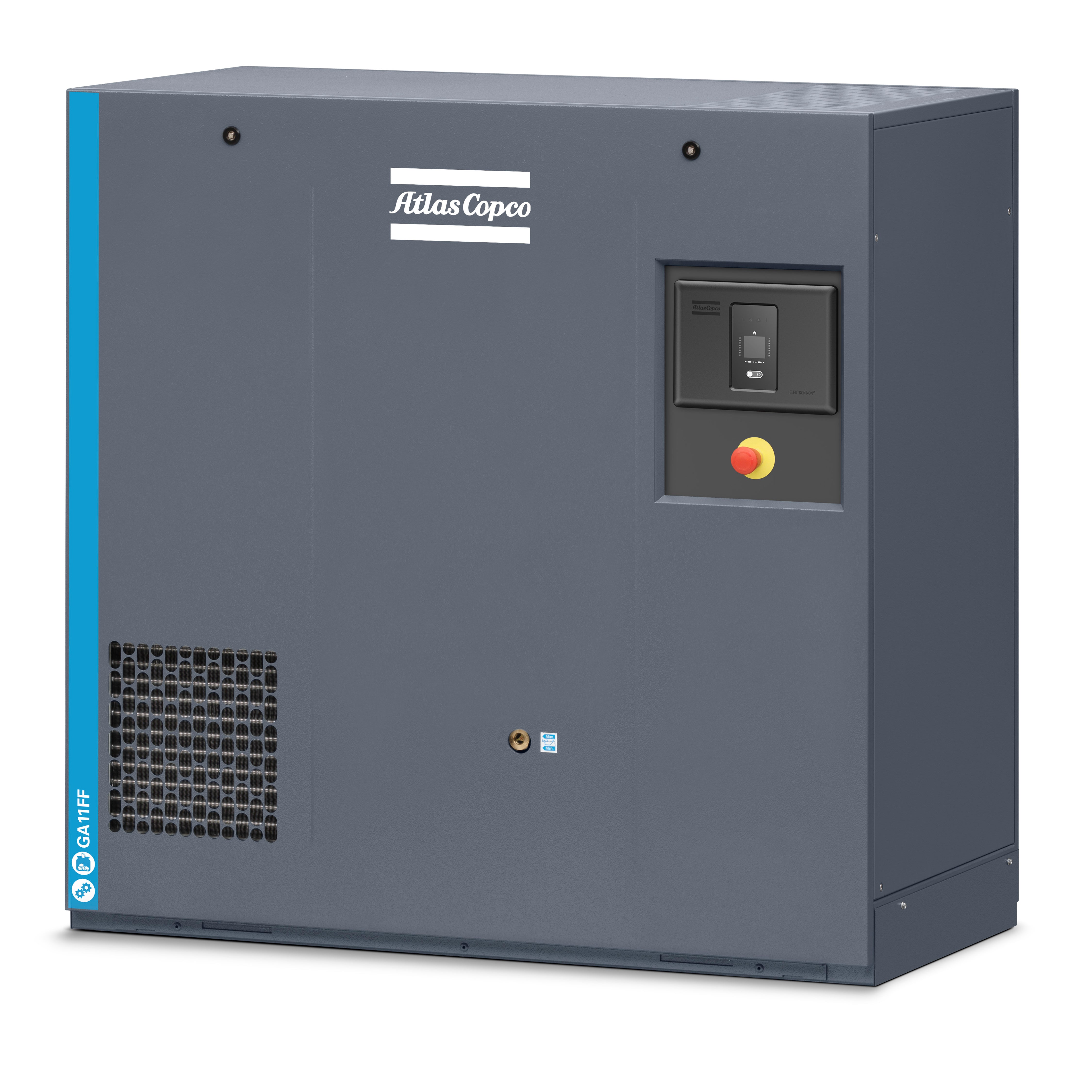

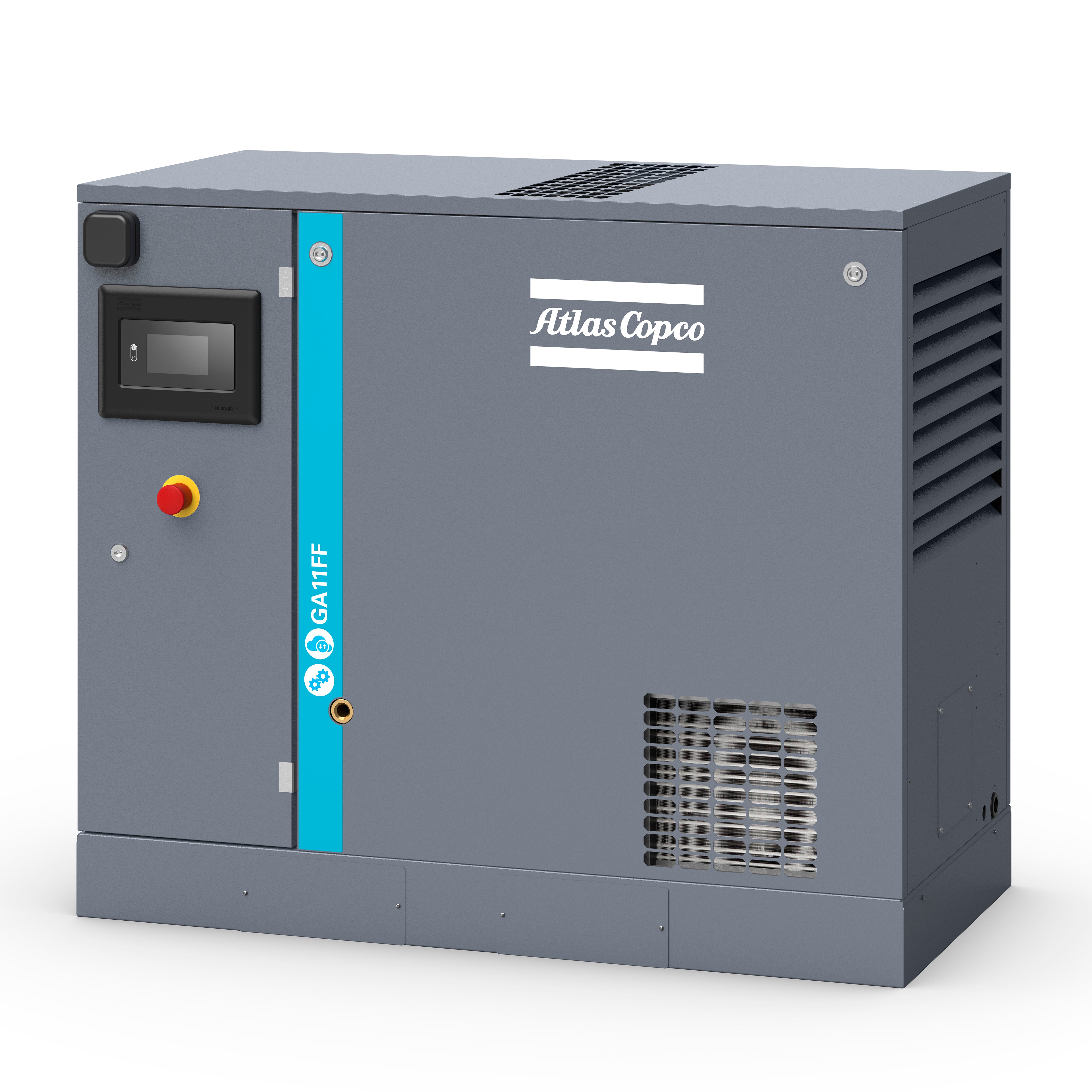

Atlas Copco GA5 - GA11 Oil-Injected Rotary Screw Air Compressor

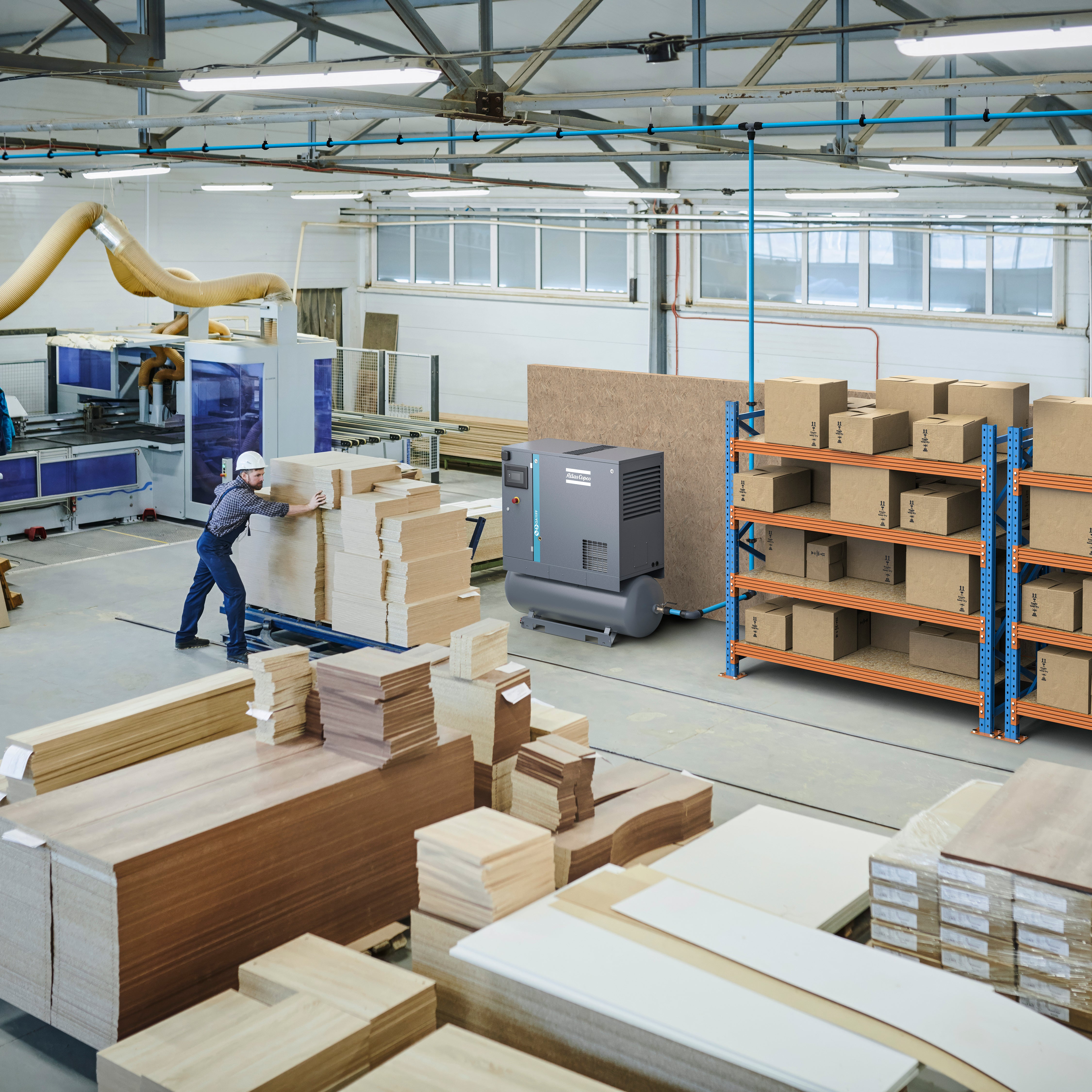

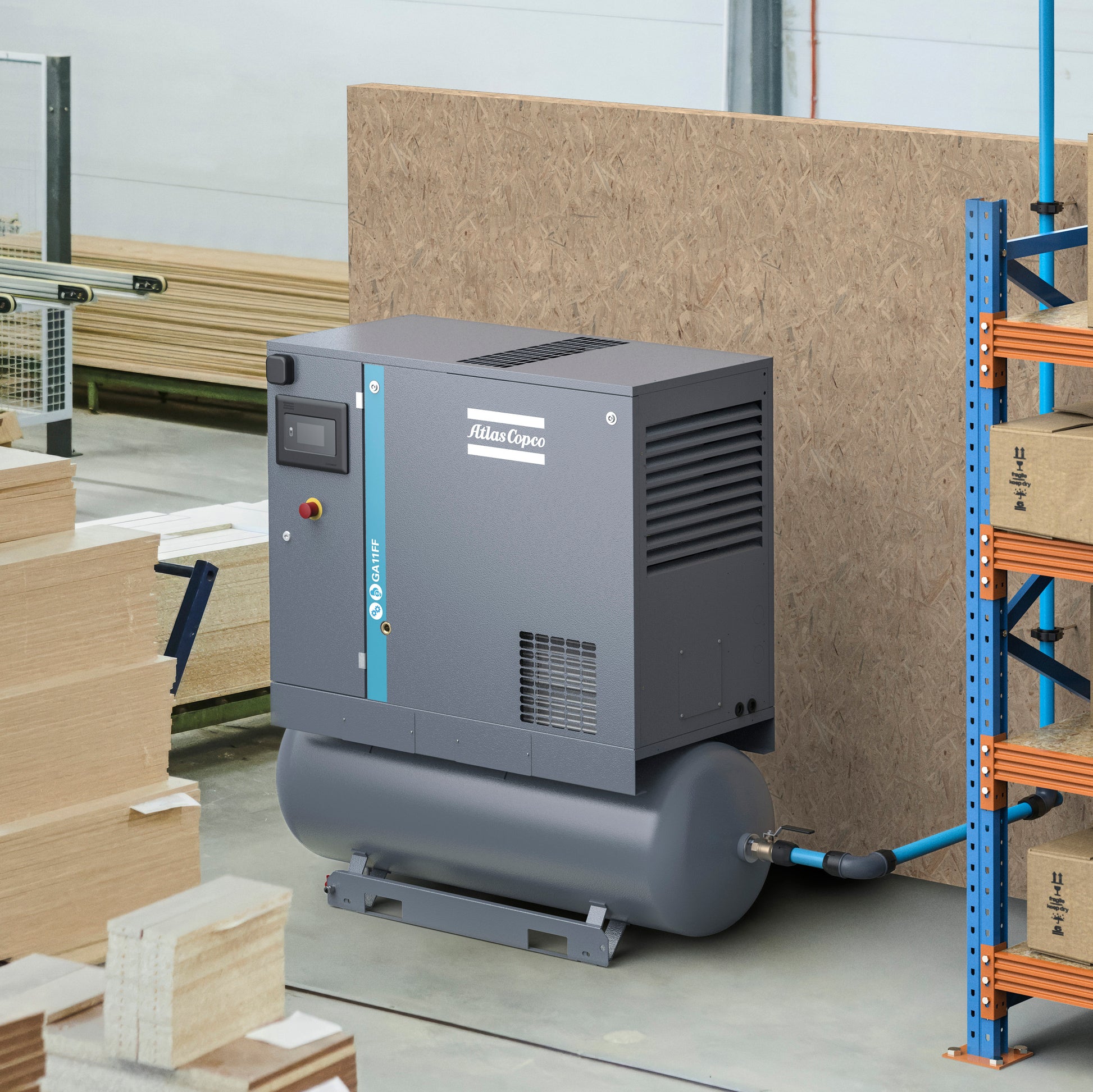

 Atlas Copco GA 5–11 is a premium oil-injected rotary screw compressor line engineered for reliability, efficiency, and point-of-use installation. Built and tested to ISO 9001 / ISO 14001 and performance verified to ISO 1217 (Ed.4, Annex C/E), the GA 5–11 delivers clean, dependable compressed air while minimizing total lifecycle cost. The WorkPlace Air System design runs quietly and integrates air treatment and tank-mounting, so you don’t need a separate compressor room—just set it where you use air and go.

Why it’s better

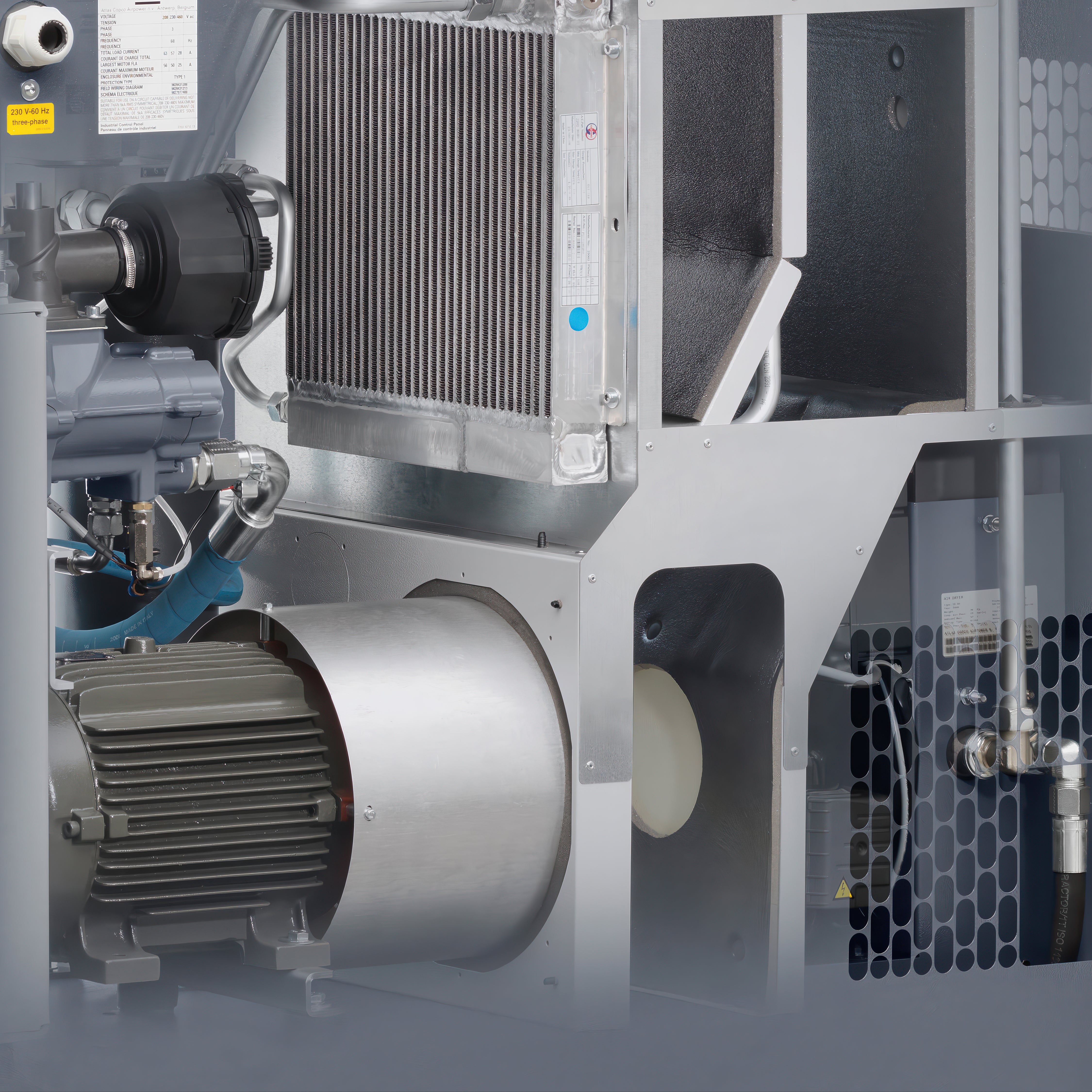

• IE3-efficiency motor mated to Atlas Copco’s time-proven screw element and optimized packaging: up to +8% Free Air Delivery and –7% power use vs prior designs.
• High-tech vertical oil vessel: ultra-low oil carryover and minimal losses during load/unload.
• Optimized belt drive train for long, trouble-free service—even in ambient temperatures up to 46 °C.
• Plug-and-play: forklift-friendly, 3-meter power cable, easy service access, and long-life consumables.

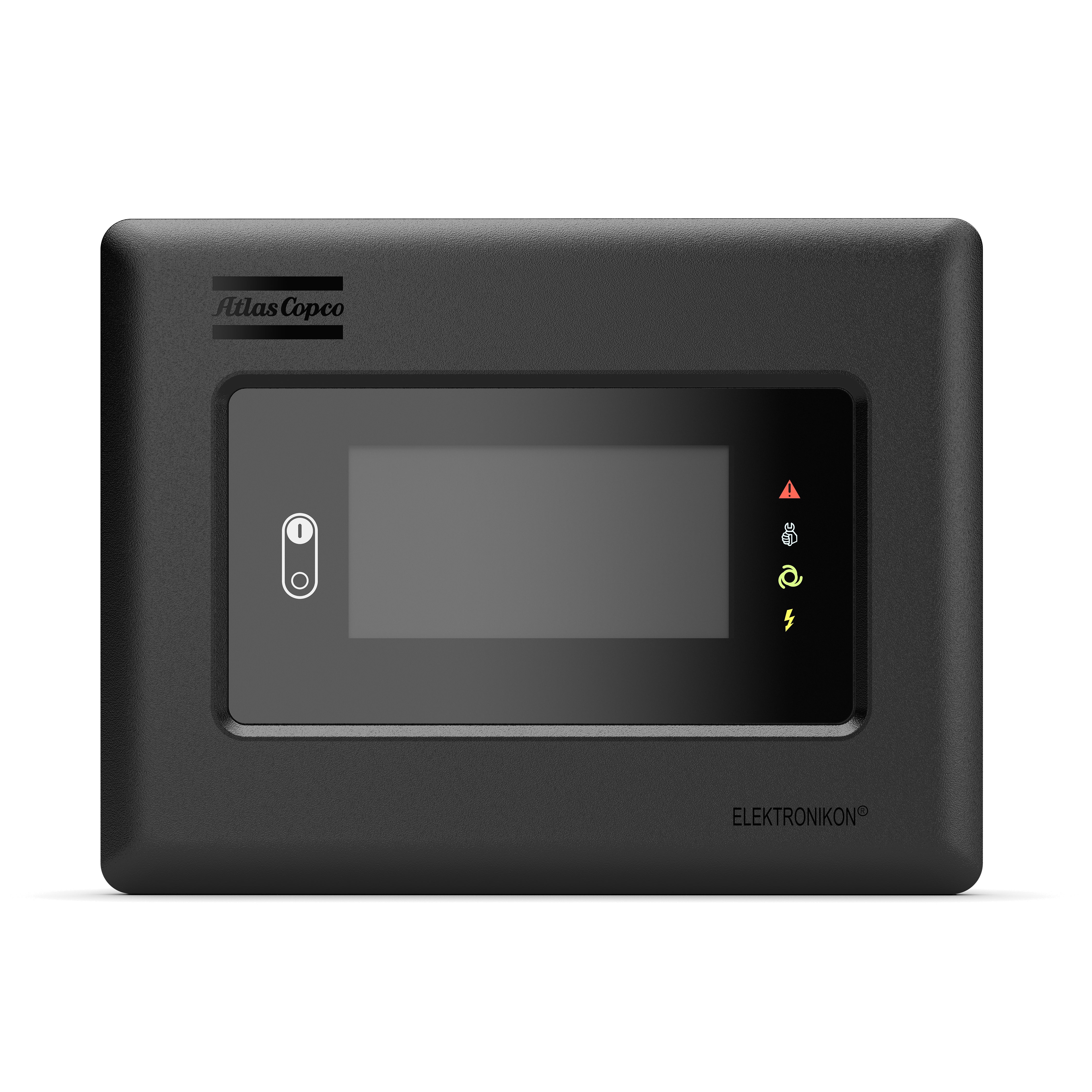

Smart control & energy savings (Elektronikon®)

• Web-based online status visualization via Ethernet, with warnings, shutdowns, and maintenance scheduling.
• Dual pressure set-point and Delayed Second Stop (DSS) reduce off-load energy waste.
• Linked Saver Cycle trims fan and dryer energy based on oil temperature and ambient conditions; auto-restart after voltage failure; upgradeable to graphic controller and to integrated ES control (up to 4 or 6 compressors).

Quality air, lower footprint

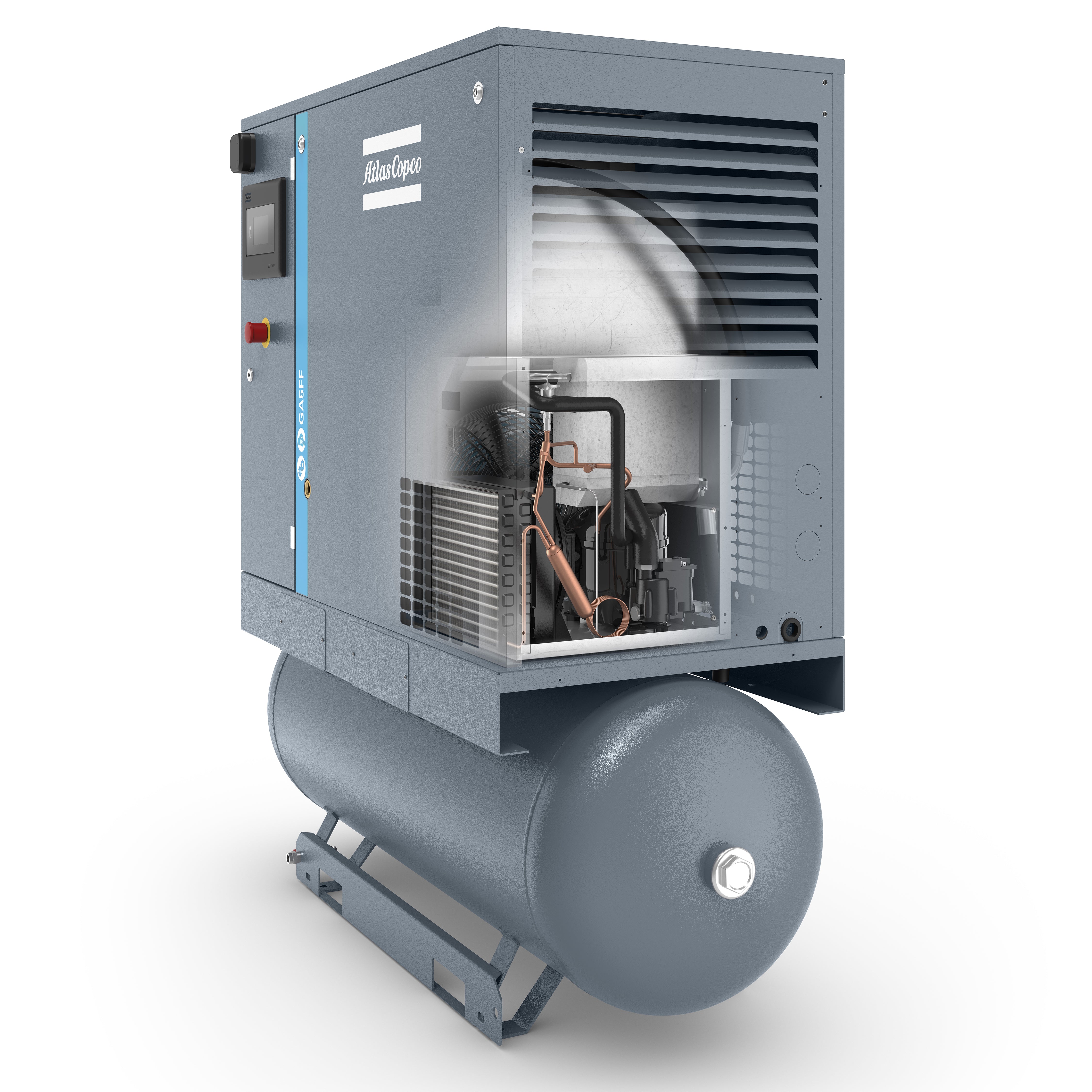

• Integrated refrigerant dryer with no-loss condensate drain, water separator, low pressure drop heat exchanger, and R134a refrigerant.
• Typical 30% energy savings with the new integrated dryer range; ~50% lower GWP by reducing refrigerant charge.
• +3 °C PDP (at 20 °C, 100% RH). Optional filters to Class 1 air quality (0.01 ppm oil).

Key specs (GA 5–11 series)

• Power: 5.5–11 kW (7.5–15 hp)
• Pressure: 7.5–13 bar(e) (109–189 psig, 50 Hz) or 100–175 psig (60 Hz)
• FAD: approx. 8.4–30.7 l/s (17.7–64.8 cfm, model/pressure dependent)
• Noise: 60–62 dB(A)

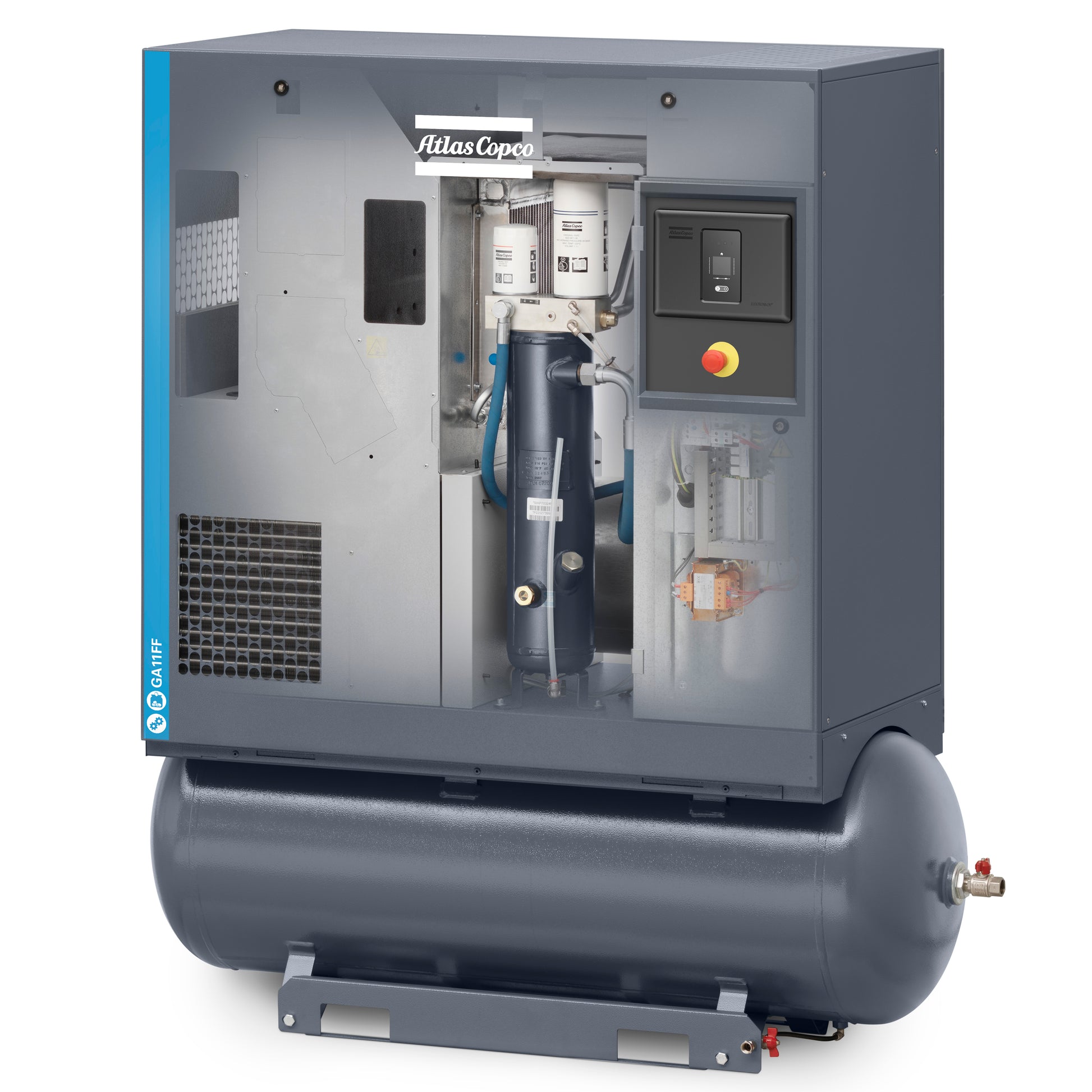

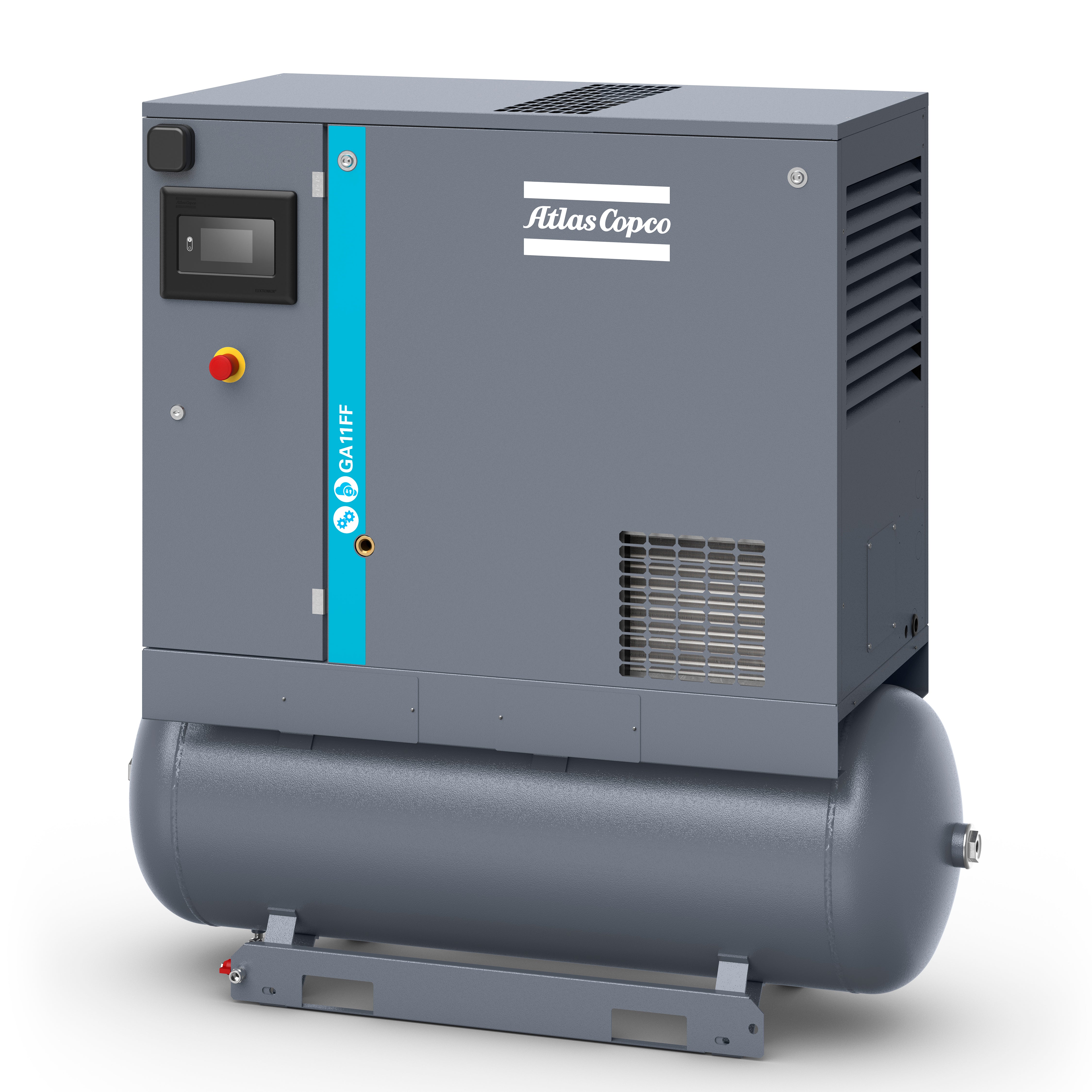

• Configurations: WorkPlace “pack” (floor or tank-mounted) and Full Feature with integrated dryer; 270 L receiver standard, 500 L optional
• Dimensions (approx.): W 699 mm; L 1142–1498 mm; H 1240–1729 mm

Options to tailor your system
Integrated filter kits (Class 1/2), dryer bypass, OSD oil/water separation, EWD drains (pack/500 L), phase sequence relay, tropical thermostat, freeze protection, heavy-duty inlet and rain protection, main power isolator, Elektronikon® graphic upgrade, ES4i/ES6i central control license, modulating control, high-ambient versions, food-grade oil, inlet pre-filter, motor space heater & thermistors.

Bottom line: a low-noise, energy-efficient, tank-ready industrial compressor that protects your tools, product quality, and power bill.
