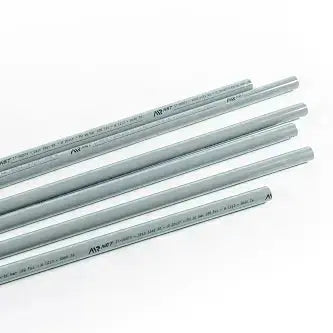

Aluminum Pipe Straight D20 for Compressed Air Piping System by AIRnet | 2811100000
| Specifications (As Configured) | |
|---|---|
 Vendor |
Airnet
|
 SKU |
2811100000
|
AIRnet is a reusable aluminum compressed-air piping system from Atlas Copco / Chicago Pneumatic, designed in line with EN 13480-3 for fast, leak-free distribution of compressed air, nitrogen, vacuum, and other neutral gases. Push-to-connect fittings (no threading, soldering, or gluing required) and a full-bore design deliver up to 85% faster installation than threaded steel, with minimal pressure drop over the life of the system. Backed by a 10-year warranty.
Why AIRnet?
- Installs up to 85% faster than threaded steel — no threading, welding, or soldering.
- Leak-free push-to-connect fittings — pressure tightens the seal; reusable PF series can be disassembled and re-used.
- Smooth bore / full flow — laminar flow and low pressure drop preserve compressor energy.
- Corrosion-free aluminum with anti-corrosion treatment inside and out; clean air stays clean.
- Modular & scalable — easy to reconfigure or extend as your shop grows.
- 10-year warranty from Atlas Copco / Chicago Pneumatic.
Technical Specifications
| Standard | Designed to EN 13480-3 |
| Material | Extruded aluminum, anti-corrosion treated, blue powder-coated exterior |
| Color | RAL 5012 Blue (industry standard for compressed air) |
| Compatible Fluids | Compressed air, nitrogen, vacuum, neutral / inert gases (helium, argon, neon, xenon, krypton) |
| Max Working Pressure | Up to 232 psi (16 bar) |
| Vacuum Capability | -29 inHg (98% vacuum) |
| Operating Temperature | -4°F to 176°F (-20°C to 80°C) |
| Stock Lengths | 3 m (~9.84 ft) and 6 m (~19.7 ft) |
| Outside Diameters | D20 (3/4"), D25 (1"), D40 (1-1/2"), D50 (2"), D63 (2-1/2"), D80 (3"), D100 (4"), D158 (6") |
| Warranty | 10 years |
Note on AIRnet sizes: AIRnet pipe is offered in 20 mm, 25 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, and 158 mm outside diameters. There is no 1/2" or 1-1/4" size in the AIRnet aluminum range. For 1/2" or 1-1/4" applications, see our Prevost PPS or AIRnet polyamide ranges.
Available Variants & SKUs (Atlas Copco Part Numbers)
| SKU | Size (Metric) | OD (Imperial) | Length |
|---|---|---|---|
| 2811 1000 00 | D20 (20 mm) | 3/4" | 3 m / 9.84 ft |
| 2811 1010 00 | D20 (20 mm) | 3/4" | 6 m / 19.7 ft |
| 2811 2000 00 | D25 (25 mm) | 1" | 3 m / 9.84 ft |
| 2811 2010 00 | D25 (25 mm) | 1" | 6 m / 19.7 ft |
| 2811 4000 00 | D40 (40 mm) | 1-1/2" | 3 m / 9.84 ft |
| 2811 4010 00 | D40 (40 mm) | 1-1/2" | 6 m / 19.7 ft |
| 2811 5000 00 | D50 (50 mm) | 2" | 3 m / 9.84 ft |
| 2811 5010 00 | D50 (50 mm) | 2" | 6 m / 19.7 ft |
| 2811 6000 00 | D63 (63 mm) | 2-1/2" | 3 m / 9.84 ft |
| 2811 6010 00 | D63 (63 mm) | 2-1/2" | 6 m / 19.7 ft |
| 2811 7000 00 | D80 (80 mm) | 3" | 3 m / 9.84 ft |
| 2811 7010 00 | D80 (80 mm) | 3" | 6 m / 19.7 ft |
| 2811 8000 00 | D100 (100 mm) | 4" | 3 m / 9.84 ft |
| 2811 8010 00 | D100 (100 mm) | 4" | 6 m / 19.7 ft |
| 2811 9000 00 | D158 (158 mm) | 6" | 5.7 m / 18.7 ft |
Shipping note: 6 m sticks ship via freight in protective crates. 3 m sticks can ship via UPS in many cases. Contact us for a system layout — submit your specs and we'll size the network for you.
NOTE: Actual product may be different from pictured!
