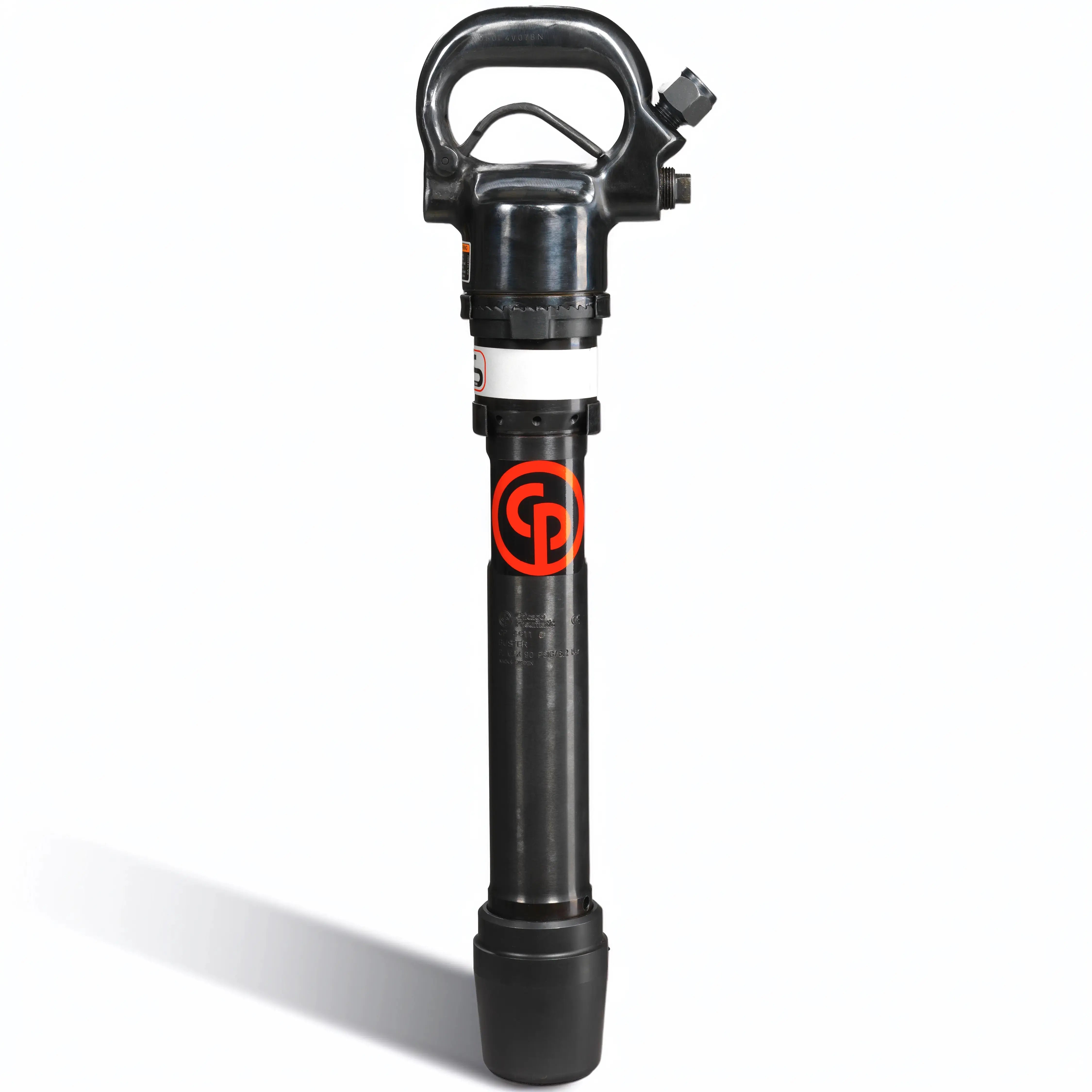

CHICAGO PNEUMATIC CP 4611 RIVET BUSTER (CPS)
(“Hell Dog” / “Boyer Buster”)

When the job calls for serious concrete demolition power without lugging a monster breaker, the Chicago Pneumatic CP 4611 is the name crews keep coming back to. Originally designed for cutting and forming metal rivets, the CP buster is now widely used for concrete demolition and has become one of the stars of the CP range. It delivers a low-frequency blow with hitting power equivalent to a paving breaker twice its weight, giving you brute impact with controllable handling.

If you’ve heard people call it the Hell Dog or Boyer Buster, they’re talking about this tool and its signature feel: heavy hits, consistent blows, and a design built to survive rugged daily use.

Why the CP 4611 hits “above its weight”

The CP 4611 is built around a long-stroke, low-frequency impact style that excels in concrete breaking, slab edging, footings, and general demolition where you want the tool to do the work (not your shoulders). It’s engineered to deliver crushing impact without needing sky-high blow counts, which is exactly why rivet busters remain a favorite for tough demo work.

Key performance advantages you’ll actually notice:

• Teasing throttle for progressive hitting frequency gives better control of such a powerful machine
• Special Boyer valve makes the cylinder stroke effectively longer for more hitting power
• Boyer valve design helps keep the blow consistent hit after hit
• Forged steel handle for long life in rugged conditions
• Stepped piston of hardened steel for durability under continuous pounding

CPS Control Power System: safety + uptime

The CP 4611 uses CPS (Control Power System) with a stepped piston and stepped cylinder designed to help prevent accidental ejection of the piston. That’s a practical safety upgrade on a tool that lives in harsh conditions.

CPS also improves serviceability and reduces “run it until it explodes” failure modes by making wear more obvious. The wear-indicating groove concept helps you see when key internal cushioning components are past their prime, and the system is designed to reduce the risk of internal damage when consumables are worn out. In plain terms: it’s built to tolerate real jobsite abuse while nudging you toward timely maintenance.

Choose your cylinder: match impact style to the work

One of the most useful parts of the CP 4611 platform is the ability to tailor it through cylinder choice. This lets you bias toward heavier, slower hits or a faster striking rate depending on the material, working posture, and operator preference.

Cylinder options:

• 11 cylinder: 720 bpm (low-frequency, heavy-hitting)
• 8 cylinder: 1080 bpm (higher blow rate option)

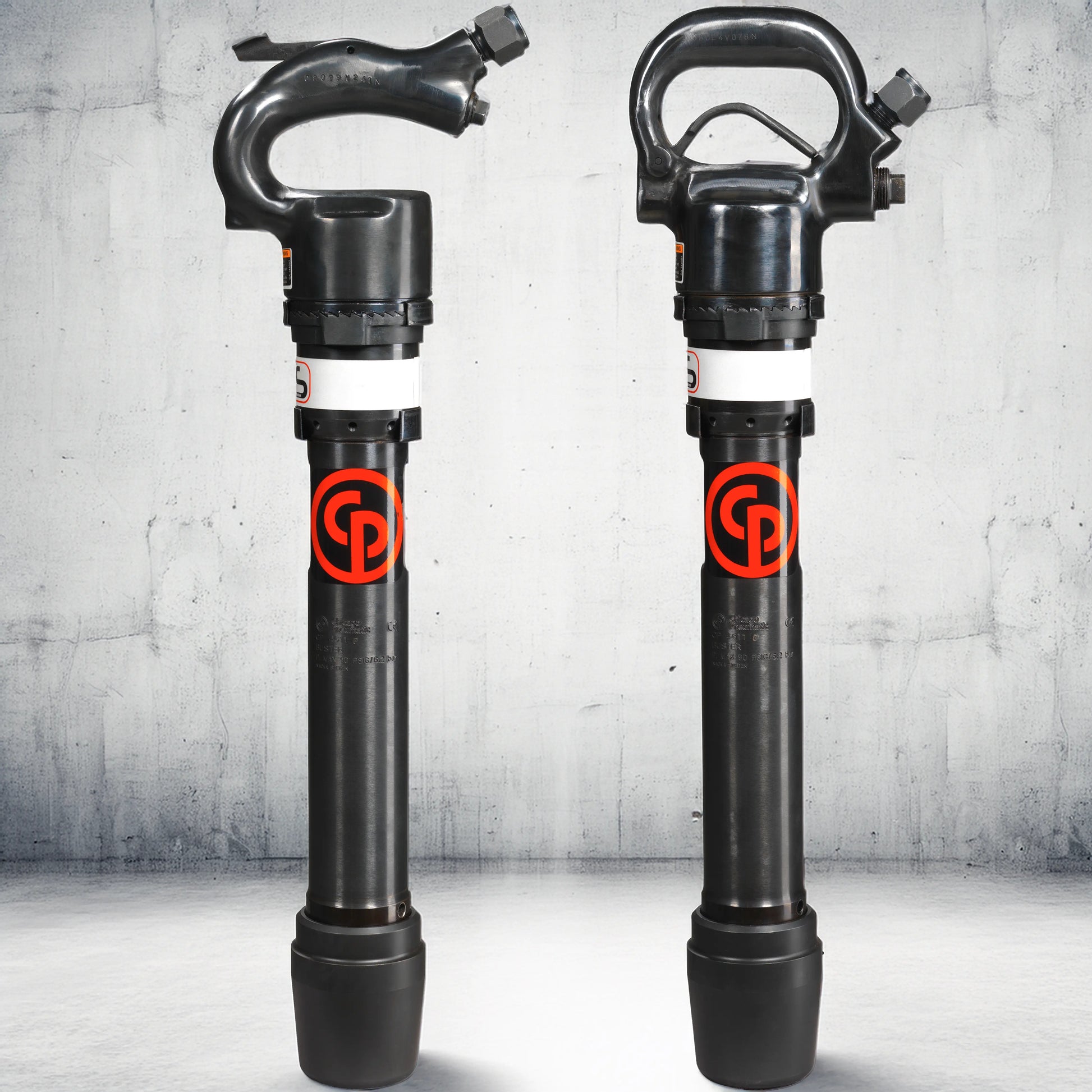

Choose your handle: same beast, different control feel

Pick the configuration that matches how your crew works:

• Open grip with outside trigger for a familiar, straightforward throttle feel
• D-handle with inside trigger for a more locked-in stance and different wrist/arm geometry

CP 4611 quick specs (the stuff buyers compare)

Here are the core points most customers want when they’re comparing rivet busters:

• Blows per minute: 720 bpm (11 cylinder configuration)
• Air consumption: 45 cfm
• Weight: 33 lb (open-handle configuration)
• Length: 26 in
• Air inlet: 1/2 in inlet bushing
• Chuck size: Jumbo shank (.890” x 1.125” taper)

Air setup that makes the tool live longer

A rivet buster is only as reliable as the air you feed it. Dry, clean air and consistent lubrication make a big difference in real life, especially with high-impact tools that punish seals, sleeves, and internal cushioning components.

For best results on the CP 4611:

1. Run a proper water separator to keep moisture out of the tool
2. Use an inline oiler/lubricator and the correct pneumatic tool oil
3. Use a quality whip hose and fittings that don’t choke airflow
4. Keep pressure stable at the tool end (avoid long undersized hoses)

This is the kind of tool where “good air” isn’t optional if you want long service life and consistent performance.

Tool steel options (Jumbo shank)

The CP 4611 is designed for jumbo shank steels, so you can tailor the business end to the job. Common working tool styles include:

• Moil point (general breaking, concentrated force)
• Narrow chisel (line breaking, edging, controlled splitting)
• Rivet buster steels (loose and tight styles)
• Driftpin driver
• Chisel ripper
• Backout punch (for clearance and removal tasks)

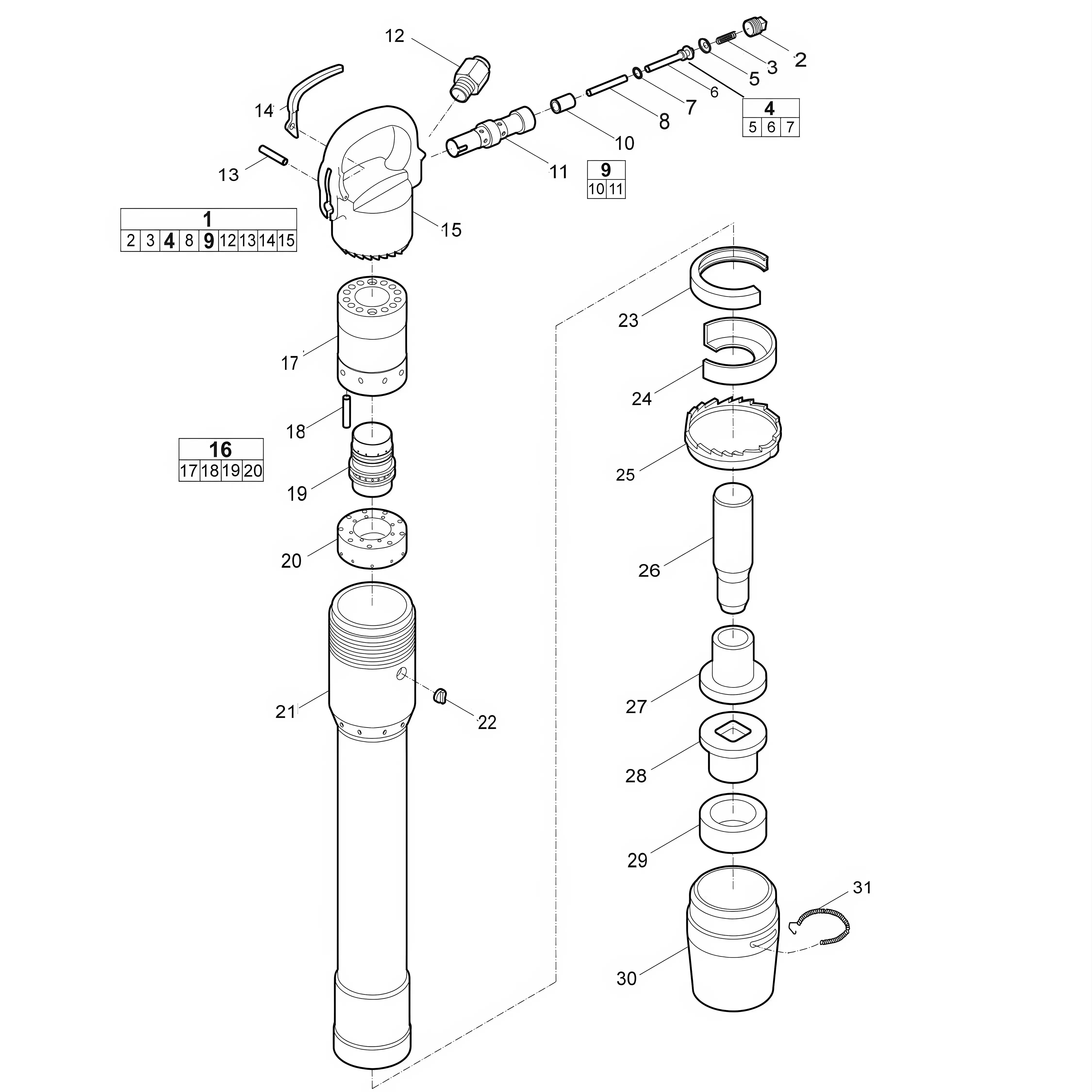

Service-friendly: common wear parts to know

For crews who maintain their own tools, the CP 4611 has typical wear items you’ll replace over time. Keeping these on hand helps avoid downtime when the tool is in constant rotation:

• Rubber bumper / buffer ring (noted as 90 durometer rubber for extra life)
• Upper sleeve and lower sleeve
• Retainer spring and related small hardware

Bottom line

The Chicago Pneumatic CP 4611 Rivet Buster is a demolition classic for a reason. It delivers low frequency, high impact performance that feels like it outmuscles much heavier breakers. The CPS system adds a real safety benefit and helps protect the tool when wear parts are overdue. If you want a real rivet buster for concrete work, one with a reputation, nicknames, and jobsite credibility, the CP 4611 is it.
