What Is a Desiccant Air Dryer?

Desiccant air dryers use hygroscopic media (desiccant) to pull water vapor out of compressed air through adsorption, not just cooling. As air passes through a packed bed of beads, moisture is trapped and held on the surface of the desiccant until it reaches saturation.

Common desiccant materials include:

• Activated alumina (most common in compressed air systems)
• Silica gel
• Molecular sieve
• Specialty blends for ultra-low dew points

Most industrial units use a twin-tower setup so you get continuous dry air: one tower dries the air while the other regenerates.

Why Choose a Desiccant Dryer?

Use this collection when you need:

• Very low pressure dew points: −40°F PDP standard, with options for lower
• Freeze protection for outdoor or unheated piping
• Protection for high-value equipment: valves, cylinders, instrumentation, robots, paint systems, air tools
• Reliable performance where refrigerated dryers struggle (high ambient heat, extreme humidity, or critical applications)

Key benefits for your compressed air system:

1. Reduced corrosion in piping, receivers, valves, and tools
2. Fewer product defects caused by moisture, blisters, fisheyes, or flash rust
3. Extended component life for actuators and air-driven equipment
4. More predictable operation in cold climates and mission-critical processes

How Regenerative Desiccant Dryers Work

Most desiccant dryers in this collection follow the same basic cycle:

1. Drying phase – Wet compressed air flows through Tower A, where the desiccant adsorbs moisture to the target dew point.
2. Regeneration phase – Tower B is taken offline and regenerated using purge air or heat to drive off the trapped moisture.
3. Tower switchover – Once regeneration is complete, the towers swap roles so you get a continuous supply of dry air.

This automatic cycling keeps the desiccant effective while maintaining consistent dew point under real-world load conditions.

Types of Desiccant Air Dryers in This Collection

Warthog’s Desiccant Air Dryers collection covers the major regeneration styles so you can match performance, cost, and complexity to your plant.

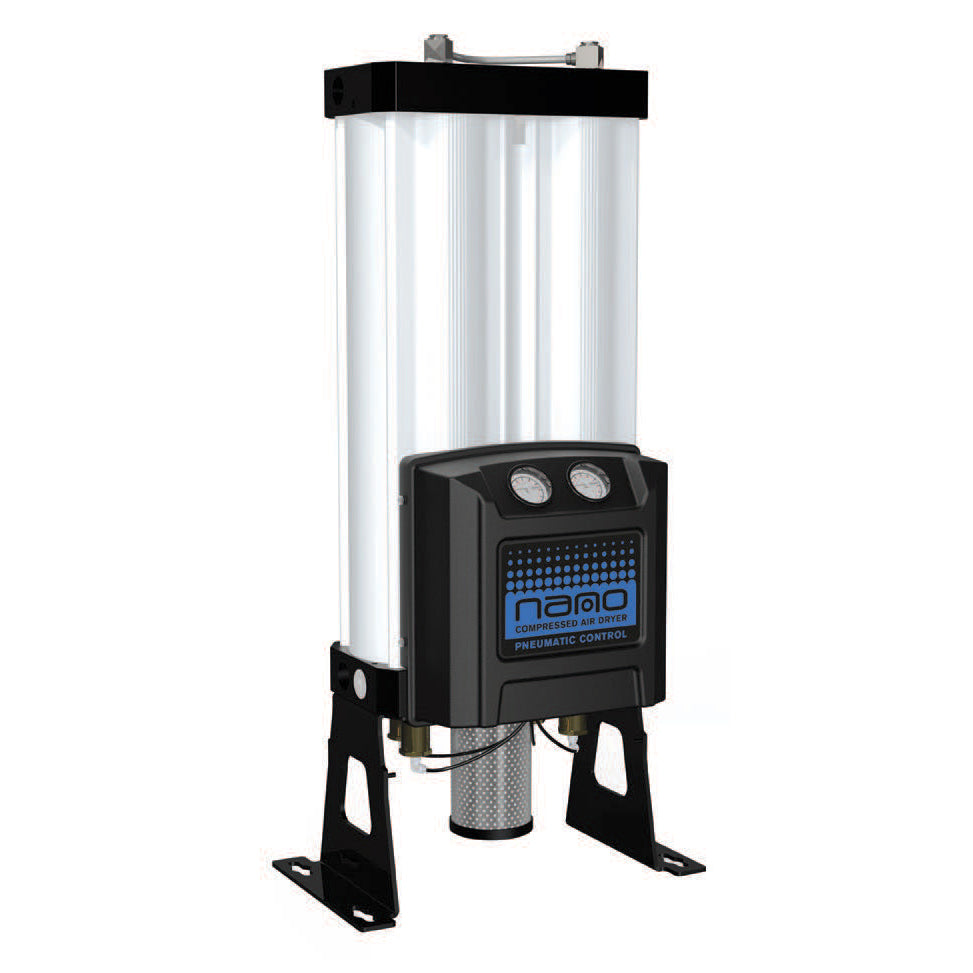

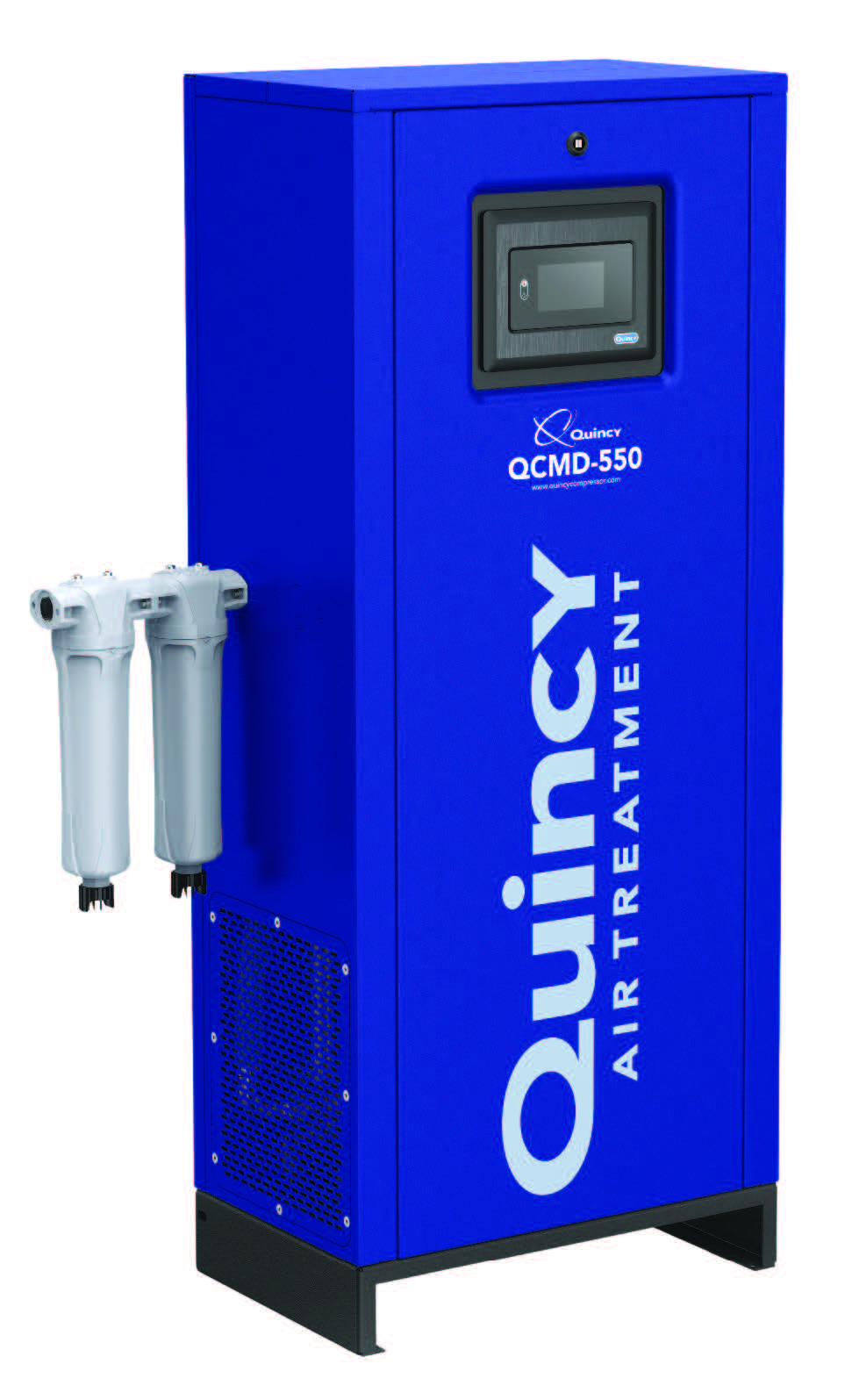

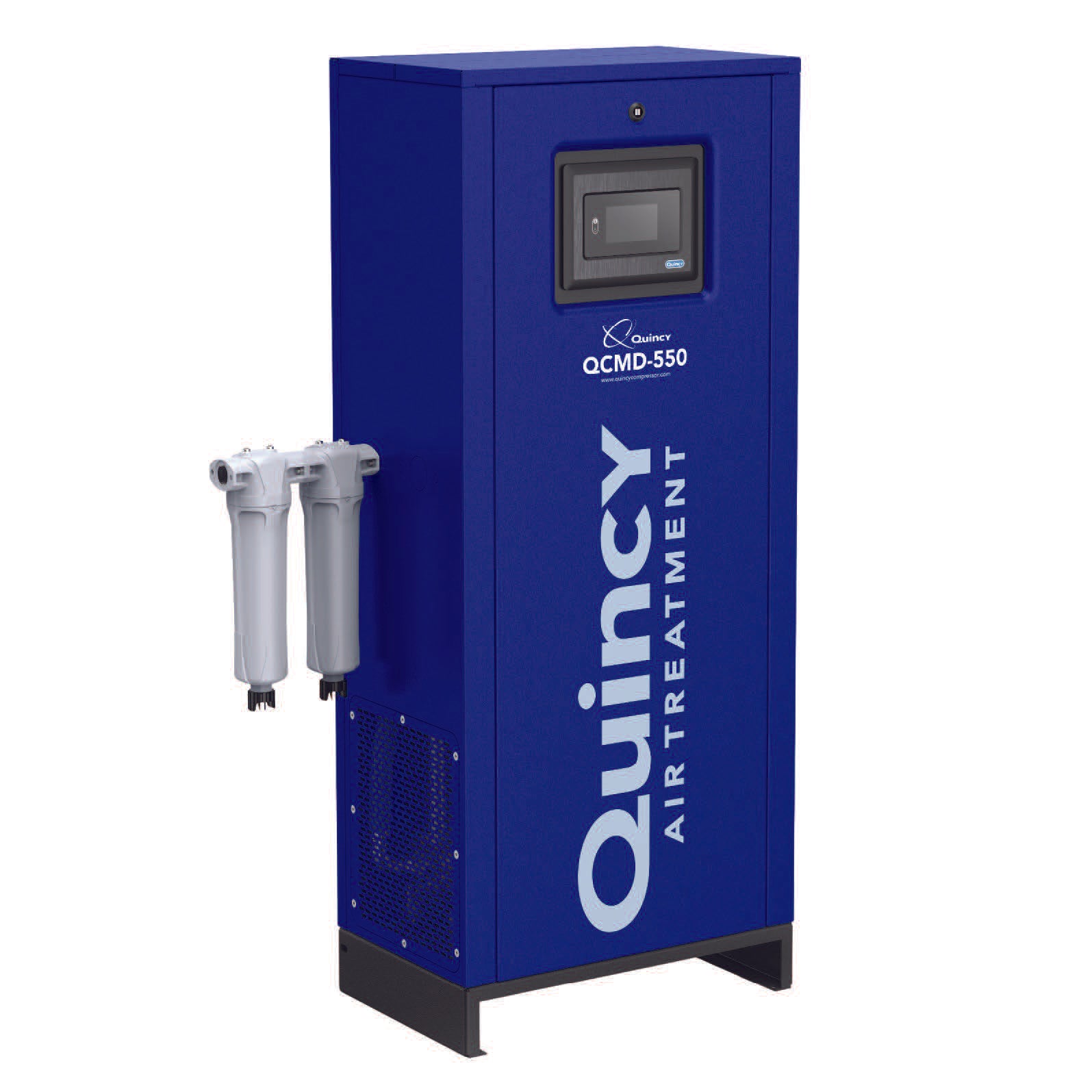

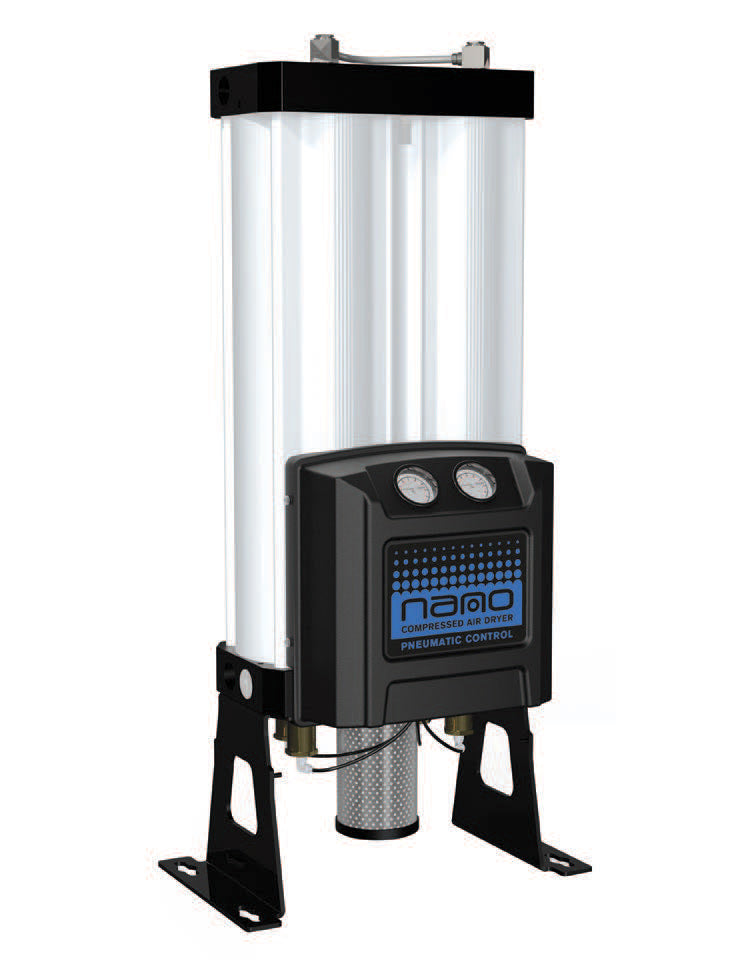

1. Heatless Pressure Swing Desiccant Dryers

• Use a portion of already dried compressed air as purge air
• Simple, robust design with no heaters or blowers
• Typical purge usage: roughly 15–20% of rated flow
• Ideal for remote sites, hazardous areas, and smaller systems where reliability and simplicity are priorities

2. Heated Regenerative Desiccant Dryers

• Use electric heaters or internal heating elements to regenerate the desiccant
• Require significantly less purge air than heatless styles (often around 5–7%)
• Good fit for continuous-duty plants where energy use is monitored closely
• Available in internally heated and blower-purge configurations to balance power consumption and compressed-air loss

3. Heat-of-Compression Desiccant Dryers

• Capture waste heat from an oil-free compressor and use it to regenerate the desiccant
• Very efficient where conditions are right, with minimal additional energy input
• Best for large, continuous-duty systems using oil-free rotary screw or centrifugal compressors

How to Choose the Right Desiccant Dryer

When you’re selecting a dryer from this collection, focus on:

1. Required dew point (−40°F vs. ultra-low dew points)
2. System flow and pressure (CFM and PSIG at actual operating conditions)
3. Air quality standard you’re targeting (such as ISO 8573-1 classes)
4. Energy vs. simplicity trade-offs (heatless vs. heated vs. heat-of-compression)
5. Installation environment (indoor, outdoor, cold rooms, dirty or hot areas)

Warthog Air Compressor Store can pair these desiccant dryers with the right pre-filters, coalescing elements, and after-filters to protect the desiccant bed and your downstream equipment. Browse the Desiccant Air Dryers collection to build a complete, high-performance drying solution around your new or existing compressed air system.
