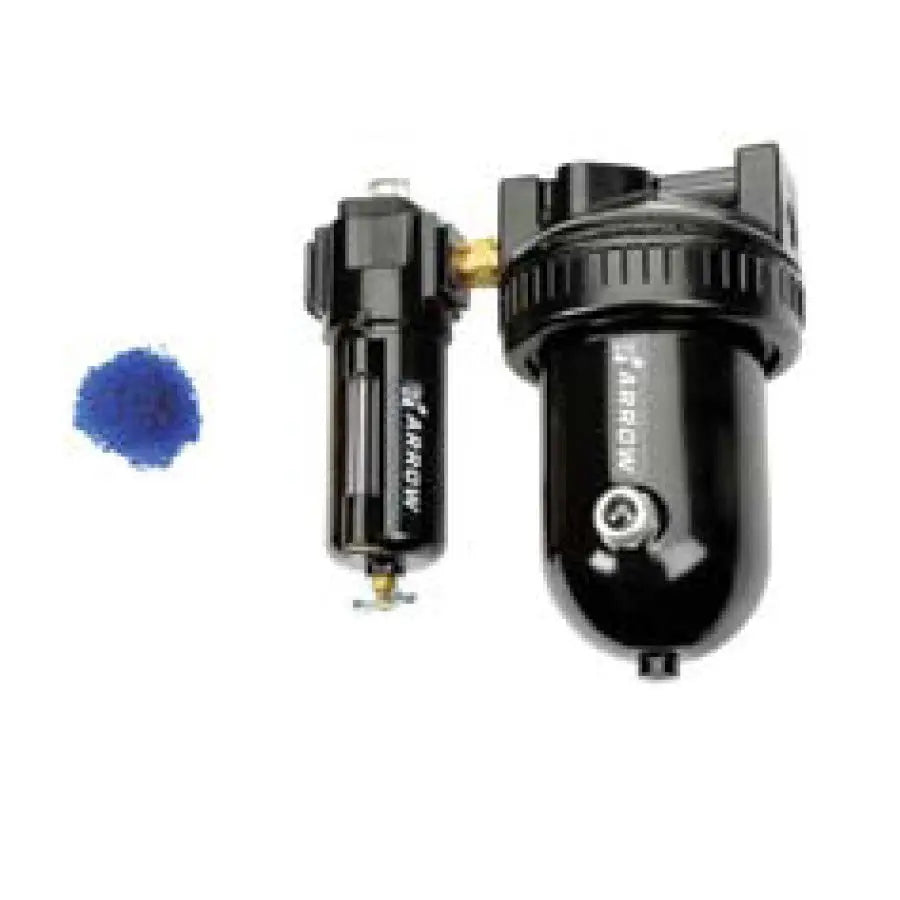

Arrow Pneumatics D7612 2-Stage Coalescing Filter & Desiccant Dryer Combo — 1/2" NPT, 15 CFM
| Specifications (As Configured) | |
|---|---|
 Vendor |
Arrow Pneumatics
|
 SKU |
D7612
|
| Dimensions | |
 Weight |
15.0 lb
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
The Arrow Pneumatics D7612 is a complete two-stage compressed-air treatment combo that delivers clean, dry air from a single inline unit. Stage one coalesces oil aerosols and water down to 0.03 micron, while stage two passes the air through a desiccant bed for a low dew point — ideal for paint spraying, plasma cutting, laboratory air, and any application where moisture or oil contamination is a problem.
Key specifications
- Port size: 1/2" NPT
- Max flow: 15 CFM
- Max inlet pressure: 250 PSI | Max outlet pressure: 215 PSI
- Operating temperature: 40–160°F
Stage 1 — Coalescing Filter (F554W series)
- 0.03 micron oil-removal element
- 5 oz metal bowl with sight glass
- Pop-up service indicator shows when the element needs changing
Stage 2 — Desiccant Air Dryer (D12-04 series)
- 0.01 micron element
- 1-quart metal bowl with sight glass
- Ships charged with desiccant beads for the first cycle
Replacement element: Arrow EK55 coalescing filter element kit (2-pack) — view the EK55 element kit.

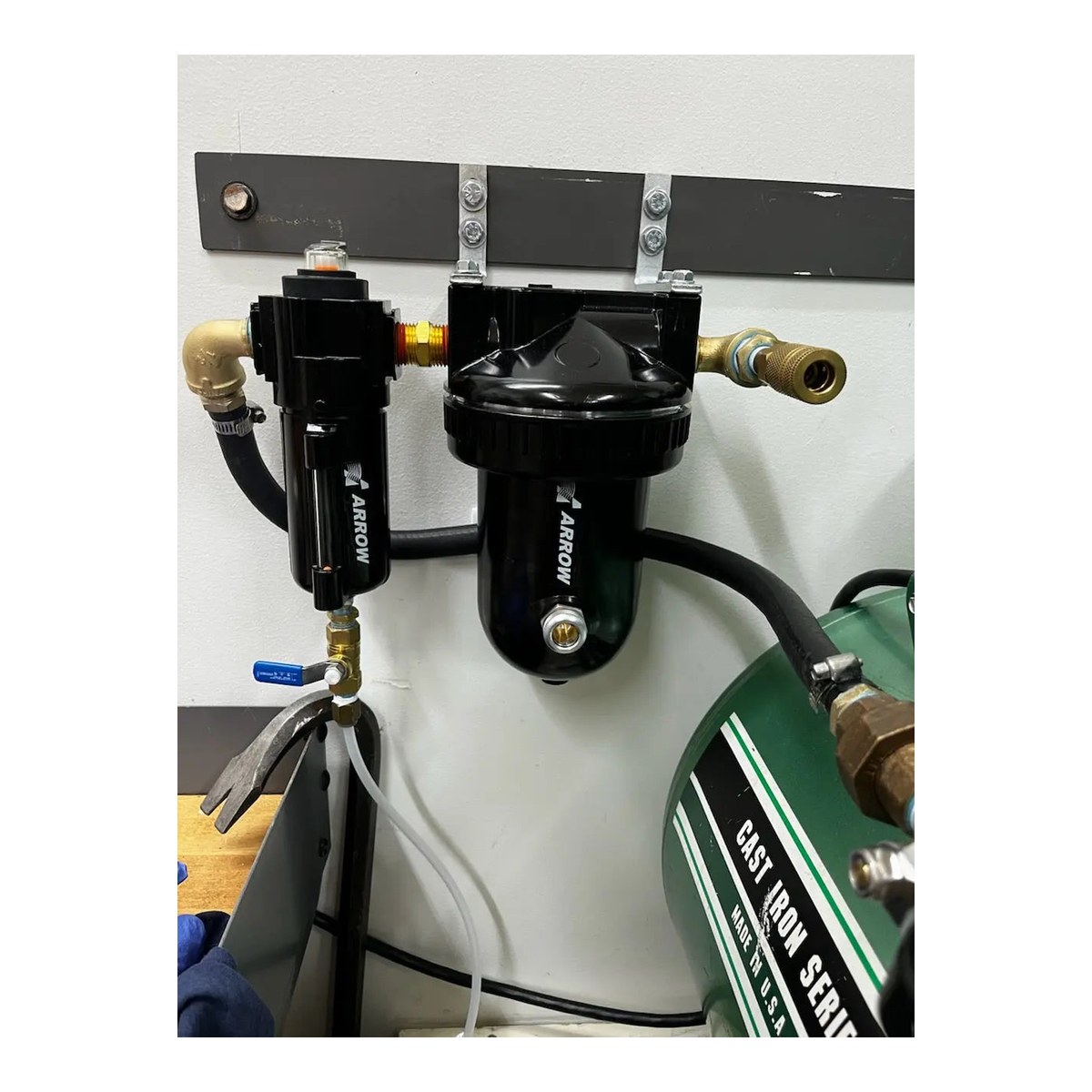

The Arrow D7612 combines coalescing filtration and desiccant drying in one compact, wall-mountable assembly, removing the need to plumb and maintain two separate housings. With its 0.03-micron oil-removal stage and -30°F-class desiccant drying stage, it protects downstream tools, valves, and finishes from oil carryover and moisture damage while keeping pressure drop low.
NOTE: Actual product may be different from pictured!
