Why coalescing filters matter

• Remove submicron oil and water aerosols that standard particulate filters miss
• Protect air dryers, regulators, valves, and precision tools from contamination and sludge
• Reduce rust, internal pipe erosion, and random pressure drops caused by liquid pooling
• Improve finish quality in paint booths, packaging, electronics, CNC machining, and lab equipment

How coalescing and oil removal filters work

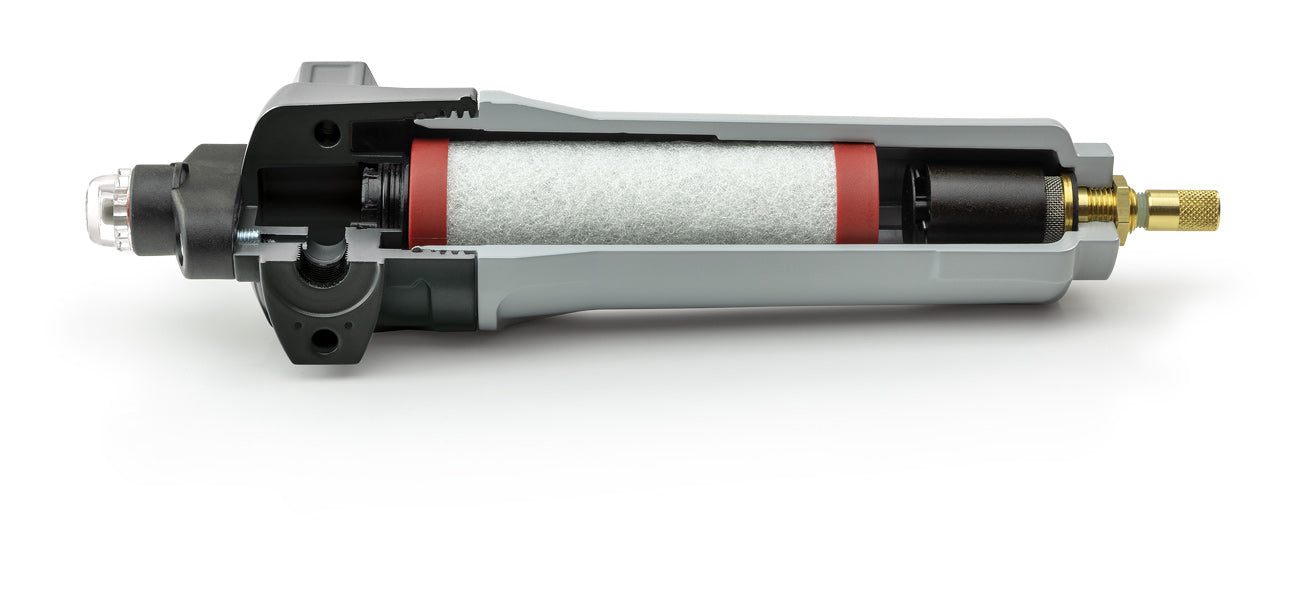

Inside each element is a dense mat of fine fibers engineered to attract oil and water droplets. As contaminated air passes through:

1. Capture – submicron droplets and mist collide with the fiber media and stick.
2. Merge (coalesce) – tiny droplets join together, forming much larger drops inside the element.
3. Drain – gravity and flow carry those larger drops to the bottom of the housing, where they are discharged through a drain.

The air keeps moving; the oil and water don’t. The result is cleaner, drier compressed air with dramatically reduced oil carryover into your downstream equipment.

Typical uses for coalescing and oil removal filters

• Pre-filtration before refrigerated or desiccant air dryers
• Protection for pneumatic cylinders, actuators, valves, and robotics
• Clean air for paint and powder coating lines
• Better air quality for instrumentation, controls, and sensors
• Pre-treatment for breathing-air packages (when combined with the correct downstream purification equipment)

Key specs to pay attention to

When you’re choosing a coalescing or oil removal filter from this collection, focus on more than just pipe size.

1. Filtration rating and oil carryover

• Look for elements rated to very fine micron levels for critical applications.
• Check the stated maximum outlet oil content for your air quality requirements.

2. Flow capacity (SCFM / CFM)

• Match filter SCFM rating to your compressor output at operating pressure.
• Slightly oversize for lower pressure drop and future expansion.
• Undersizing is how you end up with starving tools and nuisance pressure issues.

3. Pressure drop and dust capacity

• Quality elements are designed for very low initial pressure drop.
• As the media loads up with oil and particulate, pressure drop rises; that’s your cue to change elements.
• Running elements until they plug is a hidden energy tax on your plant, not a savings.

4. Position in the treatment train

• Stage 1: Particulate / general purpose filter – catches scale, rust, and larger debris.
• Stage 2: Coalescing / oil removal filter – strips out fine oil and moisture aerosols.
• Stage 3: Dryer and any polishing filters – handle final moisture and vapor control.

What you’ll find in Warthog’s coalescing and oil removal collection

• Housings and elements for a wide range of CFM ratings and pressure classes
• Filters designed to help you reach demanding air purity levels when applied correctly
• Replacement elements for common industrial filter bodies
• Options with automatic drains to keep liquid out of your piping
• Compact inline units for tight mechanical rooms and larger mainline filters for plant headers

Why buy from Warthog Air Compressor Store

• Products selected around real-world shop and plant conditions, not just brochure specs
• Focus on energy efficiency through low pressure drop and correct sizing
• Broad range of elements and housings so you can match what you already have in the field
• Support from people who actually understand compressed air systems

If you’re tired of oil film in your lines, dripping tools, or dryers that never seem to keep up, start at the source. Drop a properly sized coalescing and oil removal air filter into your system and let the rest of your equipment finally work the way it was designed to.
