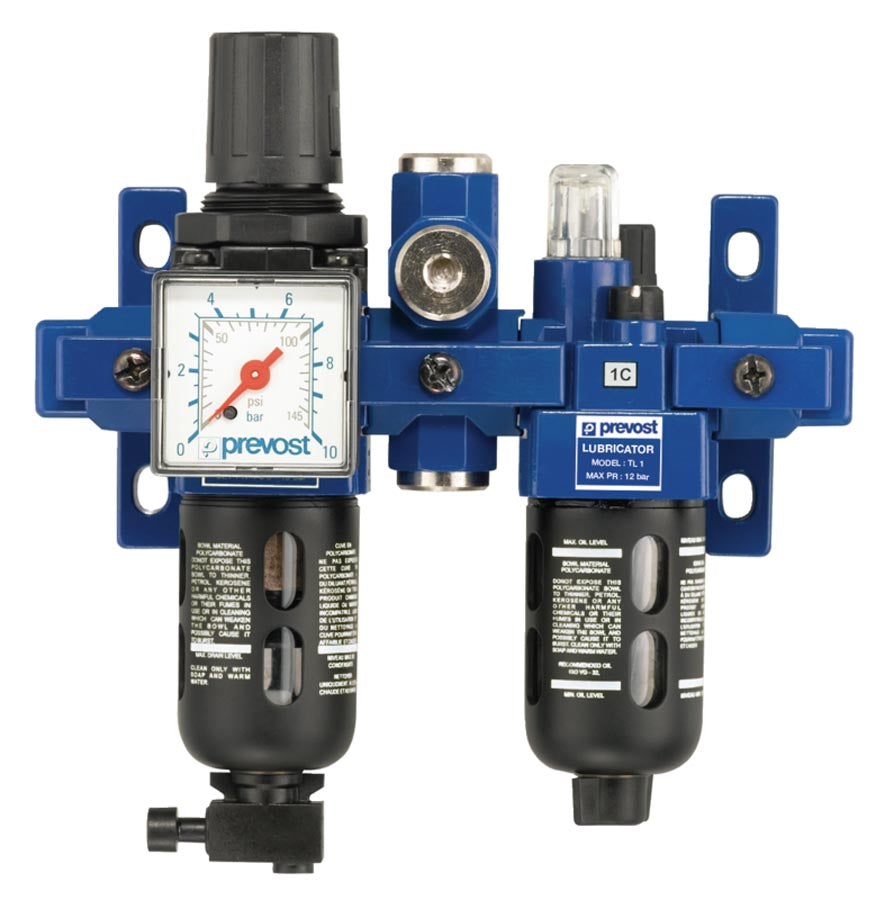

Alto 1 – 2-Piece-Set – 1/4” Filter-Regulator-Lubricator (Gauge Included) With Wall Bracket, Diverter Block And Pipe Adapters by Prevost
Alto 1 – 2-Piece-Set – 1/4” Filter-Regulator-Lubricator (Gauge Included) With Wall Bracket, Diverter Block And Pipe Adapters by Prevost
Regular price
$138.78
Sale price
$138.78
Regular price
$149.23
Shipping calculated at checkout.
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
TB SME201
|
| Dimensions | |
 Weight |
1.9 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
ALTO 1 – 2-PIECE-SET – 1/4” FILTER-REGULATOR-LUBRICATOR (GAUGE INCLUDED) WITH WALL BRACKET, DIVERTER BLOCK AND PIPE ADAPTERS
Technical specifications
Max operating pressure: 174 psi
4 outlets for non-lubricated air
NPT female thread Flow rate (cfm at 87 psi Delta P=14psi) Max operating pressure (psi) Filtration Micron Reference 1/4″ FNPT 17.65 174 25 TB SME201
Technical specifications
- Temperature : 41 deg F to 122 deg F
- Construction :Body : Aluminum
Polycarbonate bowl with metallic protection - Equipped with :Manual drain
Max operating pressure: 174 psi
4 outlets for non-lubricated air
NPT female thread Flow rate (cfm at 87 psi Delta P=14psi) Max operating pressure (psi) Filtration Micron Reference 1/4″ FNPT 17.65 174 25 TB SME201
| A (inch) | B (inch) | Reference |
|---|---|---|
| 5.276 | 6.693 | TB SME201 |
NOTE: Actual product may be different from pictured!
