Description

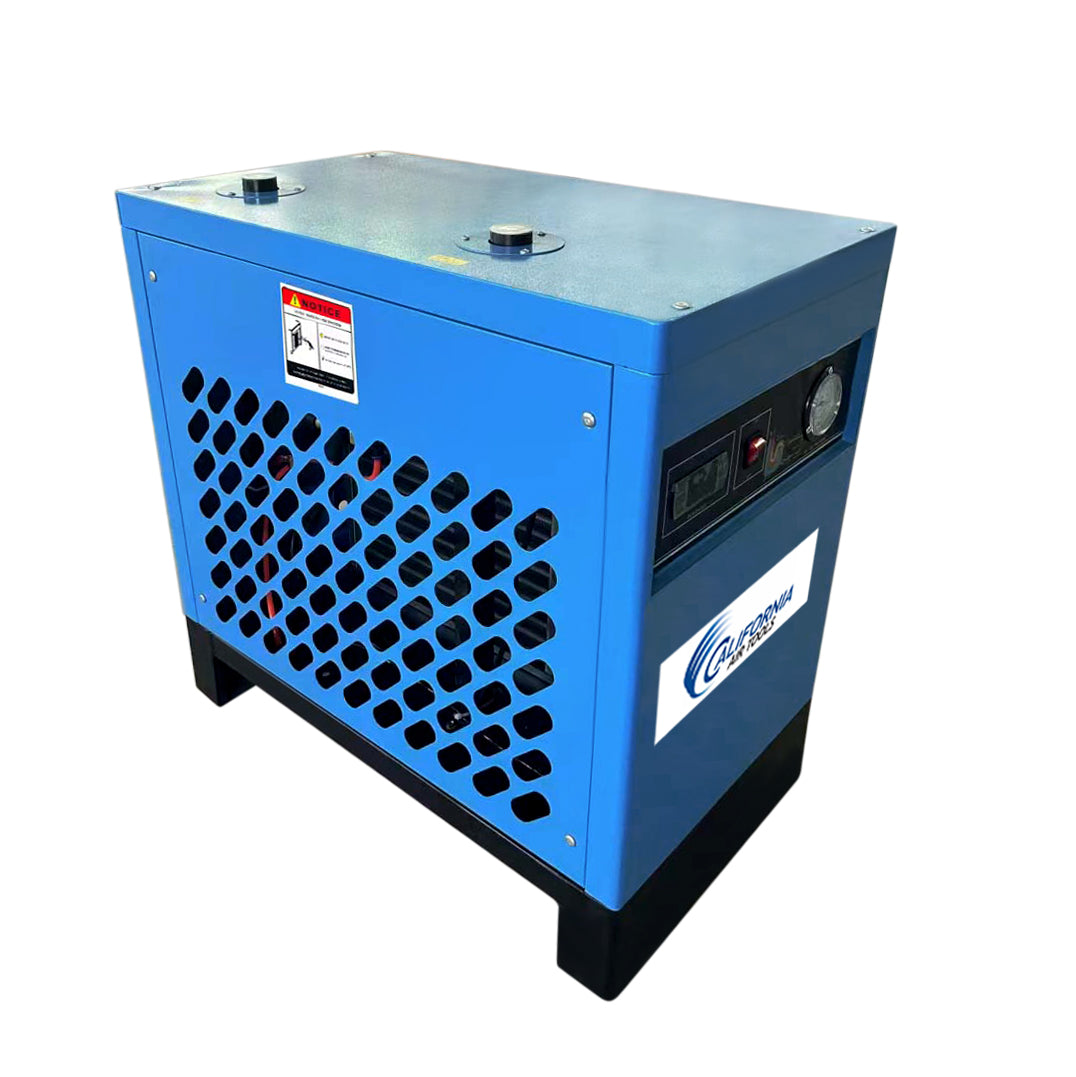

The California Air Tools RD-91503 High-Efficiency Refrigerated Air Dryer efficiently removes up to 98% of moisture from compressed air, delivering a reliable Pressure Dew Point (PDP) of 35.6°F–50°F (2°C–10°C). Ideal for general industrial applications requiring consistent dryness.

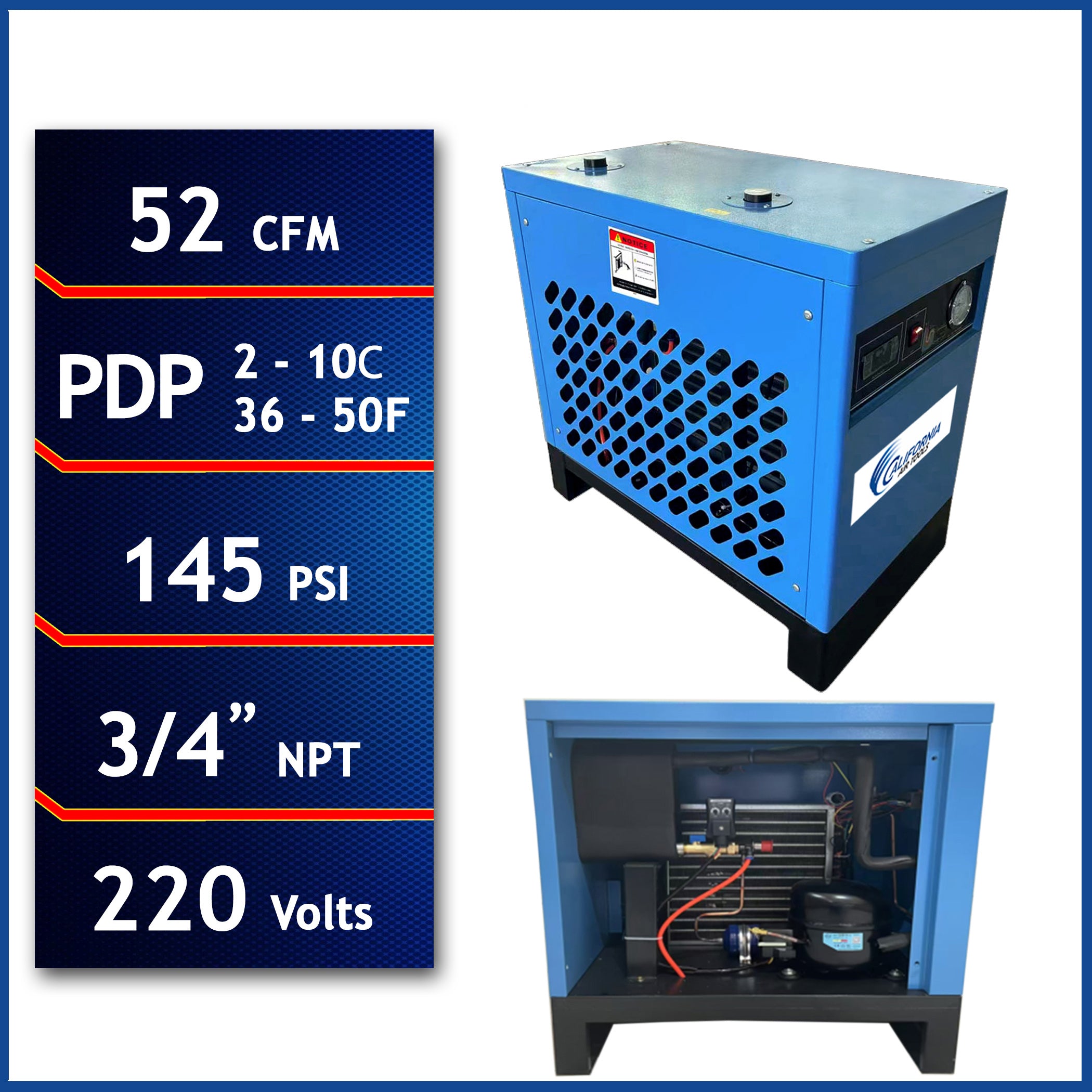

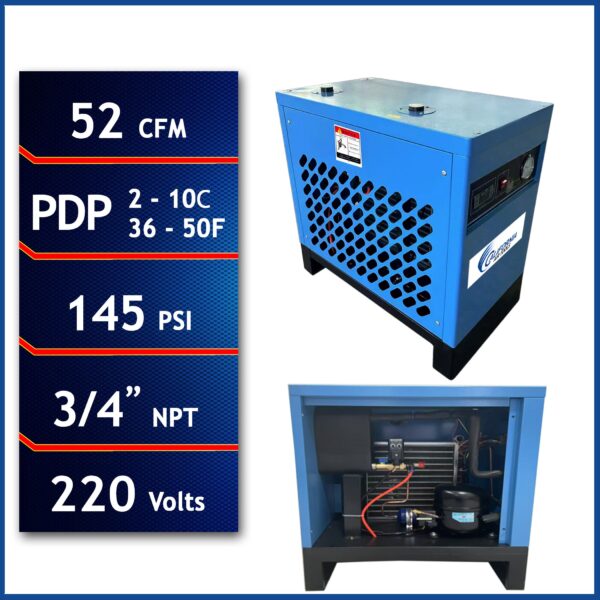

Key Specifications:
- Air Flow: 52 CFM
- Pressure Range: 29–145 PSI
- Max Inlet Temperature: 176°F
- Max Ambient Temperature: 104°F
- Voltage: 220V, 60Hz, Single-phase
- Power: 0.5 kW, 1.5A
- Inlet/Outlet Size: 3/4″ NPT
- Refrigerant: R134A
- Weight & Dimensions: 88 lbs, 26.18″ L x 16.92″ W x 25.98″ H
- Warranty: 1-Year Limited

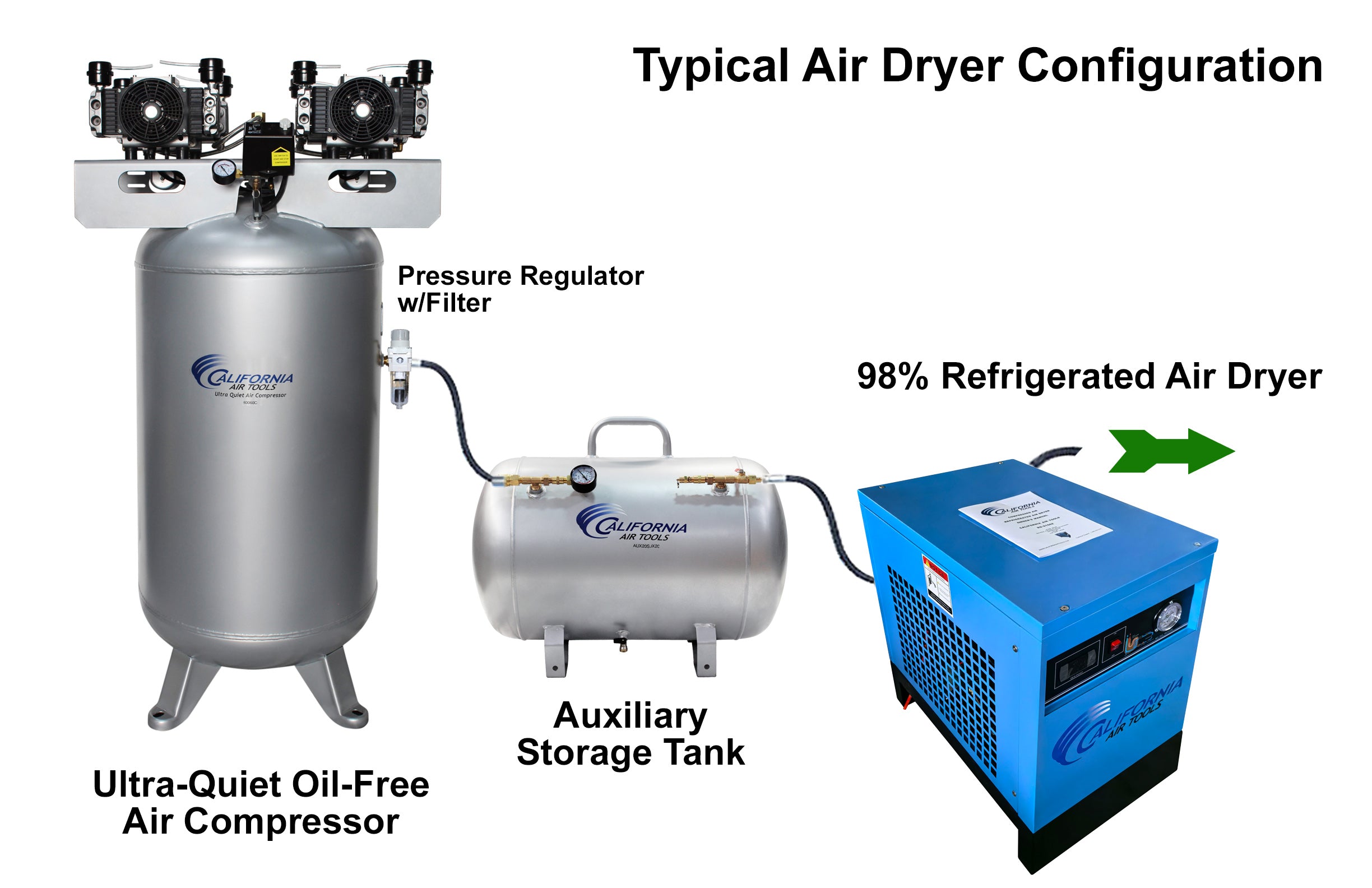

Installation Recommendations:
- Connect directly after your air compressor and before your tools.
- Use a 5-micron (minimum) filter between the compressor and dryer to protect against contaminants.
- Installing an auxiliary air tank between the compressor and dryer can help stabilize pressure.
Limitations:
- Not ISO 8573 compliant.
- Not suitable for applications requiring ultra-clean (0.01-micron) air or extremely low dew points below -29°F.
Effective, dependable moisture removal for a variety of industrial tasks.
