Description

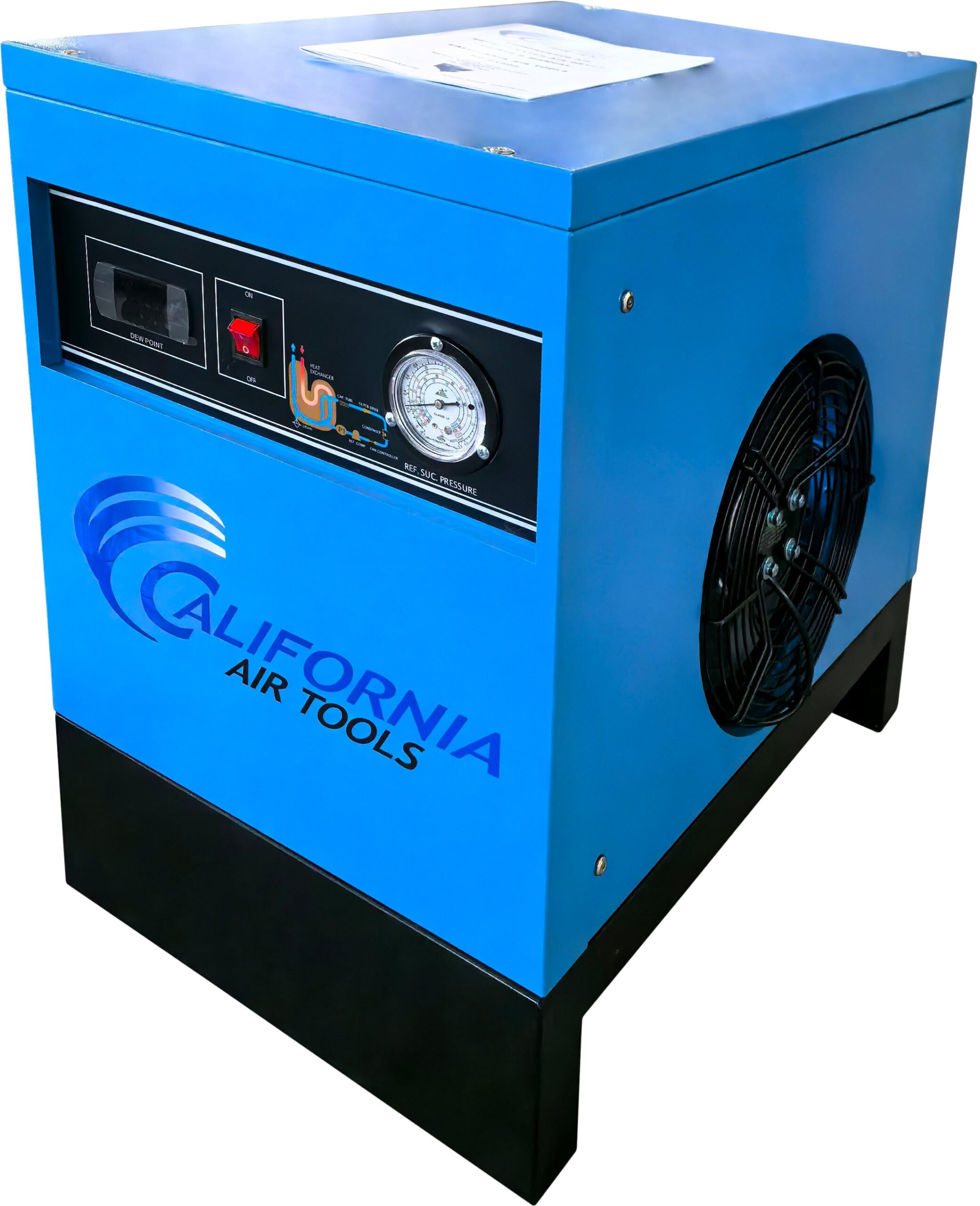

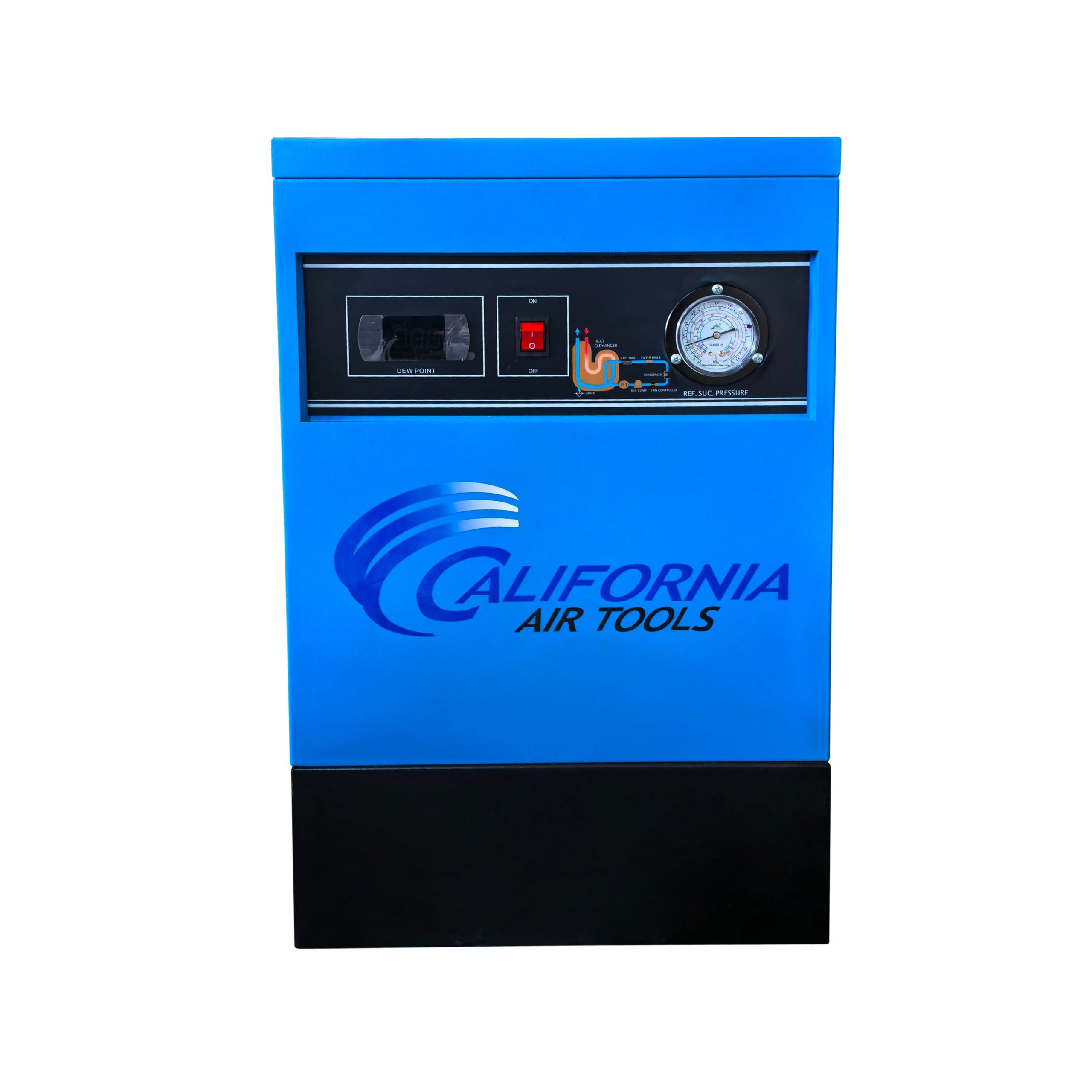

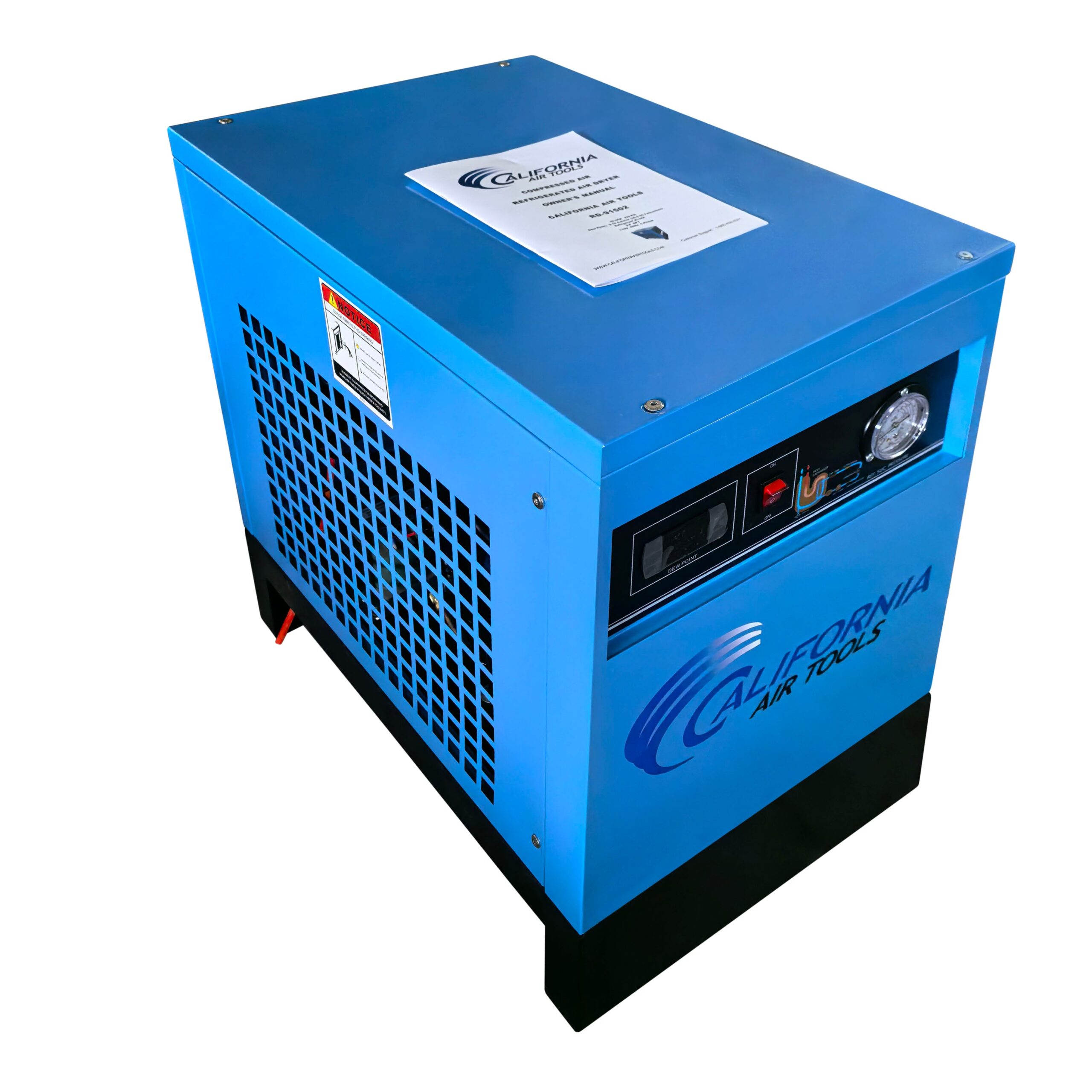

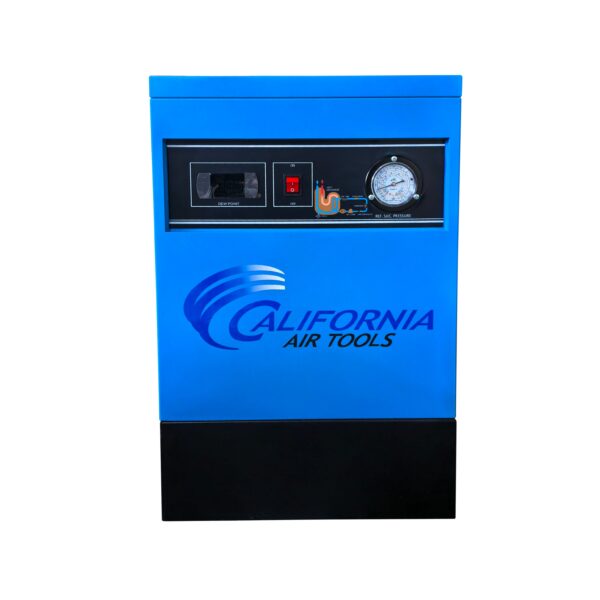

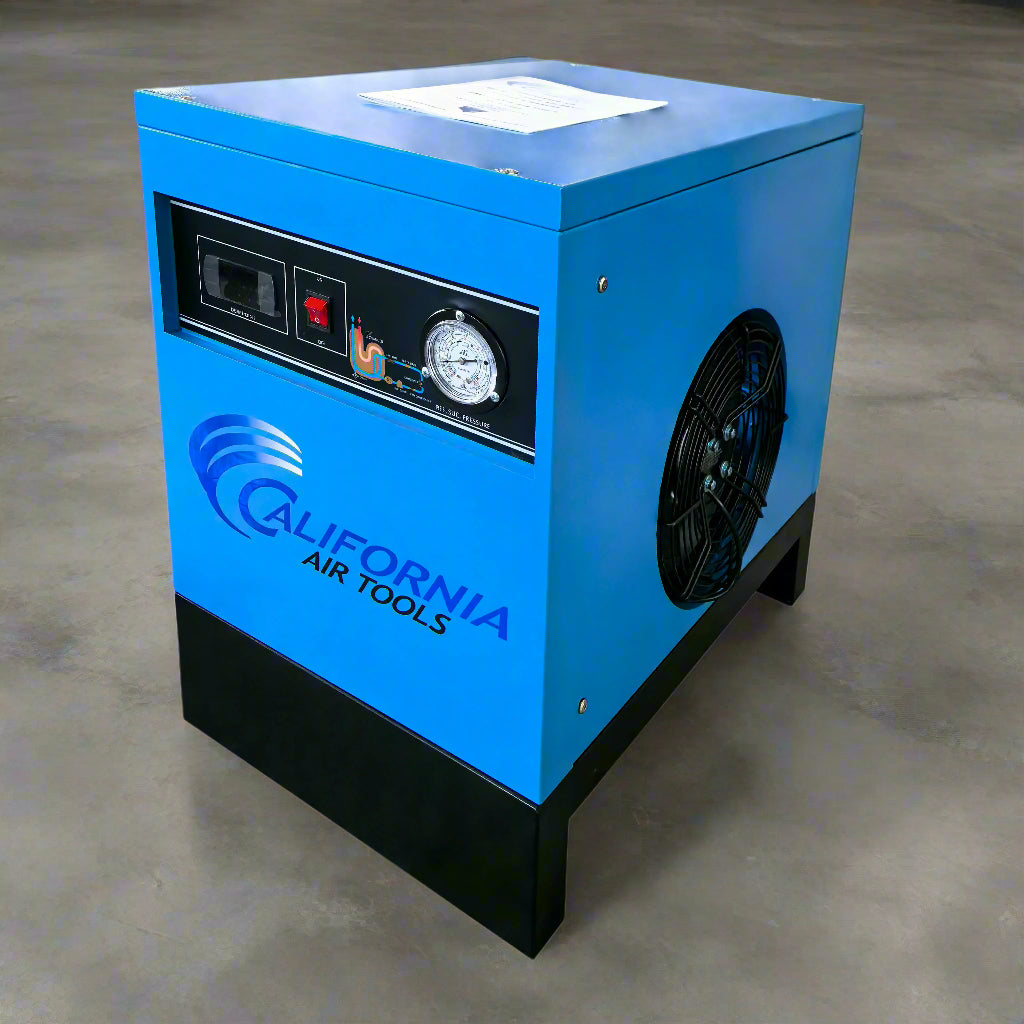

The California Air Tools RD-91502 High-Efficiency Refrigerated Air Dryer effectively removes up to 98% of moisture from compressed air, achieving a pressure dew point (PDP) between 35.6°F–50°F (2°C–10°C). Ideal for general industrial uses requiring reliable dryness.

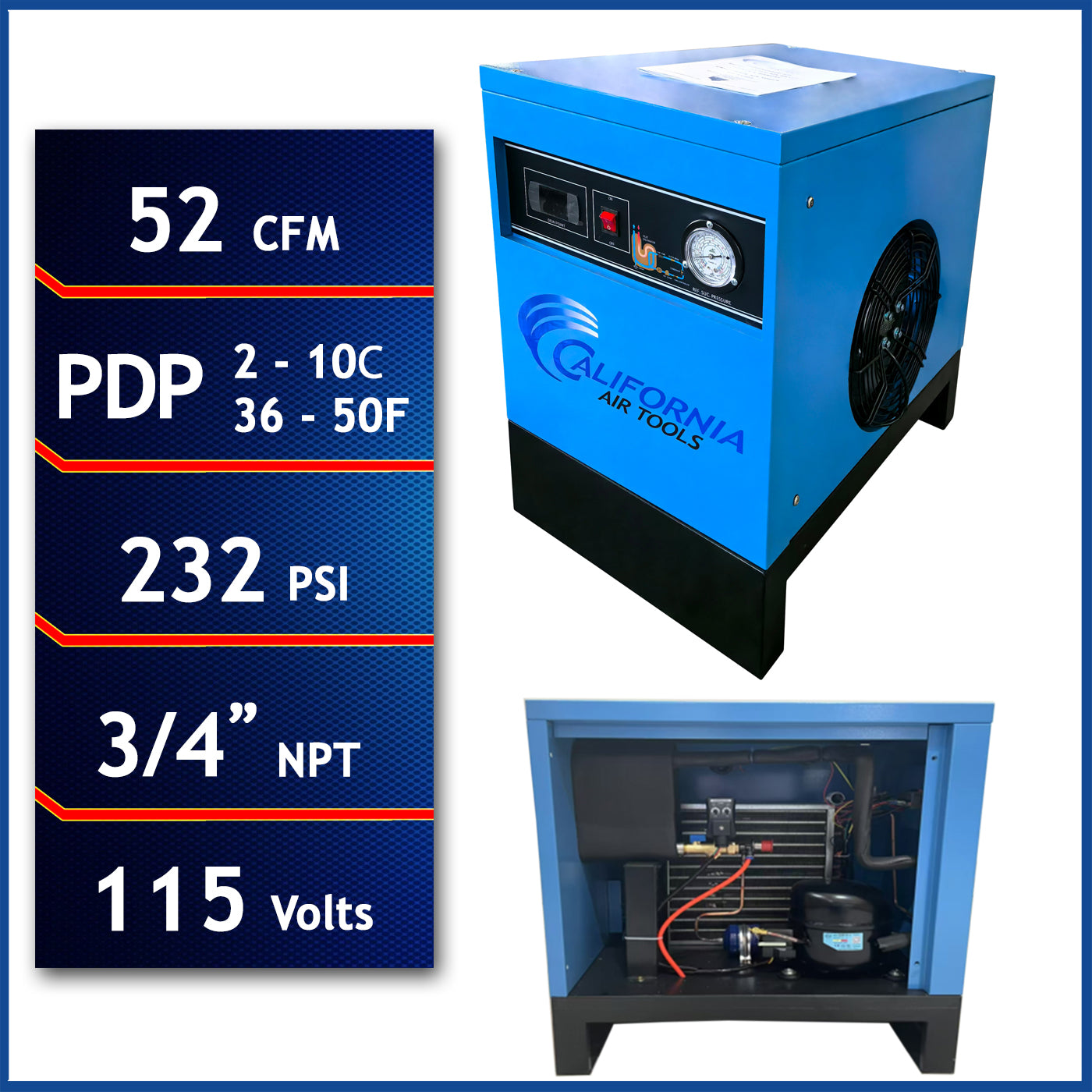

Key Specifications:
- Air Flow: 52 CFM
- Pressure Range: 45–232 PSI
- Max Inlet Temperature: 176°F
- Max Ambient Temperature: 104°F
- Voltage: 115V, 60Hz, Single-phase
- Power: 0.5 kW, 1.5A

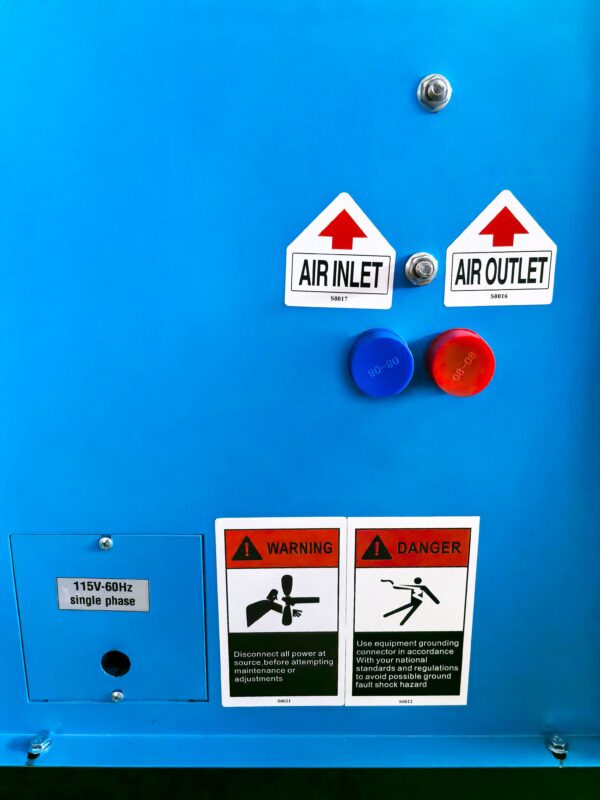

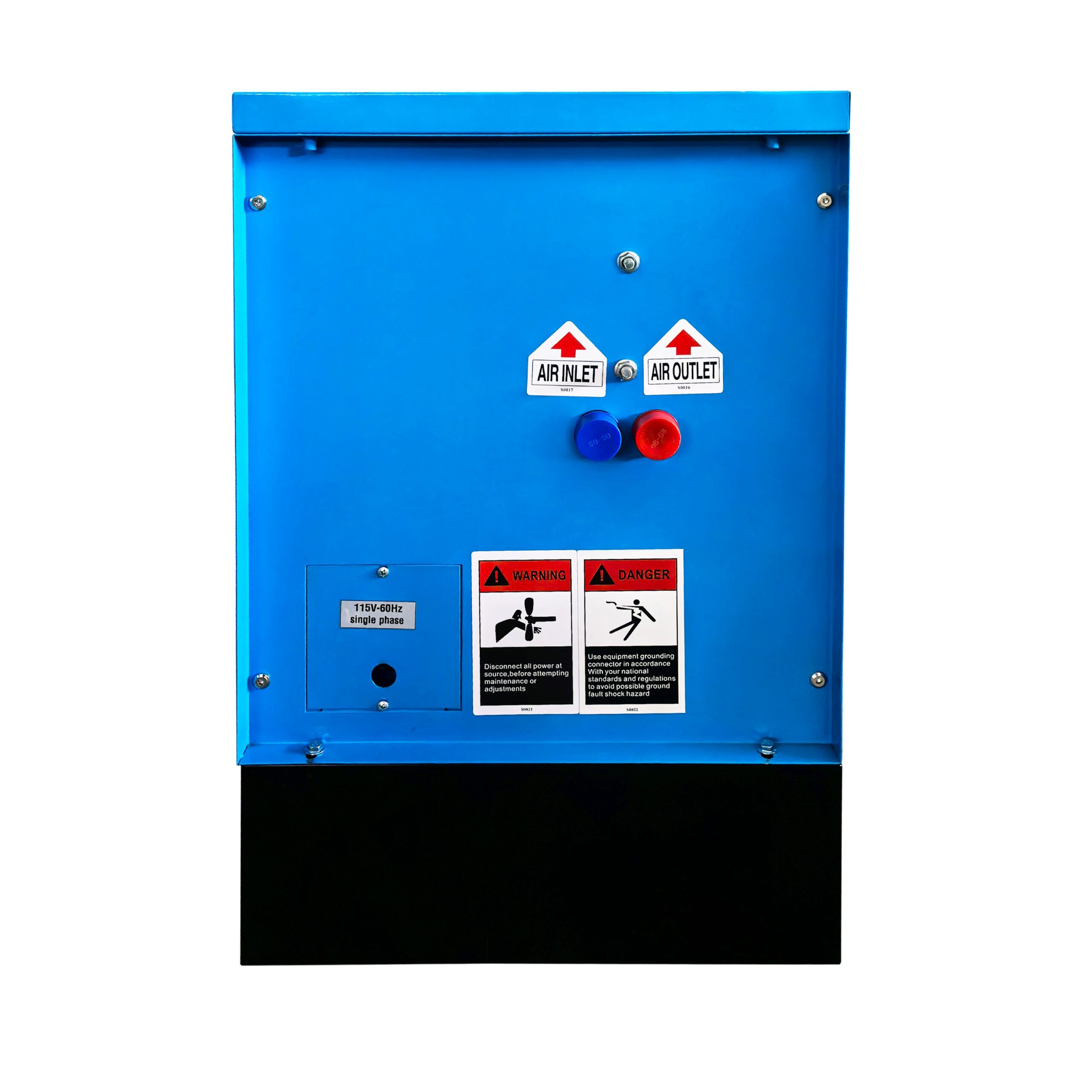

- Inlet/Outlet Size: 3/4″ NPT
- Refrigerant: R134A
- Weight & Dimensions: 88 lbs, 26.18″ L x 16.92″ W x 25.98″ H
- Warranty: 1-Year Limited

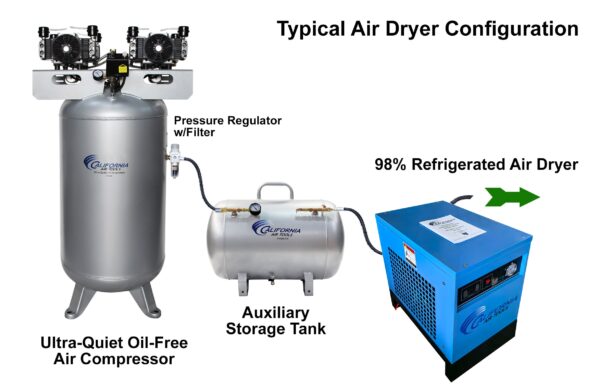

Installation Tips:
- Install directly after your air compressor.
- A filter (minimum 5-micron) is recommended between the compressor and dryer.
- Adding an auxiliary air tank before the dryer can stabilize pressure and reduce temporary pressure loss.
Limitations:
- Not ISO 8573 compliant.
- Unsuitable for applications requiring ultra-clean (0.01-micron) and very dry air (below -29°F PDP).
Reliable, efficient drying for most industrial applications.
