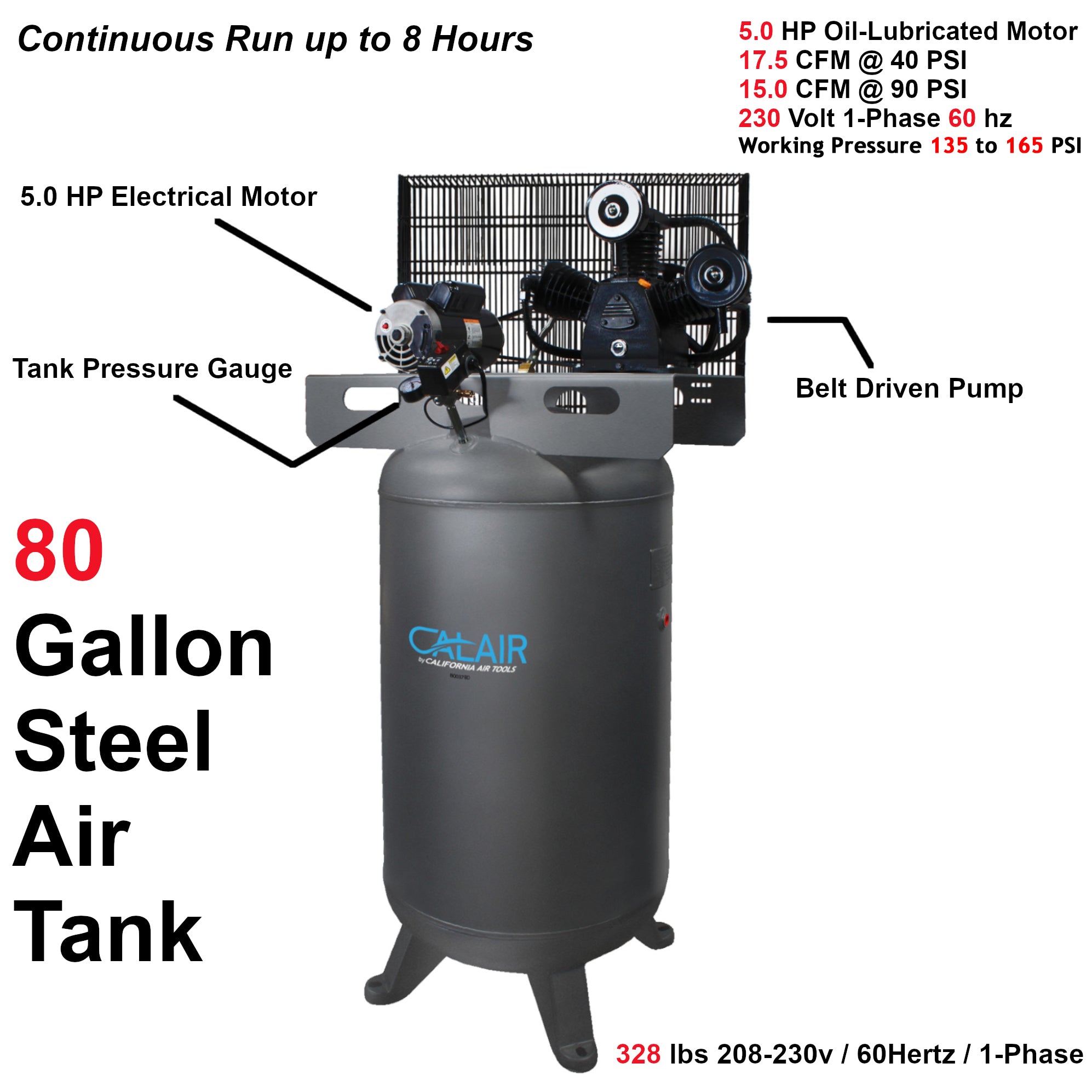

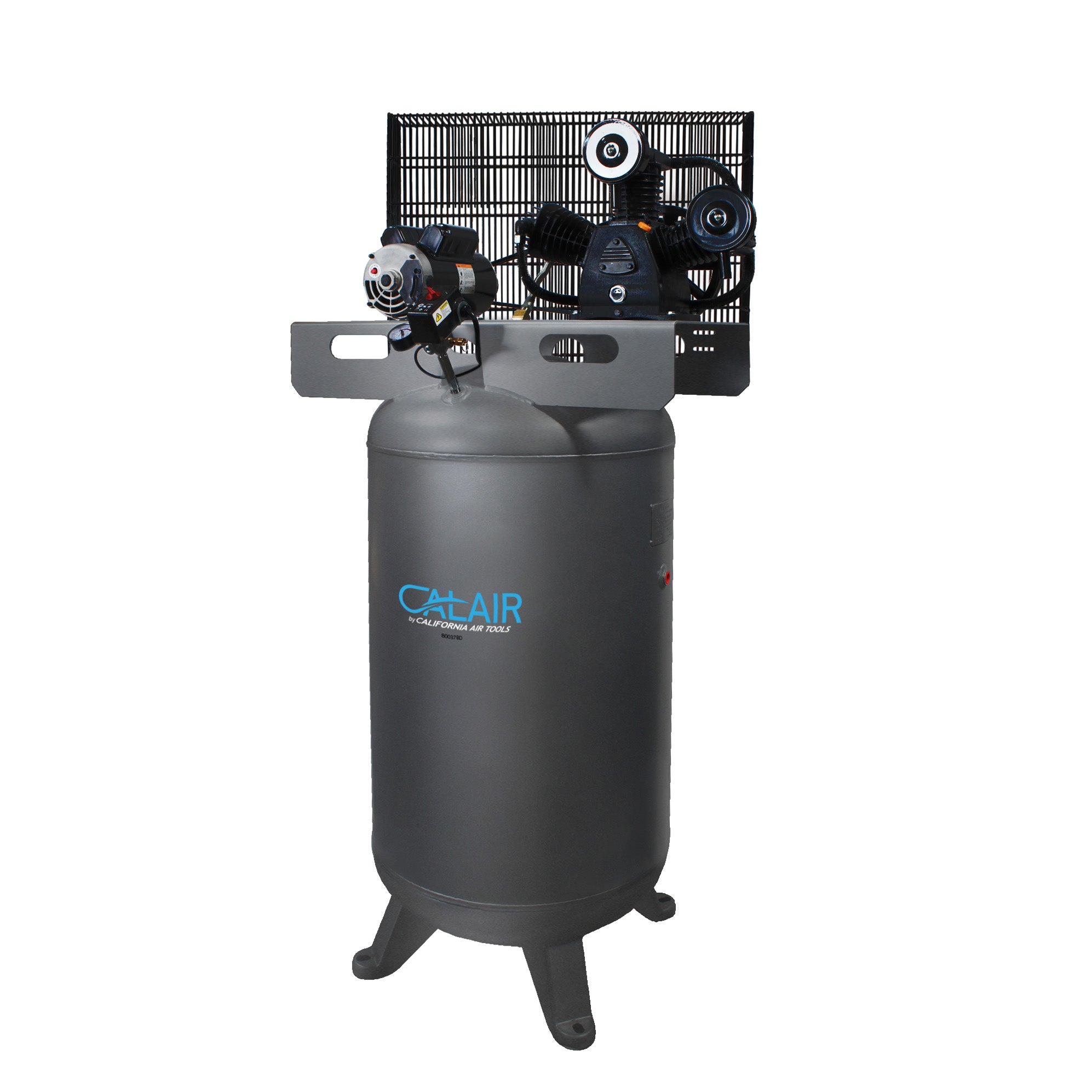

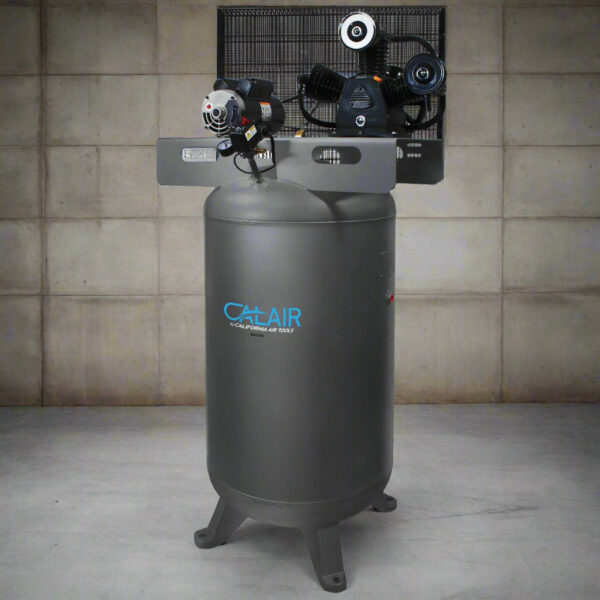

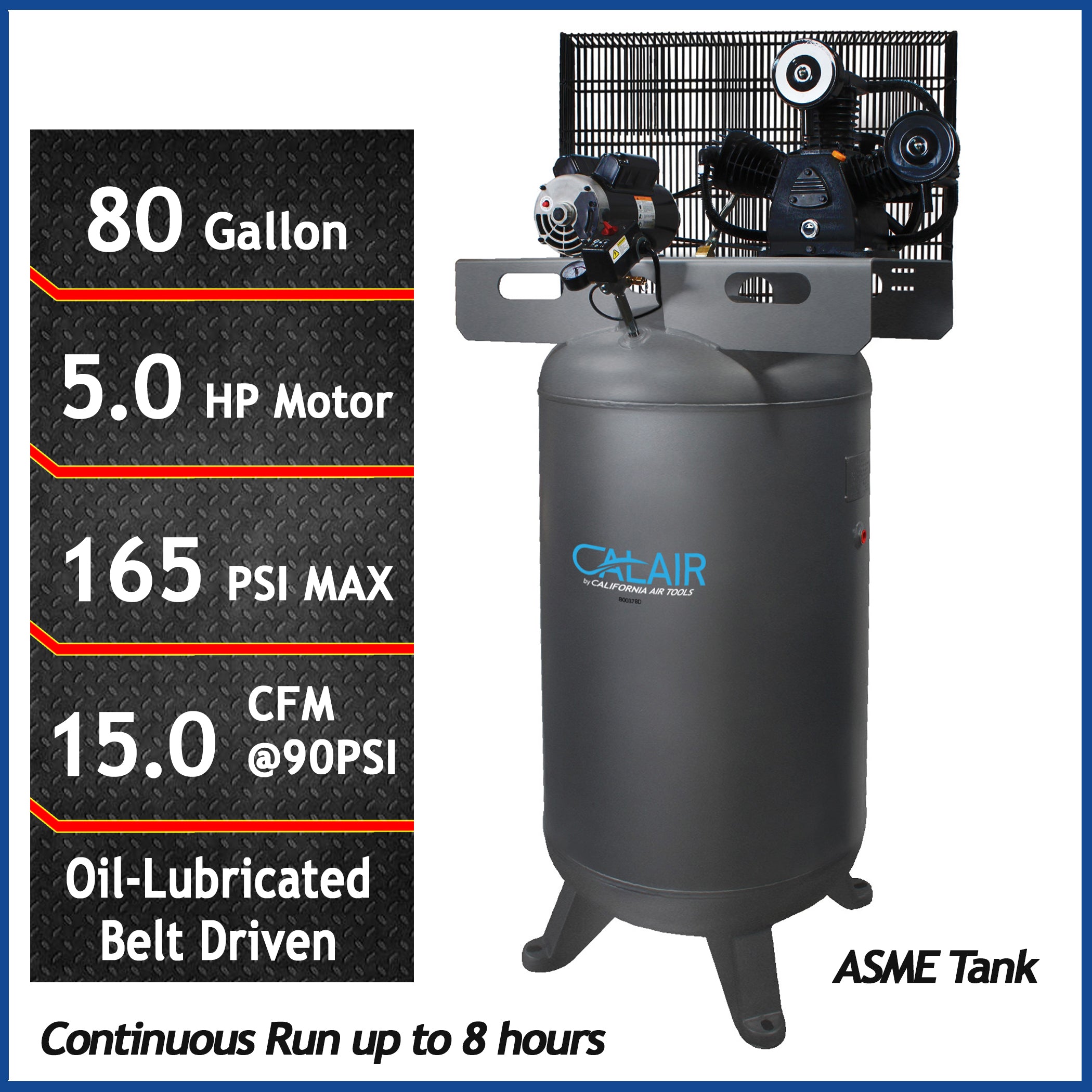

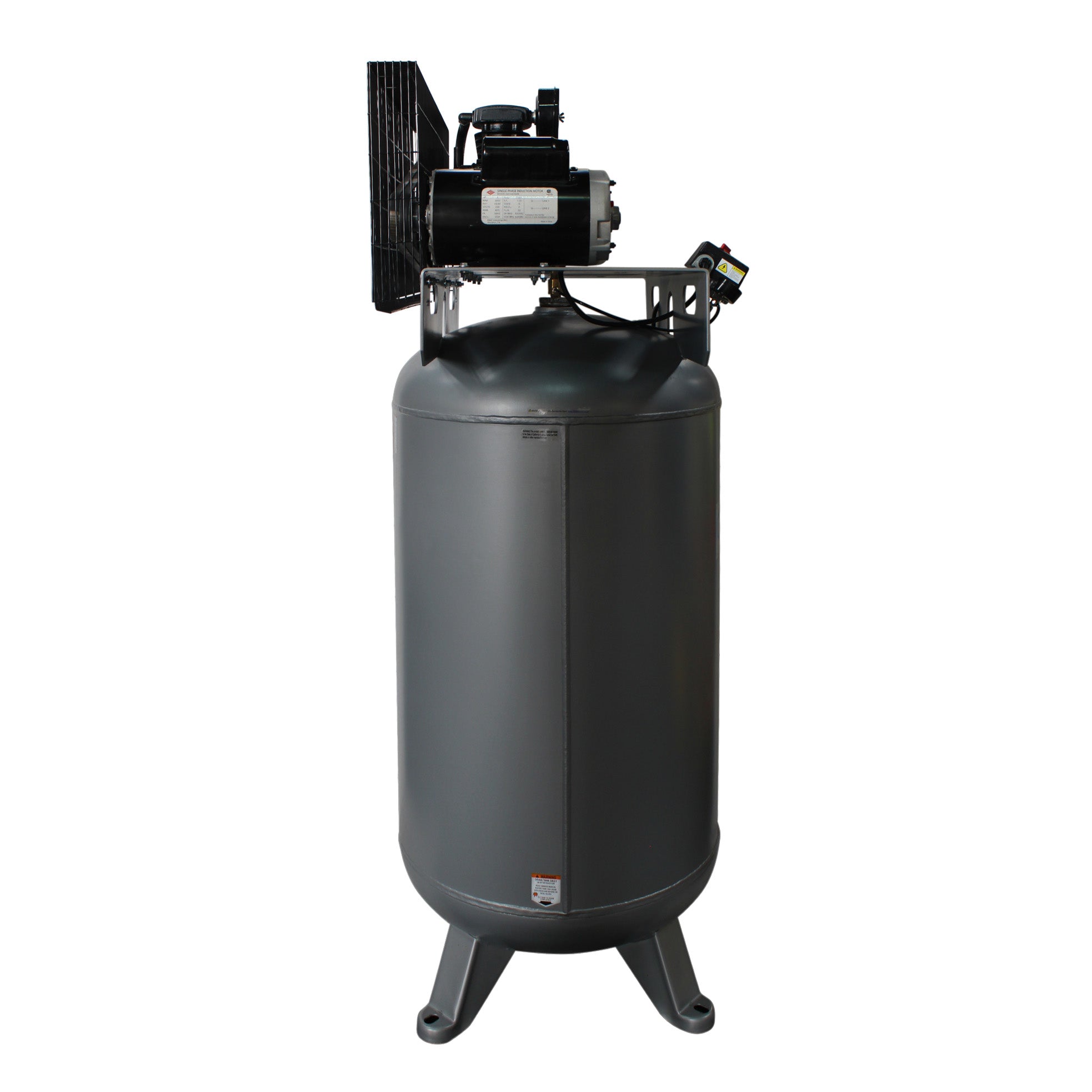

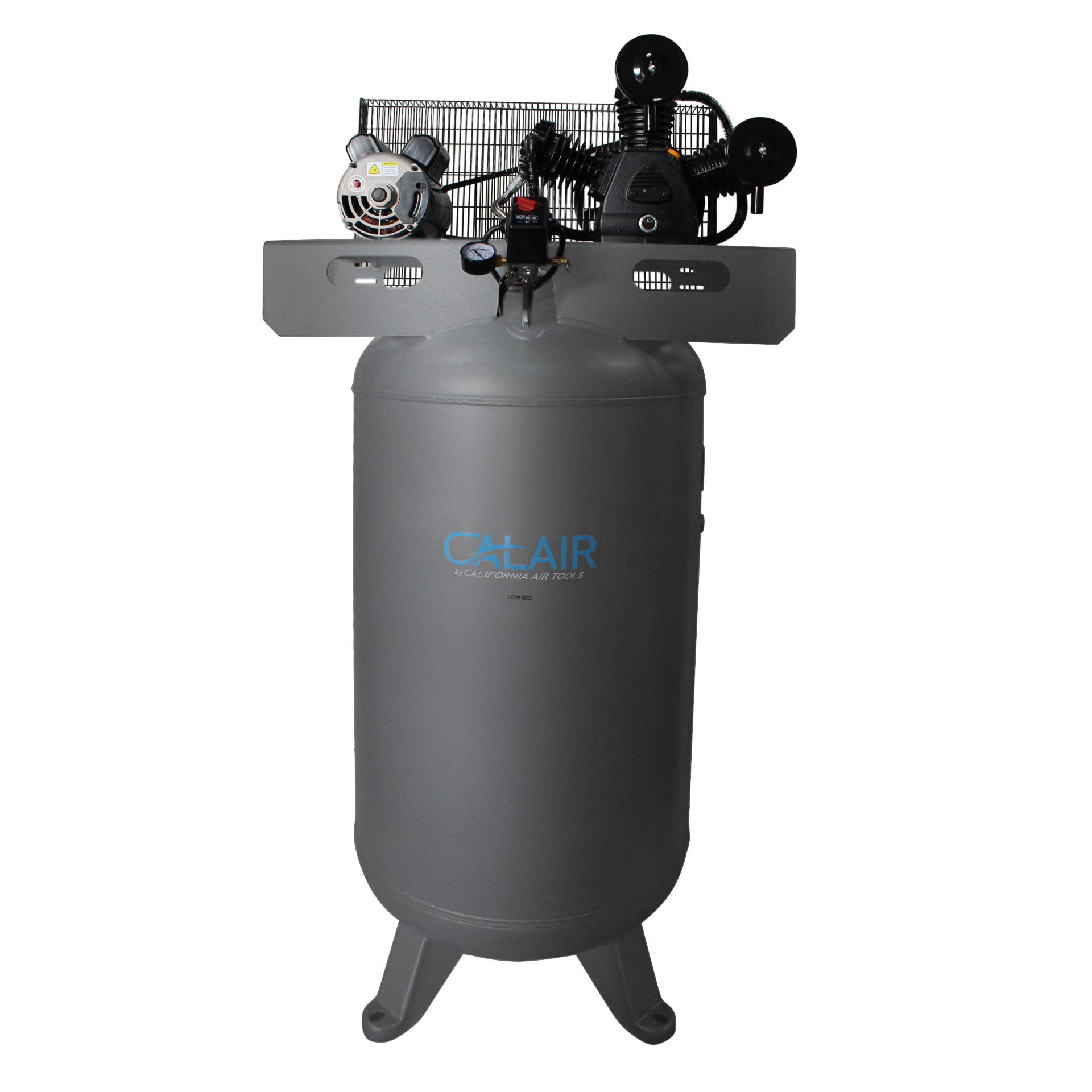

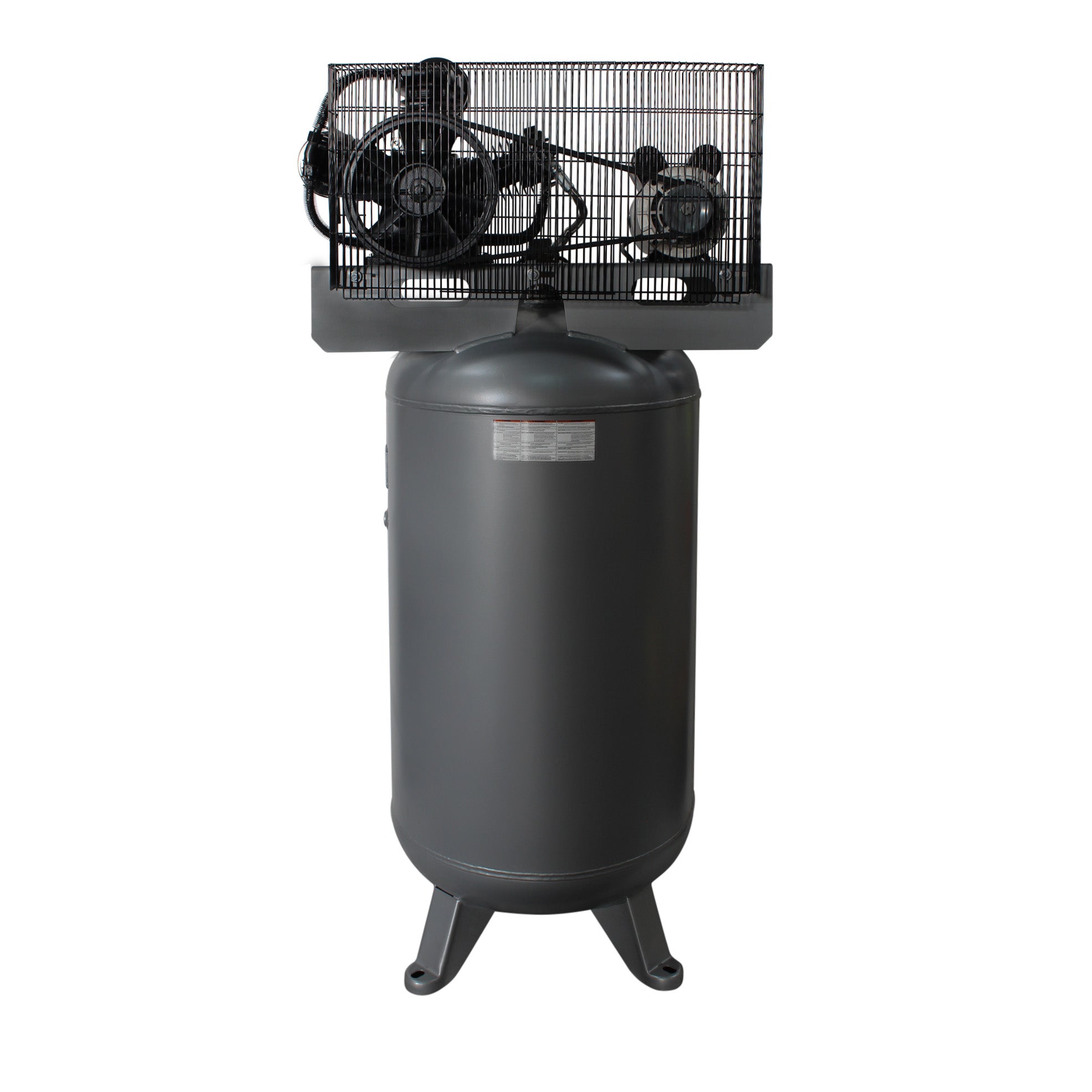

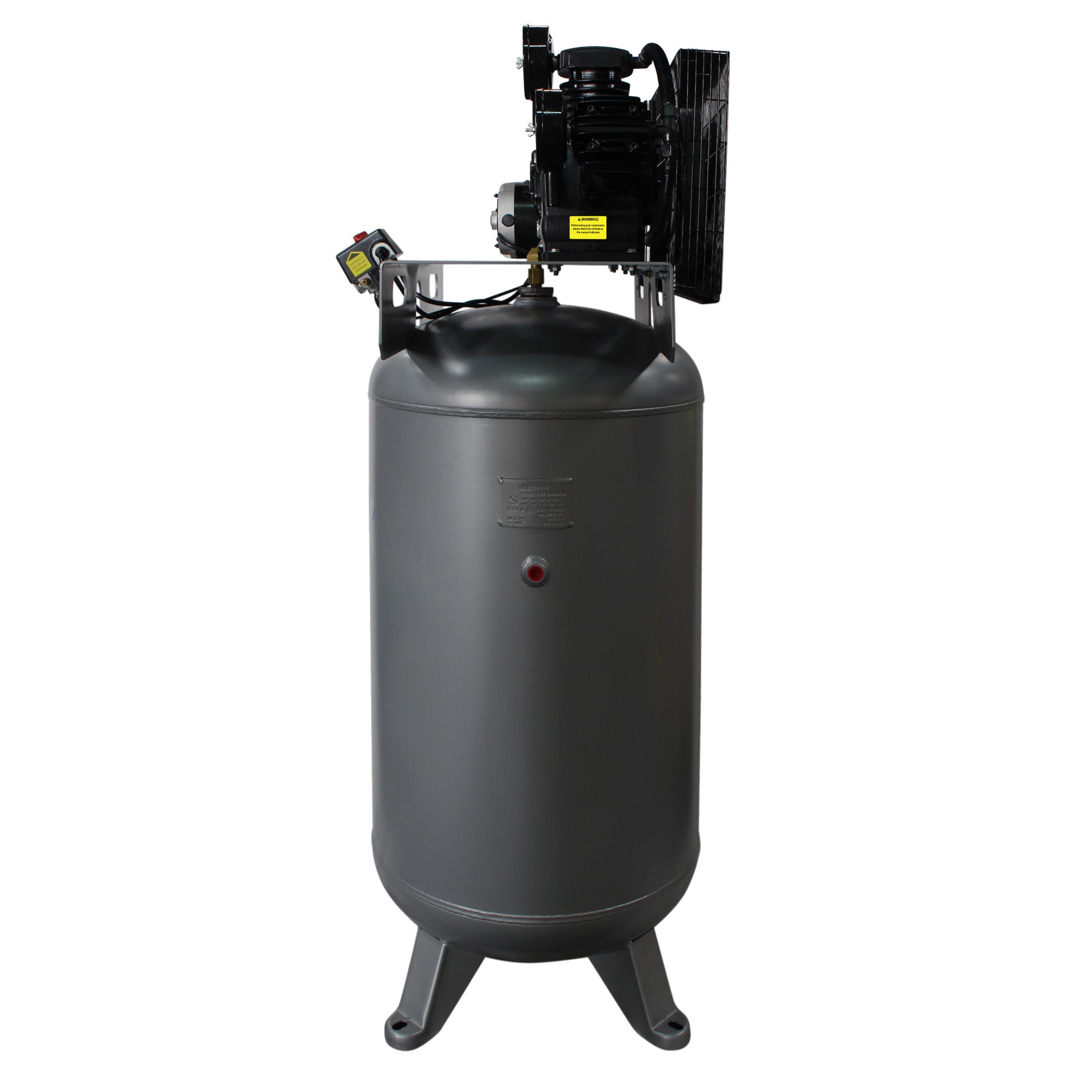

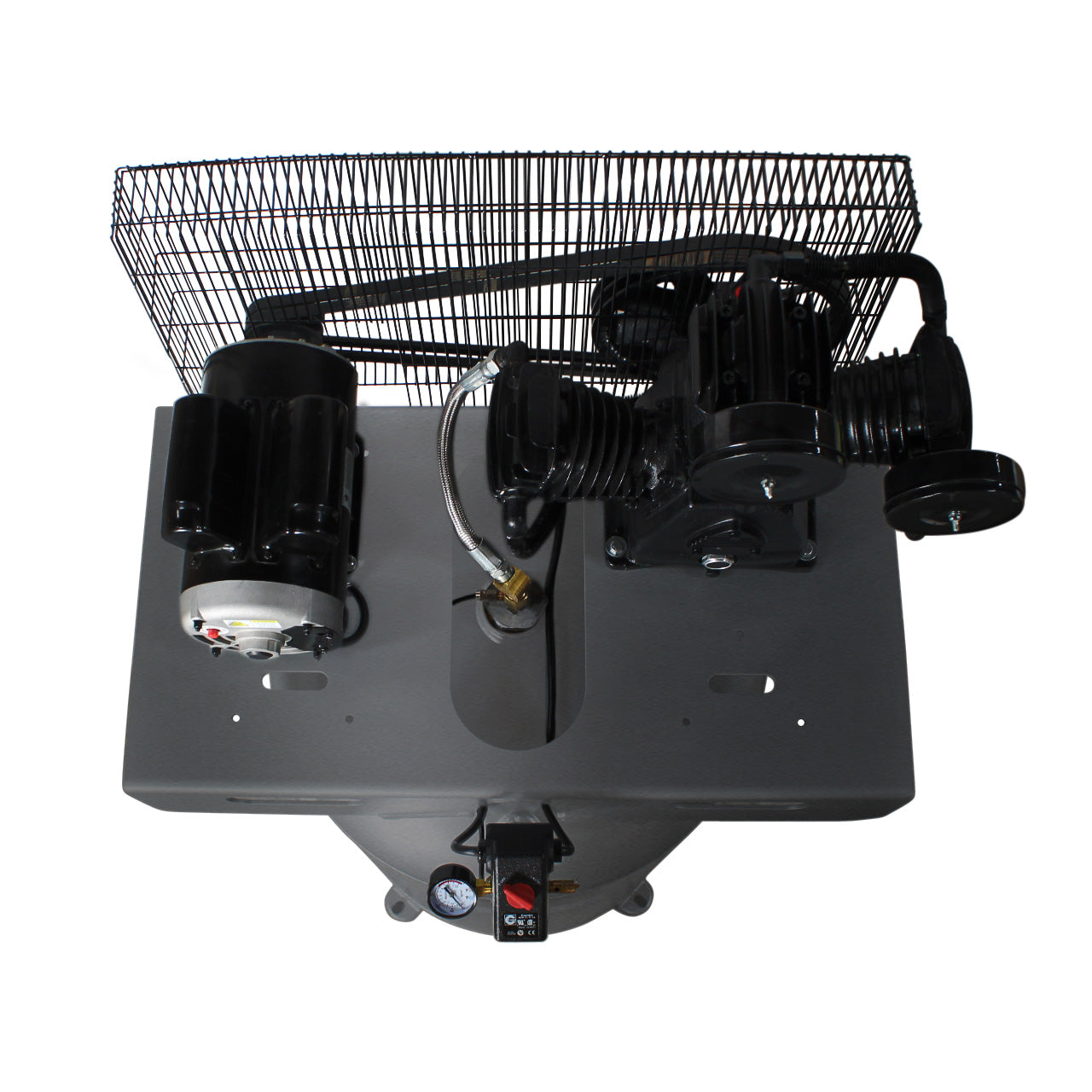

CALAIR 80 Gal 5.0 hp One-Stage Oil-Lubricated Belt Driven Air Compressor by California Air Tools

Description

The CALAIR 80050BD Continuous Run 5.0 HP Air Compressor is engineered for reliable performance in commercial and industrial environments, offering continuous operation up to 8 hours at 90 PSI. Its durable pump system ensures a maintenance interval between 5,000 and 10,000 hours of usage. The large 80-gallon ASME-certified steel tank is perfect for shops, warehouses, and factories.

Ideal Applications:

• Air Brushing
• Bolting
• Brad, Finish & Framing Nailing
• Cutting, Drilling & Grinding
• HVLP & Hobby Painting
• Inflation
• Roof Nailing
• Spraying & Stapling
• Trim & Impact Wrenching

Key Features:

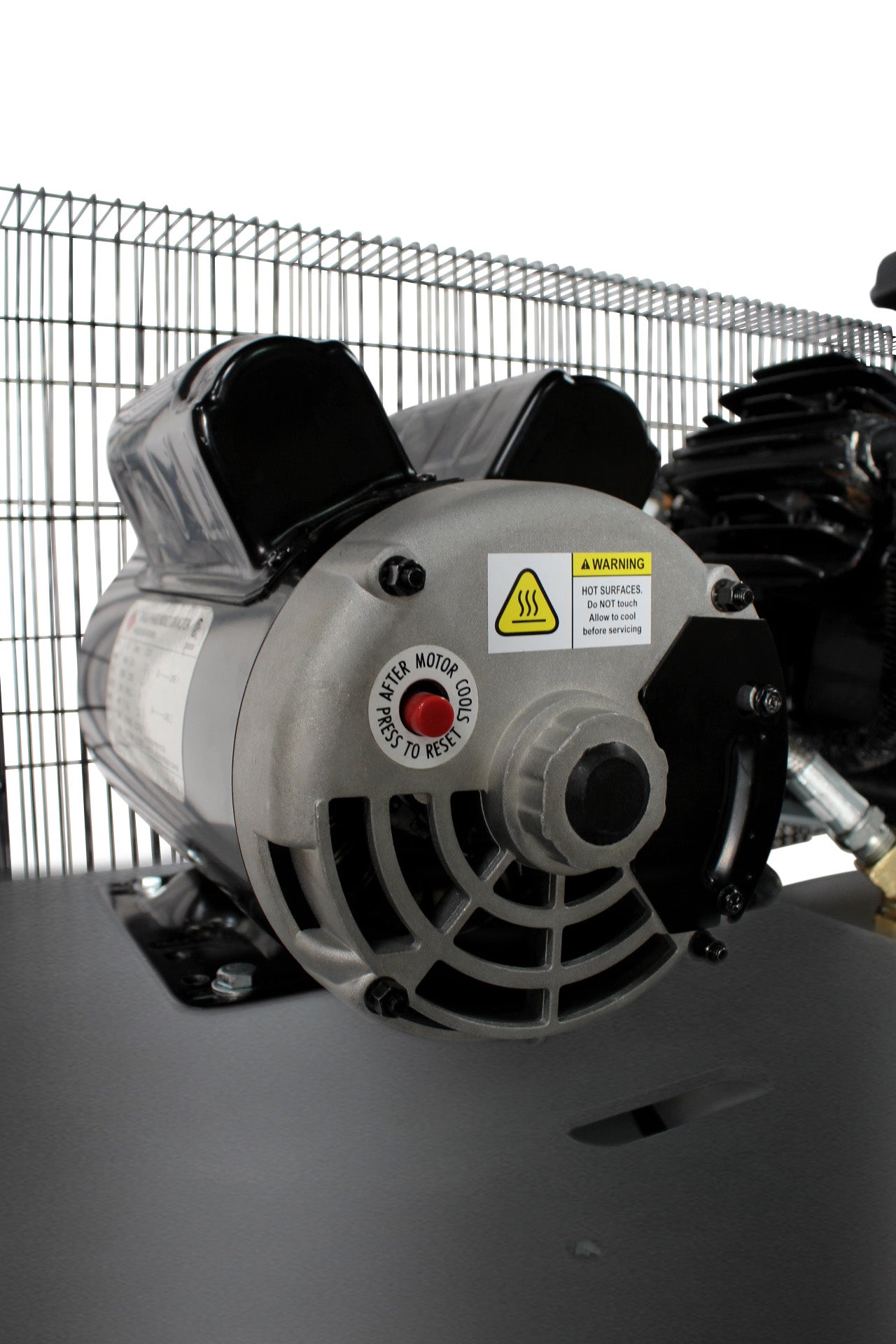

• 5.0 HP Motor with Reset Switch (1072 RPM)

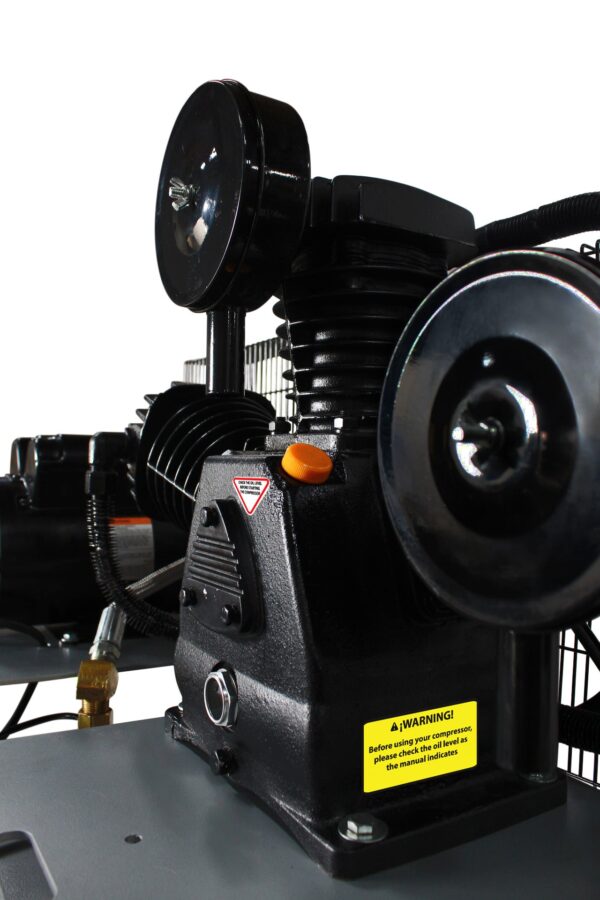

• Belt-Driven, Oil-Type Single Stage Pump (3 cylinders; Oil ISO 68/LDAB68)
• Pressure Gauge with 1/2″ NPT Output Valve Port (Note: Output Ball Valve & 125 PSI Pressure Regulator NOT included)

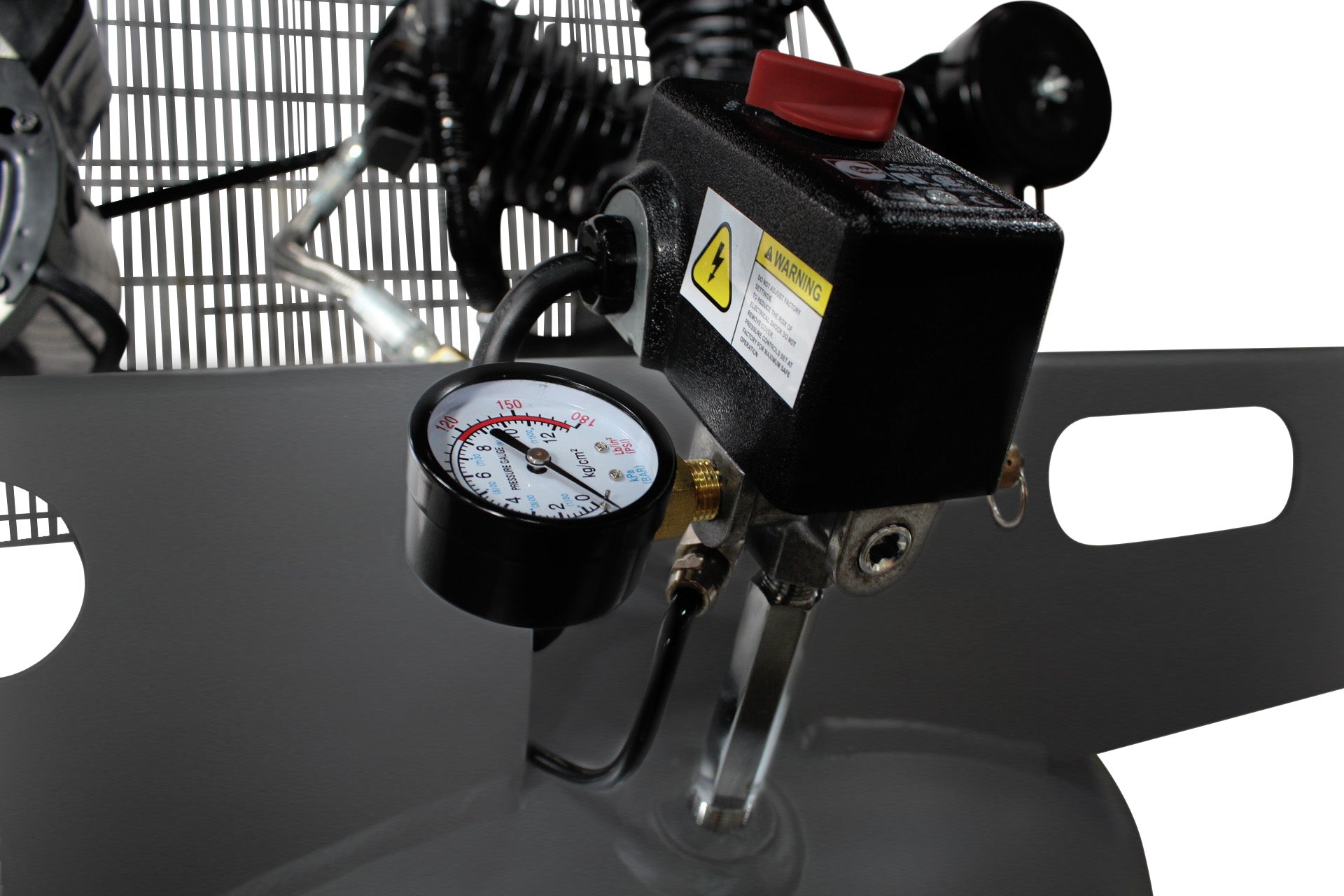

• Power On/Pressure Switch & Motor Thermal Overload Protector (trips at 135°C)
• Working Pressure: 135–165 PSI
• Voltage: 208V–230V / 60Hz / Single Phase
• Air Flow: 15.0 CFM @ 90 PSI; 17.5 CFM @ 40 PSI
• Continuous Run Time: 8 hours standard (10 hours max)

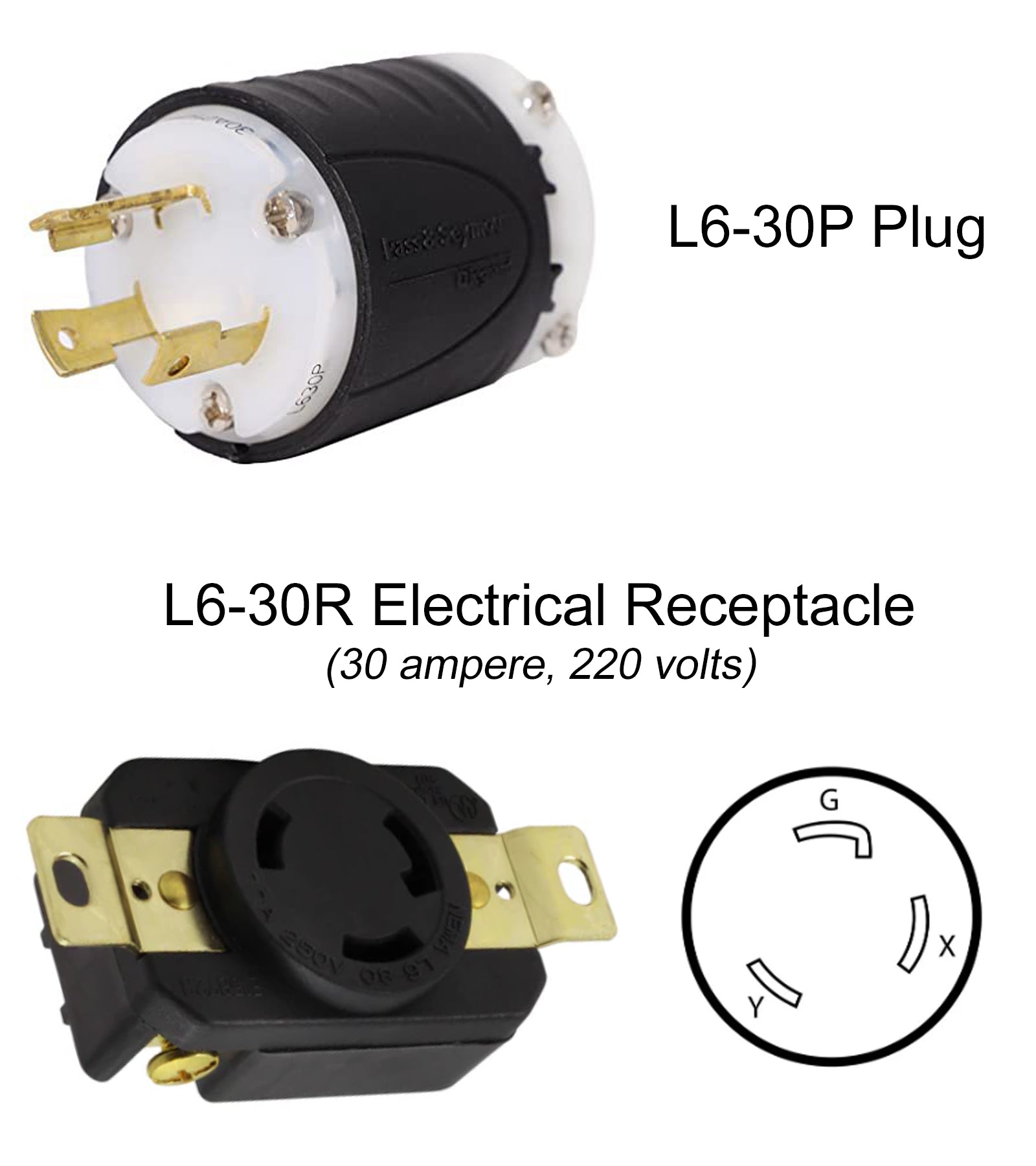

• Power Requirements: Dedicated 30-amp outlet (Plug: NEMA L6-30P, Receptacle: NEMA L6-30R)
• Maximum Operating Temperature: 36°F to 108°F
• Tank Fill Time (empty to 155 PSI): 7 min 50 sec
• Recovery Time (135 PSI to 165 PSI): 1 min 19 sec
• Noise Level: 90 dB
• Manual Ball Drain Valve & 200 PSI Safety Relief Valve

Dimensions & Weight:

• 35″ L x 28″ W x 68″ H
• 328 lbs (416 lbs shipping weight)

Warranty:

• Pump: 2-Year Limited Warranty
• All Other Components: 1-Year Limited Warranty

Assembled in Mexico with global components.
