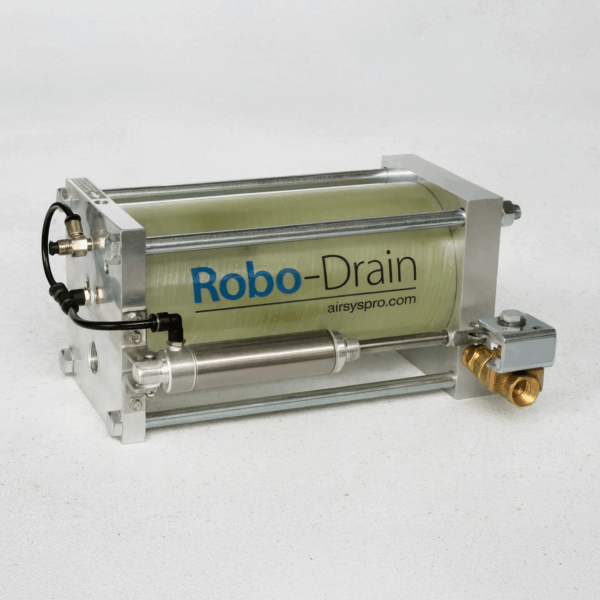

Air System Products Robo-Drain w/Test Button & Counter (RD11-T-C)

Description

RD11-T Robo-Drain – External Pneumatic Condensate Drain for Compressed Air Systems

The RD11-T Robo-Drain is a fully automatic, zero-loss condensate drain engineered to protect compressed air systems without the need for electricity. Its translucent reservoir provides quick visual confirmation of operation, ensuring your system is free from excess condensate. The RD11-T Robo-Drain is ideal for use alongside oil/water separators to maintain compliance, prevent damage, and ensure system efficiency.

Specific to Model:

• Inlets: (2) 3/4″ NPT (BSPP connections available)
• Outlet: 1/2″ NPT (BSPP connections available)
• Power: Clean, dry compressed air (80–130 PSI)
• Pressure Range: 0 to 250 PSI
• Operating Temperature: 32° to 180°F
• Weight: 17 lbs.
• Discharge Volume: 24 ounces per cycle

Key Features of the RD11-T Robo-Drain

• Large 24 oz. discharge capacity for efficient condensate removal
• Fully automatic operation – no manual draining required
• Isolated trigger assembly for dependable performance
• Non-clogging, full-port drain valve handles rust and scale
• Translucent reservoir for quick inspection
• Horizontal low-profile design fits in tight spaces
• Heavy-duty industrial construction for long service life
• NPT or BSPP connections for installation flexibility

Benefits of the RD11-T Robo-Drain

• Ideal for most compressor installations
• Reliable and contamination-resistant design
• One unit serves multiple compressed air systems, saving air and reducing operating costs
• Quick-check reservoir makes maintenance simple
• Installs easily under equipment in confined spaces
• Operates on demand, preventing unnecessary cycling
• No electricity required, reducing installation complexity

How the RD11-T Robo-Drain Works

Condensate enters through one of two inlets. As the translucent reservoir fills, a stainless steel float mechanism rises to a preset level, triggering the magnetic trigger assembly. This directs control air to the valve actuator, opening the full-port drain valve to discharge condensate. When the reservoir empties, the float drops, closing the air line and sealing the ball valve, returning the unit to collection mode.

Construction Materials

• Reservoir: Aluminum and composite
• Valve: Bronze with stainless steel ball and stem
• Float: Stainless steel
• Seat: Stainless steel
• Seal: Viton®

The RD11-T Robo-Drain delivers maintenance-friendly, energy-efficient condensate removal for a wide range of compressed air system applications.
