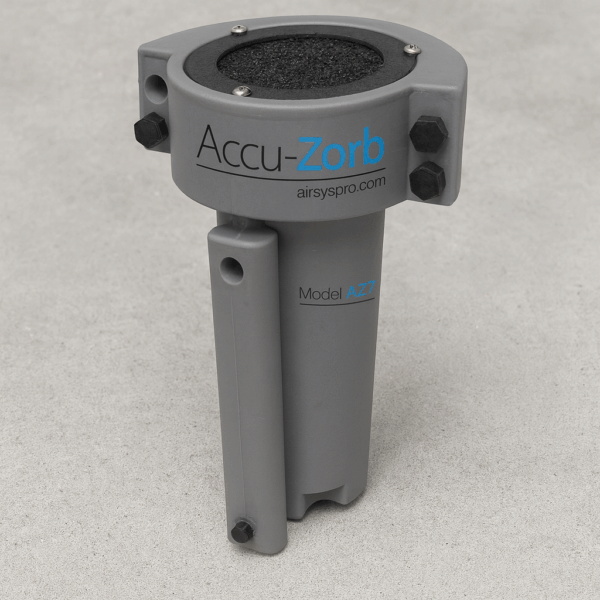

Air System Products Accu Zorb Model AZ07 Oil/Water Separator

Description

Accu-Zorb 7 – Oil/Water Separator for Compressed Air Systems

The Accu-Zorb 7 is engineered for smaller compressed air systems and is compatible with most compressor lubricants. Built for 24-hour continuous operation, this separator requires no electricity and contains no moving parts, making it exceptionally reliable and low-maintenance.

Features

• Compact design for space-efficient installation
• Built with non-corrosive materials for long service life
• Proprietary media for enhanced separation efficiency
• Multiple inlet diffuser for versatile system integration
• Removable mist eliminator for easy cleaning
• Mounting bracket included for quick installation
• High-capacity separator media for extended performance

Benefits

• Perfect for small compressed air systems
• Low maintenance and easy to service
• Clog-free operation for extended uptime
• Accepts condensate from multiple sources
• Quick access to separator media for easy replacement
• Simple wall mounting with included bracket
• Sized for one-year media life under normal use

How It Works – Multi-Stage Separation Technology

The Accu-Zorb AZ7 processes condensate through multiple stages to remove even trace quantities of lubricants:

1. Initial De-energizing & Demisting – Condensate enters the upper section where it is de-energized, allowing air to separate. Displaced air passes through a demisting filter that captures mist and droplets.
2. Media Separation – Condensate gravity-flows through a proprietary separation media that removes lubricating oils from the water.
3. Final Polishing & Discharge – The treated condensate passes through the final stage, where remaining impurities are removed before polished condensate is discharged from the vessel.

This process ensures compliance with environmental standards by significantly reducing oil content before condensate is released, protecting both your equipment and the environment.
