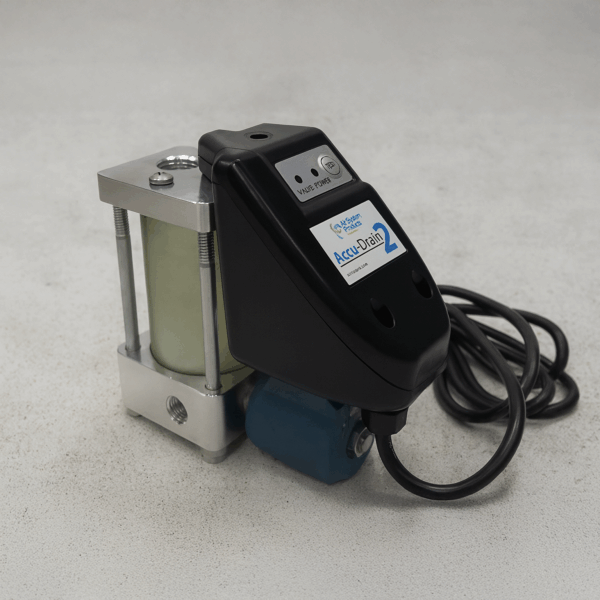

Air System Products Accu-Drain Model ACD2

Description

The ACD2 Zero Loss Drain is a fully automatic, energy-efficient condensate drain specifically engineered for compressed air systems, activating only when necessary to significantly reduce utility costs. Featuring a translucent reservoir, it provides a quick and clear visual confirmation of operation and status, ensuring reliable system performance.

Key Features of the ACD2 Zero Loss Drain:

• Zero Air Loss technology prevents unnecessary air discharge, conserving energy.
• Non-clogging, guillotine-style Posi-Valve with straight-through flow for consistent drainage.
• Compact, vertical design ideal for installation in tight or confined spaces.
• Clear, translucent reservoir for effortless visual monitoring of condensate levels.
• Dual indicator lights provide clear visibility of power and valve operational status.
• Available in multiple sizes to accommodate a variety of compressed air system requirements.

Benefits of Using an ACD2 Condensate Drain:

• Energy-efficient operation—activates only upon reaching a preset condensate level.
• Effectively manages rust and scale, preventing fouling without the need for strainers.
• Ideal space-saving installation for tight or compact environments.
• Rapid visual checks facilitated by the clear reservoir design.
• Immediate status updates via visible indicator lights.
• Multiple sizing options tailored precisely to meet your operational demands.

How the ACD2 Removes Condensate from Compressed Air Systems:

Condensate enters the drain through one of two inlet connections and accumulates in the translucent reservoir. As the reservoir fills, a stainless steel float switch rises to a predetermined level, triggering the straight-flow Posi-Valve to open, releasing condensate through a full-port drain.

Upon activation, indicator lights clearly signal both power availability and valve operation. Additionally, a manual override switch provides enhanced operational flexibility when necessary.

Material Composition for Durability and Reliability:

• Reservoir: Aluminum & Composite
• Control Stem: Teflon Coated
• Float: Stainless Steel
• Valve: Brass

ACD2 Condensate Drain Specifications:

• Inlets: 1/2″ NPT
• Outlet: 1/4″ NPT
• Compressor Capacity: 500 CFM
• Dryer Capacity: 1000 CFM
• Filter Capacity: 3000 CFM
• Pressure: 0 – 200 PSI
• Operating Temperature: 32° – 180° F
• Weight: 2.6 lbs.
• Discharge: 1.5 ounces per cycle
• Voltage: 115 (includes 6′ power cord)

Optimize your compressed air system performance and minimize maintenance with the ACD2 Zero Loss Drain—your trusted solution for efficient, worry-free condensate management.
