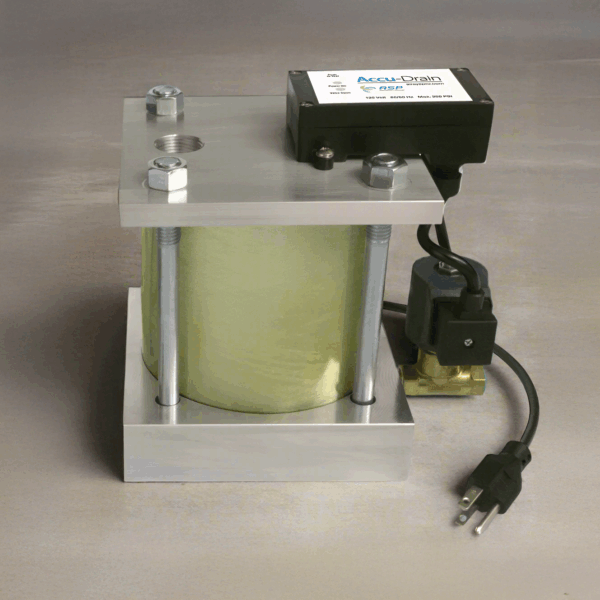

Air System Products Accu-Drain ACD5 w/ Alarm Contact

Description

The ACD5 Zero Loss Drain is a fully automatic, energy-efficient condensate drain engineered to optimize compressed air systems by operating only when necessary, significantly reducing utility expenses. Its translucent reservoir provides immediate visual assurance of proper operation, ensuring confidence and reliability.

ACD5 Model Specifications:

• Inlets: 3/4″ & 1/2″ NPT
• Outlet: 1/4″ NPT
• Compressor Capacity: 2000 CFM
• Dryer Capacity: 4000 CFM
• Filter Capacity: 12,000 CFM
• Pressure: 0 – 200 PSI
• Operating Temperature: 35° – 180° F
• Weight: 10 lbs.
• Discharge: 21 ounces per cycle
• Voltage: 115 (includes 6′ power cord)

Key Features:

• Zero Air Loss – activates exclusively when condensate reaches preset levels.
• Non-clogging, straight-through flow with Posi Valve guillotine-style valve.
• Compact vertical design ideal for installations in confined spaces.
• Translucent reservoir offers easy monitoring of condensate levels.
• Clear indicator lights confirm power and valve operation status.
• Available in multiple sizes to precisely match system requirements.

Benefits:

• Energy-efficient, reducing unnecessary air loss and operating costs.
• Effectively handles rust and scale that typically clog conventional solenoid valves—no strainers to clean.
• Ideal for installation in limited or tight spaces.
• Quick visual checks provided by the easy-to-see translucent reservoir.
• Immediate status updates through clear, visible indicator lights.
• Designed to fit specific operational demands and capacities.

How the ACD5 Removes Condensate: Condensate enters the drain via one of two inlet connections, collecting in the translucent reservoir. As condensate accumulates, a stainless steel float switch rises, signaling when it reaches the preset level. The float switch then activates the straight-flow Posi Valve, opening a full-port drain to discharge condensate efficiently.

A dedicated indicator light illuminates to show the drain has power, while a second indicator clearly signals when the valve has been actuated by the float switch. Additionally, a manual override switch provides operational flexibility when needed.

Material Composition:

• Reservoir: Aluminum & Composite
• Control Stem: Teflon Coated
• Float: Stainless Steel
• Valve: Brass

Ensure optimal performance and minimized maintenance with the reliable, efficient ACD5 Zero Loss Drain, the ideal condensate management solution for your compressed air system.
