Air System Products 750 PSI Stainless Steel Robo-Drain w/ Test Button

Description

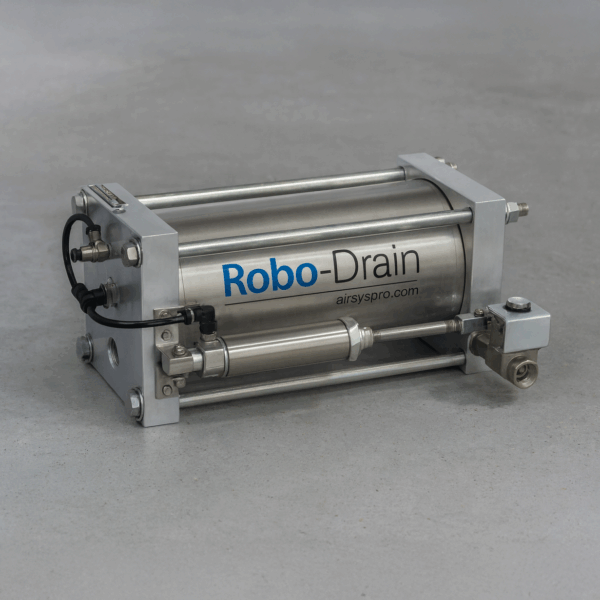

RD750 Robo-Drain – External Pneumatic Operated High-Pressure Condensate Drain

The RD750 Robo-Drain is a fully automatic, high-pressure, zero-loss condensate drain designed for demanding compressed air applications. Built with a durable 304 stainless steel reservoir and a horizontal, low-profile design, it operates without electricity, making it reliable in any environment. Engineered for systems up to 750 PSI, this heavy-duty industrial drain delivers dependable performance while preventing costly air loss.

Specific to Model:

• Inlets: (2) 3/4″ NPT
• Outlet: 1/2″ NPT
• Power: Clean, dry compressed air (80–130 PSI)
• Pressure Range: 0 to 750 PSI
• Operating Temperature: 32° to 180°F
• Weight: 22 lbs.
• Discharge Volume: 24 ounces per cycle

Key Features

• Large 24 oz. discharge capacity for high-volume condensate removal
• Fully pneumatic – no external power required
• Isolated trigger assembly for positive operation
• Non-clogging, full-port drain valve handles rust and scale
• Stainless steel reservoir for long-lasting durability
• Horizontal low-profile design fits under equipment and in tight spaces
• Automatic on-demand operation for efficiency

Benefits

• Ideal for high-pressure compressor installations
• Reliable – unaffected by contaminants and debris
• One unit works across multiple compressed air systems
• Prevents air loss, saving energy and operating costs
• Handles rust, scale, and other particulates without clogging
• Operates in confined spaces for flexible installation
• No electricity needed, reducing installation complexity

How It Works

Condensate enters the drain through one of two inlet connections. As liquid collects, the stainless steel float rises inside the reservoir. Once condensate reaches a preset level, the float activates an isolated magnetic trigger assembly. This sends control air to the valve actuator, opening the full-port stainless steel drain valve and discharging condensate. When the reservoir empties, the float drops, the control air closes, and the ball valve seals—returning the unit to collection mode.

Construction Materials

• Reservoir: 304 Stainless Steel
• Valve: Stainless steel with stainless steel ball and stem
• Float: Stainless steel
• Seat: Stainless steel
• Seal: Viton®

The RD750 Robo-Drain is the energy-efficient, maintenance-friendly solution for high-pressure condensate removal, ensuring zero air loss and reliable performance in the toughest applications.
